Need help with Vacuum hoses, EA82T


  • Please log in to reply
13 replies to this topic

#1 areez

areez

    New User

  • Members
  • PipPip
  • 28 posts
  • Uppsala

Posted 11 February 2010 - 05:36 PM

Ill need alot of help with the vacuum hoses in my EA82T Subaru RX 1988.

I have uploaded some pics with the lines i dont know where they should go.

Can someone please take a picture of these lines or a good drawing where they should go and so on :)

The car is being sold this weekend thats why i want it fixed.
Cant find any good picture on the net.

The black plastic T-cross on the second picture i dont think should be there
but all help with the lines would be great !

Attached Files



#2 Cougar

Cougar

    Elite Master of the Subaru

  • Members
  • 6,340 posts
  • Anchorage

Posted 11 February 2010 - 11:00 PM

Is there a drawing of the vacuum lines on the bottom side of the hood?

#3 CHIM

CHIM

    I think i can break that.

  • Members
  • 366 posts
  • Oregon

Posted 11 February 2010 - 11:02 PM

have a repair manual?, that might help ya.

I could scan the the page and send it to ya if not.

#4 Sonicfrog

Sonicfrog

    Certified Subaru Nut

  • Members
  • 804 posts
  • Fresno

Posted 12 February 2010 - 01:10 AM

I'll help you in the morning... about 9:30 pacific time. I'll take some pics of my EA82AT

#5 areez

areez

    New User

  • Members
  • PipPip
  • 28 posts
  • Uppsala

Posted 12 February 2010 - 08:56 AM

Hi.

I dont have a repair manual and the schematics on the hood is barely readable :) But i dont think i will know exactly where all should go.

Cant see all the lines on the drawing.


But pictures from an engine would really help me :)

#6 Sonicfrog

Sonicfrog

    Certified Subaru Nut

  • Members
  • 804 posts
  • Fresno

Posted 12 February 2010 - 10:46 PM

Crap. I'm sorry I didn't get the pic today. I'm taking my engine apart tomorrow. I get pics then and get them to you.

#7 Caboobaroo

Caboobaroo

    USMB Drunk

  • Members
  • 6,860 posts
  • Oregon City

Posted 12 February 2010 - 11:34 PM

Lemme help a bit. I have a pic of where the lines in the third pic go. They go to the turbo.
Posted Image
The line that goes to the boost switch on the top of pic three is for the boost light on the dash

#8 Sonicfrog

Sonicfrog

    Certified Subaru Nut

  • Members
  • 804 posts
  • Fresno

Posted 13 February 2010 - 02:39 PM

I took pictures.... and they suck.

Here is what I can tell you.

Top Line, from black sensor, connects to top pf intake manifold.

The line below that connects to both the gas canister line in the other picture and the air intake that leads to the turbo.

The line coming from the firewall goes into the relay pack where the other two hoses are.

Hope this helps.

#9 areez

areez

    New User

  • Members
  • PipPip
  • 28 posts
  • Uppsala

Posted 24 February 2010 - 04:11 PM

i can't see to get it right.

I have taken some new pics on how i connected it now.
Can someone pls explain what goes where if i have connected wrong.

I will give all outputs and hoses a number so it's easier for me to know what goes where. I suck at english so i think it's there my problem is :D

I numbred them from 1 - 7 and pls use the numbers when you explain.
I know what the intake boot is and the canister in the front i call just as
easy as black canister :)

The pics:
http://i45.tinypic.com/3038w0k.jpg
http://i48.tinypic.com/2e4ezjt.jpg

Some help really soon would be a killer :P
thanks all for the help i got this far !

Attached Files



#10 T'subaru

T'subaru

    Subaru Fanatic!

  • Members
  • 443 posts
  • T'sunami Coast WA

Posted 24 February 2010 - 07:12 PM

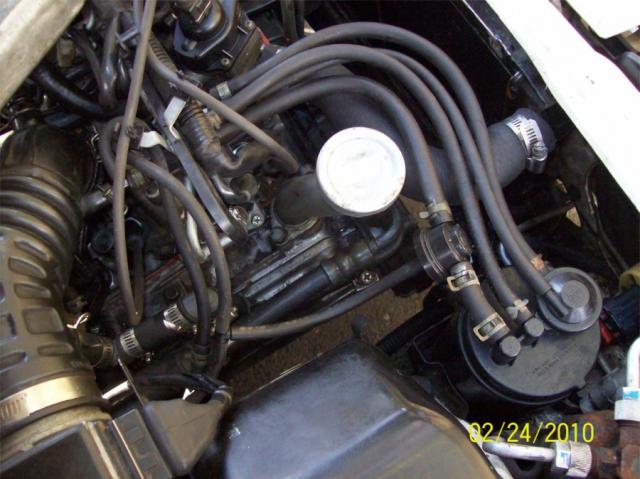

Ok, based on my '89 rx here is what I would try...but first I cant tell you what #5 is in the second picture. Does not show up in my '89 fsms, could be import or something we havnt seen much of.

#1 and #3 join with a tee and run another hose from that tee to #4(I have a slightly diff set up,1/3 teed hose hits canister first before #4) see pic
#2 goes to #7 with a check valve seperating them ( 2 different diameter hoses)
#6 goes into your intake boot once installed.
This is what I have on my 89 and 90 turbos, checked my 86, slightly diff from what you have
Good luckAttached File  100.jpg   49.87K   49 downloads

#11 areez

areez

    New User

  • Members
  • PipPip
  • 28 posts
  • Uppsala

Posted 25 February 2010 - 03:15 AM

Then i did almost all right.

But i dont have a clue where number 5 goes.

But a great thanks to you !
Now 95% of all hoses is where they should be :)

#12 T'subaru

T'subaru

    Subaru Fanatic!

  • Members
  • 443 posts
  • T'sunami Coast WA

Posted 25 February 2010 - 08:30 AM

For the sh*** and giggles what year, model and where are you?
How bout a good pic of the intake set up.
Mark

#13 areez

areez

    New User

  • Members
  • PipPip
  • 28 posts
  • Uppsala

Posted 25 February 2010 - 11:09 AM

For the sh*** and giggles what year, model and where are you?
How bout a good pic of the intake set up.
Mark


Its an 1988 Subaru RX Coupé. I'm from Sweden and the car is originaly sold here in Sweden.

I dont know how much better pic thats needed, if i take a pic from
a larger distance you won't see the hose that's number 5.

#14 T'subaru

T'subaru

    Subaru Fanatic!

  • Members
  • 443 posts
  • T'sunami Coast WA

Posted 25 February 2010 - 11:27 AM

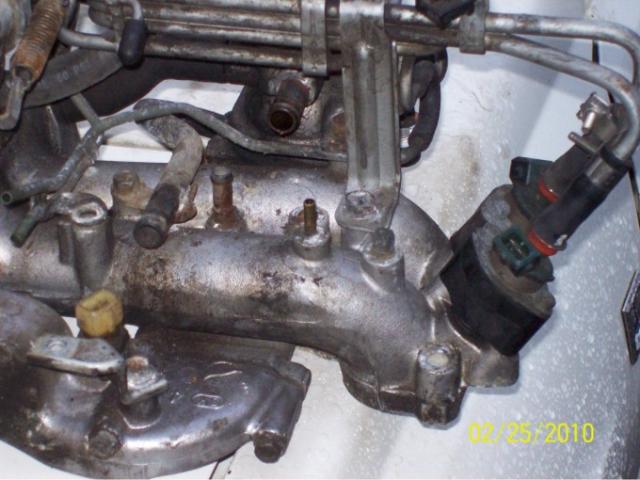

sweden huh, cool. I'm thinking that 5 can be plugged. I think you have an additional vaccum nipple that my 3 cars do not ( thus a better picture ) heres a pic of how my ea82t's are set up for vac lines.
Good luck
Mark
Attached File  intake.jpg   46.95K   37 downloads
