The Beast: Straight Axle swap Begins!


  • Please log in to reply
35 replies to this topic

#1 The Beast I Drive

The Beast I Drive

    CALL ME, (509) 391-5903

  • Members
  • 2,120 posts
  • Toppenish, WA

Posted 12 May 2010 - 11:57 PM

Well, Ive been tinkering around with this idea for a while now, but I put it off because I wanted to do all I could with the independent rear suspension my 87 GL wagon came with. Well, with a welded rear, 8" of lift in the back, and 31" tires, it likes to eat those glass stubs these old rigs have. Also, flex is severely limited by the short travel of the shocks and the angles at which the axles can safely run. So its time for the IRS to go. For those of you who dont know my rig, here it is as of today:
Posted Image

A couple weeks ago I got a hot deal on a rear axle from an Isuzu Rodeo, like a 97 or something. Disc Brakes, 4.10 gears, and beefy looking construction, I think this will do quite well. looks to be about the right width too.
Posted Image

I just need to change the brake lines to work with the Subaru setup, cut off the spring under perches, and weld on some brackets for my 4-link and rear coilovers.
Posted Image

Then Today, These beauties came.....
Posted Image
Posted Image
These are Heim joints I bought from Speedway Motors, they are used on competition rock crawlers and high-HP racing applications. They are ************ing huge, and flex to some mad extreme angle. I bought 4 right hands, and 4 left hands so I can have alignment adjustment in the rear. Just an idea of how big these are, here's one next to a joint I bought for the Turd wagon. The small joint has a 3/4" shank and hole.
Posted Image
Posted Image
Yeah, overkill, but it's my style :banana:

So now I just need to get some LH and RH 1" jam nuts, about 30' of 1.25" .120 DOM tubing, some long travel rear coilovers, and I can get the axle mounted to the car. Then I will need to modify the Isuzu driveline, build my 4.11 AWD D/R trans, and re-build the front half of my lift to incorporate a new front suspension using modified VW Superbeetle struts and new custom lower control arms, and more lift. I will also be building a sort of sub frame to connect the front lift to the rear mounting points on the body, for the 4 link to bolt to. The Superbeetle struts will give me an extra 2-4" of suspension travel in the front, IIRC. Also will be dropping in a Hi-Po EA81 that I am getting in trade for a Hatch (I hope :) )

With all this, The Beast should be *almost* as capable as a stock/slightly lifted 1990's Toyota pick up with IFS. I might have a gear shop make me a custom set of 3:1 Low range gears, and modify the body of the trans to acomodate these, but not any time soon :rolleyes:

More updates as parts are acquired!

-Bill

Edited by The Beast I Drive, 13 May 2010 - 12:52 AM.


#2 Numbchux

Numbchux

    EJ conversion addict

  • Members
  • 5,985 posts
  • Duluth, MN

Posted 13 May 2010 - 12:05 AM

I am excited to see this. I think solid rear axle without a divorced Tcase is an awesome idea. We've been discussion doing that with my buddy's brat.....

#3 The Dude Abides

The Dude Abides

    WileE Coyote Super Genius

  • Members
  • 2,943 posts
  • West Des Moines, IA

Posted 13 May 2010 - 01:04 AM

Easly one of my favoret lifted subys. Sorry to see it go the way of the solid axel but just makes it stronger. Good luck.

#4 T'subaru

T'subaru

    Subaru Fanatic!

  • Members
  • 443 posts
  • T'sunami Coast WA

Posted 13 May 2010 - 07:56 AM

gonna be an awesome rig Bill!

#5 VaporTrail

VaporTrail

    Brattitude Adjustment

  • Administrator
  • 11,149 posts
  • Central Iowa

Posted 13 May 2010 - 08:54 AM

Posted Image

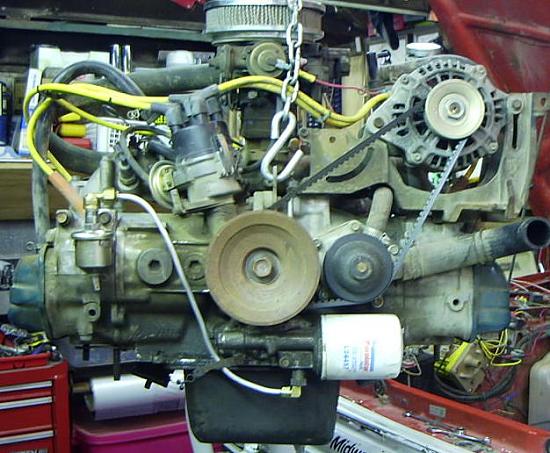

be sure to put a good skid plate on, or do a remote oil sender set-up.....

#6 Turbone

Turbone

    The Original Rob

  • Moderator
  • 12,105 posts
  • WA

Posted 13 May 2010 - 09:03 AM

I am excited to see this. I think solid rear axle without a divorced Tcase is an awesome idea. We've been discussion doing that with my buddy's brat.....


I might have missed it, but I dont think theres any mention of a divorced t-case.
Which he really really needs to do if he's going to all the trouble of a solid rear.
Bill, your money would be better spent with a divorced t-case. You have the lift to do it and you know how well my hatch crawls. Plus its cheaper to upgrade the t-case than the tranny.

#7 The Beast I Drive

The Beast I Drive

    CALL ME, (509) 391-5903

  • Members
  • 2,120 posts
  • Toppenish, WA

Posted 13 May 2010 - 09:37 AM

I really considered the T-case Rob, but Im interested in trying this out first, and if I dont like it, it wont be hard at all to add the T-case, all the rear work will be done already.

To be honest, with no glas stubs to break I wont have to watch the gas as much, and with the more powerful engine and an XT6 clutch and flywheel, and the 4.11 gears it will be a HUGE improvement over what it is now. Ive wheeled this rig a lot, and it does really good with what it has, so this will only make it better...

Even if its not a leap, its still a step forward...

Oh and this is what I have for a skid plate and exhaust right now, and it's taken some serious abuse on some nasty rocks and still going strong, I might fab up something that looks a little better though, this one was just a quick hack job.
Posted Image

-Bill

Edited by The Beast I Drive, 13 May 2010 - 09:42 AM.


#8 VaporTrail

VaporTrail

    Brattitude Adjustment

  • Administrator
  • 11,149 posts
  • Central Iowa

Posted 13 May 2010 - 09:52 AM

I had a GEn1 full skid plate modifiet to fit, but since it bolted in at the bottom of the core support on the shorter front end EA81, it wasn't quite sturdy enough. it protected the exhaust and oil pan great, but flexed "just enough" to snap my oil sending unit 2 times....

then I did this...

Attached Files



#9 bigo1966

bigo1966

    Subaru Fanatic!

  • Members
  • 463 posts
  • Lafayette, Colorado

Posted 13 May 2010 - 12:44 PM

How much longer are the super b struts than the stock ea82 struts?

#10 Numbchux

Numbchux

    EJ conversion addict

  • Members
  • 5,985 posts
  • Duluth, MN

Posted 13 May 2010 - 01:48 PM

I might have missed it, but I dont think theres any mention of a divorced t-case.


yea, that's why I said "without a tcase" ;)



it's a great way to beef up the system, and open up options, without completely re-engineering the front end.

I've got everything to convert an RX box to 4.111, and I have a 4.10 toyota axle here. My buddy's brat is so rusty, it needs a LOT of new steel welded into the back anyway.....some leaf spring/shock mounts, and fuel cell....

#11 The Beast I Drive

The Beast I Drive

    CALL ME, (509) 391-5903

  • Members
  • 2,120 posts
  • Toppenish, WA

Posted 13 May 2010 - 03:06 PM

Upon doing some research, it turns out the Isuzu Rodeo axle is a Dana 44 :banana: 1.31" diameter 30-spline axle shafts, and lockers from several manufacturers are readily available!

-Bill

#12 Turbone

Turbone

    The Original Rob

  • Moderator
  • 12,105 posts
  • WA

Posted 13 May 2010 - 07:30 PM

I think thats the same rear end that Qman had in his monster Brat, which also had a ARB airlocker installed.

#13 Qman

Qman

    Happiness is... no lag!!

  • Moderator
  • 11,119 posts
  • Sumner

Posted 13 May 2010 - 10:43 PM

Mine has disc brakes and 4.56 gears with a drop out center section. It now resides under my Toyota.

#14 jayare12

jayare12

    USMB Regular

  • Members
  • PipPipPip
  • 32 posts
  • stanfield Oregon

Posted 14 May 2010 - 04:28 PM

Bad@$$ Make sure to post lots of picks

#15 SoobieDoo

SoobieDoo

    GL's...the luxury wheeler

  • Members
  • 838 posts
  • ZigZag

Posted 14 May 2010 - 09:22 PM

Right on, Bill..."The Beast" can't be true to it's name with stock drivetrain!!!

How much longer are the super b struts than the stock ea82 struts?


I'm also interested in this mod, if you feel like going into detail. I'd like my axles to rub, if they could. :lol:

#16 The Beast I Drive

The Beast I Drive

    CALL ME, (509) 391-5903

  • Members
  • 2,120 posts
  • Toppenish, WA

Posted 14 May 2010 - 11:13 PM

I will post details on the Superbeetle struts when I get around to that part, but there is a couple threads with some info on them here somewhere, I ran across one inadvertently just a few days ago, but cannot remember where or how I came to find it...

-Bill

#17 baccaruda

baccaruda

    YOUR FAVORITE MOD

  • Moderator
  • 6,941 posts
  • SpoVegas, WA

Posted 14 May 2010 - 11:39 PM

I will post details on the Superbeetle struts when I get around to that part, but there is a couple threads with some info on them here somewhere, I ran across one inadvertently just a few days ago, but cannot remember where or how I came to find it...

-Bill


Probably one of Brian's.

#18 The Beast I Drive

The Beast I Drive

    CALL ME, (509) 391-5903

  • Members
  • 2,120 posts
  • Toppenish, WA

Posted 15 May 2010 - 01:46 AM

Probably one of Brian's.


Actually, it wasnt... I can't recall who it was by ATM, but I am certain the one I came across was not Brian's. However, had it not been for Brian, I would never have had the initiative to try it :banana: I saw him mod a pair in person at his house one of the times I visited... I have a part number around here somewhere...

-Bill

#19 monstaru

monstaru

    wow, relevance....

  • Members
  • 4,384 posts
  • OlyWa

Posted 15 May 2010 - 01:49 AM

you should just trade me out of mine.....they have brand new cartridges in them and just need finish welding.....make you a good deal:grin:cheers, brian

#20 The Beast I Drive

The Beast I Drive

    CALL ME, (509) 391-5903

  • Members
  • 2,120 posts
  • Toppenish, WA

Posted 15 May 2010 - 02:13 AM

you should just trade me out of mine.....they have brand new cartridges in them and just need finish welding.....make you a good deal:grin:cheers, brian


Im interested... Im sure some kind of arrangement can be arranged :brow:

-Bill

#21 chopsubie

chopsubie

    New User

  • Members
  • PipPip
  • 22 posts
  • Kenai

Posted 16 May 2010 - 01:09 AM

So now I just need to get some LH and RH 1" jam nuts, about 30' of 1.25" .120 DOM tubing, some long travel rear coilovers, and I can get the axle mounted to the car. Then I will need to modify the Isuzu driveline, build my 4.11 AWD D/R trans, and re-build the front half of my lift to incorporate a new front suspension using modified VW Superbeetle struts and new custom lower control arms, and more lift. I will also be building a sort of sub frame to connect the front lift to the rear mounting points on the body, for the 4 link to bolt to. The Superbeetle struts will give me an extra 2-4" of suspension travel in the front, IIRC. Also will be dropping in a Hi-Po EA81 that I am getting in trade for a Hatch (I hope :) )



-Bill[/QUOTE]

"" build my 4.11 AWD D/R trans'''
Will this be in a 4 speed or 5 speed D/R? I would like to know what model car(s) would have the 4.11 pinion shaft that you will need. I have several 4 speed d/r trans parts from different cars but all have 3.9 ratio. If there is a different trans out there that has a pinion shaft with a 4.11 that will work in the manual 4 or 5 speed D/R gearboxes, I would love to hear more!

#22 Numbchux

Numbchux

    EJ conversion addict

  • Members
  • 5,985 posts
  • Duluth, MN

Posted 16 May 2010 - 09:49 AM

"" build my 4.11 AWD D/R trans'''
Will this be in a 4 speed or 5 speed D/R? I would like to know what model car(s) would have the 4.11 pinion shaft that you will need. I have several 4 speed d/r trans parts from different cars but all have 3.9 ratio. If there is a different trans out there that has a pinion shaft with a 4.11 that will work in the manual 4 or 5 speed D/R gearboxes, I would love to hear more!


here in the US. you need a Full-time 4WD D/R 5MT from a Subaru RX, Which is usually a 3.7. And then put a 4.111 front pinion shaft and center diff from a newer gen subaru in it.

#23 monstaru

monstaru

    wow, relevance....

  • Members
  • 4,384 posts
  • OlyWa

Posted 06 June 2010 - 11:46 PM

TTIWWOP:-\i wish i was young and single and could buy sexy joints at the drop of a hat......you dirty bastard, how did i miss that before.......

#24 ryot1

ryot1

    New User

  • Members
  • PipPipPip
  • 113 posts
  • big bear lake

Posted 17 August 2013 - 02:32 AM

hows it comin i cant wait to see this



#25 Gloyale

Gloyale

    It's a sickness

  • Members
  • 8,888 posts
  • Corvallis, OR PNW

Posted 17 August 2013 - 10:33 AM

hows it comin i cant wait to see this



he stopped workin on it 3 years ago.



Not sure what state it's currently in.
