Probably my last EA Rebuild - an EA81T


  • Please log in to reply
30 replies to this topic

#1 Crazyeights

Crazyeights

    SubaRube Goldberg

  • Gold Subscribers
  • 976 posts
  • PNW

Posted 20 November 2011 - 05:24 PM

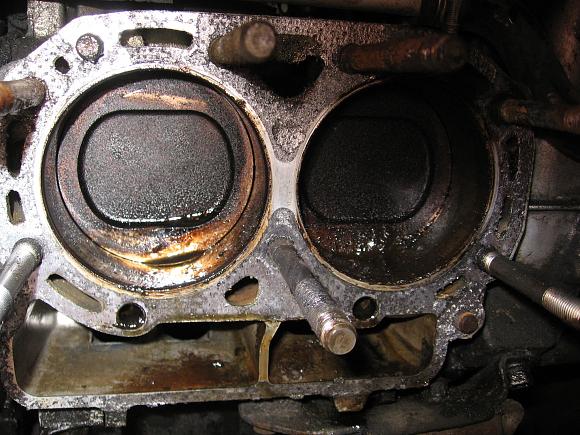

The thread started here with some pics of the tear down. I think I have some more if there is any interest.

EA81T Block and Head pics

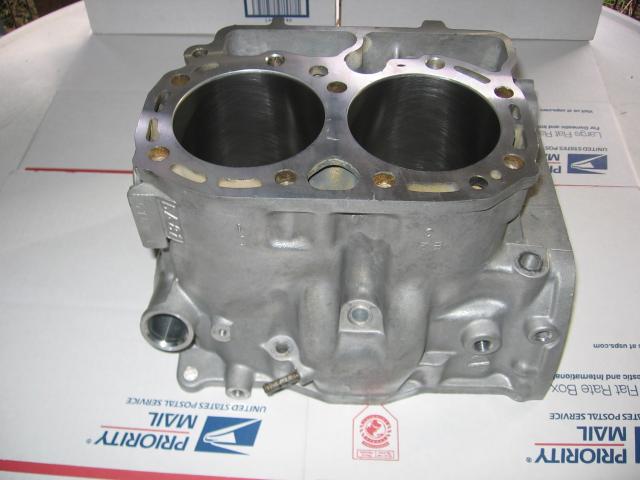

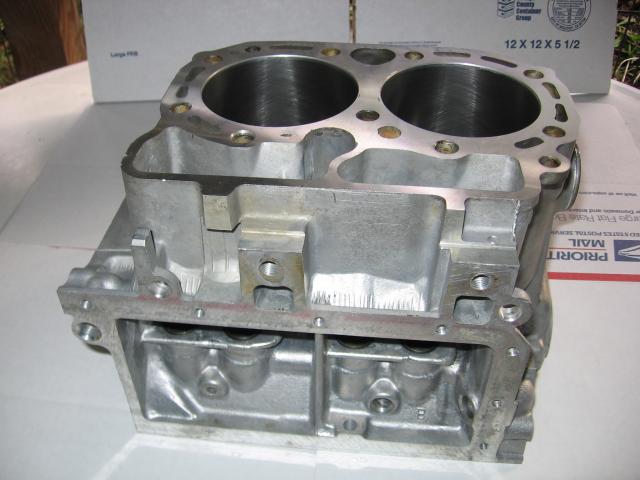

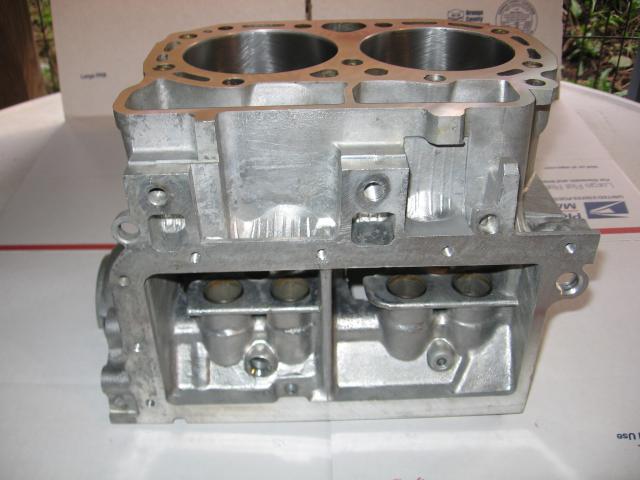

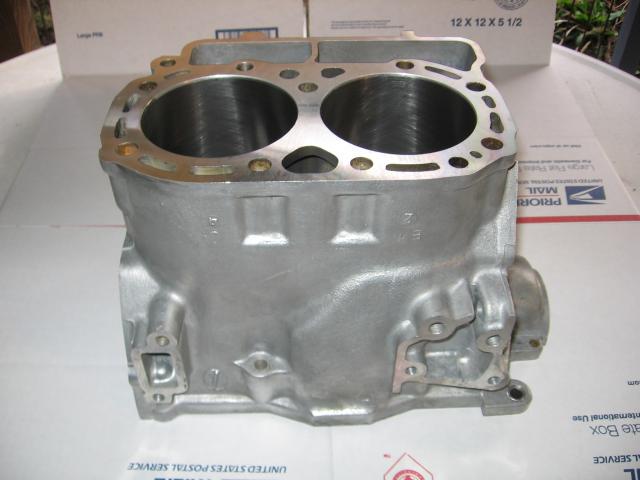

I decided to save this one because it's a Turbo block with Hydro lifters and rebuildable EA's are getting REALLY hard to find. Here are some pics of the case parts just back from the machine shop bored .020" over, deck squared up and cleaned, ect.
Attached File  IMG_2505.jpg   37.21K   91 downloads

Attached File  IMG_2510.jpg   38.52K   104 downloads

Attached Files



#2 Crazyeights

Crazyeights

    SubaRube Goldberg

  • Gold Subscribers
  • 976 posts
  • PNW

Posted 20 November 2011 - 05:31 PM

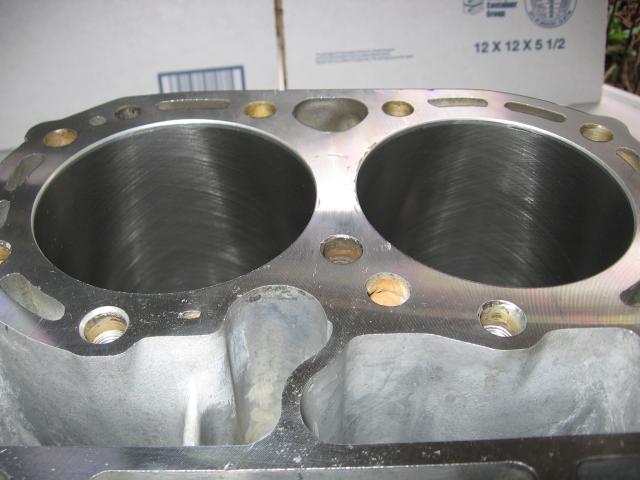

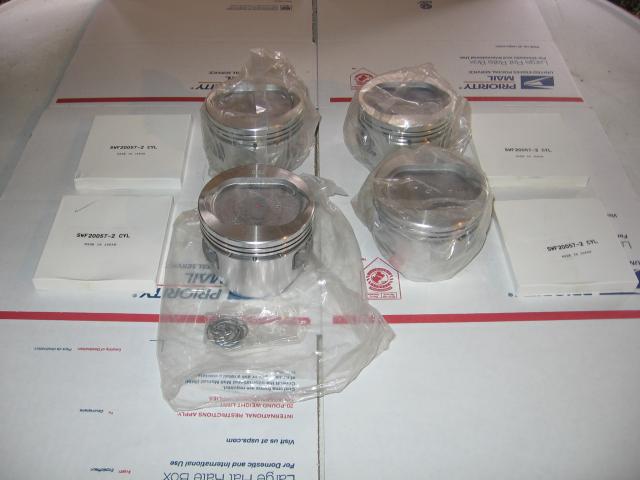

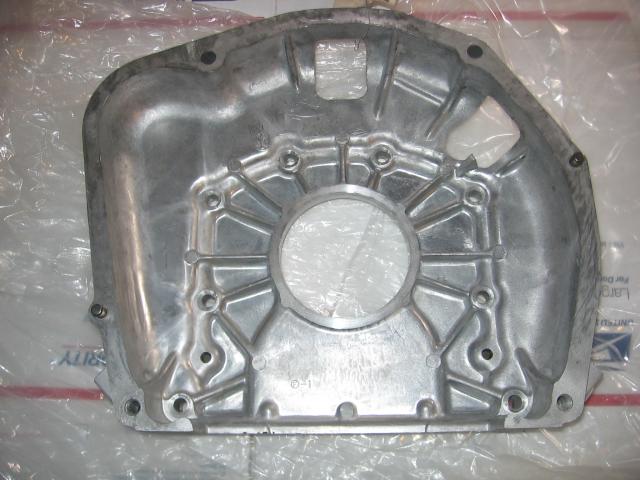

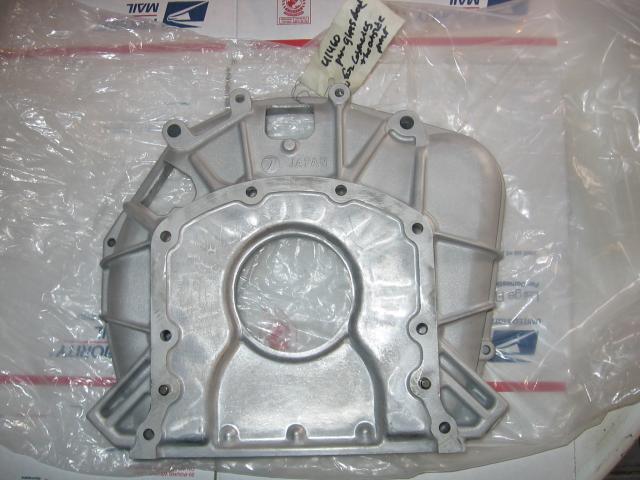

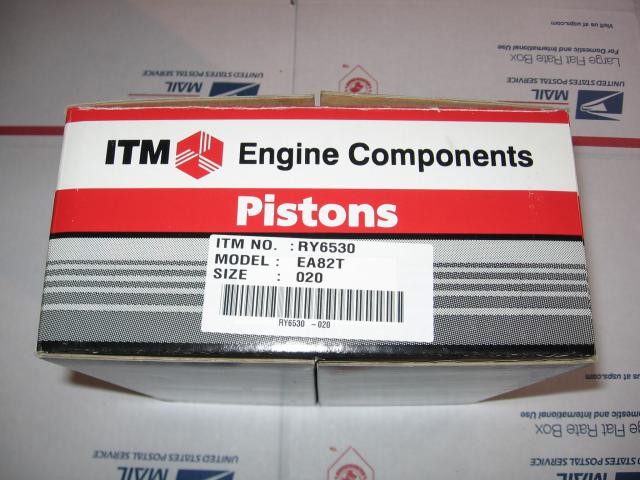

Here are a few more shots of the rear housing and the new oversize pistons.

Attached File  IMG_2513.jpg   46.04K   43 downloads

Attached File  IMG_2516.jpg   48.77K   55 downloads

The original crank is pretty badly damaged from a failed rod bearing. I have a replacement crank going in for a mic and polish soon. Then I need to decide what to do about the cam. I'm not sure what a Delta grind would do for a Turbo motor or if I should just put it back in stock. The hydro lifters all look perfect. This engine only had about 144k on it when the bearing went.

More to come...

Attached Files



#3 Crazyeights

Crazyeights

    SubaRube Goldberg

  • Gold Subscribers
  • 976 posts
  • PNW

Posted 20 November 2011 - 07:12 PM

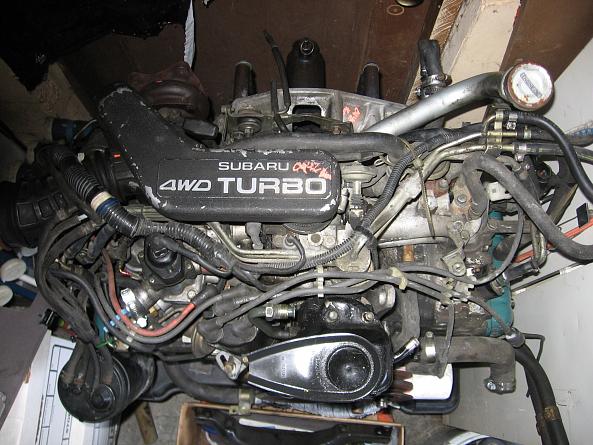

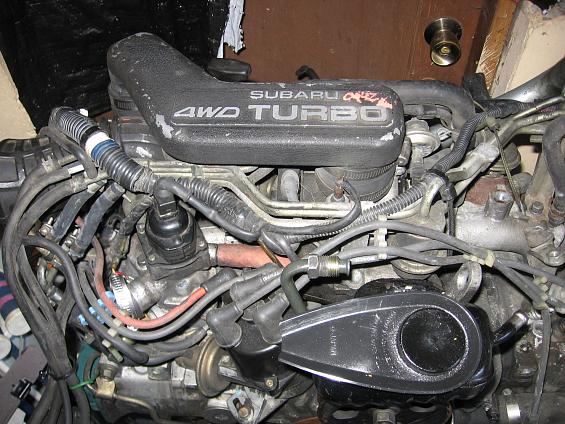

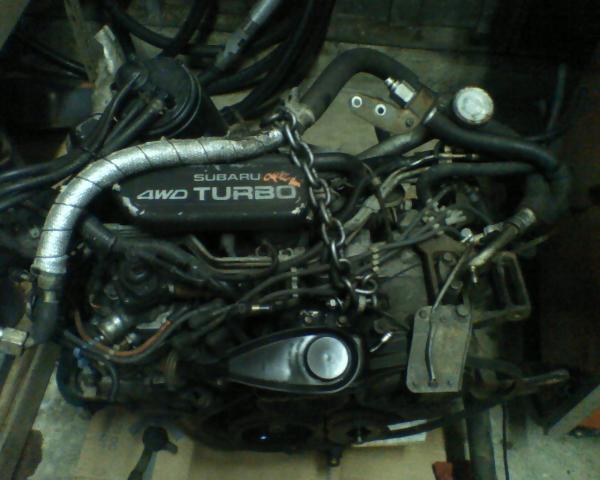

Here are a few before the tear down, sorry these are a little out of sequence.:rolleyes:

Attached File  IMG_2403.jpg   62.8K   118 downloads

Attached File  IMG_2412.jpg   62.46K   116 downloads

Attached Files


Edited by Crazyeights, 20 November 2011 - 07:19 PM.


#4 SoobDood05

SoobDood05

    USMB is life!

  • Members
  • 135 posts
  • Klamath Falls Oregon

Posted 20 November 2011 - 11:48 PM

:clap: first time ive seen an EA81T, awesome!

#5 Loyale 2.7 Turbo

Loyale 2.7 Turbo

    The Mighty "BumbleBeast"

  • Members
  • 5,806 posts
  • Roatán, Honduras.

Posted 21 November 2011 - 12:04 PM

Nice Rebuild Work, I Can't wait to see the Final product.

...the new oversize pistons...


Could I Ask if the increased size, beside of Changin' the overall engine's displacement, has something to do with the Engine's Performance?

Kind Regards.


#6 Crazyeights

Crazyeights

    SubaRube Goldberg

  • Gold Subscribers
  • 976 posts
  • PNW

Posted 21 November 2011 - 08:19 PM

No, the size difference is to little to affect the power output. It is just enough to clean up the damage in the cylinders, .020"

#7 silverhelme

silverhelme

    USMB is life!

  • Members
  • 195 posts
  • Republic, WA

Posted 22 November 2011 - 06:45 PM

Where did you find .02 os pistons and who did you have bore the block. Most of the shops around here will not touch Subaru blocks. I would like to save one of the engines in one of my Turbo Coupes that has a slight rust ring in one cylinder.

Edited by silverhelme, 22 November 2011 - 06:48 PM.


#8 Crazyeights

Crazyeights

    SubaRube Goldberg

  • Gold Subscribers
  • 976 posts
  • PNW

Posted 22 November 2011 - 11:48 PM

They are actually oversize EA82-T pistons, but they will work in the EA81-T just fine. I found them on Ebay from Thompson Engine.

The machinist I work with has expensive equipment to do blocks like these - They do EJ's too. I know there are special concerns when doing Subaru blocks. I think the case halves were torqued together first - I am not sure but they might have also used torque plates as well. Piston to cylinder wall clearance is .0016" and they took about .005" off of the deck on each half to clean them up.

Edited by Crazyeights, 27 November 2011 - 03:46 AM.


#9 carfreak85

carfreak85

    EA81T Sherpa

  • Members
  • 4,790 posts
  • Bell-something...

Posted 26 November 2011 - 02:39 PM

I'll be keeping my eye on this, I have a couple EA81Ts that might be getting rebuilt in the near-ish future.

#10 1982gl4

1982gl4

    1000+ Super USER!

  • Members
  • 1,367 posts
  • Worcester, VT

Posted 26 November 2011 - 03:02 PM

Seeing this makes me want to rebuild mine as well. I'd need a harness though, that or standalone :brow: I'm keeping an eye on this for sure.

#11 silverhelme

silverhelme

    USMB is life!

  • Members
  • 195 posts
  • Republic, WA

Posted 27 November 2011 - 04:51 PM

Who is your machinist and how can I contact him?

Edited by silverhelme, 27 November 2011 - 05:03 PM.


#12 Crazyeights

Crazyeights

    SubaRube Goldberg

  • Gold Subscribers
  • 976 posts
  • PNW

Posted 27 November 2011 - 05:08 PM

Action Machine Shoreline, WA (206) 546-2082 ask for Rob. Pull the head studs first to save their time and your money. They will also need your new pistons for measurement when boring the block and the bolts to torque the case halves together. Do any cleaning you want to the case FIRST before you send it to them. They will do a final wash after it's done.

Good Luck, and PICS!

#13 Quidam

Quidam

    1000+ Super USER!

  • Members
  • 1,517 posts
  • USA

Posted 30 November 2011 - 09:30 PM

Hey,

Just wanted to add here, as this is what I'm doing right now. The EA 82 pistons you're using should give the EA 81 more compression and less piston to head clearance. Exactly how much I don't know, but you could measure it. Less piston to head clearance is better for detonation resistence.

I put a flatop EA 81 piston in an EA 82 block and with a .060 thick Genuine Subaru headgasket, and have .100" piston to head clearance.

I put a 9.5:1 CR SPFI EA 82 piston in the same EA 82 block with a .060" thick Genuine Subaru headgasket, and have .059" piston to head clearence.

I put a 7.7:1 MPFI Turbo piston, like the ones you're using in the same EA 82 block, a with a .060" thick Genuine Subaru headgasket, and have .041" piston to head clearance.

Now, the lowest I'd want to go is about .025 piston to head. Right now I have that .041 piston to head in the motor I'm working on.

Could you measure how far your piston sticks above the block deck with a dial indicater. And let me know how thick your headgasket is?

It's all good unless the piston smacks the head or valves:) I've got about .140" clearance piston to valve at TDC with a stock cam.

Sincerely,

Doug

#14 Crazyeights

Crazyeights

    SubaRube Goldberg

  • Gold Subscribers
  • 976 posts
  • PNW

Posted 30 November 2011 - 09:48 PM

I haven't started assembly on this one yet as I'm currently in the middle of wiring an EJ swap. I'll update with measurements once I get the short-block together.

#15 Crazyeights

Crazyeights

    SubaRube Goldberg

  • Gold Subscribers
  • 976 posts
  • PNW

Posted 04 February 2012 - 03:23 PM

It looks like the turbo that came on this engine is oil cooled only. I have read that Subaru had a campaign for water cooling the turbos on these. Should I just grab a water cooled one with hoses/pipes from an EA82T at the wrecking yard or use the original one?

#16 AKghandi

AKghandi

    87 GL-10 2" lift 27" tires, 86 GL 2" lift 29"

  • Members
  • 1,177 posts
  • Anchorage, Alaska

Posted 04 February 2012 - 04:03 PM

What about putting a wrx turbo in it? Might as well make that lil ea81t a Honda stomper. Just to wipe the grin off those stupid ricers faces. I wish I could find a ea81t.

#17 Turbone

Turbone

    The Original Rob

  • Moderator
  • 12,135 posts
  • WA

Posted 04 February 2012 - 04:11 PM

It looks like the turbo that came on this engine is oil cooled only. I have read that Subaru had a campaign for water cooling the turbos on these. Should I just grab a water cooled one with hoses/pipes from an EA82T at the wrecking yard or use the original one?


Yes, a EA82T will bolt right up.

What about putting a wrx turbo in it? Might as well make that lil ea81t a Honda stomper. Just to wipe the grin off those stupid ricers faces. I wish I could find a ea81t.


The TD04 is not a direct bolt up, need to cut the flange off a WRX up-pipe and weld it onto the EA up-pipe then deal with the DP back exhaust.
And expect this engine to grenade within 100mi (or less).

#18 Crazyeights

Crazyeights

    SubaRube Goldberg

  • Gold Subscribers
  • 976 posts
  • PNW

Posted 04 February 2012 - 08:40 PM

Thanks for the reply. I think I'll skip the TD04 on this one. It seems like these were fragile at best when they were new so I need to respect it's limitations and keep it pretty much stock.

#19 Crazyeights

Crazyeights

    SubaRube Goldberg

  • Gold Subscribers
  • 976 posts
  • PNW

Posted 21 April 2012 - 10:31 AM

I am slowly collecting parts to finish this up. Would this be an ok deal on the correct water cooled turbo? Almost all of the ones I have seen at the local pick-n-pull look like junk.

Ebay XT IHI Turbo

Edited by Crazyeights, 21 April 2012 - 10:39 AM.


#20 Quidam

Quidam

    1000+ Super USER!

  • Members
  • 1,517 posts
  • USA

Posted 22 April 2012 - 01:41 PM

Looks like a VF 2 to me. I can't tell if it's cracked in the wastegate area with the wastegate closed.

Doug

#21 Gloyale

Gloyale

    It's a sickness

  • Members
  • 9,403 posts
  • Corvallis, OR PNW

Posted 22 April 2012 - 07:50 PM

I've got a nice one from an 89 GL turbo here. got all the lines and banjo bolts too. Also got an uppipe and down pipe to go with it.

PM me if you want it.

#22 Crazyeights

Crazyeights

    SubaRube Goldberg

  • Gold Subscribers
  • 976 posts
  • PNW

Posted 23 April 2012 - 10:20 PM

PM Sent

#23 tractor pole

tractor pole

    [catch phrase here]

  • Members
  • 549 posts
  • Monroe, WA

Posted 23 April 2012 - 11:50 PM

Action Machine Shoreline, WA (206) 546-2082 ask for Rob. Pull the head studs first to save their time and your money. They will also need your new pistons for measurement when boring the block and the bolts to torque the case halves together. Do any cleaning you want to the case FIRST before you send it to them. They will do a final wash after it's done.

Good Luck, and PICS!


Rob is still there? I haven't been over there in fifteen years or so, they did really great work for me in the past, which I am sure they still do.

Ben

#24 carfreak85

carfreak85

    EA81T Sherpa

  • Members
  • 4,790 posts
  • Bell-something...

Posted 07 July 2012 - 08:59 PM

What is the status of this project?

#25 Crazyeights

Crazyeights

    SubaRube Goldberg

  • Gold Subscribers
  • 976 posts
  • PNW

Posted 08 July 2012 - 05:31 PM

Well, it's been on hold for a couple reasons. First I lost a cam lobe on my daily driver (EA81 Wagon, EA81 with SPFI, 5K on a fresh HP build, torque cam, decked block, head work, solid lifters, the works). I took a few months and just EJ swapped that car and I am VERY pleased with the results.

Secondly I wanted to search out an EA82T water cooled turbo for it since the original one on this seems to be only oil cooled. Every EA82T car I found in the local yards were just BAKED beyond belief, sloppy turbo shafts, cracked housings, seized up, ect.

Before I shelved this project late last year I picked up another set of pistons (exact same oversize) but 9.5 SPFI flat tops. I have all the parts to assemble the block either way (N/A high compression multiport EA81 or low compression EA81T). I need to figure out what to do about the cam also. I don't want another early cam failure with a noisy valve train and poor idle quality. I'm open to suggestions;) No, I don't have a shell for it yet. I had planned to find a hatch body for it originally.
