what is between the bumper beam and front bumper cover?


  • Please log in to reply
15 replies to this topic

#1 grossgary

grossgary

    Elite Master of the Subaru

  • Members
  • 20,084 posts
  • WV

Posted 19 April 2012 - 06:45 AM

my car was in an accident (i wasn't in the car) and I have nothing to attach my front bumper cover too (which is still somehow intact though it got ripped off).

the bumper beam and all is there and unscathed and i have the front bumper cover. but the holes on the top of the bumper cover have nothing to line up with in the bumper beam - so i'm assuming there's a part missing there for the bumper cover to attach to.

i've even repaired a few wrecked legacy's and just can't picture what is supposed to be there.

anyone got a pic?

#2 mattocs

mattocs

    Subaru Legacy Lover

  • Members
  • 1,312 posts
  • Pittsburgh

Posted 19 April 2012 - 07:49 AM

http://pdfcast.org/p...5-legacy-bumper

Let me know if that works. I have never used that PDF host before.

Thats of a 1995 from the FSM. Hope it helps?

#3 mattocs

mattocs

    Subaru Legacy Lover

  • Members
  • 1,312 posts
  • Pittsburgh

Posted 19 April 2012 - 07:54 AM

I attached it as an image.

Attached Files



#4 grossgary

grossgary

    Elite Master of the Subaru

  • Members
  • 20,084 posts
  • WV

Posted 19 April 2012 - 08:29 AM

great thanks, will compare later. i don't see anything obvious there...weird.

my car has that bumper beam and cover....but the cover has holes which line up with nothing....scratching my head, i'm obviously missing something, need to find out if it's physically or all mentally!

i'll try to snap a picture later.

#5 grossgary

grossgary

    Elite Master of the Subaru

  • Members
  • 20,084 posts
  • WV

Posted 19 April 2012 - 11:26 AM

here is a picture....front bumper beam with no holes for the bumper cover to attach too?

Attached Files



#6 89ChevondaSI

89ChevondaSI

    USMB Regular

  • Members
  • PipPipPip
  • 89 posts
  • Stoughton, WI

Posted 19 April 2012 - 11:59 AM

There is supposed to be a beam that wraps around the front and it sits right above it.

#7 89ChevondaSI

89ChevondaSI

    USMB Regular

  • Members
  • PipPipPip
  • 89 posts
  • Stoughton, WI

Posted 19 April 2012 - 12:02 PM

Posted Image

Posted Image

Posted Image

its just tack welded over.

#8 grossgary

grossgary

    Elite Master of the Subaru

  • Members
  • 20,084 posts
  • WV

Posted 19 April 2012 - 12:03 PM

thanks - right on i see what's happening now.

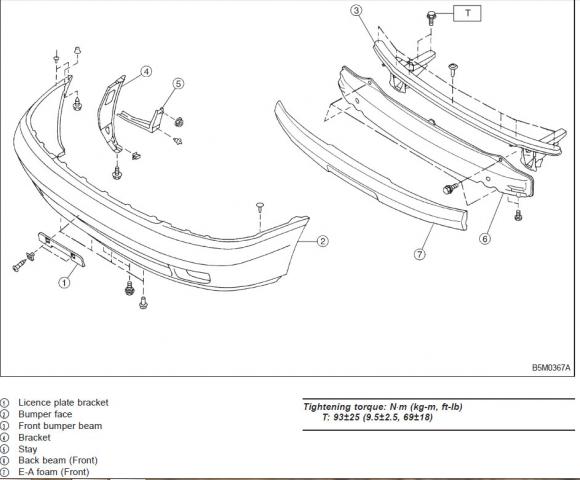

the bumper does have a beam going across it just for the bumper cover, and mine is missing that. in the picture above it's Item #3 is pointing directly to the small bar I need.

is that welded or bolted on?

Subaru's website skips this part so I can't find a part number: Item #7 here is in the picture but not the parts and numbers below it:

http://opposedforces...illustration_1/

#9 grossgary

grossgary

    Elite Master of the Subaru

  • Members
  • 20,084 posts
  • WV

Posted 19 April 2012 - 12:23 PM

edit...

Edited by grossgary, 19 April 2012 - 12:35 PM.


#10 89ChevondaSI

89ChevondaSI

    USMB Regular

  • Members
  • PipPipPip
  • 89 posts
  • Stoughton, WI

Posted 19 April 2012 - 01:24 PM

tack welded hence the third pic..... :drunk:

#11 grossgary

grossgary

    Elite Master of the Subaru

  • Members
  • 20,084 posts
  • WV

Posted 19 April 2012 - 01:42 PM

oh wow, yeah i remember that part now. it's completely gone, guess my friends that borrowed the car just left it there. hmmmm....

that looks more complicated than i care to recreate - i'll probably just try and buy one.

thanks for the pictures, those are *perfect* for this question!!

#12 Fairtax4me

Fairtax4me

    Su bah roo'n

  • Gold Subscribers
  • 9,085 posts
  • Charlottesburg, VA

Posted 19 April 2012 - 10:47 PM

I noticed there were some differences between bumper covers on my 95 and 96. The 95 that upper beam was a bit different, and there were fewer holes in the cover. Not sure if the holes all line up between covers but it should be kept in mind when you go get another bumper beam. Make sure you get one with the right number of holes.

#13 grossgary

grossgary

    Elite Master of the Subaru

  • Members
  • 20,084 posts
  • WV

Posted 20 April 2012 - 07:21 AM

I noticed there were some differences between bumper covers on my 95 and 96. The 95 that upper beam was a bit different, and there were fewer holes in the cover. Not sure if the holes all line up between covers but it should be kept in mind when you go get another bumper beam. Make sure you get one with the right number of holes.

great, thanks. parts database doesn't interchange 95's and 96's, must be why, good call. i would have assumed them the same.

#14 davebugs

davebugs

    I don't "friend"

  • Members
  • 3,112 posts
  • Pittsburgh suburbs (NE)

Posted 20 April 2012 - 07:37 AM

Gary,

My 97 Outback parts car should have htat part. You'd need to remove it though.

#15 grossgary

grossgary

    Elite Master of the Subaru

  • Members
  • 20,084 posts
  • WV

Posted 20 April 2012 - 07:47 AM

thanks, how long you going to have it?

All Foreign in Pburgh has an entire bumper same color for only $100....we'll see, the old cover is usable but ripped....so might make sense to get the entire thing.

#16 davebugs

davebugs

    I don't "friend"

  • Members
  • 3,112 posts
  • Pittsburgh suburbs (NE)

Posted 20 April 2012 - 07:56 AM

I hope to get to it soon. It has a good running 2.5 in it without HG issues but some rod knock. I was hoping to keep it and reuse the engine. Currently if anyone wants an engine they can hear it run. SOmeone already did the HG's and I drove it 45 miles home without issue.

Now I don't know when I'll be able to do engine swaps again.

Someone wants both bumper covers, a mirror. I've already sold hood, I htink grille.

Still has like new headlights and someone want sone of the fog's.

I've sold cup holder, radio, etc.

Stole the rad for another car.

I realistically expect it to be around another couple weeks atleast. It's at a friends house 5 miles away.
