Clock issues?


  • Please log in to reply
63 replies to this topic

#1 Sweet82

Sweet82

    Elite Master of the Subaru

  • Members
  • 3,266 posts
  • Salt Lake City

Posted 26 March 2004 - 10:32 AM

The clock in my 01 Forester has gone out:banghead:

The clock has just gone dead. I did a search and found nothing:confused:

Anyone else heard of this? It's driving my wife nuts:madder:

Any help appreciated....

Thanks,
Glenn
82 Hatch, well it started out as one....
01 Forester, it's time has ended.......:dead:

#2 edrach

edrach

    RIP 6/28/14

  • Members
  • 12,326 posts
  • Bothell, WA

Posted 27 March 2004 - 08:11 AM

I helped a friend with this recently. If you know anything about electronics and take the clock apart, you'll see two square pads on the circuit board with nothing between them. The missing part is a fuse/resistor which drops the 13.8V from the car to 5V for the clock. Sometimes it burns out completely and your clock goes dead. My friend replaced it with a resistor and got his clock back. I'll see if he has a value for the resistor he used.

#3 ferret

ferret

    Subaru Nut

  • Members
  • 669 posts
  • Northern NJ

Posted 27 March 2004 - 12:13 PM

Glenn, Very Common. you have 5 choices:
1) Ignore it
2) Replace it with a Battery Stick-on one. Difficult to see at night.
3) Replace it with a Dealer Only Part
4) Get one from a Junk Yard
5) Watch Ebay, the entire overhead consoles are usually out there. However, none today.
I have an '02 Forester.....One of the many 'nits' I'm also waiting for....... :burnout:

#4 Palouse Rider

Palouse Rider

    New User

  • Members
  • PipPip
  • 23 posts
  • Spokane WA

Posted 28 March 2004 - 07:17 AM

Yes, EDRACH helped me with mine. I installed a 30 ohm 1/4 watt resistor in the place where the original one either burned or fell off. The original resistors are surface mount, but I just soldered on a regular resistor. I could take mine apart and e-mail you a picture if you like.
-Cheers

#5 edrach

edrach

    RIP 6/28/14

  • Members
  • 12,326 posts
  • Bothell, WA

Posted 28 March 2004 - 09:50 AM

Palouse Rider, you give me too much credit. I just suggested that it looked like a resister was missing on the board--two large solder pads with nothing between them--a pretty lucky guess as it turned out. You did the hard work of finding a working value and getting it in there. Interesting that it appears to be a pretty common failure.

#6 Sweet82

Sweet82

    Elite Master of the Subaru

  • Members
  • 3,266 posts
  • Salt Lake City

Posted 29 March 2004 - 03:24 PM

Is a 30 ohm 1/4 watt going to take me down from 13.8v or so down to 5 volts?

Is this something Radio Shack would carry?

Thanks,
Glenn

#7 cookie

cookie

    Elite Master of the Subaru

  • Members
  • 3,058 posts
  • SFO

Posted 29 March 2004 - 06:15 PM

They have been pretty good for my projects.

#8 Tiny Clark

Tiny Clark

    Certified Subaru Nut

  • Members
  • 807 posts
  • Germany

Posted 30 March 2004 - 03:18 AM

Gee, and for an extra dollar, Subaru could have stuck a voltage regulator in the circuit. Cheap bastages!!!

#9 edrach

edrach

    RIP 6/28/14

  • Members
  • 12,326 posts
  • Bothell, WA

Posted 30 March 2004 - 09:40 AM

Actually, a voltage regulator to dissipate that much current would not have fit on the board. Even the resistor they used is not doing the job since it apparently burns out very consistently. A clear case of poor design.

#10 Sweet82

Sweet82

    Elite Master of the Subaru

  • Members
  • 3,266 posts
  • Salt Lake City

Posted 30 March 2004 - 10:24 AM

While I was driving home last night I decided to dig into the project.....

How do you get the plastic cover off? I couldn't see any screws hidden around that upper consul thing. I assume I can lightly pry the face plate of the clock off or pry the whole consul off?

Thought I'd ask before messing up my plastic.

Thanks,
Glenn
82 SubaruHummer and the clock still works!
01 Forester, timeless!

#11 Palouse Rider

Palouse Rider

    New User

  • Members
  • PipPip
  • 23 posts
  • Spokane WA

Posted 30 March 2004 - 10:39 AM

After looking at several circuits for automotive digital clocks, I believe the resistor I replaced was not to drop 12v to 5v but to drive a transistor which enables the display. Indeed the clock does have a voltage regulator. Remember we are not dealing with alot of power draw here....it's just a digital clock. I suggest you take your clock apart and inspect it for the missing resistor. Mine was (not)loctated beside the upper left hand side of the display. One more thing, the display lens will look burnt on the lower left. That happens during manufacture when they fuse the thing together.
-Cheers

#12 kaszag

kaszag

    New User

  • Members
  • Pip
  • 3 posts
  • Budapest, Hungary

Posted 06 April 2004 - 02:28 PM

Hi,



I would join to this discussion with the question: whether I have the same problem as you discuss in this thread?

I have a Forester of year ’98. I observed in the last few weeks, that my clock frequently goes away, but the clock shows the correct time, if it shows something at all.

At the beginning of the defect, the clock stayed blank, but it comes up some minutes later as I started the engine. At that time the weather was very cold, around -10 centigrade, so I don’t think on any over dissipation of the power resistor. Today is definitely warmer (around 10-20 centigrade) and the clock looks to work.

I guess a wrong contact, but I don’t know how to check the cables. How can I dismount the clock? Which cable should give the power to the display?

Could you give me some help?



Gabor



#13 Palouse Rider

Palouse Rider

    New User

  • Members
  • PipPip
  • 23 posts
  • Spokane WA

Posted 06 April 2004 - 04:48 PM

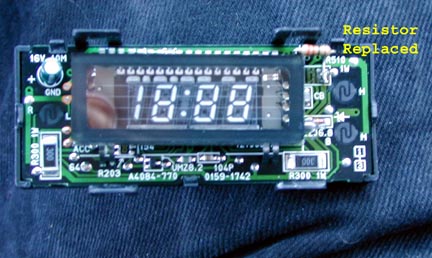

To remove the clock simply pry the cover off using a penknife or small screwdriver, from the top. There is one connector to remove. Then pry the clock apart, be carful not to loose the 3 set buttons when they fall out. You can then check the 3 resistors on the clock board. Here's a picture.

Attached Files



#14 Palouse Rider

Palouse Rider

    New User

  • Members
  • PipPip
  • 23 posts
  • Spokane WA

Posted 06 April 2004 - 04:50 PM

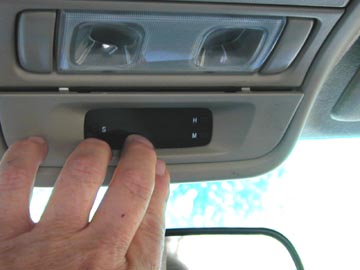

Here's the bezel removal.

Attached Files



#15 Crashton

Crashton

    USMB Regular

  • Members
  • PipPipPip
  • 55 posts
  • Ohio

Posted 06 April 2004 - 08:03 PM

To take the clock out all you need is a small screwdriver. If you look close you'll see to places at the top to put the driver into. Just gently pry & it will pop out. The whole prosess of removing & replacing the clock takes 10 minutes tops. When mine went bad I just bought another. It wasn't cheap, but I had to have a clock.

#16 edrach

edrach

    RIP 6/28/14

  • Members
  • 12,326 posts
  • Bothell, WA

Posted 06 April 2004 - 11:55 PM

Sounds like the resistor powers the display but the clock is actually running all the time. So much for the theory about the resistor supplying 5V to the clock.

#17 Tiny Clark

Tiny Clark

    Certified Subaru Nut

  • Members
  • 807 posts
  • Germany

Posted 07 April 2004 - 01:20 AM

An NTE960 voltage regulator would probably power that clock. It's only about a 1/2 x 1/2 inch and puts out 5 VDC @ 1 amp with up to 35 volts in.

Since my wife's subie didn't have one, I bought a $16.00 timex with luminous hands, cut off the band holders with my dremel to make it nice and round, and mounted it between the two vents with a piece of velcro. It's even the same color as the dash.

And now it's like the good old days. It's not 11:43, it's a quarter to 12!

Tiny

#18 kaszag

kaszag

    New User

  • Members
  • Pip
  • 3 posts
  • Budapest, Hungary

Posted 07 April 2004 - 03:42 AM

Many thanks for the advices guys. I’ll check the clock as I have some free time. The issue is lost its priority, because the clock is working nice since 3 days. But after eastern I’ll check the clock surely, because of I’m a curious man. ;o)



Gabor

#19 Sweet82

Sweet82

    Elite Master of the Subaru

  • Members
  • 3,266 posts
  • Salt Lake City

Posted 07 April 2004 - 02:37 PM

Thanks for the pics,

I was holding off till I knew how to remove the thing. I'll pull it off tonight and see what I can see?

I just got a stereo installed last week so that will take the urgency off fixing the subaru clock. Now I just have to figure out how to set the stereo clock:confused:

Thanks,
Glenn
82 Summer, still has orignal dash clock
01 Forester, still timeless.

#20 Sweet82

Sweet82

    Elite Master of the Subaru

  • Members
  • 3,266 posts
  • Salt Lake City

Posted 16 June 2004 - 03:40 PM

It took a while but, last night, as I was driving home, I finally pulled my clock off while waiting at a stop light. I noticed a small resistor "R510" was soldered on one side and not the other? By the time I got home "R510" was completely off.

I got my trusty $3 Harbor Freight pencil soldering iorn out and re-attached it.

Magic! It came to life!:banana:

In the thumbpics in the above post, it is the exact same resistor.

Thanks to all!
Glenn
82 SubaruHummer, clock still works...
01 Forester, clock works again!

#21 kaszag

kaszag

    New User

  • Members
  • Pip
  • 3 posts
  • Budapest, Hungary

Posted 22 February 2005 - 06:55 AM

Hi People,



On the week end I tired to repair my clock followed your information. As I removed the clock I have not seen any defected resistor. And as my clock sometimes looks to work I’m suspecting a wrong contact in the wiring of the car.

So I measured the plug of the clock:

On the plug I found the signal names: ACC, LIG, GND, BAT

The signals relative to GND was followed:

BAT: +12V (Battery, independently from ignition)

ACC: 0 or 12V depending on the ignition

LIG: seems not to be connected. :confused:

Can anybody tell me if it’s correct?:-\ Or should I have a signal on the LIG connection. If I should, could you tell me what?



Thanks

Gabor

#22 unibrook

unibrook

    Sube1

  • Members
  • 472 posts
  • Boston

Posted 28 February 2005 - 12:31 PM

Thanks to Pal.Rider photo and others input, I pulled out my overhead digi-clock from my 2001 Forester L and fixed it. I was at first surprised to see that the tiny flat rectangle shaped resistor labeled 500 was still in place with intact solders at each side. But I went ahead and scraped the solders a bit to see if any cracks were apparent, still could not see any...but a magnifying glass would have been a help, and I didnt have one. I just went ahead and fired up the soldering iron and melted fresh solder on top of the old solder joints and figured, it can't hurt. I reinstalled the clock in the car, and it has worked perfectly ever since. Who knows, maybe just the action of sliding on and off the wire harness and the fuse improved those connections and made it work. Electronics guru guy at work said it is possible for the old solder joints to look perfectly intact, but for them to be "compromised inside" and thus fooling your eye.

#23 dgerard

dgerard

    New User

  • Members
  • PipPip
  • 10 posts
  • Connecticut

Posted 28 February 2005 - 06:48 PM

Hi People,



On the plug I found the signal names: ACC, LIG, GND, BAT

The signals relative to GND was followed:

BAT: +12V (Battery, independently from ignition)

ACC: 0 or 12V depending on the ignition

LIG: seems not to be connected. :confused:

Can anybody tell me if it’s correct?:-\ Or should I have a signal on the LIG connection. If I should, could you tell me what?


The LIG conection is hot when you have the dashboard lights on...It dims the clock when voltage is detected on that terminal.

DG

Thanks

Gabor


The LIG conection is hot when you have the dashboard lights on...It dims the clock when voltage is detected on that terminal.

DG

#24 ez153

ez153

    New User

  • Members
  • Pip
  • 1 posts
  • South San Francisco, Ca.

Posted 24 April 2005 - 12:09 PM

Yes, EDRACH helped me with mine. I installed a 30 ohm 1/4 watt resistor in the place where the original one either burned or fell off. The original resistors are surface mount, but I just soldered on a regular resistor. I could take mine apart and e-mail you a picture if you like.
-Cheers


Hi,

My name is Emmy and I would greatly appreciate the offer of the picture. My
clock acts as if it is not making contact all the time. Sometimes it comes on
and then nothing.

Thank you,
Emmy

#25 NorthWet

NorthWet

    Eeyore Incarnate

  • Members
  • 5,039 posts
  • Bremerton, WA

Posted 24 April 2005 - 01:32 PM

Folks,

I offer a service through USMB to fix '80s Subaru clocks, but haven't offered it yet for New Gen Subarus because I didn't have an example of the clock.

After looking at this thread, and particularly the picture (thanks!) it looks like Subaru used the same clock module, just with a different circuit board.

If anyone wishes to send me there dead New Gen clock I will see about fixing it. If it is as simple as the OLD Gen clocks, then I will offer the same service for New Gen as my current Old Gen service (basically FREE... see sticky in Marketplace).

If a local (or someone really generous) wants to loan me there working clock, that would be appreciated. Otherwise, I will tear into my wife's new-to-us Legacy and take a peek.

BTW, the problem with the Old Gen are the dropping resistors for the display lighting overheat and melt their solder joints. If this happens with SMD the SMD chips would fall off.

TTFN!
Pat
