Driveshaft? noise after Brat 5-speed swap


  • Please log in to reply
29 replies to this topic

#1 TajMan

TajMan

    USMB is life!

  • Members
  • 236 posts
  • SLC, UT

Posted 12 August 2012 - 04:59 PM

Hey guys, been driving my new '86 Brat here a bit after the 5-speed D/R swap it just received. All seems pretty great most of the time.
Found that I'd sprung a leak from one of the heater core hoses last night, fixed that this morning. For this build I just had one of my old radiators patched/cleaned up at local radiator shop for $80 I didn't feel great about paying, car still wants to run pretty damn hot sometimes in these hotter than 95 degree summer temps but not to the point of overheating, I'll try some redline water wetter, also may need to adapt a small coolant overflow bottle into this engine bay the radiator can take from/give. My old black Brat uses a bottle like that... Waiting for a new A/C condenser to come in like wednesday so that hopefully my A/C can work after that.

Trying to diagnose a vibration noise that comes and goes, pretty much above 60mph, would seem to be driveshaft (custom for swap, 51" long tube I believe about 10.5" longer than stock).
Driveshaft made & balanced at local Six States driveline shop.
From all external appearances, I don't think the driveshaft is rubbing against the exhaust pipe or anything close, everything is at least 3/4" away at its closest and exhaust pipe is mounted firm with two solid 'hangers' in the middle of car.

So my next question is, how much free-play is the driveshaft supposed to have to slide in and out of the trans? It's a long splined shaft on end of driveshaft that slides into trans.. if you remove the 4 driveshaft bolts mounted to the rear-diff. and slide the driveshaft all the way into the trans (with car on its 4 wheels), how much space is supposed to exist between the driveshaft and the surface of rear-diff. it mounts to? 1/2" gap or bigger? I would think if driveshaft is slightly too short it could cause a vibration issue like this..
I was going to unbolt driveshaft again to check that space next, and I was thinking about an AWD dyno run to help diagnose if I need to.

Also, if engine is just idling in neutral, I can hold the 4WD shift lever down slightly further towards the trans tunnel (in 2WD) and cause a slight trans noise to go away, like two sets of gears aren't slightly rubbing anymore.
I know for the 4WD shifting there are two rods, one that connects to the 4WD lever (modified for my swap), and another that is attached at two points coming out of the trans slightly ahead, connected together for shifting between 2hi-4hi-hlo.
Probably I need to make slight length-adjustments with adjusting nuts at the end of one of these rods to keep this slight-rubbing noise away when in 2WD??

#2 TajMan

TajMan

    USMB is life!

  • Members
  • 236 posts
  • SLC, UT

Posted 13 August 2012 - 08:09 AM

how much free-play is the driveshaft supposed to have to slide in and out of the trans?.. if you remove the 4 driveshaft bolts mounted to the rear-diff. and slide the driveshaft all the way into the trans (with car on its 4 wheels), how much space is supposed to exist between the driveshaft and the surface of rear-diff.? 1/2" gap or bigger?

Also, 4WD shift lever slight noise? [Has some force on it in one direction now when it needs to be more 'neutral'?]


Thank you educated forum members, just need to reiterate my important questions.
If I could get any answer today that would be awesome, you guys are pros.

#3 ivans imports

ivans imports

    1000+ Super USER!

  • Members
  • 2,926 posts
  • lumby bc canada

Posted 13 August 2012 - 10:24 AM

on my race buggy the driveshaft has a space of 3/4 to 13/16 from the tail to the drivshaft is way to short have been waiting for it to wipe a spline but 6 years of racing no failure yet thiss whould not cause a vibration out of alinment or bad ujoint bent tire ballance did you use a two pice drive shaft or one peice ? is your tail shaft inline with diff ? and so on

#4 Yo'J

Yo'J

    Certified Subaru Nut

  • Members
  • 833 posts
  • seattle

Posted 13 August 2012 - 11:30 AM

I have a bad syncro in 4th gear on my 5 speed swap. It only makes noise in 4th above 60 mph when the rpms are high, never any other time. I have two swaps and I can measure both at the tail stock if you want.

#5 TajMan

TajMan

    USMB is life!

  • Members
  • 236 posts
  • SLC, UT

Posted 13 August 2012 - 12:05 PM

There seems to be between 1/2" and 3/4" space between my driveshaft and my diff when I unbolt it.
Posted Image

Is the rear differential itself acceptable to have so much play in it between the drive-shaft and the rear drive axles when you change directions?

Posted Image

It seems my problem occurs regardless of 4th or 5th gear pretty much above 60mph when I let off the throttle and so under deceleration or low engine output. Also I believe doesn't matter if 2WD or 4WD-HI would still do it in these deceleration situations at those speeds. Like a chatter that can come on stronger and stronger for a sec, driveshaft whipping back and forth at the trans snout near under the shifter? If I accelerate hard all the way past 75mph in 4th/5th gear I can prevent any major vibrations from occurring, BUT if I make it to 60mph then am just accelerating barely or maintaining speed, the chatter can come on. So.. I can drive this car even on the freeway, and feel like something bad is happening less than 5% of the time..

ONE-PIECE driveshaft made at Six-States driveline shop, 51" of new tubing.

I've had these wheels on two different brats here, 15" Pug alloys with newer Goodyear tires, problem shouldn't lie in any wheel balance alone..
This '86 car drove ok previously with no vibration issues on stock driveshaft/4spd trans..
Stock Brat height not lifted (rear does sit higher than front, must be at highest adjustment in rear), alignment of rear diff and tail of trans seems straight no bad angles..

Edited by TajMan, 13 August 2012 - 12:13 PM.


#6 TajMan

TajMan

    USMB is life!

  • Members
  • 236 posts
  • SLC, UT

Posted 13 August 2012 - 01:17 PM

I had an experienced mechanic working near me at my shop JUST tell me,
what's most important is that the angles between the driveshaft/rear diff and driveshaft/trans are the same or very close to each other and that must be measured with a special driveline tool! Even if angle is more or less than it was stock, I guess what matters more is that the two angles are close to the same?

I've got 4-speed and 5-speed Brats sitting right here, I can see with my eye that the angle is a little steeper with the 5-speed driveshaft than with the 4-speed (between rear diff. and driveshaft)...... so I can only imagine that this could be a possible problem until I get Brat on a lift somewhere that can measure with the correct driveline tools?

#7 TajMan

TajMan

    USMB is life!

  • Members
  • 236 posts
  • SLC, UT

Posted 15 August 2012 - 09:36 AM

I'm surprised nobody came back here to confirm

I'm just teaching myself about modifying 4X4 vehicles here..

At this point I am very confident that aligning my rear differential so it is about parallel with my transmission should fix this problem..

#8 naru

naru

    1000+ Super USER!

  • Members
  • 1,742 posts
  • under the bridge

Posted 15 August 2012 - 11:49 AM

I think you are right.

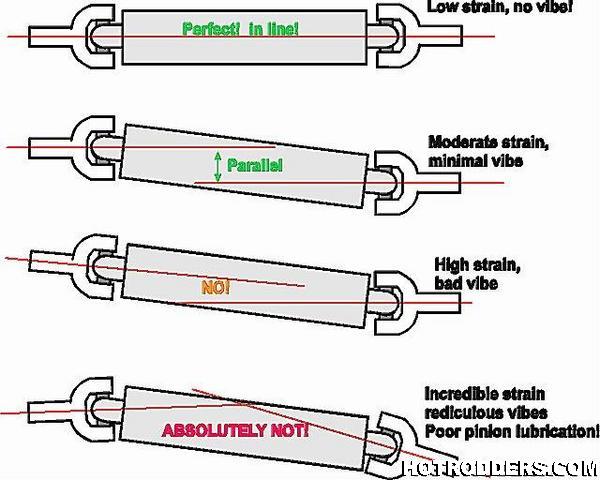

Attached Files



#9 ivans imports

ivans imports

    1000+ Super USER!

  • Members
  • 2,926 posts
  • lumby bc canada

Posted 16 August 2012 - 10:41 AM

nope dont agree have run rediculous drive shaft angles with no problems my dayly driver has way steeper angles than that and its a 83 wagon with five speed and sti motor has 4 inch lift on back with stock steady berring hight and mount the drive shaft gos up to stedy bering at a realy steep angle then strait into trans from steady berring no vibrations and no problems one pice drive shaft or two ????????

#10 TajMan

TajMan

    USMB is life!

  • Members
  • 236 posts
  • SLC, UT

Posted 16 August 2012 - 11:14 AM

REALLY!?
You're saying you have 5-speed swap, with a one-piece driveshaft, and steep driveshaft angles, AND you say your trans and rear diff are not parallel?

I don't know what to think about that..


but I talked to guys a six-states here who had built my custom driveshaft. I am very disappointed how little help the offered, basically just left me on my own zero help (because they don't know how Subaru Brats are built or what changing the rear diff angle would take)

My problem now is, The angles seem to be multiple vertical & horizontal- I need some kind of tool to properly calculate these angles, a pro-tractor/level under the car on a lift measuring the vertical rise/drop is NOT sufficient enough. What point of relation do I have to go off of on the trans to tell what is 'straight'!? Its a big odd shape without a flat plate on bottom that looks parallel with the driveshaft yolk, difficult to measure..

It seems I could add washers to the 4 bolts/nuts on rear diff mounting, and change the angle more in the WRONG direction pretty easily... but it seems to change angle in the right direction may take some cutting/drilling/modifying to the bar that runs BEHIND the diff and mounts with two bolts. With those two bolts mounted lower the angle between driveshaft/diff could be less-steep.

I KNOW the angles are not steep now! I just thought the difference in angles was surely causing this..

Edited by TajMan, 16 August 2012 - 11:17 AM.


#11 Yo'J

Yo'J

    Certified Subaru Nut

  • Members
  • 833 posts
  • seattle

Posted 16 August 2012 - 01:10 PM

Well, what did you do to your setup to cause such off stock angles? You have no lift right? I could see a incomplete lift or a 2/4 lift doing some thing wrong to the driveshaft but not a complete body lift or a stock setup. The driveline should be less angled than stock with a 5pd swap too because its lengthened and the trans output shaft should be in the same spot hight wise. Did six states not balance your driveline?

#12 TajMan

TajMan

    USMB is life!

  • Members
  • 236 posts
  • SLC, UT

Posted 17 August 2012 - 09:44 AM

They balanced the driveline, has a small weight on it. should be ok balance

Driveline angle only changed because driveline slightly longer now...
I know you'd think the angle slightly less steep now, with the longer driveshaft..
HOWEVER, if you look under both the 4-speed and 5-speed brats, just judging by eye, it appears the angle between driveshaft/rear diff is slightly steeper on the 5-speed car!?

#13 ivans imports

ivans imports

    1000+ Super USER!

  • Members
  • 2,926 posts
  • lumby bc canada

Posted 17 August 2012 - 10:59 AM

No i have a two peice drivshaft with a hanger berring i whould never use a one peice for that app because it becomes to long and will fight you put in a two peice drive shaft and hanger berring and will fix problem a stock loyale drive shaft is the right length i use a trans xmember bolted to floor to hold hanger berring up works realy good have done many 5 speed swaps into the 80-84 cars and always use the two peice shaft

#14 Yo'J

Yo'J

    Certified Subaru Nut

  • Members
  • 833 posts
  • seattle

Posted 17 August 2012 - 11:15 AM

I've got six years on my lifted wagon with a one piece with no problems, zerk fittings and all. I can see a two piece being better off road but whatever, I couldn't find one at the time. I have heard somewhere here of mounting issues causing probs with the carrier bearing but that sounds good to use the crossmember...easier to align. Its only a few inches difference off stock though, have you seen those BIG TRUCKS out there? lol.

#15 Yo'J

Yo'J

    Certified Subaru Nut

  • Members
  • 833 posts
  • seattle

Posted 18 August 2012 - 12:10 AM

Bad trans tail shaft?

#16 TajMan

TajMan

    USMB is life!

  • Members
  • 236 posts
  • SLC, UT

Posted 20 August 2012 - 10:45 AM

I really don't think it is^
but yet to diagnose properly..

With this 5-speed swap, one part of the rear of trans tail shaft is basically touching the body sheet metal on the side of trans tunnel (tight fit w/ these custom trans mounts) SO... if something causes the driveshaft to vibrate, its just going to shake the trans and AMPLIFY the sound/vibration.

I am going to try to hit the body underneath with a bar and a big sledge, try to bend a little and create a bigger gap there.

AND then my next task will be to try and measure/re-mount the rear diff at a slightly different angle.

If I'm unable to stop this issue with the 1-piece, I suppose I may always try a Loyale 2-piece driveshaft..

#17 TajMan

TajMan

    USMB is life!

  • Members
  • 236 posts
  • SLC, UT

Posted 24 August 2012 - 10:04 AM

There are lots of Loyales in the junk yard

I may snag a 2-piece driveshaft and try to install/fabricate a center section mount.. to see if it fixes my issue.. because it may be the simplest way of attempting to do so first.

#18 Yo'J

Yo'J

    Certified Subaru Nut

  • Members
  • 833 posts
  • seattle

Posted 24 August 2012 - 11:18 AM

Post up a pic of the angles of your installed shaft. Ya shouldnt need to have two!!

#19 coxy

coxy

    USMB is life!

  • Members
  • 217 posts
  • Sydney Australia

Posted 27 August 2012 - 06:19 AM

The angles are not the issue unless it is too straight,Uni joints actually like to run at an angle in fact if they are perfectly in line you will have issues they must not be in line or Harmonic vibrations will occur.
Most driveshafts need about 1 inch of clearance to allow the movement into the extension housing on a conventional live axle as the suspension compresses and the drive shaft slides into the box,Obviously with a Subaru with the rear Differential solidly mounted and Independant rear arms that does not occur to the same degree so leave at least 1/2 inch to 3/4 inch minimum to allow easy R&R.

However Uni joints must be in line on the driveshaft perfectly or it will vibrate,they cannot be out of line so check alignment between both Uni joints with a string line or better if available a laser pointer.
Remember Uni's must align at each end of the Propellor or Driveshaft but when bolted up must not line up between the Gearbox and differential unit,Usually just vertical differences in alignment is enough but being out side to side should pose no issues either.

Edited by coxy, 27 August 2012 - 06:21 AM.


#20 TajMan

TajMan

    USMB is life!

  • Members
  • 236 posts
  • SLC, UT

Posted 27 August 2012 - 01:42 PM

Its so hard to get any good pics of driveshaft angles, I don't have a lift..
.. but the point is- no extreme angles! Stock car height stock mounting, driveshaft only longer causing slight difference from 4spd angles.

Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
my name on the driveshaft built by six states

difficult to adjust anything..

sooo I just bought a '94 Loyale 2-piece driveshaft for $50 and I'm going to see how easily I can weld some mounts for the center section and give that a try instead

#21 naru

naru

    1000+ Super USER!

  • Members
  • 1,742 posts
  • under the bridge

Posted 27 August 2012 - 04:42 PM

Looks like the trans output and rear input are not parallel.
That will give a vibration.
Angles are OK up to a point,but ,you want the trans and rear end parallel.

#22 TajMan

TajMan

    USMB is life!

  • Members
  • 236 posts
  • SLC, UT

Posted 28 August 2012 - 08:50 PM

Problem seems mostly pretty much fixed with this 2-piece driveshaft and current position of center-section mounting.
There are still times between 60-65mph off-throttle that I can feel the beginnings of a faint vibration similar to before but nowhere near as bad as the past at times..
I'd call it 99.9% fixed, and know the things required to perfect it to feel like a 'completely stock car always'...

#23 ivans imports

ivans imports

    1000+ Super USER!

  • Members
  • 2,926 posts
  • lumby bc canada

Posted 29 August 2012 - 10:32 AM

the soild exhaust hanger will cause vibrations try and rubber mont it to isolate the noise i do not like solid hangers unless has a flex joint in line will cause you to feel the exhaust in the trans and shifter

#24 TajMan

TajMan

    USMB is life!

  • Members
  • 236 posts
  • SLC, UT

Posted 29 August 2012 - 04:38 PM

exhaust hangers cause a vibration in body from exhaust, I'm going to fix that..

besides that there is a slight driveshaft issue sometimes still, which means at the same time I fix the exhaust hangers I'm going to cut the center section of my exhaust out, fix driveshaft center mounting for an even more centered location, then afterward I'll fix all those slight bends in the middle of my exhaust with a new straight section of piping..

#25 TajMan

TajMan

    USMB is life!

  • Members
  • 236 posts
  • SLC, UT

Posted 27 September 2012 - 10:11 AM

I've seen many issues, with 1-piece and 2-piece, had 2-piece center section welded up to my body, etc... 1-piece is back in now, and I believe it has a U-joint going bad on one end, I'll see if I can still replace that today, I have a new buyer from this forum coming for the car today..



What is ridiculous I'm surprised nobody mentioned before, is that its very easy to alter the angle of the rear diff in the direction I wanted, just by stacking some large washers(19mm nuts) on the two ends of the bar mounted transversely which is bolted to the back of the rear diff. Move those two mounting points down, the front of rear diff that driveshaft mounts to then angles up slightly. If you don't have enough movement yet with 3 large washers, then you could unbolt those 2 brackets from the body under the bed, and also add washers/maybe longer bolts which mount those brackets to the body..
