Disabling wipers-with-washer button


  • Please log in to reply
17 replies to this topic

#1 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,422 posts
  • Near Cortland NY

Posted 22 October 2012 - 12:07 PM

Has anyone set it up so the washer button does not turn on the wipers?

To me this is the most monumentally stupid feature conceivable, at least for those of us who have winter!

I am sick of the wipers dragging across a bone-dry dirty windshield before the squirter starts squirting, and don't even get me going on the agony of the line being frozen or the reservoir empty.

#2 1 Lucky Texan

1 Lucky Texan

    I read a lot about Subarus

  • Members
  • 4,662 posts
  • Texas

Posted 22 October 2012 - 01:10 PM

Has anyone set it up so the washer button does not turn on the wipers?

To me this is the most monumentally stupid feature conceivable, at least for those of us who have winter!

I am sick of the wipers dragging across a bone-dry dirty windshield before the squirter starts squirting, and don't even get me going on the agony of the line being frozen or the reservoir empty.


not much snow here, but idoes kinda "offend my sense of order" that first wipe-and-a-half or so are dry.

interesting

might just require pulling a wire or 2 off of a timer or relay somewhere.

or, alternatively, wire in a separate push button just to squirt washer fluid.

Edited by 1 Lucky Texan, 22 October 2012 - 02:42 PM.


#3 forester2002s

forester2002s

    Subaru Fanatic!

  • Members
  • 494 posts
  • Vancouver Canada

Posted 22 October 2012 - 11:09 PM

alternatively, wire in a separate push button just to squirt washer fluid.

That should work.
The wiring diagram for my 2002 Forester shows that the wiring connections for the washer motor are mostly inside the combination switch.
The washer switch feeds two pairs of wires: One pair connects internally to the Intermittent Switch module (this is what triggers the wipers); the other pair feeds externally to the washer motor.
One could disconnect this external pair of wires from the combination meter, and then reconnect them to a new push-button. The P-B would then energize the washer, but not the wipers.

#4 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,422 posts
  • Near Cortland NY

Posted 23 October 2012 - 08:29 AM

I was willing to bet if I pulled the switch apart I could find the right circuit-board trace to cut (taking apart the un-dissassembleable is a talent of mine), someone pointed me to this:

http://offroadingsub...aythenwipe.html

There's a resistor you pull, and it disconnects the washer button from the intermittent wiper control.

#5 1 Lucky Texan

1 Lucky Texan

    I read a lot about Subarus

  • Members
  • 4,662 posts
  • Texas

Posted 23 October 2012 - 08:45 AM

I was willing to bet if I pulled the switch apart I could find the right circuit-board trace to cut (taking apart the un-dissassembleable is a talent of mine), someone pointed me to this:

http://offroadingsub...aythenwipe.html

There's a resistor you pull, and it disconnects the washer button from the intermittent wiper control.



great find!

#6 spazomatic

spazomatic

    USMB is life!

  • Members
  • 361 posts
  • castle rock

Posted 23 October 2012 - 09:42 AM

Ive thought about putting a check valve in line, so that the fluid is always at the ready, instead of the lines needing to be filled each time, causing the delay.

#7 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,422 posts
  • Near Cortland NY

Posted 23 October 2012 - 11:19 AM

Under the best of circumstances on my '03 the wipers beat the water (or any significant amount of water) to many parts of the windshield, especially when at highway speeds, even for a 'second squirt'.

I hate to say, I can't wait to do this...

#8 1 Lucky Texan

1 Lucky Texan

    I read a lot about Subarus

  • Members
  • 4,662 posts
  • Texas

Posted 23 October 2012 - 11:43 AM

if you look kind of opposite that resistor's location, up around the 12 o'Clock position, there appears to be an unused spot for a component. I'm wonder if there's an unused option and what it might be?

if you pull this part out, see if you can trace the lands from that location.

I'm reluctant to do this to my wife's car. she's VERY sensitive to any alterations to it. Always asking why and crap like that lol!

#9 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,422 posts
  • Near Cortland NY

Posted 23 October 2012 - 01:24 PM

I wonder how much a new switch is?

#10 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,422 posts
  • Near Cortland NY

Posted 23 October 2012 - 01:28 PM

I don't see the spot you mean.

Posted Image

#11 1 Lucky Texan

1 Lucky Texan

    I read a lot about Subarus

  • Members
  • 4,662 posts
  • Texas

Posted 23 October 2012 - 01:47 PM

I don't see the spot you mean.

Posted Image


start at the top, just as you come down, past the very first solder pad, there are 2 large thru-hole connections, vertical to each other, which are kinda dirty/smudgey looking. Look to the left of the lower one. There's an unused surface-mount position. I was just wondering what its purpose could be.

Edited by 1 Lucky Texan, 23 October 2012 - 01:49 PM.


#12 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,422 posts
  • Near Cortland NY

Posted 23 October 2012 - 06:43 PM

I see it now... someone needs to cough up a bad one for analysis, but do these ever fail?

Maybe this same module is inside the rear wiper controller and has a few positions populated differently.

I can try to pin out mine if I get to messing with it.

#13 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,422 posts
  • Near Cortland NY

Posted 24 October 2012 - 09:52 AM

I don't see the spot you mean.

Posted Image


Well, crap, mine is different.
Looks like that one had the wiper on the left side of the column, mine is on the right, as my board looks a little like a mirror-image of that one but the layout is different.

I think I have the correct resistor isolated, stalk connector looks different.

Edited by CNY_Dave, 24 October 2012 - 09:57 AM.


#14 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,422 posts
  • Near Cortland NY

Posted 24 October 2012 - 10:39 AM

Success!

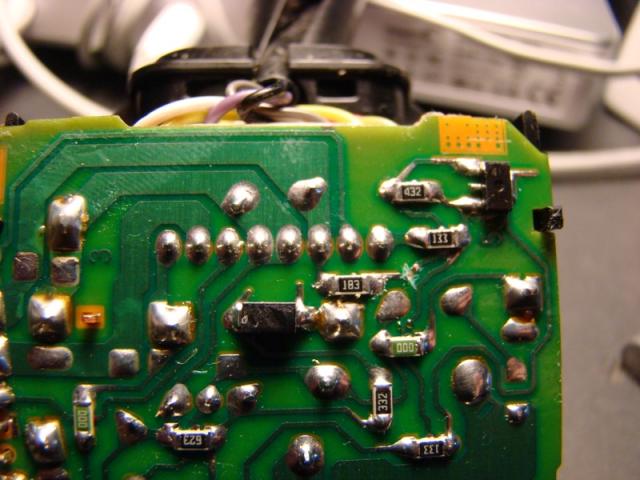

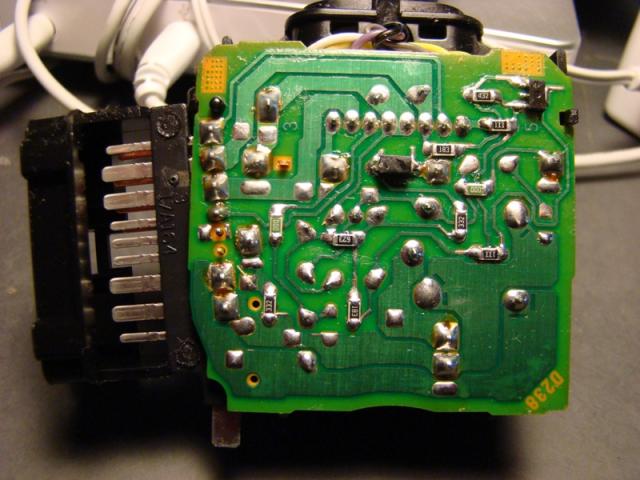

Pic of bottom of board, and of the track I cut that goes to the resistor.

Attached Files



#15 1 Lucky Texan

1 Lucky Texan

    I read a lot about Subarus

  • Members
  • 4,662 posts
  • Texas

Posted 24 October 2012 - 11:00 AM

Success!

Pic of bottom of board, and of the track I cut that goes to the resistor.


good job buddy!

thanx for posting

#16 CoupedUpSubie

CoupedUpSubie

    USMB is life!

  • Members
  • 160 posts
  • Woolwich

Posted 30 November 2012 - 05:05 PM

The track you cut. Is that the one with the light colored line in it?

#17 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,422 posts
  • Near Cortland NY

Posted 30 November 2012 - 06:41 PM

The track you cut. Is that the one with the light colored line in it?


Yes, the track that leaves the upper-right corner of the resistor that says "183" then goes under the one that says "133", you could also remove the resistor, but cutting the track is easier, I think.

http://www.ultimates...69&d=1351093134

#18 1 Lucky Texan

1 Lucky Texan

    I read a lot about Subarus

  • Members
  • 4,662 posts
  • Texas

Posted 30 November 2012 - 11:28 PM

Yes, the track that leaves the upper-right corner of the resistor that says "183" then goes under the one that says "133", you could also remove the resistor, but cutting the track is easier, I think.

http://www.ultimates...69&d=1351093134



cutting the trace is good technique. It's reversible. scrape the solder mask off the trace on both sides of the cut and bridge over with solder - or a strand of wire (like 28 gauge wire-wrap wire) and solder over the gap.
