Gen 2 4EAT, Anyone ever splice in a new vehicle speed sensor?


  • Please log in to reply
25 replies to this topic

#1 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,402 posts
  • Near Cortland NY

Posted 04 February 2013 - 10:17 AM

Gen 2 4EATs apparently have only one replaceable sensor part, the entire trans wiring harness including 3 sensors and all the connectors that go inside the pan.

I need to replace my rear vehicle speed sensor, wondering if anyone has ever done the splice job and just replaced one sensor.

#2 ivans imports

ivans imports

    1000+ Super USER!

  • Members
  • 2,926 posts
  • lumby bc canada

Posted 04 February 2013 - 11:06 AM

have done some trace the wires back to the conector and unpin them from it then you can change it out as a unit without a splice. I have a few of those harnesses out and have fixed that before

#3 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,402 posts
  • Near Cortland NY

Posted 04 February 2013 - 11:37 AM

I was looking at the connector trying to figure out how to back the pins out, but didn't see anything obvious.

What's the trick?

Posted Image

#4 Fairtax4me

Fairtax4me

    Su bah roo'n

  • Gold Subscribers
  • 8,505 posts
  • Charlottesburg, VA

Posted 04 February 2013 - 10:47 PM

Grab that white thing with some pliers and pull it out. Then you can get at the lock tabs on the pins with a flat head precision screwdriver or other small pointed tool.

#5 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,402 posts
  • Near Cortland NY

Posted 05 February 2013 - 09:18 AM

Thanks. A day spent combing teh internets (nasioc, etc, man, those nasioc guys love to rebuild harnesses!) gave the same advice.

I'm going to spend some time on it tomorrow, maybe I'll just spot a broken or pinched wire and it'll be an easy fix. (It's never an easy fix, is it?)

#6 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,402 posts
  • Near Cortland NY

Posted 05 February 2013 - 09:19 AM

have done some trace the wires back to the conector and unpin them from it then you can change it out as a unit without a splice. I have a few of those harnesses out and have fixed that before


Have you seen a common type of failure? Broken wire vs shorted by chafing vs just a bad sensor?

#7 scube

scube

    New User

  • Members
  • Pip
  • 1 posts
  • Locke, NY

Posted 05 February 2013 - 09:48 AM

CNYDAVE call me if you need some help Ilive in SUMMER HILL 13154962093 STEVE `

#8 ivans imports

ivans imports

    1000+ Super USER!

  • Members
  • 2,926 posts
  • lumby bc canada

Posted 05 February 2013 - 10:49 AM

not many speed senser problems mostly pinched wires or shop damage i do see the senser get wiped out when the pinion fails and alows the pinion to shuttle back and forth any meatal bitts on the end of senser will mess up its signal. should be able to contunuity check the senser harness or see its pattern on a vantage. I dont think iv'e seen a senser just fail randomly always a reason for it

#9 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,402 posts
  • Near Cortland NY

Posted 05 February 2013 - 12:21 PM

CNYDAVE call me if you need some help Ilive in SUMMER HILL 13154962093 STEVE `



You're like 6 miles away so you should just drop by tomorrow afternoon (I'll be working from home and working on the car).

S on Salt, L on Stevens, tan house brown roof with the silly big garage behind it, used to be Gilbert's machine shop.

#10 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,402 posts
  • Near Cortland NY

Posted 05 February 2013 - 12:24 PM

not many speed senser problems mostly pinched wires or shop damage i do see the senser get wiped out when the pinion fails and alows the pinion to shuttle back and forth any meatal bitts on the end of senser will mess up its signal. should be able to contunuity check the senser harness or see its pattern on a vantage. I dont think iv'e seen a senser just fail randomly always a reason for it


Hopefully the removers at the junkyard pinched a wire or such, if the old sensor comes out with metal bits on it or is mangled, indicating an internal problem, I'm going to be quite depressed. But, it's the rear VSS, so at least it would (tend to) be a tailhousing-accessible problem.

#11 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,402 posts
  • Near Cortland NY

Posted 05 February 2013 - 12:50 PM

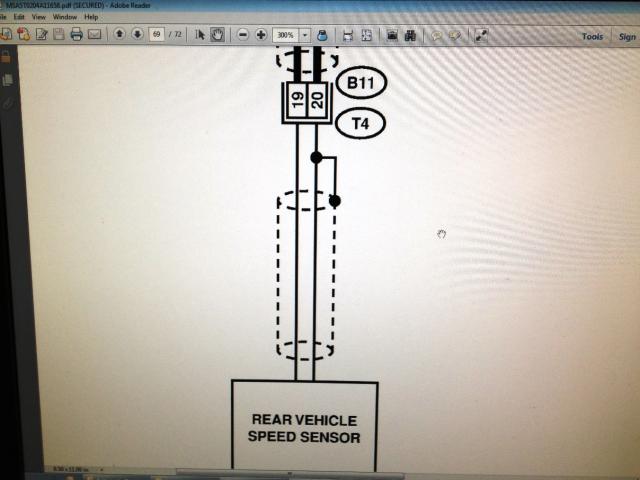

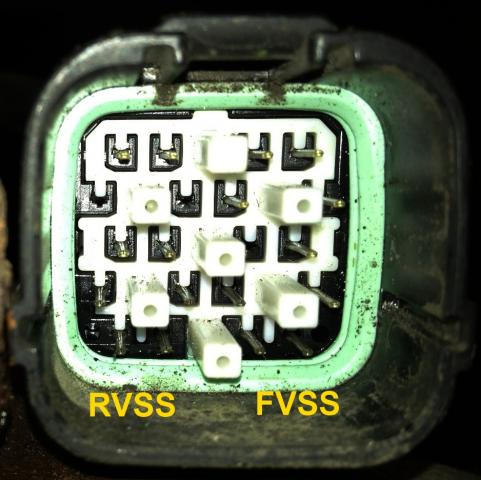

Trans connector, pins 19 and 20 on the bottom left.

Attached Files


Edited by CNY_Dave, 05 February 2013 - 12:57 PM.


#12 johnceggleston

johnceggleston

    Lite Master of the Subaru

  • Gold Subscribers
  • 6,217 posts
  • Virginia

Posted 05 February 2013 - 06:53 PM

these sensors are really simple and they do not fail very often. so before i cut any wire or tore apart any connector i would do everything i could to confirm that it is bad.

it makes sense that it could ba a bad wire, or connector.

and if i understand correctly, you do not have a flashing AT Temp light. if this is correct, then i do not think the rear speed sensor is in fact the problem.

however, i'm just playing the odds. and i tend to be very conservative and think that every problem is the most common problem. obviously this is not always the case.

but the VSS 1 fails ''10 MILLION'' times less often than the VSS2. (exaggeration intended.) i don't think i remember ever hearing of a rear sensor failing.

be sure before you cut.

Edited by johnceggleston, 05 February 2013 - 06:55 PM.


#13 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,402 posts
  • Near Cortland NY

Posted 05 February 2013 - 07:10 PM

Oh hellyeah, I am going to check the snot out of it as far as possible before attempting to fix or replace anything.

Yeah, no flashing AT light, but a clear-as-day code 93 from the gerblinky-blinky AT temp light when put into diagnostic mode.

I even snagged a video of it so I could be sure.

This was a junkyard trans, it wouldn't be that hard for the yard guys to have hit the sensor or pinched a lead.

I did have to straighten the ATF dipstick tube by a fair amount.

#14 johnceggleston

johnceggleston

    Lite Master of the Subaru

  • Gold Subscribers
  • 6,217 posts
  • Virginia

Posted 05 February 2013 - 08:31 PM

remember, you already have a parts trans.

#15 ivans imports

ivans imports

    1000+ Super USER!

  • Members
  • 2,926 posts
  • lumby bc canada

Posted 06 February 2013 - 11:00 AM

any luck ? had a blown awd in a svx yesterday the speed senser and matal chunks and peices on it was very badly blown had to replace the whole tail shaft and rear output assembly. Was able to do it in car what a mess glad i have many cores for parts. Got ruined from runing two diferent size tires front to rear

#16 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,402 posts
  • Near Cortland NY

Posted 06 February 2013 - 11:24 AM

I'm working from home 3 feet from the car, chipping away at both.

#17 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,402 posts
  • Near Cortland NY

Posted 06 February 2013 - 12:10 PM

RVSS at the trans connector (and the FVSS) ohm out just fine, wonderful.

Either it's intermittent or there's a prob in the harness between the connector and the TCU, and the problem was just a coincidence.

Joy.

#18 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,402 posts
  • Near Cortland NY

Posted 06 February 2013 - 12:21 PM

Female pins on B11 to the TCU through the wiring harness is 60-160 kohms (depending on polarity) going to the FVSS input on the TCU, and mega-ohms for the RVSS. So looks like it's a harness-side not trans-side issue.

#19 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,402 posts
  • Near Cortland NY

Posted 06 February 2013 - 02:03 PM

Harness checks out OK. 0 ohms (0.1 or so) for each lead between the TCU connector and the connector to the trans.

All the other diagnostic branches suggest it's either an intermittent or the TCU, as if a scope or the SSM or an AC voltmeter show no signal, it's ruled an either an intermittent or a bad TCM.

Would be funny if the TCM decided to go kaput right when swapping the trans.

#20 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,402 posts
  • Near Cortland NY

Posted 06 February 2013 - 05:23 PM

Well, all that measuring and probing and leaving the batt disconnected, no more TCU codes but also no change in the AWD.

Since it seems to have a tiny bit of binding in a full-lock turn but no AWD I'm going to guess the clutch pack was abused and is no good, but I still can check the duty C solenoid, somehow.

#21 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,402 posts
  • Near Cortland NY

Posted 08 February 2013 - 09:29 AM

Well now.
Well now, looks like '04 had the reversed functionality for the Duty C solenoid.



FWD fuse in place results in the transfer clutch being locked.

Ain't this special.

This also explains why I was getting what felt like binding while doing small circles at min throttle, and why I sometimes get a 'clunk' from the rear when turning the key off (it's the rear driveshaft 'relaxing').

So, does this mean I need an '04 TCU? An '04 TCU and ECU?

Do I need to make a manual duty-cycle control?



#22 johnceggleston

johnceggleston

    Lite Master of the Subaru

  • Gold Subscribers
  • 6,217 posts
  • Virginia

Posted 08 February 2013 - 09:55 AM

what is the trans id code on the bell housing?



a long time ago i heard something like this on JDM auto trans. but it was a long time ago and only one report so i didn't really take it seriously.

but i guess it could be.



#23 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,402 posts
  • Near Cortland NY

Posted 08 February 2013 - 10:10 AM

Subaru says 'your best bet is to just use another transmission', no info avail on if the change is confined to the valve body or the extension housing.

tHE BEST INFO IS THAT NO ecu FLASH CAN FIX IT, AND THE '04 tcu WOULD REQUIRE CHANGING ALL THE OTHER VEHICLE CONTROL MODULES (oops, caps-lock stuck).



Looks like I will be either 'inverting' the duty-c signal (although low duty cycle won't neccesarily translate into the proper high-duty-cycle signal), or I'll be fabbing my own manual control unit.



John, the new trans has ID TZ1A4ZMFAA-M7, don't have the old trans number with me.

The odds of a 4EAT 2004 swap into a 2000-2003 (or vice-versa) is pretty low, so it's not surprising it hasn't been seen as a problem.



It clearly is the case though that the duty-c signals are bass-ackwards.



#24 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,402 posts
  • Near Cortland NY

Posted 08 February 2013 - 10:13 AM

Its funny, I google that trans code and I only get hits in Germany and Russia.



#25 presslab

presslab

    Subaru Nut

  • Members
  • 858 posts
  • N. California

Posted 08 February 2013 - 11:15 AM

Do you have torque bind if you unplug your TCU? If not, that would be a final confirmation it's backward.
