need help ea82 carb hitach engine pls


  • Please log in to reply
12 replies to this topic

#1 kasper_t11

kasper_t11

    New User

  • Members
  • PipPip
  • 12 posts
  • egypt

Posted 05 February 2013 - 11:10 PM

hi all i have some problem i get ea82 in my vw bug engine is start very good but very hard start when it cold and no fuel regular and no solden in engine i have one from carb to manifold and third pip is cut where it must go and what coile is good oil or elctrec and i have back fire aloot and sorry for bad English

#2 old sub freak

old sub freak

    USMB is life!

  • Members
  • 279 posts
  • mt vernon,washington

Posted 07 February 2013 - 12:34 AM

Hi Kasper,We do 1 at a time ok? Cold start..does it have a choke? like a flap that will cover carb hole? that should be closed when start cold.it gives more petro to engine. Close alot ,then not so closed ,then open.helps engine get warm. No solden in engine..solden?? don't understand. What coile? is good oil? what weight? I use 20/50 wt.If thats what you wanted to know.. Lot of back fire? out of time? turn distributer a little one way or the other and see if better. keep trying, we will help,just work on english.ok?..be carefull over there,Todd

#3 Dinky26

Dinky26

    USMB Regular

  • Members
  • 396 posts
  • Wichita KS

Posted 07 February 2013 - 09:14 AM

Coile= coil- coil filled with oil or no oil just wires?
Connecting to distributor...?..right?

Edited by Dinky26, 07 February 2013 - 09:18 AM.


#4 mikaleda

mikaleda

    1000+ member!

  • Members
  • 1,329 posts
  • priest lake, Idaho

Posted 07 February 2013 - 12:08 PM

Back fire and hard to start cold could be to do with choke
As for the rest I am guessing in what you mean I think you said coil is good and it sounds like you have one of you air suction valve pipes cut???
I'm not sure
No fuel regular? Do you mean you don't run regular octane level?
No solden? I'm at a complete loss sorry

Edited by mikaleda, 07 February 2013 - 12:13 PM.


#5 kasper_t11

kasper_t11

    New User

  • Members
  • PipPip
  • 12 posts
  • egypt

Posted 07 February 2013 - 09:57 PM

thanks all for help i get the pic for to see what i see

what my engine is need to be vacuum leaks complete



Attached Files

  • Attached File  65.jpg   69.77K   44 downloads


#6 old sub freak

old sub freak

    USMB is life!

  • Members
  • 279 posts
  • mt vernon,washington

Posted 07 February 2013 - 11:20 PM

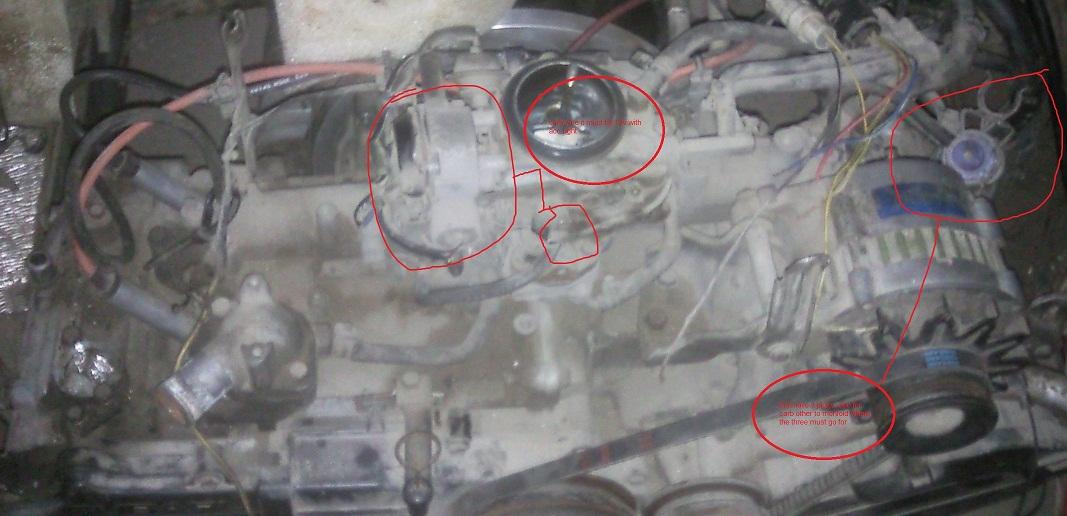

Hey Kasper,  Is there 12 volts to the choke?There should be a wire that goes to the choke,the thing in red circle on the left side of pic,to know if its working it should warm up.feel it  after a few minutes.when warm the choke opens ....the other 2 things in red circles  could be plugged. air poultion stuff..so this engine is in a VW BUG??? good plan....OSF.



#7 kasper_t11

kasper_t11

    New User

  • Members
  • PipPip
  • 12 posts
  • egypt

Posted 08 February 2013 - 10:14 PM

what is that and the engine need it ,that came with engine

Attached Files

  • Attached File  659.jpg   6.99K   13 downloads

Edited by kasper_t11, 08 February 2013 - 10:14 PM.


#8 old sub freak

old sub freak

    USMB is life!

  • Members
  • 279 posts
  • mt vernon,washington

Posted 09 February 2013 - 02:14 AM

Air polution stuff,Mabey?.Do they check that over there? exaust polution? If not its not needed.But when I  look again...?? I'm not sure what it is.Do the knobs turn in and out?? Might not even go with the engine? I bet the engine will run without it.I've never seen anything like it..Anyone else seem one?OSF



#9 NorthWet

NorthWet

    Eeyore Incarnate

  • Members
  • 5,039 posts
  • Bremerton, WA

Posted 09 February 2013 - 02:30 AM

what is that and the engine need it ,that came with engine

If this engine has USA-style exhaust-emissions controls, I think that those solenoid-vacuum valves are the "duty valves" for the computer-controlled carburetor.  One of these valves allow air into the carburetor idle circuit to adjust the fuel/air ratio at idle, and the other valve allows air into the carburetor's "main" circuit to adjust the fuel/air ratio during partial-throttle operation.  If these are not connected, the carburetor tubes where the hoses attach should be capped (covered/plugged).


Edited by NorthWet, 09 February 2013 - 02:31 AM.


#10 kasper_t11

kasper_t11

    New User

  • Members
  • PipPip
  • 12 posts
  • egypt

Posted 09 February 2013 - 05:01 AM

ok but now no start when it cold what can i do plug wire or spark plugs or coil o carb what do u thank



#11 old sub freak

old sub freak

    USMB is life!

  • Members
  • 279 posts
  • mt vernon,washington

Posted 09 February 2013 - 04:28 PM

Is there enough petro? mabey hand choke it when turning it over (hand over carb). Or test for spark by running coil wire to engine and see if spark?? To make engine run you need   Petro,Spark and Air oh and compression...Hang on Kasper, keep trying



#12 NorthWet

NorthWet

    Eeyore Incarnate

  • Members
  • 5,039 posts
  • Bremerton, WA

Posted 10 February 2013 - 04:01 AM

Language issues can cause misunderstandings, so please inform us if something does not translate clearly or is confusing.  Your English is superior to my understanding of your language.  (Egypt, so I assume that you speak Arabic?)  I can only speak one language, so I am impressed with your English.



I am going to make assumptions (guess), and I need to know if they are correct or wrong.  If my assumption is wrong, then my conclusion is not valid.



Assumption #1:  Engine starts and runs, but does not want to start when the engine temperature is cold.

Conclusion : The carburetor is not supplying the correct amount of fuel when the engine is cold.  Ignition is functioning,  but the cold-start enrichment system ("choke") is not operating correctly.



Assumption #2:  Carburetor is not supplying sufficient fuel for a cold start.  (The exhaust does not smell like fuel.)

Conclusion :   The choke plate is not closing.  Either the choke plate is binding or the actuator is faulty.



Assumption #3:  Carburetor is supplying an excessive of fuel for a cold start.  (The exhaust smells strongly of fuel.)

Conclusion :   The choke plate is closed more than the temperature requires.  (The actuator is not correctly adjusted.)



Does the engine have to comply with exhaust emission (air pollution control) regulations?  What emission control equipment exists on the engine?  I am most interested to know if there are large tubes (15-20mm diameter) that attach to the exhaust ports: if these are present, they may be the cause of backfire sounds.



When I have more information I will be able to ask better questions.



#13 old sub freak

old sub freak

    USMB is life!

  • Members
  • 279 posts
  • mt vernon,washington

Posted 13 February 2013 - 04:06 PM

So Kasper,Did you get it running?? Its not too often we get folks from your part of the world on here...let us know how its going.,OSF
