Need pic of 4EAT 2004+ transfer valve


  • Please log in to reply
9 replies to this topic

#1 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,420 posts
  • Near Cortland NY

Posted 08 March 2013 - 09:39 AM

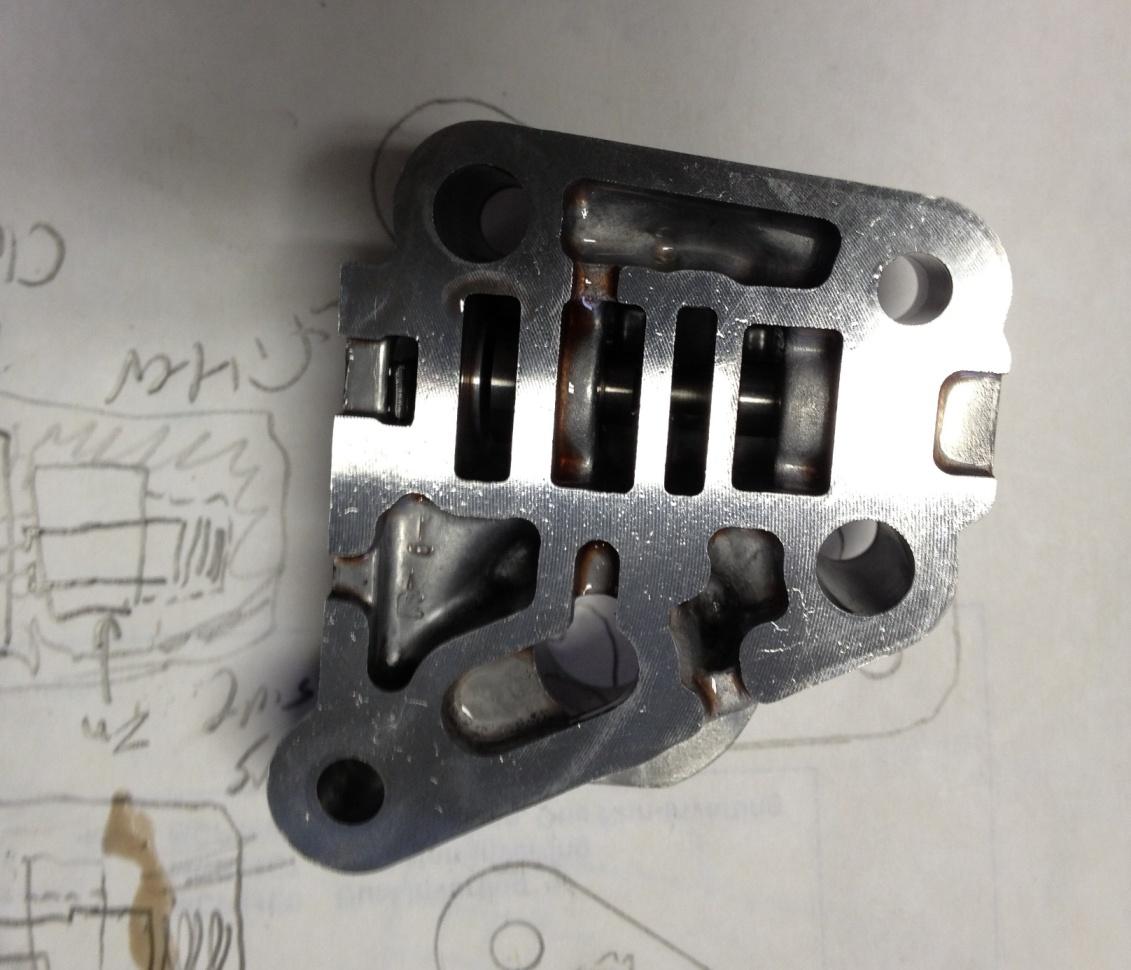

I need a pic, any pic, of the AWD transfer valve that the Transfer Solenoid/Duty C solenoid bolts into.

Ideally pics of both sides of the valve and the channels under the valve, but even a pic of the valve with just the rear section of the trans removed would be very helpful.

I can find lots of pics, but all are of 2003 or older.

By year/model this is what I'm looking for (any one will work):

Baja 2004-2006
Forester 2004
Impreza 2005
Legacy 2004
Outback 2004

subarupartsforyou is throwing me off the trail because regardless of year the only pic they show is this one:


Does that match anyone's valve?

Even if someone has seen theirs and can tell me how similar it looks to my '03:

Attached Files



#2 torxxx

torxxx

    I void warranties

  • Members
  • 2,914 posts
  • Fairbanks

Posted 08 March 2013 - 11:38 AM

opposedforces.com



OE diagrams, might have a decent enough picture for ya



#3 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,420 posts
  • Near Cortland NY

Posted 08 March 2013 - 12:10 PM

2 different browsers, can't get there. No idea why.



The service manuals don't show any difference, but given the level of detail they show it could be different.



#4 torxxx

torxxx

    I void warranties

  • Members
  • 2,914 posts
  • Fairbanks

Posted 08 March 2013 - 12:19 PM

I'll look and see if I have any Phase 2 4Eats @ work when I get there if I do I'll tear the rear cover off and get you some pictures.  One way to verify if the parts are the same is call up a dealership parts department and ask if there was an updated part from 03 to 04.  Generally they kept the internals the same unless there was an issue and it needed an update



#5 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,420 posts
  • Near Cortland NY

Posted 08 March 2013 - 12:30 PM

There is no question it is different, verified via a few routes. What I need to figure out is, is just the solenoid different and the valve is the same, or are both different?



Even just if I find out that the '04 solenoid is open with no power and closed with power applied (opposite before '04), that would tell me what I need to know.



#6 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,420 posts
  • Near Cortland NY

Posted 11 March 2013 - 11:45 AM

Still hoping for a pic.



#7 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,420 posts
  • Near Cortland NY

Posted 26 April 2013 - 01:50 PM

Bump.



Still can't view pics on opposedforces...



#8 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,420 posts
  • Near Cortland NY

Posted 30 April 2013 - 11:09 AM

So far no joy here, subaruoutback, nasioc, and the forester group.



#9 ocei77

ocei77

    Eat, Live, Breath Subaru

  • Members
  • 439 posts
  • Monticello,NY

Posted 30 April 2013 - 05:54 PM

Try Feder's Subaru, Middletown NY. 845 344-3100.

Ask for Dave the Service Mgr. They have always been helpful.



O.



#10 CNY_Dave

CNY_Dave

    03 LL Bean H6

  • Members
  • 1,420 posts
  • Near Cortland NY

Posted 30 May 2013 - 01:06 PM

Monthly bump.
