"Icarus" 1988 xt6 build


  • Please log in to reply
20 replies to this topic

#1 natext6

natext6

    Relax, smoke a dübaru.

  • Members
  • 170 posts
  • calgary

Posted 14 May 2013 - 04:09 PM

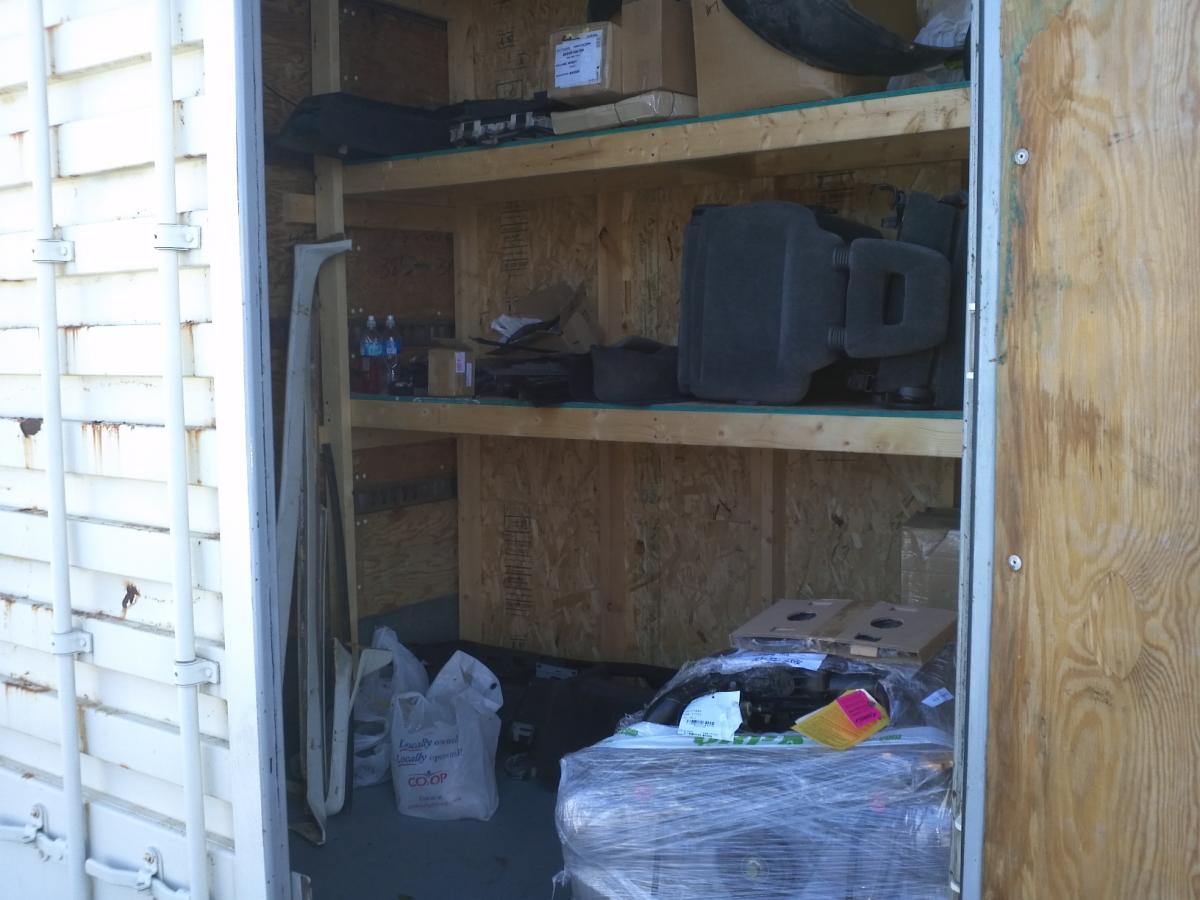

Well, I've amassed enough parts, and I'm getting pretty close to starting work, so I'm ready to start a build thread.



Here's the plan

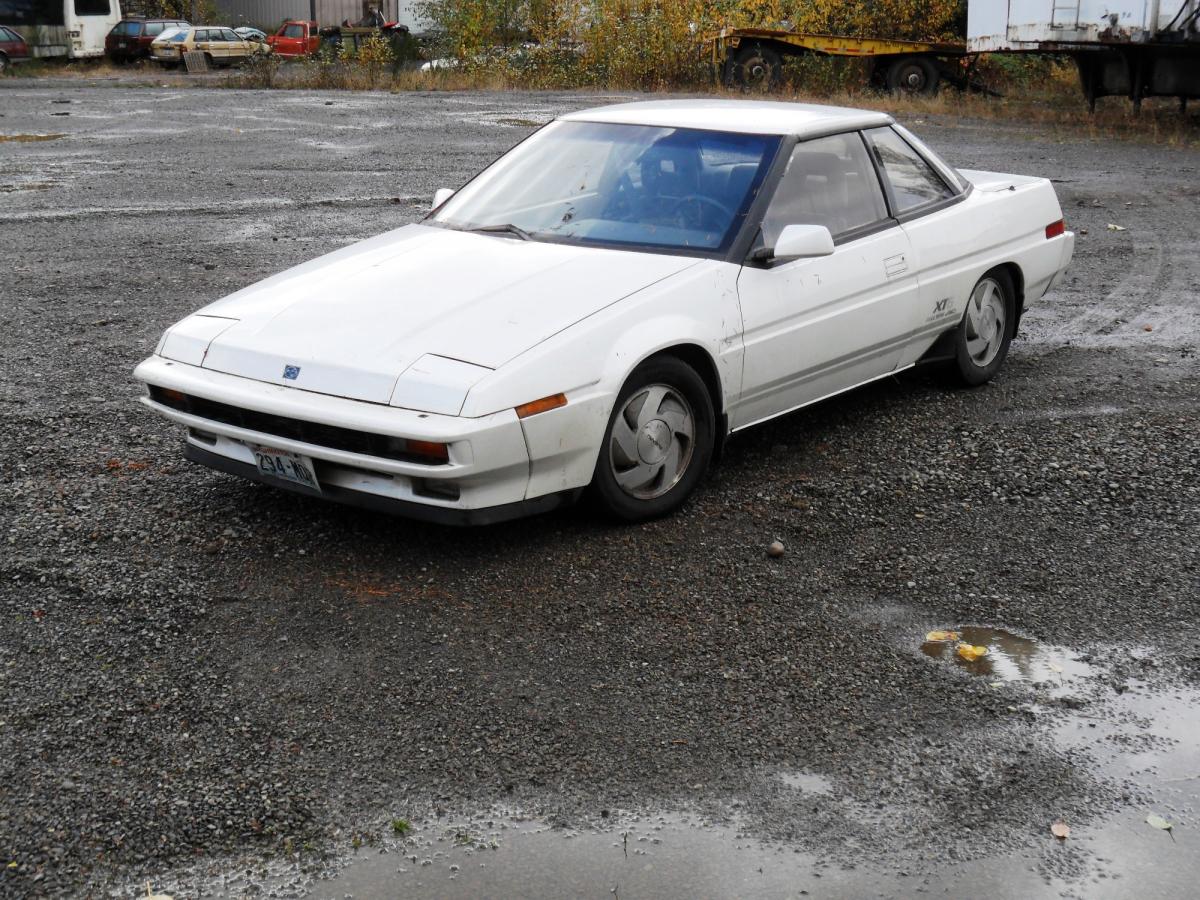

  • 1988 Subaru xt6, satin white exterior, full air suspension.
  • 2007 EZ30DR with 60,000KM

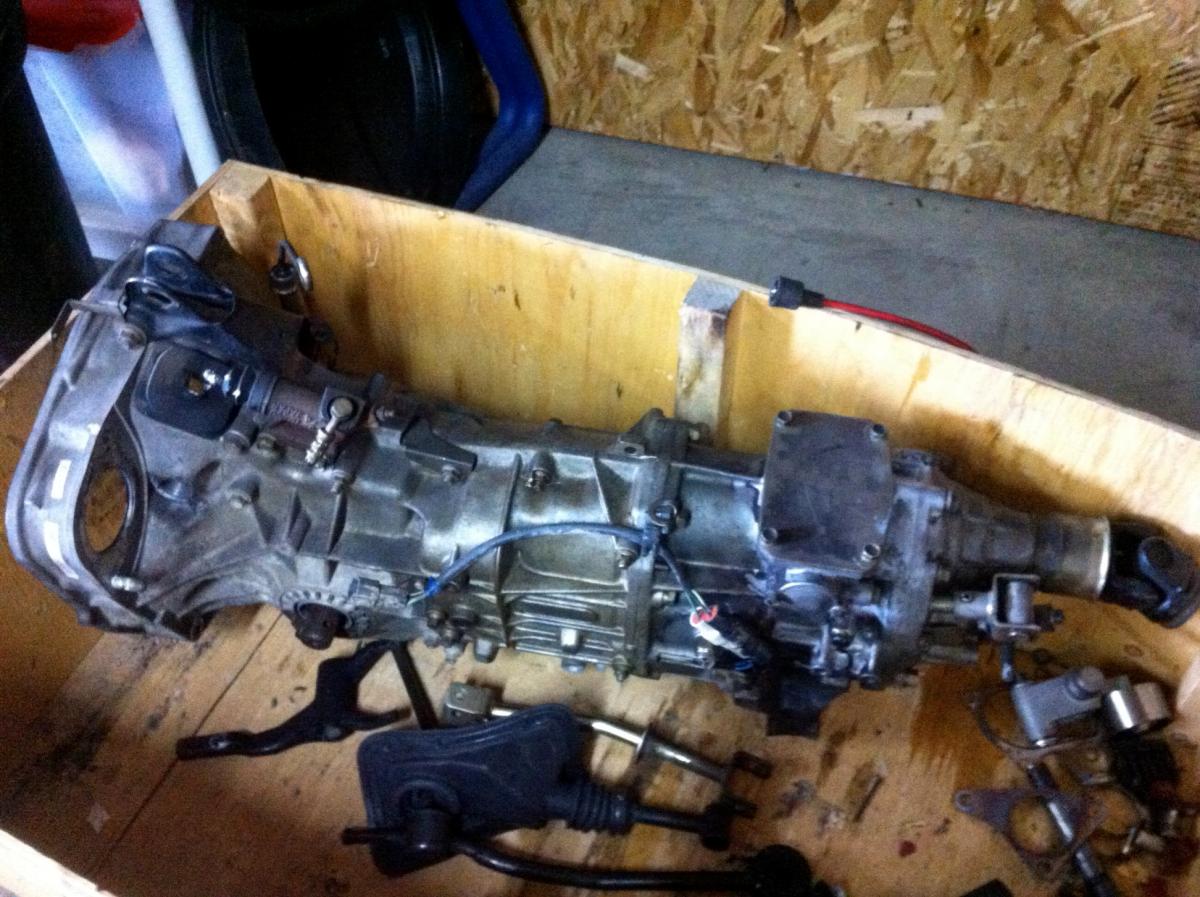

  • 1996 Version 3 JDM STI transmission with 50,000km
  • Full interior update. White Leatherette side bolsters, Black Alcantara seating surfaces and door cards. Foam reinforced in specific areas with memory foam for additional "Hold".
  • Haltech P2000 standalone engine management system.
  • Still looking for a proper clutch setup. (I'm wondering if there's any way to swap a push type clutch to a pull type as I have a 2004 STI clutch I'd like to use.)
  • RX body kit
  • XT-T Digital dash.



Initially I plan to see if I can create some sort of franken-axles to be able to keep the xt6 spindles and Air suspension. If it holds up, then I'll keep it, if not, I'll invest in some coil-overs. If I swap to coil overs, I will also do a rear E-brake conversion.



I'm still in need of a rear diff, driveshaft, and exhaust parts back of the exhaust manifold headers, as well as the engine management, which I will purchase with my next paycheck at the beginning of June. Other than that, I have everything listed above.



Many more pics to come once album creation gets sorted out here on the forum.

Attached Files


Edited by natext6, 14 May 2013 - 04:13 PM.


#2 AKghandi

AKghandi

    87 GL-10 2" lift 27" tires, 86 GL 2" lift 29"

  • Members
  • 1,195 posts
  • Anchorage, Alaska

Posted 14 May 2013 - 10:20 PM

This should be rather awesome when its done. Do I sense speeding tickets?...yes I sense many



#3 WoodsWagon

WoodsWagon

    Formerly 91Loyale

  • Members
  • 3,967 posts
  • NH

Posted 15 May 2013 - 02:33 PM

Your transmission is already a pull type, so the STi clutch should work just fine with it.



#4 natext6

natext6

    Relax, smoke a dübaru.

  • Members
  • 170 posts
  • calgary

Posted 15 May 2013 - 03:27 PM

Your transmission is already a pull type, so the STi clutch should work just fine with it.



How can you tell?



#5 zukiru

zukiru

    EJ22T

  • Members
  • 1,229 posts
  • Oak Grove, AL

Posted 15 May 2013 - 10:41 PM

Gonna be pretty cool Nate! Keep us posted!

#6 natext6

natext6

    Relax, smoke a dübaru.

  • Members
  • 170 posts
  • calgary

Posted 21 May 2013 - 11:50 AM

Looks like the car itself needs some work, we've got a couple small rust spots, there're some ants and interestingly coloured spiders crawling around inside, there are a couple small plastic bits that are broken, the dash bezel is slightly coming off on the left-hand side, and she'll need some paint.



So a little back-story, I went and picked up the body for the vehicle this last weekend from Washington. She had been sitting for quite a while...but, the Old ER27 started right up once we boosted the battery. Coughed horrible blue smoke for about 20 seconds, then she smoothed right out. If the transmission weren't full of "Neutrals" I could probably drive around a bit.



Finally, looks like I need to pick up an appropriate flywheel to be able to bolt the transmission, clutch parts and engine together, but other than that, there will be a lot of small fiddly work until the end of the month.



Lastly! the car came with a bunch of interesting goodies. For instance, I was digging around in the trunk, and found a complete, original, front bra, and also a set of "xt coupe" floor mats. AND SOME RUSH TAPES. Hellz ya Rush. :lol:



But ya, other than that, we're just doing a really intensive clean at the moment!



#7 Subruise

Subruise

    Official Party Pooper

  • Members
  • 1,541 posts
  • pierce county

Posted 21 May 2013 - 06:23 PM





RUSH TAPES! The force is strong with this one.



#8 sikend667

sikend667

    New User

  • Members
  • PipPipPip
  • 73 posts
  • vancouver wa

Posted 21 May 2013 - 06:44 PM

Looks like the car itself needs some work, we've got a couple small rust spots, there're some ants and interestingly coloured spiders crawling around inside, there are a couple small plastic bits that are broken, the dash bezel is slightly coming off on the left-hand side, and she'll need some paint.



So a little back-story, I went and picked up the body for the vehicle this last weekend from Washington. She had been sitting for quite a while...but, the Old ER27 started right up once we boosted the battery. Coughed horrible blue smoke for about 20 seconds, then she smoothed right out. If the transmission weren't full of "Neutrals" I could probably drive around a bit.



Finally, looks like I need to pick up an appropriate flywheel to be able to bolt the transmission, clutch parts and engine together, but other than that, there will be a lot of small fiddly work until the end of the month.



Lastly! the car came with a bunch of interesting goodies. For instance, I was digging around in the trunk, and found a complete, original, front bra, and also a set of "xt coupe" floor mats. AND SOME RUSH TAPES. Hellz ya Rush. :lol:



But ya, other than that, we're just doing a really intensive clean at the moment!

i have still yet to buy or know some one who has bought an XT that DIDNT have ants....... i mean sh*t mines been sitting for 4 months and has already got a NEW ant infestation..... the insulation must be made out of sugar or somthing...........



#9 Turbone

Turbone

    The Original Rob

  • Moderator
  • 12,158 posts
  • WA

Posted 21 May 2013 - 11:41 PM

Glad to see everything worked out.



#10 natext6

natext6

    Relax, smoke a dübaru.

  • Members
  • 170 posts
  • calgary

Posted 29 May 2013 - 10:34 AM

RUSH TAPES! The force is strong with this one.



It's kind of funny actually seems like everytime I pick up an xt6, it comes with free tunes! My first one came with a bonus set of Stevie Ray Vaughan albums.



<Listens to SRV while driving>  CHASE SCENE



#11 ironoxide

ironoxide

    New User

  • Members
  • PipPip
  • 10 posts
  • Logan

Posted 01 July 2013 - 07:01 AM

I'm curious as to where you got the trans? when i did my EJ bellhousing to Locking Center diff EA/ER, i read all over the place and couldn't find anyone who'd done it before.

BUT, on that note, your ER27 (stock Flat 6) wont' bolt to that transmission without an adapter plate. if you didn't know before.



BUT it WILL bolt to an EG33 :evil:



and it looks as if your air suspension is dead... or somebody doesn't like springs.



EDIT: i'm an idiot. i read the EZ30, then looked at the pictures and completely forgot.



you can split the trans and install the stubs from a Stock XT6 Differential, keeping the XT6 Axles, and knuckles, and whatever else you want. I've done it.


Edited by ironoxide, 01 July 2013 - 07:03 AM.


#12 natext6

natext6

    Relax, smoke a dübaru.

  • Members
  • 170 posts
  • calgary

Posted 03 July 2013 - 08:52 PM

I'm curious as to where you got the trans? when i did my EJ bellhousing to Locking Center diff EA/ER, i read all over the place and couldn't find anyone who'd done it before.



I got the transmission from a fellow who had bought it from an importer, but never ended up using it.


and it looks as if your air suspension is dead... or somebody doesn't like springs.



The passenger's side rear strut has a leak, so the rears won't air up. I wired the pump up backwards and somehow got it to air up the front shocks, but the rears have a leak. (I can hear it hissing if I get really close)


you can split the trans and install the stubs from a Stock XT6 Differential, keeping the XT6 Axles, and knuckles, and whatever else you want. I've done it.

That's an interesting idea, but I'm really not terribly inclined to rip apart a transmission....although this might be the best overall solution...



#13 natext6

natext6

    Relax, smoke a dübaru.

  • Members
  • 170 posts
  • calgary

Posted 21 August 2013 - 06:25 PM

Attached File  edits-3.jpg   155.98K   71 downloads

That transmission doesn't quite seem stock??



Attached File  edits-1.jpg   189.19K   63 downloads

Alcyone party! (There was also a white svx, but it was hiding off in a corner.)


Edited by natext6, 21 August 2013 - 06:36 PM.


#14 natext6

natext6

    Relax, smoke a dübaru.

  • Members
  • 170 posts
  • calgary

Posted 21 August 2013 - 06:42 PM

Moar pics...well...pic...



Attached File  edits-4.jpg   126.23K   44 downloads


Edited by natext6, 21 August 2013 - 06:43 PM.


#15 AWD J3wman

AWD J3wman

    USMB is life!

  • Members
  • 165 posts
  • Richfield, MN

Posted 08 September 2013 - 04:29 PM

What tapes were they? I found a 2112 8 track while digging through a mk1 supra at the junkyard a few months ago



#16 natext6

natext6

    Relax, smoke a dübaru.

  • Members
  • 170 posts
  • calgary

Posted 12 September 2013 - 09:37 AM

What tapes were they? I found a 2112 8 track while digging through a mk1 supra at the junkyard a few months ago



I'll get back to you on that =P car's at the shop.



#17 natext6

natext6

    Relax, smoke a dübaru.

  • Members
  • 170 posts
  • calgary

Posted 12 September 2013 - 09:43 AM

As we stand, the transmission, franken-pedals, and clutch parts are all sorted and installed, and the engine is waiting to be installed.


A side note on the clutch setup, I was originally going to use a Hydro, pull-style clutch. BUT apparently there's no room for the Master cylinder/hydraulic pedals parts in the XT6 foot-well area. SO we ended up building a pull-style, cable actuated system...we'll see how that goes...


I've already discussed the exhaust setup with a place nearby which should run me ~ 1250$ but would include everything (including Cats) back from the exhaust header manifolds. I'm grabbing a set of SVX exhaust headers from a fellow on http://www.subaru-svx.net/forum/ it's interesting that the SVX and EZ30DR have the triple port system (Dunno if that's the right term, but I'm talking about the exhaust header design) while the EZ30D only has the single...I wonder why Subaru changed it for that particular engine.

But for all who might read this, I'm in need of some Air-ride parts....the other fellow I was talking to about his parts hasn't gotten back to me in quite a while, and I'm going to need a computer and sensors at the VERY least, potentially struts...so if anyone has bits kicking around (I'm looking at you Gary) give me a shout!

Oh, and I'm going to have to mount up that Kaminari spoiler as well.



#18 ironoxide

ironoxide

    New User

  • Members
  • PipPip
  • 10 posts
  • Logan

Posted 23 September 2013 - 02:54 AM

I have a few computers for the air ride left. maybe a few struts in unknown condition.



#19 natext6

natext6

    Relax, smoke a dübaru.

  • Members
  • 170 posts
  • calgary

Posted 02 October 2013 - 04:01 PM

Engine is in place, and the last of the various parts are being connected as best as possible.



Steps remaining:



-Cutting out part of the hood sub-structure to allow room for the intake manifold (it's a bit too tall currently....)

-Placement of alternator

-Wiring/engine management

-Exhaust

-Rear drive shaft.



And Drive!



It's almost winter here, so I'm just going to leave the A/C system until the spring.

Attached Files

  • Attached File  10.jpg   146.6K   65 downloads
  • Attached File  9.jpg   144K   84 downloads
  • Attached File  8.jpg   133.87K   84 downloads
  • Attached File  7.jpg   131.66K   82 downloads
  • Attached File  6.jpg   50.94K   82 downloads
  • Attached File  5.jpg   117.57K   83 downloads
  • Attached File  1.jpg   138.52K   86 downloads
  • Attached File  2.jpg   98.97K   82 downloads
  • Attached File  3.jpg   90.73K   73 downloads
  • Attached File  4.jpg   154.23K   52 downloads

Edited by natext6, 02 October 2013 - 04:02 PM.


#20 natext6

natext6

    Relax, smoke a dübaru.

  • Members
  • 170 posts
  • calgary

Posted 07 October 2013 - 04:44 PM

Picked up a set of Un-used Hancook 409 I-Pikes for the upcoming winter driving. They're not the best, but I got 'em for like 400$ so W/E they'll do for a season at least.



I plan to have winter tires on the stock rims, and then over this winter season I'm going to keep my eyes open for some nice 16" rims to throw some summers, or All seasons on.



#21 natext6

natext6

    Relax, smoke a dübaru.

  • Members
  • 170 posts
  • calgary

Posted 12 October 2013 - 11:19 AM

The hood closes!
