Legacy ABS code 46


  • Please log in to reply
12 replies to this topic

#1 dollinn

dollinn

    New User

  • Members
  • Pip
  • 7 posts
  • Christchurch

Posted 18 June 2013 - 04:48 AM

Hi

I have owned my 1996 Legacy TX_S for the past 9 years

Recently the abs light started to appear on the dashboard when you turn the car on.  It does not disappear and is not intermittent.

Over the past few days I have tried the following

Checked all fuses- OK
Checked brake fluid- topped up
Checked the check engine lights - no fault codes
Removed all four abs sensors and cleaned them

Read the ABS codes and I get 46

ABS fault code 46 does not exist on my table. Can anyone help me with this.

I have also reset the fault codes and when I turn the key back on it flashes up 46.

Can anyone verify what 46 is

Thanks
Nick
  • 0


#2 Fairtax4me

Fairtax4me

    Su bah roo'n

  • Gold Subscribers
  • 9,085 posts
  • Charlottesburg, VA

Posted 18 June 2013 - 08:25 AM

The module will flash a code 11 as a start code before flashing any stored codes. I've checked abs codes before and the module doesn't pause for long between codes. Are you sure you're not getting a code 11, and a code 26?

I can't find a code 46 listed anywhere either, but I only have info for US market vehicles.
I do see 26, 36, and 56. But no 46.

#3 john in KY

john in KY

    1000+ Super USER!

  • Members
  • 1,260 posts
  • KY

Posted 18 June 2013 - 03:10 PM

Check all the tone rings for cracks. A cracked tone ring will trip a code.



#4 1 Lucky Texan

1 Lucky Texan

    I read a lot about Subarus

  • Gold Subscribers
  • 4,979 posts
  • Texas

Posted 18 June 2013 - 07:06 PM

ABS is sensitive to system voltage too - maybe give the charging system a thorough check.



#5 dollinn

dollinn

    New User

  • Members
  • Pip
  • 7 posts
  • Christchurch

Posted 19 June 2013 - 05:15 AM

The module will flash a code 11 as a start code before flashing any stored codes. I've checked abs codes before and the module doesn't pause for long between codes. Are you sure you're not getting a code 11, and a code 26?

I can't find a code 46 listed anywhere either, but I only have info for US market vehicles.
I do see 26, 36, and 56. But no 46.



Hi Thanks for your help I have checked the fault codes again. It still looks like 46 but I know what you mean..I just posted a short video with 11......46...11.....46. I really can not see any gaps, but there maybe. Let me know what you think.

Attached Files



#6 dollinn

dollinn

    New User

  • Members
  • Pip
  • 7 posts
  • Christchurch

Posted 19 June 2013 - 05:16 AM

ABS is sensitive to system voltage too - maybe give the charging system a thorough check.

Thanks I will look at the voltages over the weekend



#7 1 Lucky Texan

1 Lucky Texan

    I read a lot about Subarus

  • Gold Subscribers
  • 4,979 posts
  • Texas

Posted 19 June 2013 - 07:42 AM

I THINK some older ABS pumps used to go bad, but, IIRC, they would 'buzz' all the time. I think the ABS controller had to be replaced. However, my memory associates that problem with models a year or 2 earlier than yours so, I'd reserve replacement for a last-ditch effort.

#8 dollinn

dollinn

    New User

  • Members
  • Pip
  • 7 posts
  • Christchurch

Posted 22 June 2013 - 05:26 AM

I have checked the voltage and everything is ok. Also now checked the electrical properties of the g sensor, abs sensors and everything is correct. Still have no idea what is causing the 46 code in the video above.

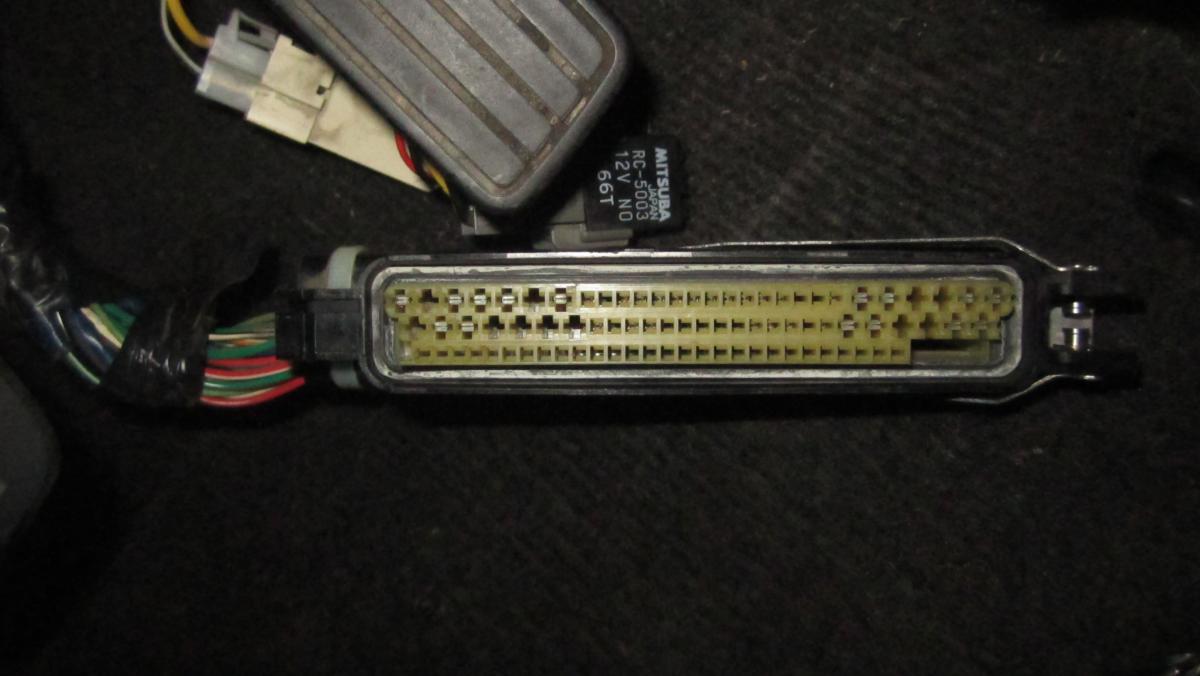

I removed the abs controller from under the dash and everything looks ok. The unit is a 5.3 system Bosch hydraulic unit and nippon abs controller. Does anyone have a pin-out for the connector in this picture. It differs from the service manual. I can not find any info anywhere on it.





Attached Files



#9 dollinn

dollinn

    New User

  • Members
  • Pip
  • 7 posts
  • Christchurch

Posted 25 June 2013 - 01:50 AM

Attached File  1996 legacy abs.pdf   1008.87K   6 downloadsThanks everyone for your help. It turns out abs fault code 46 does exist. The service manual for the 1996 model shows it is a g sensor power fault. I have checked and the sensor is damaged. See manual attached.



Cheers

Nick



#10 Fairtax4me

Fairtax4me

    Su bah roo'n

  • Gold Subscribers
  • 9,085 posts
  • Charlottesburg, VA

Posted 25 June 2013 - 09:31 AM

Thanks for posting that! Ill have to save that section as it is missing from the FSM I have.
Glad you found the problem.

#11 grossgary

grossgary

    Elite Master of the Subaru

  • Members
  • 20,084 posts
  • WV

Posted 25 June 2013 - 02:51 PM

that is a nice document, thanks.



where is the G sensor located?  i didn't see it listed?  i have some ABS codes...and i think 46 may be one of them, i'll have to recheck.



#12 Fairtax4me

Fairtax4me

    Su bah roo'n

  • Gold Subscribers
  • 9,085 posts
  • Charlottesburg, VA

Posted 25 June 2013 - 05:24 PM

G sensor is under the center console.you can almost see it through the park brake handle opening.
Take the two screws out of the rear section under the arm rest and pull it up, the G sensor is the little box with 3 or 4 wires.

#13 grossgary

grossgary

    Elite Master of the Subaru

  • Members
  • 20,084 posts
  • WV

Posted 25 June 2013 - 05:51 PM

great, thanks beast.
