Nippon ABS module connector pin-out


  • Please log in to reply
2 replies to this topic

#1 dollinn

dollinn

    New User

  • Members
  • Pip
  • 7 posts
  • Christchurch

Posted 22 June 2013 - 05:33 AM

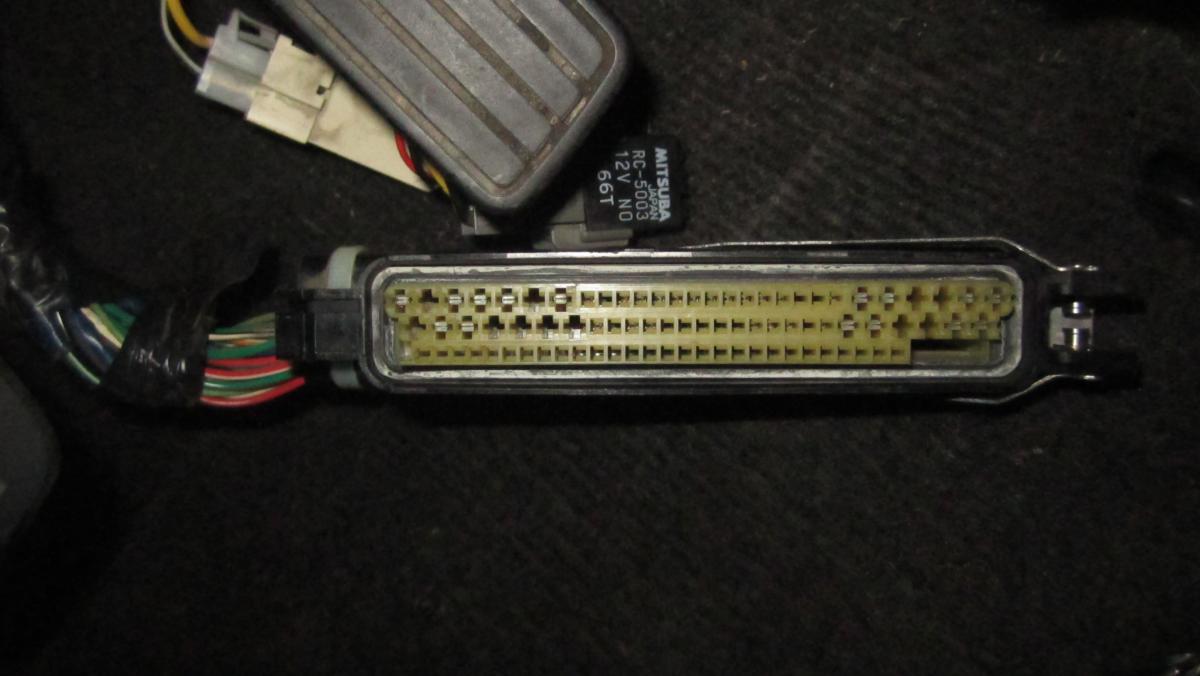

I am looking for the pin out of the above connector. It is from my 1996 subaru legacy. The abs system is the 5.3 unit from bosch. This connector plugs into the Nippon abs module. I have found info on the abs module in the service manaul but it is different from this connector.



Any help appreciated



cheers

Nick

Attached Files



#2 Fairtax4me

Fairtax4me

    Su bah roo'n

  • Gold Subscribers
  • 8,745 posts
  • Charlottesburg, VA

Posted 23 June 2013 - 02:17 PM

I have the 96 FSM but can't post the page.
Its in the Troubleshooting section under brakes, ABS 5.3 type.
Section 4-4C, subsection 5, page 7, Control Module I/O Signal. Hopefully that makes it easier to find.

#3 dollinn

dollinn

    New User

  • Members
  • Pip
  • 7 posts
  • Christchurch

Posted 25 June 2013 - 01:42 AM

Thanks for the help I managed to find it where you said it would be. So much easier to fault find now I have the pin outs.



Cheers

Nick
