EA71 4spd trans teardown - help


  • Please log in to reply
14 replies to this topic

#1 O.C.D.

O.C.D.

    Subaru Fanatic!

  • Validating
  • 690 posts
  • Colorado Springs

Posted 24 June 2013 - 09:11 AM

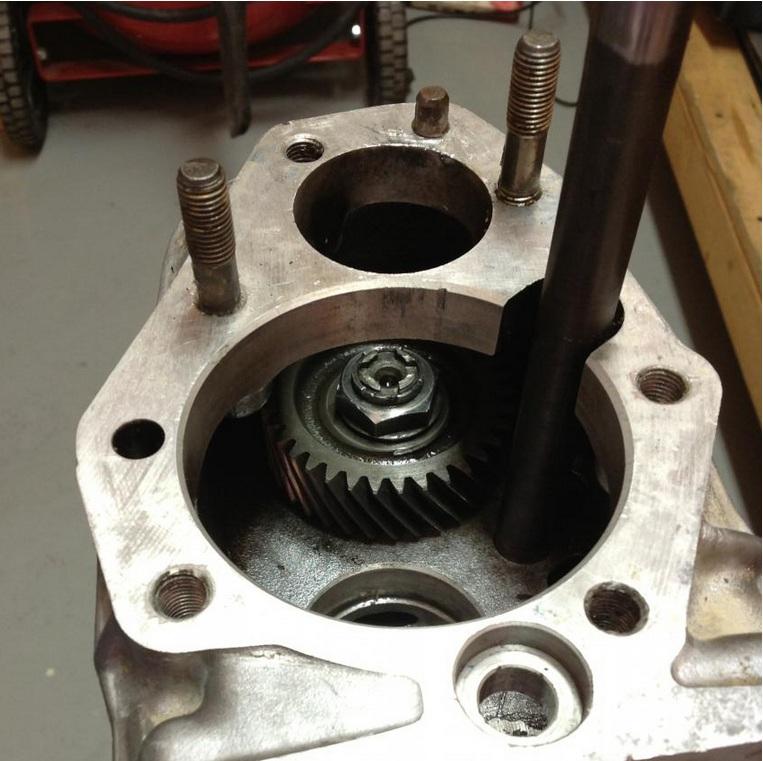

I am in the process of rebuilding my trans and I cannot seem to get the 4WD pinion shaft gear off of the trans.  There is a gear with a lock/castle not on the shaft and I cannot get it to budge.  Can any of you please tell me how to get this off?

Attached Files



#2 talldude

talldude

    USMB Regular

  • Members
  • 163 posts
  • Placerville

Posted 26 June 2013 - 11:22 PM

An impact wrench will back that nut right off.  You might replace it with a new one (dealer item, I had to get one about 6 months ago, so they're still available) as the nut gets torn up when you peen it on installation.  Everything should come apart once that nut is off.  I had good luck reassembling with high torque permatex sealant (the gray stuff) with no gaskets.



#3 O.C.D.

O.C.D.

    Subaru Fanatic!

  • Validating
  • 690 posts
  • Colorado Springs

Posted 27 June 2013 - 09:18 AM

Thank you for the reply.  So far the impact has not made it budge?



I still have not been able to get it off.



#4 ivans imports

ivans imports

    1000+ Super USER!

  • Members
  • 2,954 posts
  • lumby bc canada

Posted 27 June 2013 - 10:04 AM

Dremel tool with thin wheel cut down one side to relase it the get new nut



#5 talldude

talldude

    USMB Regular

  • Members
  • 163 posts
  • Placerville

Posted 27 June 2013 - 11:04 PM

I suspect you need a bigger impact. or more PSI?  My $30 Campell Hausfeld wouldn't have moved it either, even tho it was 1/2 inch drive- utterly useless.  Harbor Freight has a pretty good one for under $100. It's a tool you will always need...



#6 O.C.D.

O.C.D.

    Subaru Fanatic!

  • Validating
  • 690 posts
  • Colorado Springs

Posted 28 June 2013 - 08:40 AM

Dremel tool with thin wheel cut down one side to relase it the get new nut

I hadn't thought of that!!!  If I can get the Dremel in there you might have the answer.  Already have the nut ready to be ordered. :D



I suspect you need a bigger impact. or more PSI?  My $30 Campell Hausfeld wouldn't have moved it either, even tho it was 1/2 inch drive- utterly useless.  Harbor Freight has a pretty good one for under $100. It's a tool you will always need...

You know I am not sure what this Craftsman puts out.  Maybe I should just bump her up to 120 PSI and have at it.  I only tried at 90 cause I don't want to snap a ring or pinion tooth.



Thank you guys!



#7 ivans imports

ivans imports

    1000+ Super USER!

  • Members
  • 2,954 posts
  • lumby bc canada

Posted 28 June 2013 - 09:32 AM

Got tierd of fighting stuck subaru bolts / nut bought me a 3/4 snapon gun 1250 ft lbs this whould take it off



#8 talldude

talldude

    USMB Regular

  • Members
  • 163 posts
  • Placerville

Posted 02 July 2013 - 12:31 AM

The nut will break loose waaay before any damage is done.  Besides, think what a transmission has to go through every day!



#9 O.C.D.

O.C.D.

    Subaru Fanatic!

  • Validating
  • 690 posts
  • Colorado Springs

Posted 02 July 2013 - 08:56 AM

Ironically I have not attempted to remove it again cause of free time.  I think my approach will be full psi on the impact and if that doesn't work I will Dremel the nut.  As it has been removed before you would think it easy to remove.  We shall see.



Thanks to everyone for the responses.



#10 Singularity21

Singularity21

    New User

  • Members
  • PipPipPip
  • 40 posts
  • Rexburg, Idaho

Posted 02 July 2013 - 11:26 PM

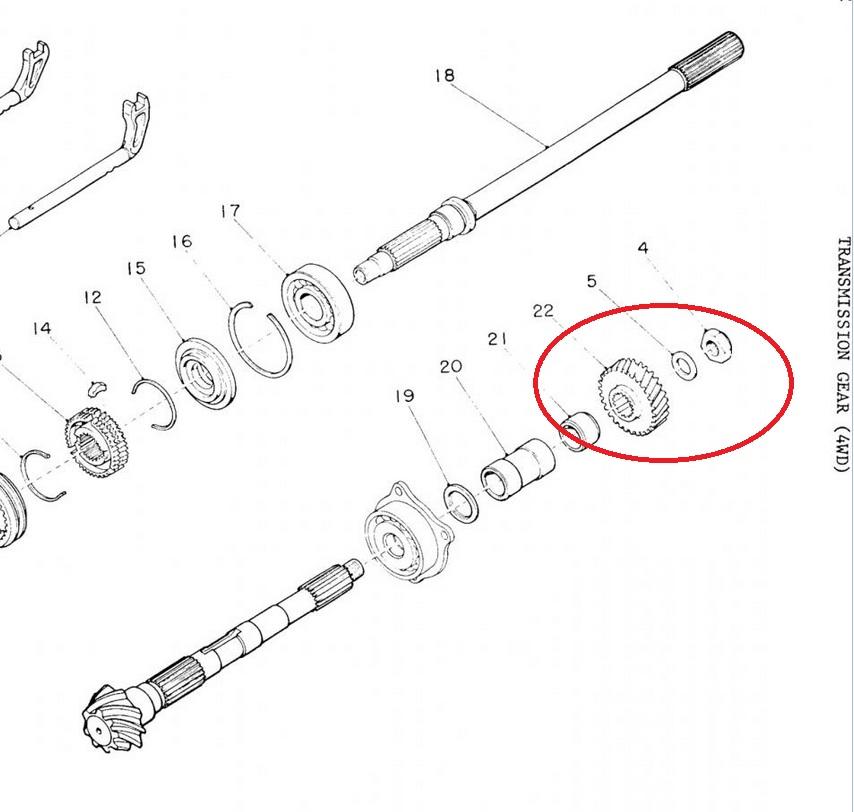

Where, perchance, did you obtain the blown up schematic for the transmission? My fourth gear is gone and I have another transmission that I can make them one. Good luck, and keep posting, I'm quite interested.



#11 O.C.D.

O.C.D.

    Subaru Fanatic!

  • Validating
  • 690 posts
  • Colorado Springs

Posted 03 July 2013 - 08:18 AM

Where, perchance, did you obtain the blown up schematic for the transmission? My fourth gear is gone and I have another transmission that I can make them one. Good luck, and keep posting, I'm quite interested.

I was graciously given a copy of the parts catalog.  Been VERY helpful to say the least.



#12 ivans imports

ivans imports

    1000+ Super USER!

  • Members
  • 2,954 posts
  • lumby bc canada

Posted 03 July 2013 - 09:55 AM

I have at least 4 of those trannys all good just sitting around have no cars for them



#13 O.C.D.

O.C.D.

    Subaru Fanatic!

  • Validating
  • 690 posts
  • Colorado Springs

Posted 05 July 2013 - 08:18 AM

Well Ivan, I had to resort to the Dremel technique,.....and it worked!!!




#14 ivans imports

ivans imports

    1000+ Super USER!

  • Members
  • 2,954 posts
  • lumby bc canada

Posted 05 July 2013 - 09:47 AM

And folks we lay this nut down to sleep !



#15 O.C.D.

O.C.D.

    Subaru Fanatic!

  • Validating
  • 690 posts
  • Colorado Springs

Posted 05 July 2013 - 10:58 AM

And folks we lay this nut down to sleep !

LOL.



Damn thing was a brute!
