EA71 4spd trans teardown - help


  • Please log in to reply
10 replies to this topic

#1 O.C.D.

O.C.D.

    Subaru Fanatic!

  • Validating
  • 690 posts
  • Colorado Springs

Posted 24 June 2013 - 09:13 AM

I know this is to be in the older forum, which it is.  I thought I would hit you guys up as well cause I need to get this gear off.

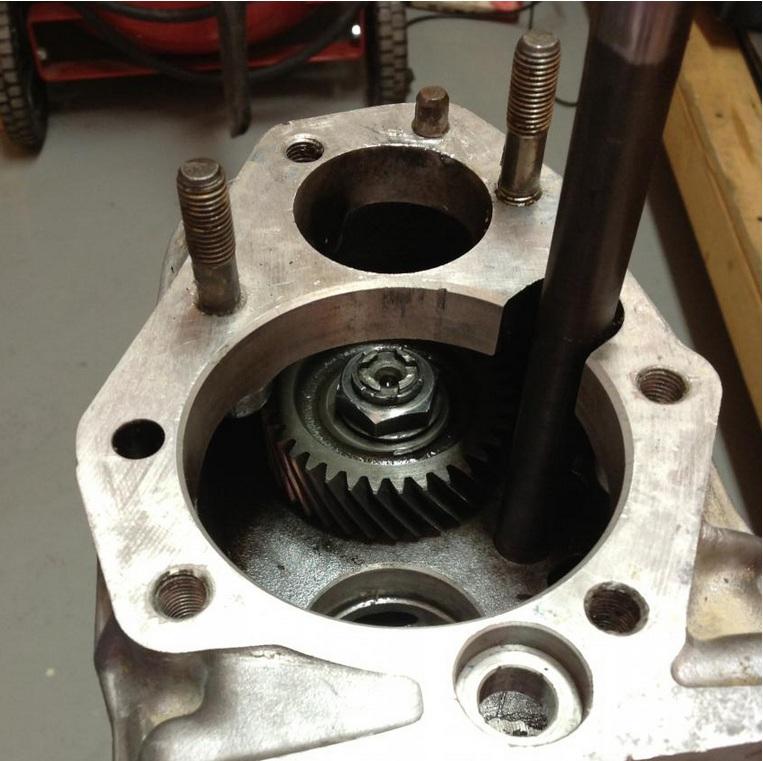

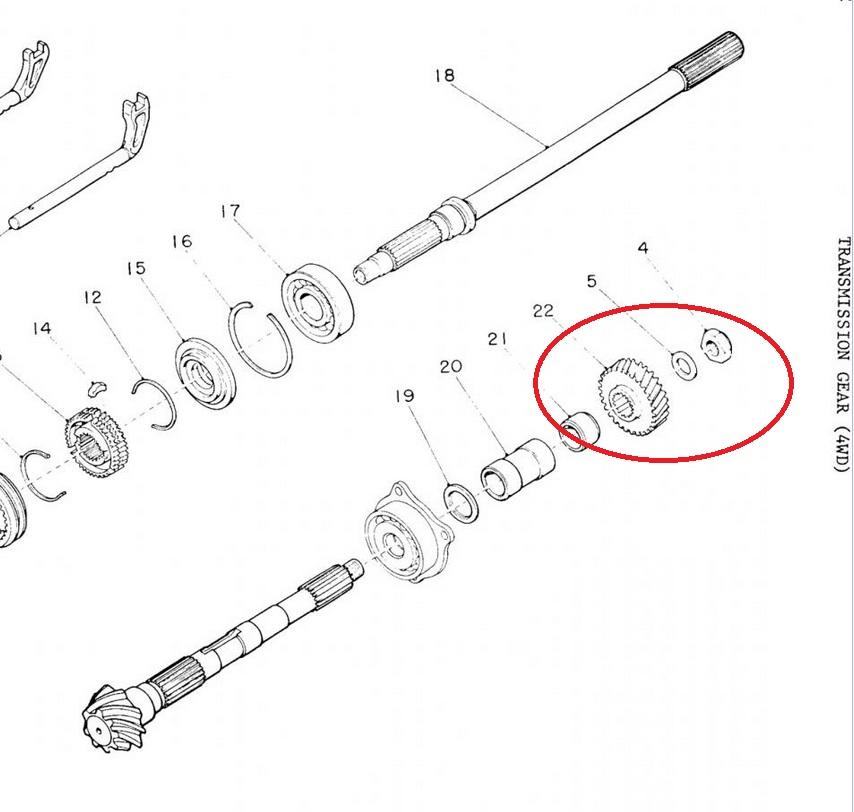

I am in the process of rebuilding my trans and I cannot seem to get the 4WD pinion shaft gear off of the trans.  There is a gear with a lock/castle not on the shaft and I cannot get it to budge.  Can any of you please tell me how to get this off?



Attached Files



#2 ivans imports

ivans imports

    1000+ Super USER!

  • Members
  • 2,954 posts
  • lumby bc canada

Posted 24 June 2013 - 10:54 AM

cant get the nut off or the gear off ? may have to be pressed do you have the case halfs apartt ?



#3 ivans imports

ivans imports

    1000+ Super USER!

  • Members
  • 2,954 posts
  • lumby bc canada

Posted 24 June 2013 - 10:57 AM

think it comes off as you lift the housing up may need some heat or a drift with brass punch while holdig housing up

#4 naru

naru

    1000+ Super USER!

  • Members
  • 1,959 posts
  • under the bridge

Posted 24 June 2013 - 11:20 AM

I think that one is staked on.

You need to release the stakes w/a punch ,if so.



#5 ivans imports

ivans imports

    1000+ Super USER!

  • Members
  • 2,954 posts
  • lumby bc canada

Posted 24 June 2013 - 11:25 AM

Have 5 of those trans on ground if cant be fixed 77-80 4speed single range ea71 1.6 l



#6 O.C.D.

O.C.D.

    Subaru Fanatic!

  • Validating
  • 690 posts
  • Colorado Springs

Posted 24 June 2013 - 12:15 PM

Thank you all for the responses.  I have already punched the stakes back and tried my best to get the nut off.



Ivan - I cannot separate the case as this middle protion of the trany has to be removed.  If you look at the EA71 4sp with 4WD there are three separate parts.



1. Main transmission housing with diff.

2. Secondary that houses the gear for the transition to the rear.

3. Rear that supports output shaft to driveshaft.



I have the rear off but this nut is the issue to get the secondary portion off.  I cannot split the case until I get the secondary part off.



What I need to know is how to get the nut off.  The shaft itself has a cross cut into it and then the nut has the stakes.  If you use a 26mm socket you can get to the nut but how do you prevent the shaft from spinning.  Is the socket the way to do it?



Or do you use that cross and a special tool?



This is where I am stuck.  Do I just get a socket and throw some air at it and pray I don't snap a pinion tooth?



#7 naru

naru

    1000+ Super USER!

  • Members
  • 1,959 posts
  • under the bridge

Posted 24 June 2013 - 12:45 PM

FSM uses a special tool to hold the mainshaft while undoing that nut,so pinion teeth should be OK.

I can`t see the forces involved being any greater than while driving.

Prayers wouldn`t hurt.



#8 O.C.D.

O.C.D.

    Subaru Fanatic!

  • Validating
  • 690 posts
  • Colorado Springs

Posted 24 June 2013 - 01:01 PM

FSM uses a special tool to hold the mainshaft while undoing that nut,so pinion teeth should be OK.

I can`t see the forces involved being any greater than while driving.

Prayers wouldn`t hurt.

May I ask how to acquire a copy of an FSM from you?  If not, I understand.



Are the threads reverse by chance?



Are you saying go for the socket and impact idea then?



Thanks.



#9 naru

naru

    1000+ Super USER!

  • Members
  • 1,959 posts
  • under the bridge

Posted 24 June 2013 - 01:53 PM

I don`t have an extra.

Plenty on ebay though.Exact year is probably unimportant.

http://www.ebay.com/...#ht_1179wt_1170



http://www.ebay.com/...tr#ht_151wt_932



No mention of reverse threads.

I would use an impact.I have not done this repair myself.

Hopefully someone w/hands on experience will pipe up soon.


Edited by naru, 24 June 2013 - 01:55 PM.


#10 O.C.D.

O.C.D.

    Subaru Fanatic!

  • Validating
  • 690 posts
  • Colorado Springs

Posted 25 June 2013 - 08:47 AM

Well,  I could not locate a 26mm socket so I tried a 27mm one instead.  Fit was a little loose but it was better than nothing.



I brought out the 1/2" impact and had at it with no luck?!  I put screwdrivers in the output stubs to stop it from rotating.  There was enough torque that the screwdrivers almost snapped!!!



And I cannot get the damn nut off.........



Any one know what to do for this nut?



#11 ivans imports

ivans imports

    1000+ Super USER!

  • Members
  • 2,954 posts
  • lumby bc canada

Posted 25 June 2013 - 09:11 AM

put a rag into the crown and pinon teeth thru the oil drain hole to jam it up use a strong 1/2 gun i have a snapon one that is very snapy thiss helps a few wacks with a meatal drift on sides of nut may help relase it
