Won't start


  • Please log in to reply
14 replies to this topic

#1 Godsmulligan

Godsmulligan

    USMB is life!

  • Members
  • 166 posts
  • Winlock Wa.

Posted 09 July 2013 - 06:56 PM

Putting the insides back together today. I've got the gauges in and it won't start. turns over, dash lights come on, heater comes on. The gas gauge does not. So, it turns over but won't start.



I'm headed back out to try and track it down. I'm sure I missed plugging some wires in somewhere.



#2 soob_newb

soob_newb

    Member

  • Members
  • PipPip
  • 25 posts
  • Olympia

Posted 09 July 2013 - 09:29 PM

I had this happen when I did my tranny swap.  It had a strong crank, but would not start.  It turned out I unintentionally pulled a couple of vaccum fittings apart not realizing it.  Once back together, it started right up.  Just a thought.



#3 Godsmulligan

Godsmulligan

    USMB is life!

  • Members
  • 166 posts
  • Winlock Wa.

Posted 09 July 2013 - 09:35 PM

I don't freakin know. The fuel pump is not working, the gas gauge doesn't work and the alternator gauge. They have to be tied into one another.

any ideas?


Edited by Godsmulligan, 10 July 2013 - 12:56 AM.


#4 Godsmulligan

Godsmulligan

    USMB is life!

  • Members
  • 166 posts
  • Winlock Wa.

Posted 10 July 2013 - 12:13 AM

can't find a vacuum leak. I think it's more of a wiring thing.



when I turn on the head lights the dash lights shut off, the relay starts buzzing and only the marker lights come on. It could be the relay, I'm more likely to believe I've got some wires crossed



#5 naru

naru

    1000+ Super USER!

  • Members
  • 1,759 posts
  • under the bridge

Posted 10 July 2013 - 01:13 AM

Brat?

Sounds like the dash ground under the fuse box is disconnected.

#6 Godsmulligan

Godsmulligan

    USMB is life!

  • Members
  • 166 posts
  • Winlock Wa.

Posted 10 July 2013 - 02:18 AM

Yup, Brat. Is that a black wire with a fish eye on it? I found one of those, but when I ground it out my dash lights go out. I'm thinking I have the dash lights (LEDs) in backward. That would be why they are shutting off when I turn on the headlights?



#7 Godsmulligan

Godsmulligan

    USMB is life!

  • Members
  • 166 posts
  • Winlock Wa.

Posted 10 July 2013 - 05:38 PM

hooked up the fuse box, still no luck. Now I can't find the wire with the fish eye on it



#8 jonas

jonas

    Subaru Nut

  • Members
  • 962 posts
  • Oakridge

Posted 10 July 2013 - 06:08 PM

Did you have your instrument cluster out? Sound very similar to a problem I had. I was changing lightbulbs and scratched the circuit board severing the connection causing my gas, volt, temp, and oil pressure gauges to stop working. But I could still start the car........


Edited by jonas, 10 July 2013 - 06:08 PM.


#9 Godsmulligan

Godsmulligan

    USMB is life!

  • Members
  • 166 posts
  • Winlock Wa.

Posted 10 July 2013 - 06:10 PM

it's hooked up, but just sitting there. I don't think I scratched the circuit, but at this point I might tear it apart and put it back together, just to be sure.



Does the cluster need to be connected for the car to start?


Edited by Godsmulligan, 10 July 2013 - 06:11 PM.


#10 Godsmulligan

Godsmulligan

    USMB is life!

  • Members
  • 166 posts
  • Winlock Wa.

Posted 10 July 2013 - 07:23 PM

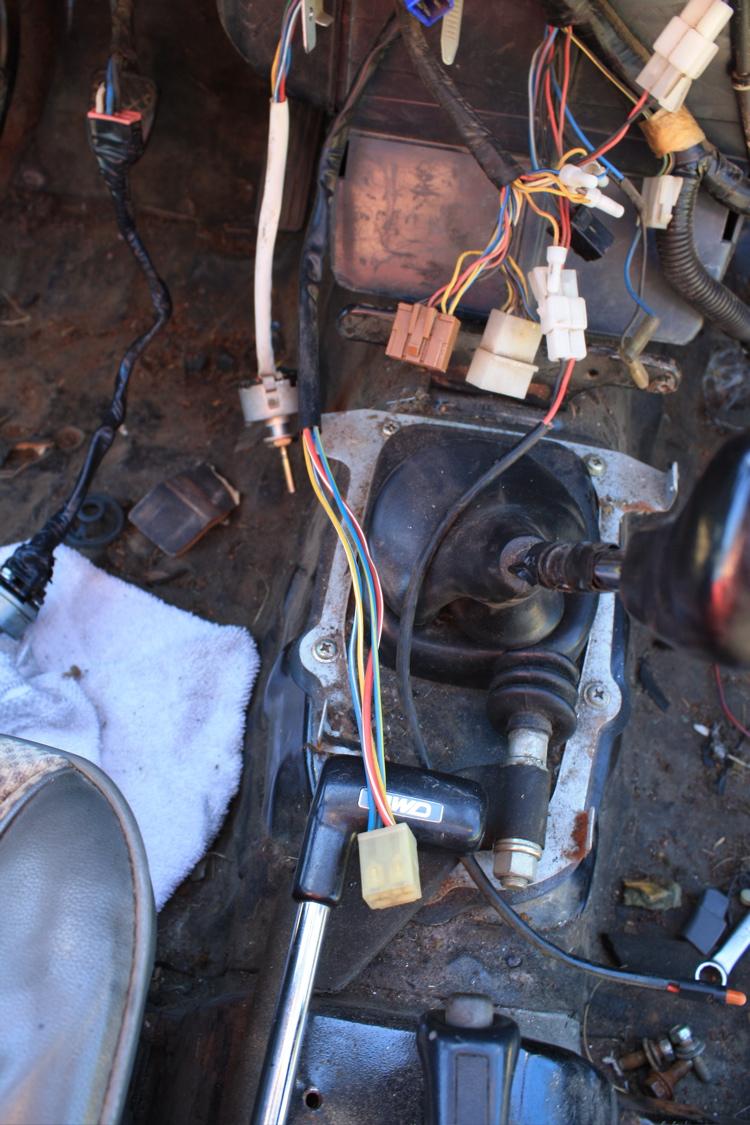

ok here's some photos... Tip: if anyone takes apart the inside like this, use a paint pin to draw a line on both the male and female connectors before you disconnect them. That way you know the connectors that were connected, and you can match up the lines to see which one goes to which. :banghead:  Captain Hindsight to the rescue!





Is this really the only thing that hooks up from this? EDIT: nope had a bunch hiding behind fan.
Attached File  IMG_1245.jpg   71.53K   23 downloads

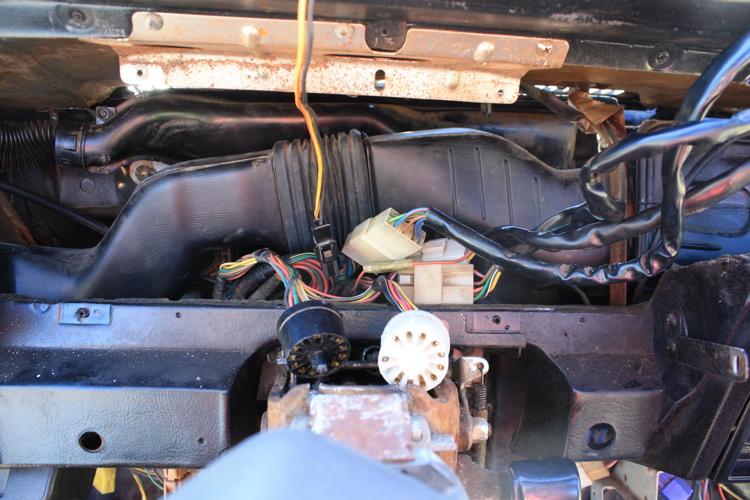

Behind the stereo

Attached File  IMG_1246.jpg   57.22K   27 downloads

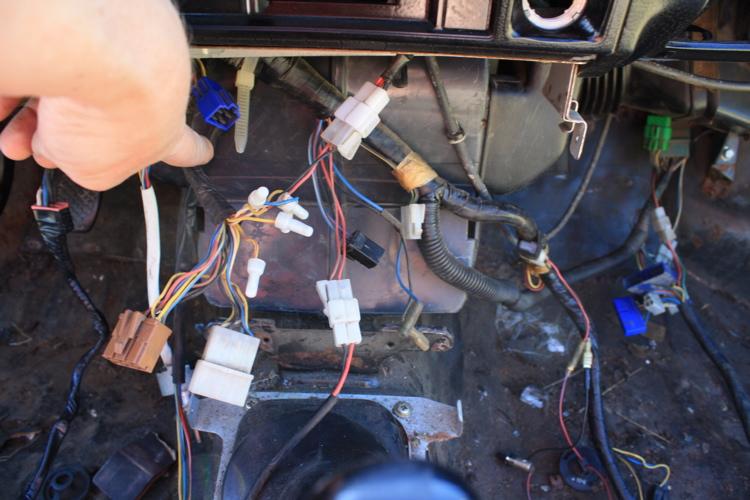

The wires I've been hooking up to my dash cluster

Attached File  IMG_1247.jpg   66.13K   27 downloads

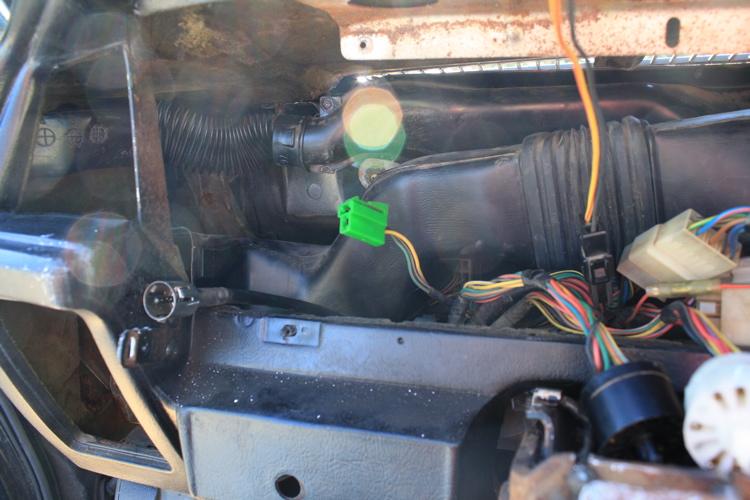

I don't belive this green connector hooks up to anything

Attached File  IMG_1248.jpg   53.23K   29 downloads

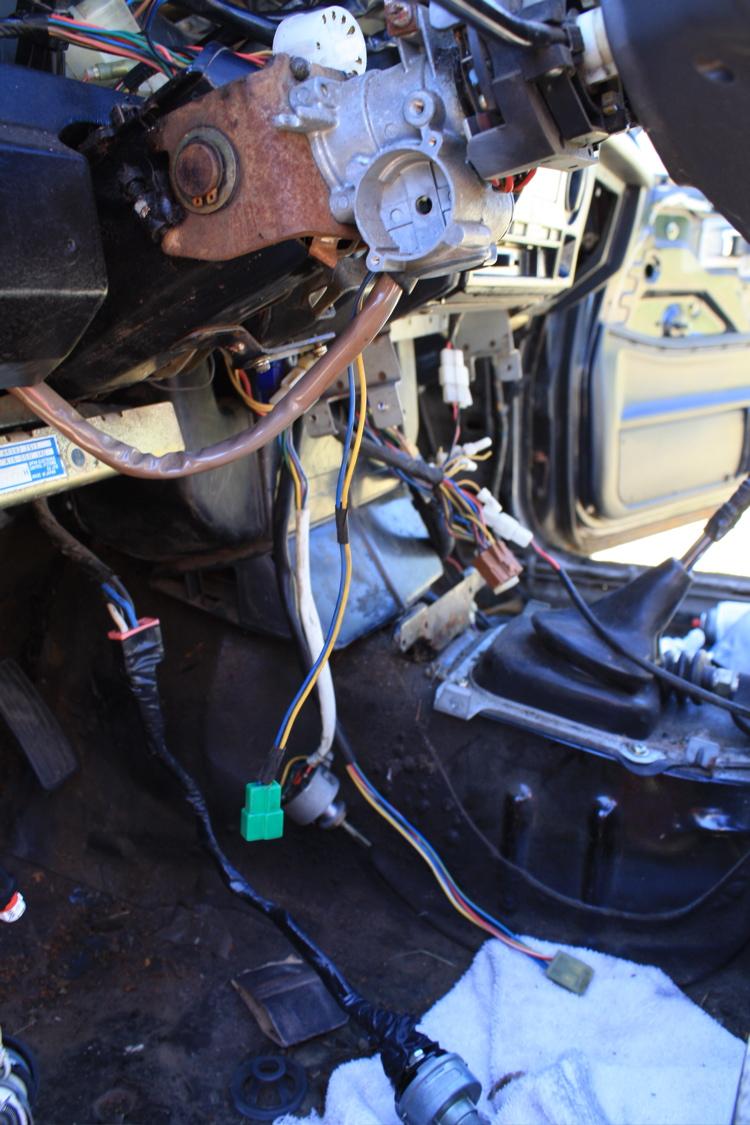

under the column

Attached File  IMG_1249.jpg   109.61K   26 downloads

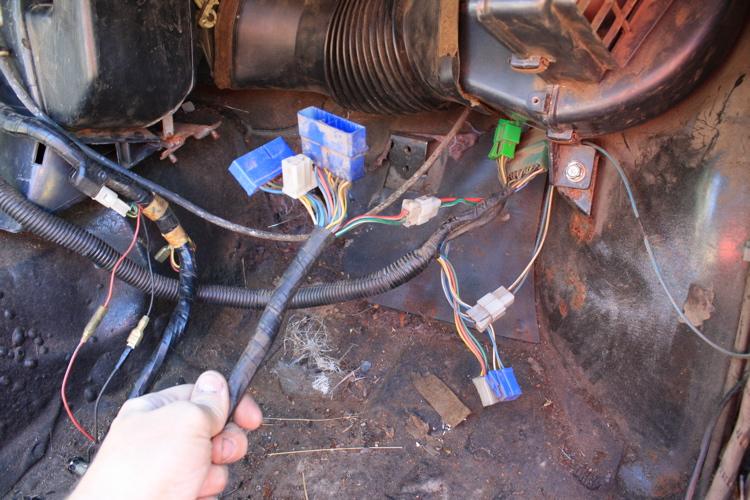

I don't belive this hooks up to anything either

Attached File  IMG_1250.jpg   118.57K   23 downloads

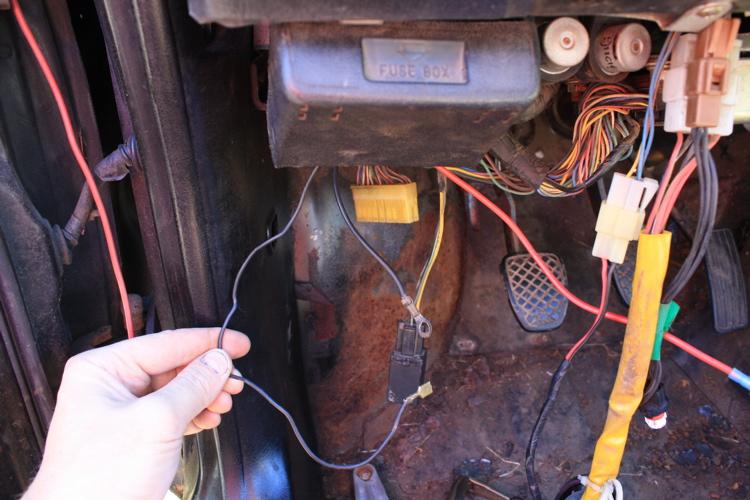

Heres two wire. The one with the the fish eye is hot and blew my ignition coil fuse when I grounded it. Didn't think to check it to see if it was hot since it's black. The car does run without this hooked up, just not the fuel pump. The other one is to the speaker, I belive.

Attached File  IMG_1252.jpg   59.92K   19 downloads


Edited by Godsmulligan, 10 July 2013 - 09:34 PM.


#11 ruparts

ruparts

    Eat, Live, Breath Subaru

  • Members
  • 563 posts
  • dallas, tx.

Posted 10 July 2013 - 09:20 PM

hi,

  i had some weird light and guage problems,  was told about a similar ground wire ,, it sure fixed mine.  OK  that blk wire in your picture the one with the fish eye connector,,  look for a wire just like that one,  comming out of the main wiring harness near where it comes inside the car,  its some few inches from where it enters the cab ,, anyway it is black wire just like that , aprox 5-6 inches long , and with the same round connector, it is like near the steering column and behind the computer area,, but if you can follow the main harness you should see it , that one is the ground that was key to all my electrical weirdness,  and it's  been perfect ever since.



#12 Godsmulligan

Godsmulligan

    USMB is life!

  • Members
  • 166 posts
  • Winlock Wa.

Posted 10 July 2013 - 09:35 PM

OK, I'll keep looking.



#13 Godsmulligan

Godsmulligan

    USMB is life!

  • Members
  • 166 posts
  • Winlock Wa.

Posted 11 July 2013 - 06:43 PM

Went to junk yard today, while I was there I checked out the brat wiring, and yes Obi Wan, that is the ground wire I'm looking for. Now I just have to figure out why it has power running to it. Yup, the black wire with the fish eye was it all along. Ooh, you're a wascally wabbit, you have vexed me to no end.



Edit- END NOTE: ground out the wire and the fuel pump started working, the headlights came on and she fired right up. Just had to ground it out before the power started flowing to it.



Is this wire hot with the key on because of power that needs to be grounded out or because there is a short somewhere?



Thanks everyone for your help. I didn't even have to torch the car. :Flame:


Edited by Godsmulligan, 11 July 2013 - 08:28 PM.


#14 jonas

jonas

    Subaru Nut

  • Members
  • 962 posts
  • Oakridge

Posted 11 July 2013 - 08:30 PM

Glad to hear it.



#15 Cougar

Cougar

    Elite Master of the Subaru

  • Members
  • 6,340 posts
  • Anchorage

Posted 11 July 2013 - 09:41 PM

The reason you saw voltage on the ground wire was because voltage was applied to the circuit but no current was flowing. The circuit was open, just like it would be if there was a switch in line and it was turned off. Whenever you have an open circuit with power going to it you will measure about the full supply voltage at any point of that open circuit. When the connection to ground is made then current can flow normally and the voltage drop will now appear across any load in that circuit. It there is more than one load in series with that circuit then the loads will share the voltage being supplied to it.
