83 GL wagon Fuel pump/relay(s) diagrams


  • Please log in to reply
7 replies to this topic

#1 Dwayne Oxford

Dwayne Oxford

    New User

  • Members
  • PipPip
  • 14 posts
  • Holladay

Posted 12 July 2013 - 09:48 AM

Parts car, Doing the yearly crank up, did fine last year, now no fire to pump. Runs fine spoon fed. Connections look good. Have 82 FSM and Mitchell diagram, neither show relay function. Don't understand why this pertinent info is omitted. Like it's forbidden. Anybody know if diagrams are posted anywhere?


Edited by Dwayne Oxford, 12 July 2013 - 09:50 AM.


#2 Gloyale

Gloyale

    It's a sickness

  • Members
  • 9,409 posts
  • Corvallis, OR PNW

Posted 12 July 2013 - 10:26 AM

What do you need to know?



It gets 12v from Key.  Blue?  Maybe Blue/Black?



It gets Tach signal on yellow wire



It gets ground by black wire



Sends out 12v to pump and to electric choke on Blue/white wire?



Not sure if I'm correct on the colors



But basically you get the idea.



If it isn't putting out power to the pump during cranking, make sure it's getting tach signal and 12v in from key.



#3 Dwayne Oxford

Dwayne Oxford

    New User

  • Members
  • PipPip
  • 14 posts
  • Holladay

Posted 15 July 2013 - 09:00 AM

When I turn ign. on the blk, blu/blk & yel hot up. No initial hot up of blu/red. Really'd like to find diagram of module function. Seems Sub. left it out for some reason.



#4 Gloyale

Gloyale

    It's a sickness

  • Members
  • 9,409 posts
  • Corvallis, OR PNW

Posted 15 July 2013 - 09:47 AM

When I turn ign. on the blk, blu/blk & yel hot up. No initial hot up of blu/red. Really'd like to find diagram of module function. Seems Sub. left it out for some reason.

Blue/blk is 12v from Ig.

Yellow has 12v from key on but bulb should pulse when cranking indicating tach signal from -of coil.

Black is ground. Check this by probing the Blue/black and ground on the black with the unit disconnected. It's only showing 12v when hooked up because the power is passing through on its way to ground. If for some reason the black wire is not hooked to ground that would certainly make the relay not work.

Check for power on the pump wire (blue/red) while cranking.

Edited by Gloyale, 15 July 2013 - 09:49 AM.


#5 ivans imports

ivans imports

    1000+ Super USER!

  • Members
  • 2,950 posts
  • lumby bc canada

Posted 15 July 2013 - 10:26 AM

They put a feul pump controler box inline to make pump shut off if car is hit they were teribble for going bad is up under dash on ds side above your left knee has 6 wires and is about 2 inchs square i jump the feul pump wires togther to test curcit. I think it needs to see tach signal or somthing like that to turn on but they dont like sitting around



#6 Dwayne Oxford

Dwayne Oxford

    New User

  • Members
  • PipPip
  • 14 posts
  • Holladay

Posted 21 July 2013 - 07:58 AM

Does the module pulse power to pump or does the pump pulse? It's just God & me here and recon He's got way more to do than turn key & squirt gas into carb for me.



#7 Dwayne Oxford

Dwayne Oxford

    New User

  • Members
  • PipPip
  • 14 posts
  • Holladay

Posted 26 August 2013 - 06:35 AM

Finally took time to take apart a pump and the little fellow has a miserable circuit board in it and all's polyurethane foamed up inside. Parts house pump is $40. Anybody know what'll dissolve the foam and not kill the board? Got a good radio man here who knows what all the li'l gizmos on boards are. My li'l '85 Nissan truck and my gas Onan generator have a similar elec. pump but they're cylindrical and I think they dont have boards. Never had one of them quit.



#8 Dwayne Oxford

Dwayne Oxford

    New User

  • Members
  • PipPip
  • 14 posts
  • Holladay

Posted 08 January 2014 - 07:35 PM

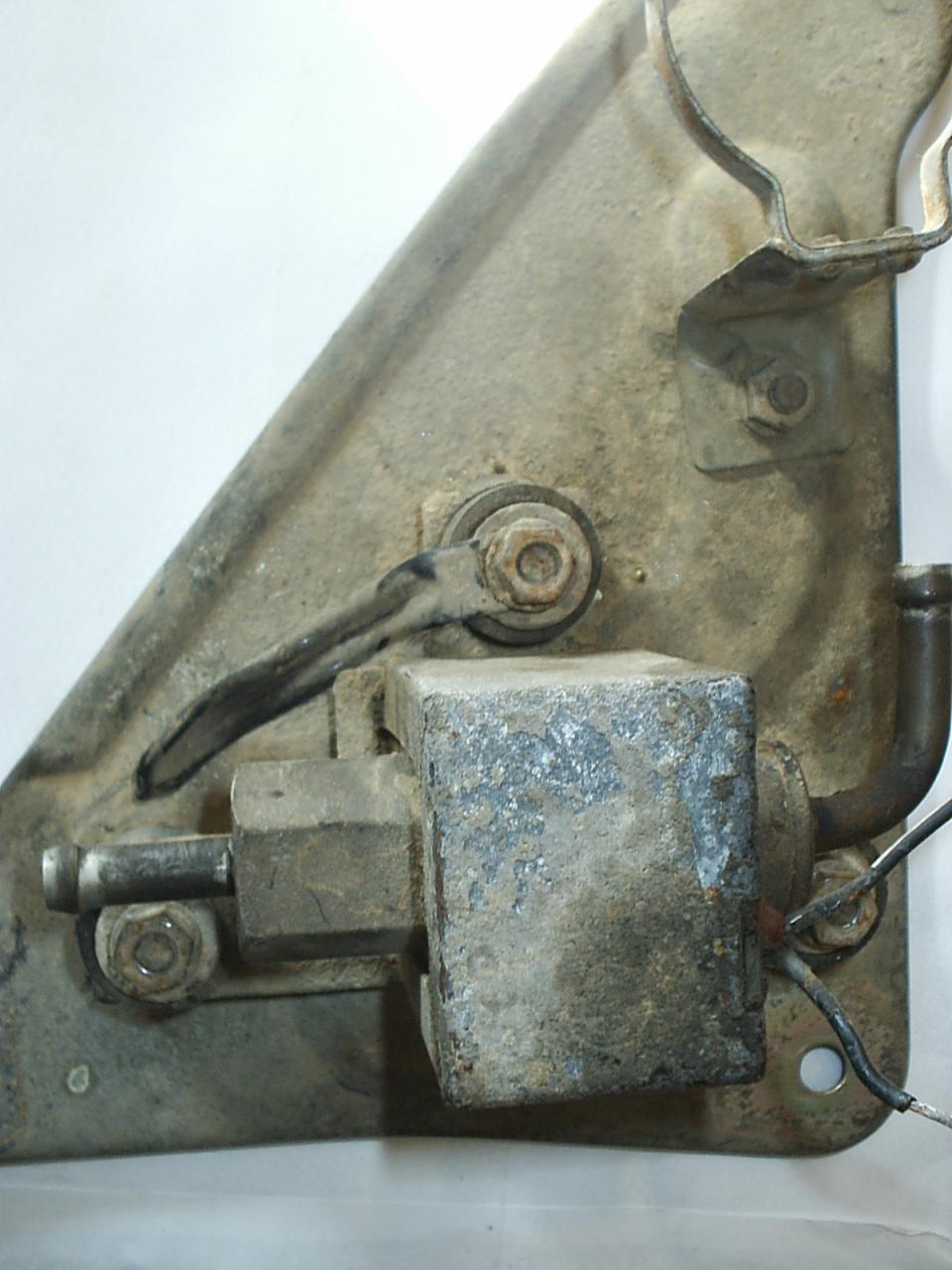

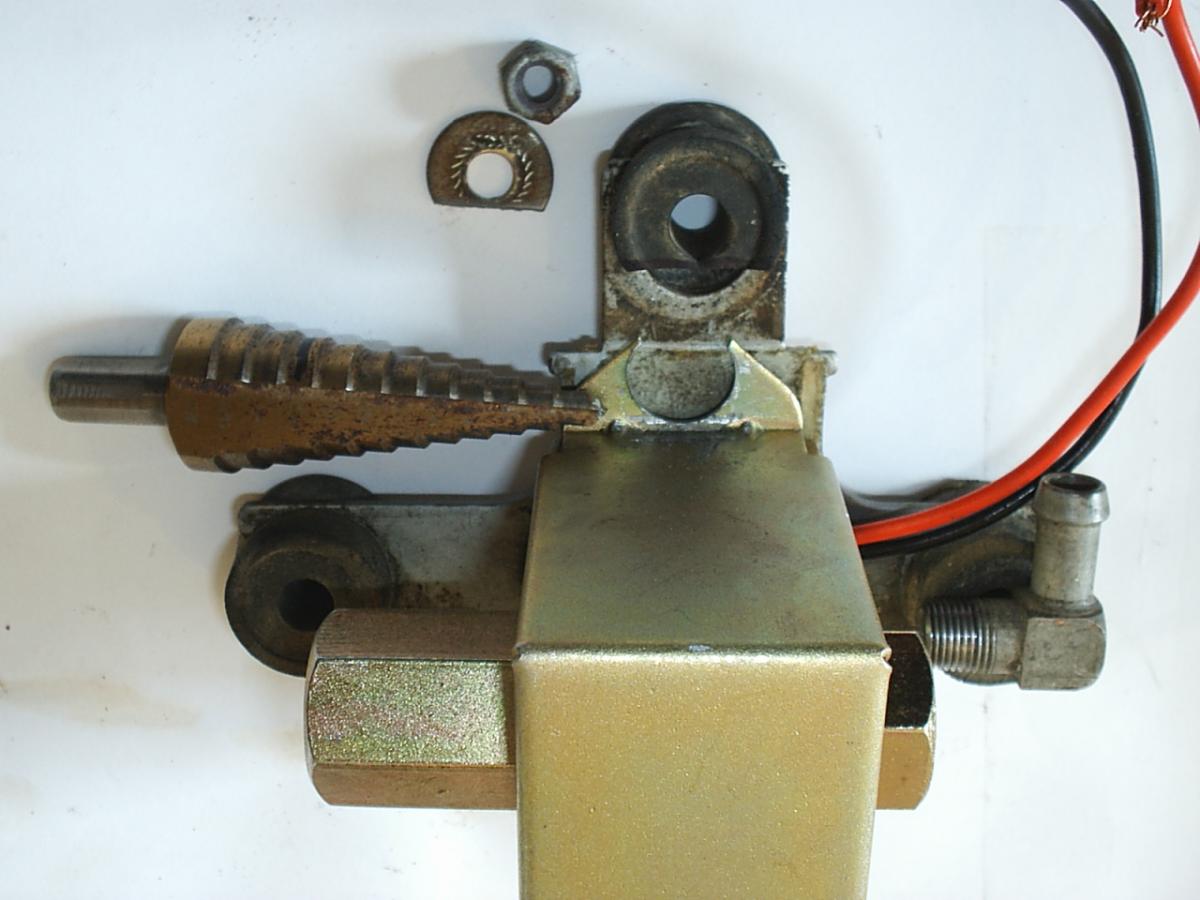

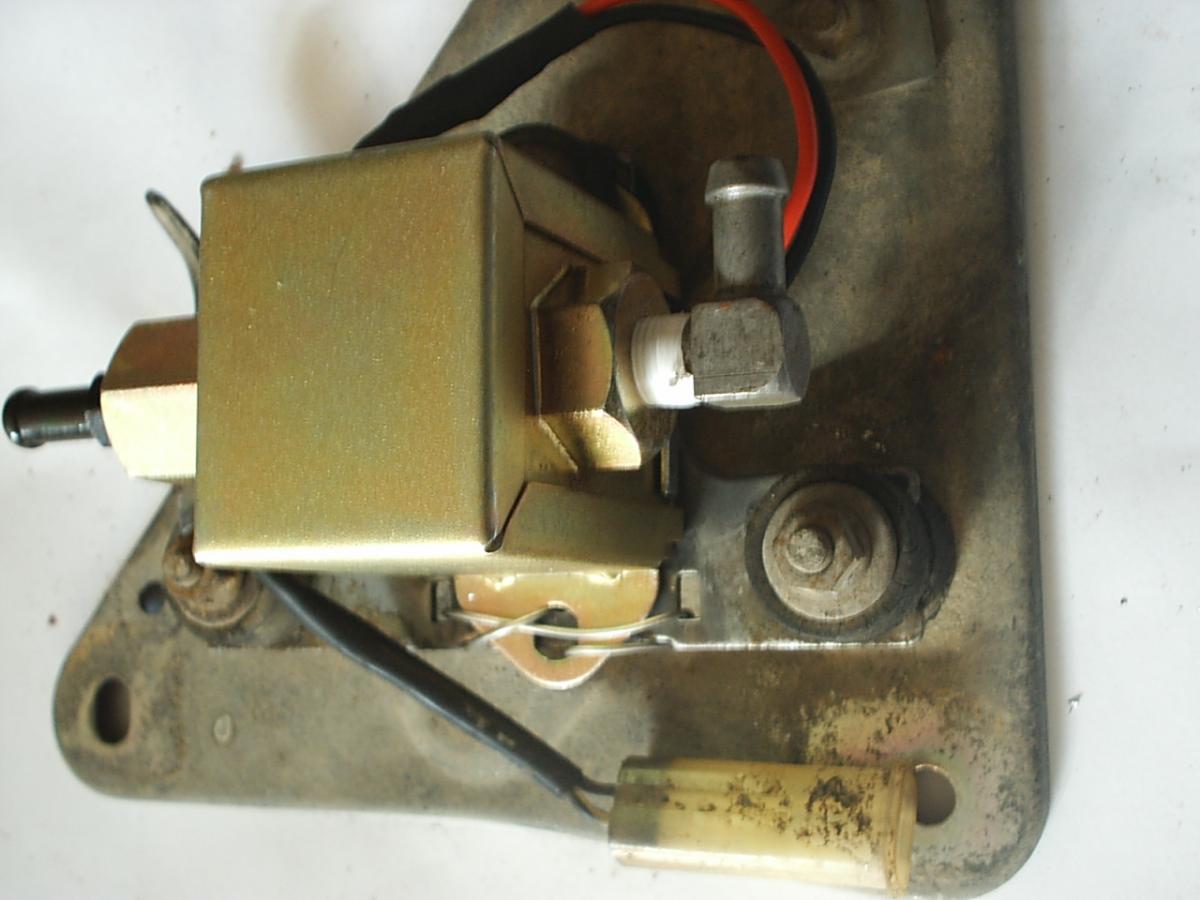

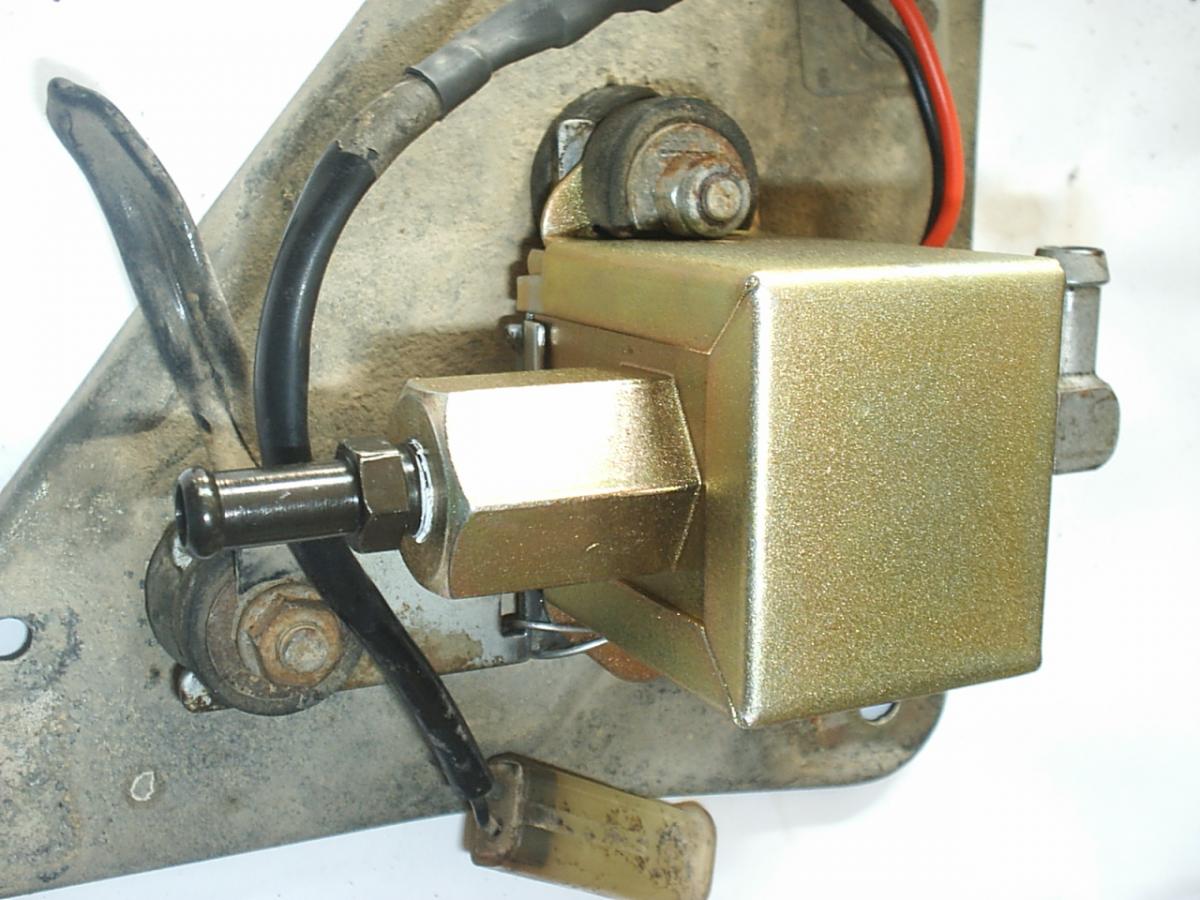

Bought this http://www.ebay.com/...5b1b492&vxp=mtr



Attached File  S2010008.JPG   114.89K   7 downloadsAttached File  S2010009.JPG   87.46K   9 downloadsAttached File  S2010011.JPG   125.68K   8 downloadsAttached File  S2010012.JPG   85.48K   5 downloads



Hope this helps someone
