center console wiring harness, extra plug?


  • Please log in to reply
17 replies to this topic

#1 odie

odie

    USMB is life!

  • Members
  • 131 posts
  • CC, TX

Posted 24 February 2014 - 04:57 PM

85 Brat...the wiring bundle that goes to the center console...4 plugs total...1 is the light for the ashtray.  2 are for the OEM radio.



the 4th plug went no where...I'm guessing optional seperate tape deck???  has 7 wires going to it.Attached File  plug.jpg   249.89K   33 downloads



#2 ruparts

ruparts

    Subaru Nut

  • Members
  • 563 posts
  • hooper, co

Posted 24 February 2014 - 06:06 PM

hi, can't say positive but likely for an auto shifter setup, they had a bunch of wires from the shifter , but i thought it came up from beside the tunnel . or it could be for power window switch which was mounted near the radio set.



#3 turbosubarubrat

turbosubarubrat

    2nd gen hoarder

  • Members
  • 1,200 posts
  • Sandy, OR

Posted 24 February 2014 - 11:55 PM

Its for the power mirror switch.

#4 86BRATMAN

86BRATMAN

    Subaru Master

  • Members
  • 3,427 posts
  • Tazewell Virginia

Posted 24 February 2014 - 11:59 PM

^^^^ this is your answer.

#5 odie

odie

    USMB is life!

  • Members
  • 131 posts
  • CC, TX

Posted 25 February 2014 - 08:54 AM

power windows on an old Brat????  well it does have the cruise control too which I thought was kinda over board on an 80's economy brand.



I also have a rear? defroster switch, which has power to it...but there is no rear defroster???



#6 turbosubarubrat

turbosubarubrat

    2nd gen hoarder

  • Members
  • 1,200 posts
  • Sandy, OR

Posted 25 February 2014 - 10:39 AM

They only made one heating/cooling panel cover to save money. Brats do not have a rear defroster but wagons, hatchbacks, sedans, and coupes do. I put in the cover the other day in my wagon from one out of a brat which is the same exact piece you just have to push the plastic cover out and screw the switch in.

#7 odie

odie

    USMB is life!

  • Members
  • 131 posts
  • CC, TX

Posted 25 February 2014 - 01:26 PM

hmmm...free switch for somethng else?  off road lights?  does it operate a relay or can the switch handle the defroster power directly?



#8 86BRATMAN

86BRATMAN

    Subaru Master

  • Members
  • 3,427 posts
  • Tazewell Virginia

Posted 25 February 2014 - 01:46 PM

There would be a relay on a vehicle equipped with the defroster, it's probably not there on yours bit could be installed.

#9 odie

odie

    USMB is life!

  • Members
  • 131 posts
  • CC, TX

Posted 25 February 2014 - 02:33 PM

trick is to find the other end of the plug that the relay attached to.  Prob under near the fuse box.  I've got several un-plugged plugs... but my brat seems to have had some hack jobs in the past...or one universal harness for all models and option possibilities (gl, dl, wagon, etc)?  Often it's cheaper to manufacture one "all-in-one" harness.



#10 86BRATMAN

86BRATMAN

    Subaru Master

  • Members
  • 3,427 posts
  • Tazewell Virginia

Posted 25 February 2014 - 06:13 PM

It's pretty much like that, the gl's that I've seen have a pretty standard body front body harness and dash harness, the dl's are the same way, from dash back it varies depending on body type.

#11 TheWanderer

TheWanderer

    USMB is life!

  • Members
  • 131 posts
  • Nebraska

Posted 25 February 2014 - 09:39 PM

It's pretty much like that, the gl's that I've seen have a pretty standard body front body harness and dash harness, the dl's are the same way, from dash back it varies depending on body type.



So in theory my 88 DL should have the wiring/plugs already for power options (mirrors, locks, windows) then?  If so, then sign me up for those upgrades :D


Edited by TheWanderer, 25 February 2014 - 09:39 PM.


#12 86BRATMAN

86BRATMAN

    Subaru Master

  • Members
  • 3,427 posts
  • Tazewell Virginia

Posted 25 February 2014 - 10:24 PM

Can't say specifically for the ea82 cars, I was speaking more for the ea81 body cars.

#13 Dinky26

Dinky26

    USMB Regular

  • Members
  • 516 posts
  • Wichita KS

Posted 26 February 2014 - 07:24 AM

So all the Brat GLs should have a plug for power mirrors?

That would be kinda nice, just have to find the power mirrors, since I have a controller switch already.

#14 Bantum

Bantum

    USMB is life!

  • Members
  • 143 posts
  • Brisbane, QLD, Australia

Posted 26 February 2014 - 11:21 AM

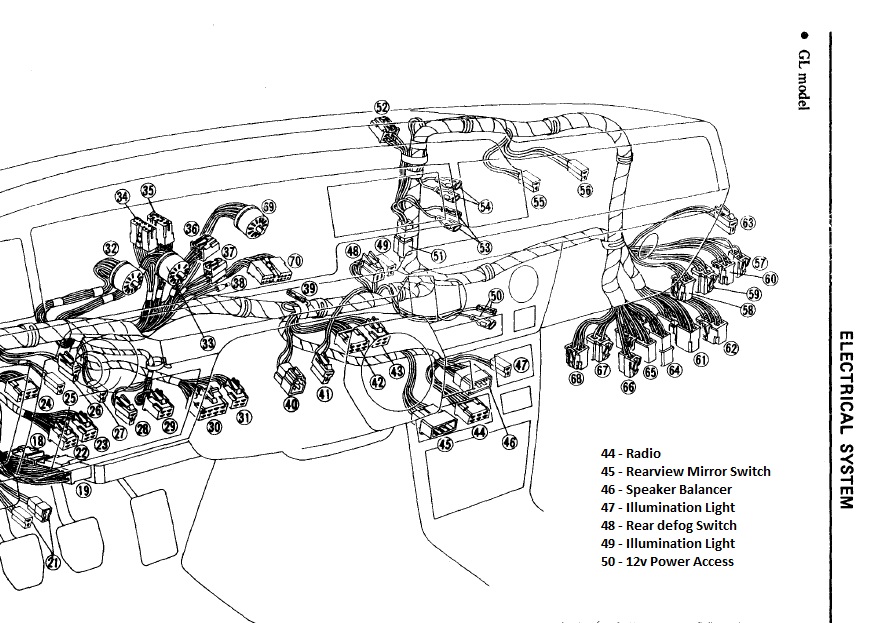

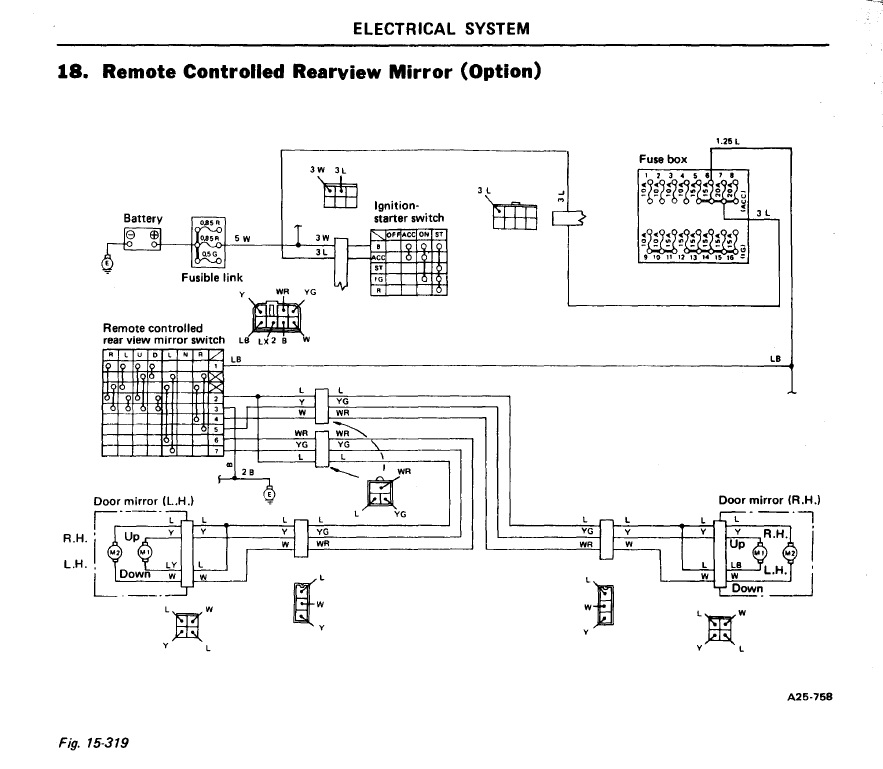

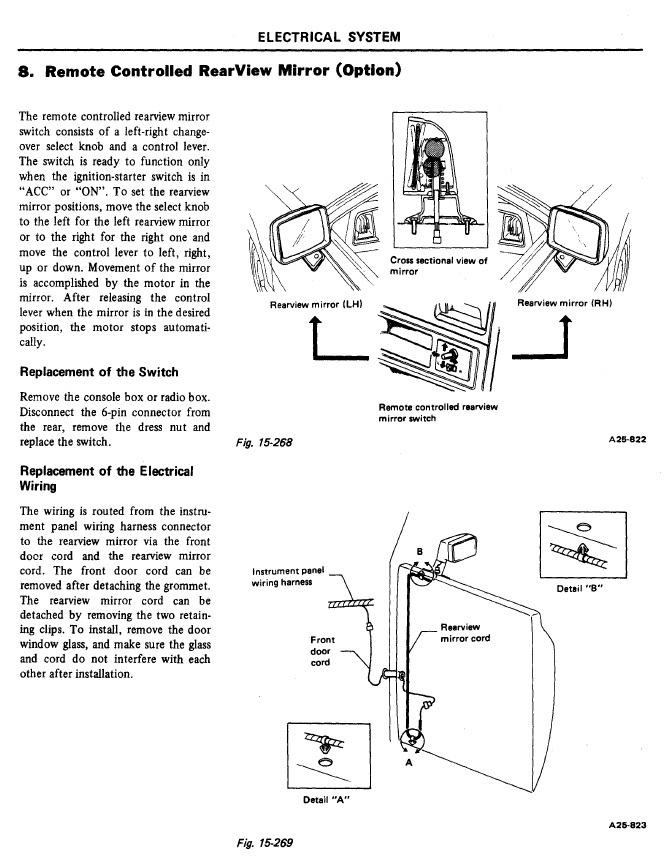

This should be handy if you can find all the bits for it :












Cheers, Bantum …


Edited by Bantum, 26 February 2014 - 11:45 AM.


#15 Gloyale

Gloyale

    It's a sickness

  • Members
  • 9,523 posts
  • Corvallis, OR PNW

Posted 26 February 2014 - 11:41 AM

So all the Brat GLs should have a plug for power mirrors?

That would be kinda nice, just have to find the power mirrors, since I have a controller switch already.



you'd need the door wiring harnesses too.



#16 odie

odie

    USMB is life!

  • Members
  • 131 posts
  • CC, TX

Posted 26 February 2014 - 02:52 PM

wow...you got a complete pic of that dash harness with all the plugs labeled?  would be nice to know what all the un-connected ones go to.  I'm always wondering if I should be trying to plug them all in or not worry about it.



#17 turbosubarubrat

turbosubarubrat

    2nd gen hoarder

  • Members
  • 1,200 posts
  • Sandy, OR

Posted 26 February 2014 - 09:15 PM

Factory manuals come in handy with some of this stuff and having cars that came with everything helps too find out where stuff goes. I remember seeing a link to a factory manual download on here maybe some has it and will chime in. There are a lot of test plugs on the harness to test voltage and resistant so there will be a few that don't go anywhere.

#18 odie

odie

    USMB is life!

  • Members
  • 131 posts
  • CC, TX

Posted 27 February 2014 - 12:49 PM

color codes would be nice too...but it's probably arr B&W
