#1 Crazyeights

Crazyeights

    Crazyeights

  • Gold Subscribers
  • 1,155 posts
  • Pacific Northwest

Posted 13 April 2014 - 01:46 AM

I have always liked Wagons. I picked up this 1992 Loyale in June of 2013.

Attached File  0001 Before.jpg   62.99K   103 downloads Attached File  0002 Before.jpg   64.29K   125 downloads Attached File  0003 Before.jpg   61K   126 downloads

A 5 lug swap was planned as well as rear disc brake conversion. I also looked into adding a rear sway bar from an XT coupe. Anyway, I know everyone likes to look at pictures and I have a small head-start already.

Attached File  0916130810b.jpg   133.88K   130 downloads Attached File  0916130831b.jpg   75.33K   129 downloads Attached File  0916131137a.jpg   128.18K   106 downloads Attached File  0916131138a.jpg   127.41K   127 downloads Attached File  Rear Suspension 5 Lug.jpg   130.61K   126 downloads

Once the suspension, brakes, and tires are taken care of, I'll most likely finish up with an EJ swap. I have some pieces gathered already.  This is a spare time project with a limited budget so this thread might not get regular updates. It is a nice daily driver at the moment though, with working A/C :)



Many of you have inspired this build. Nico, Rick (The General Himself), Gloyale, Bratsrus1(Jerry), Tex, Turbone, TheLoyale, JesZek, Monstaru, Bratman18 and EVERY other one of you!!! Thanks...



Hope you enjoy!


Edited by Crazyeights, 01 January 2015 - 04:12 AM.


#2 Crazyeights

Crazyeights

    Crazyeights

  • Gold Subscribers
  • 1,155 posts
  • Pacific Northwest

Posted 13 April 2014 - 10:29 AM

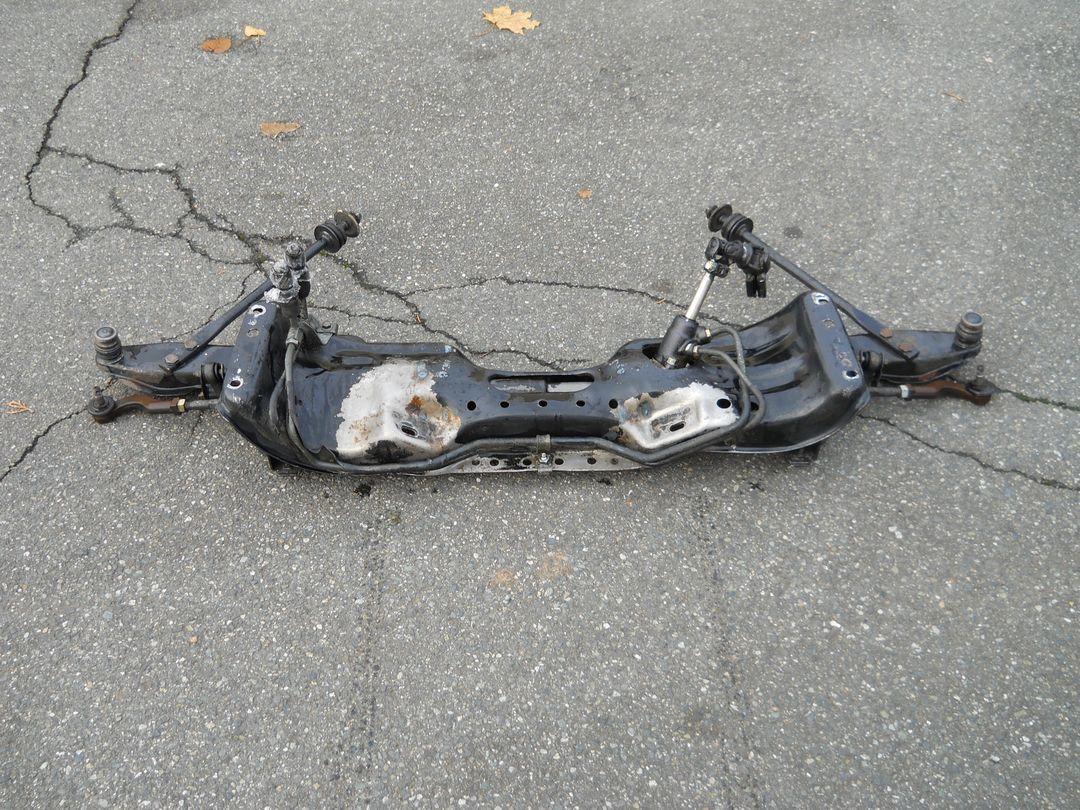

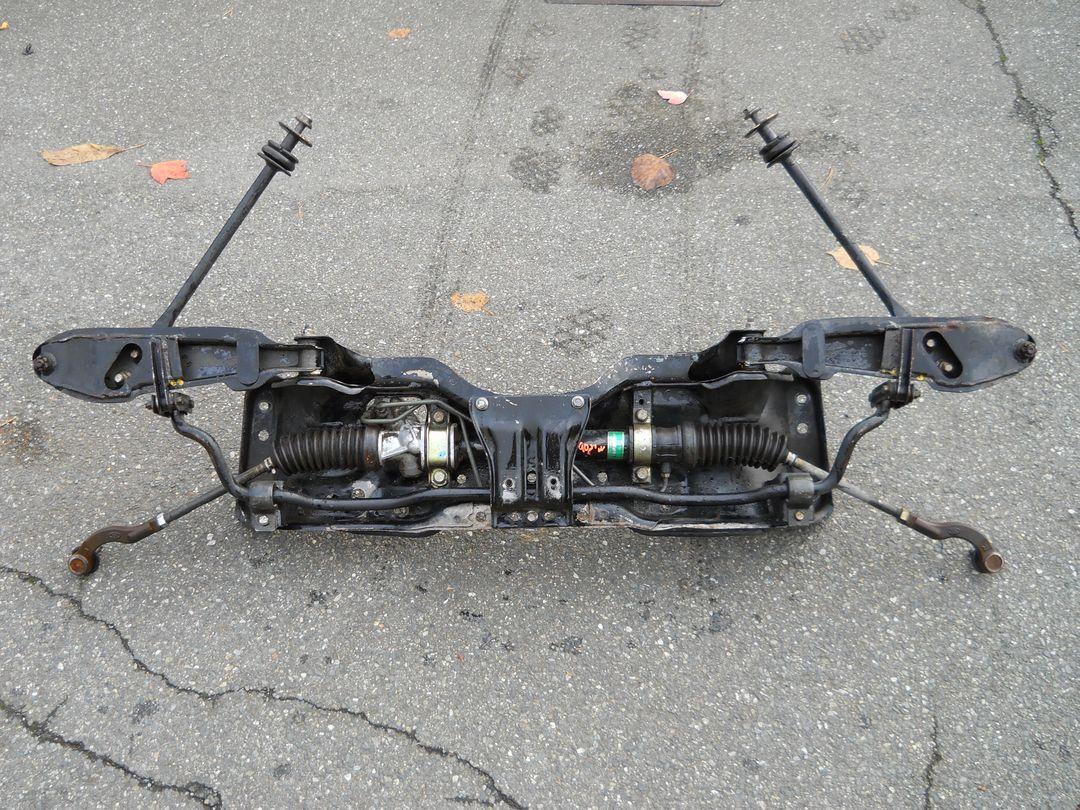

After reading everything I could find about the 5 lug conversion process (most of it all from here) I started gathering parts. I ended up doing the brake upgrade at the same time. I wanted a spare front cross-member to modify for XT6 front lower control arms. I figured I might as well start with a Turbo cross-member to keep my engine upgrade options open down the road (remember the talk about the EJ swap) :grin:

Attached File  T-Crossmember dirty.jpg   182.84K   68 downloads Attached File  T-Crossmember cleaned front view.jpg   228.07K   86 downloads Attached File  T-Crossmember cleaned rear view.jpg   235.86K   103 downloads

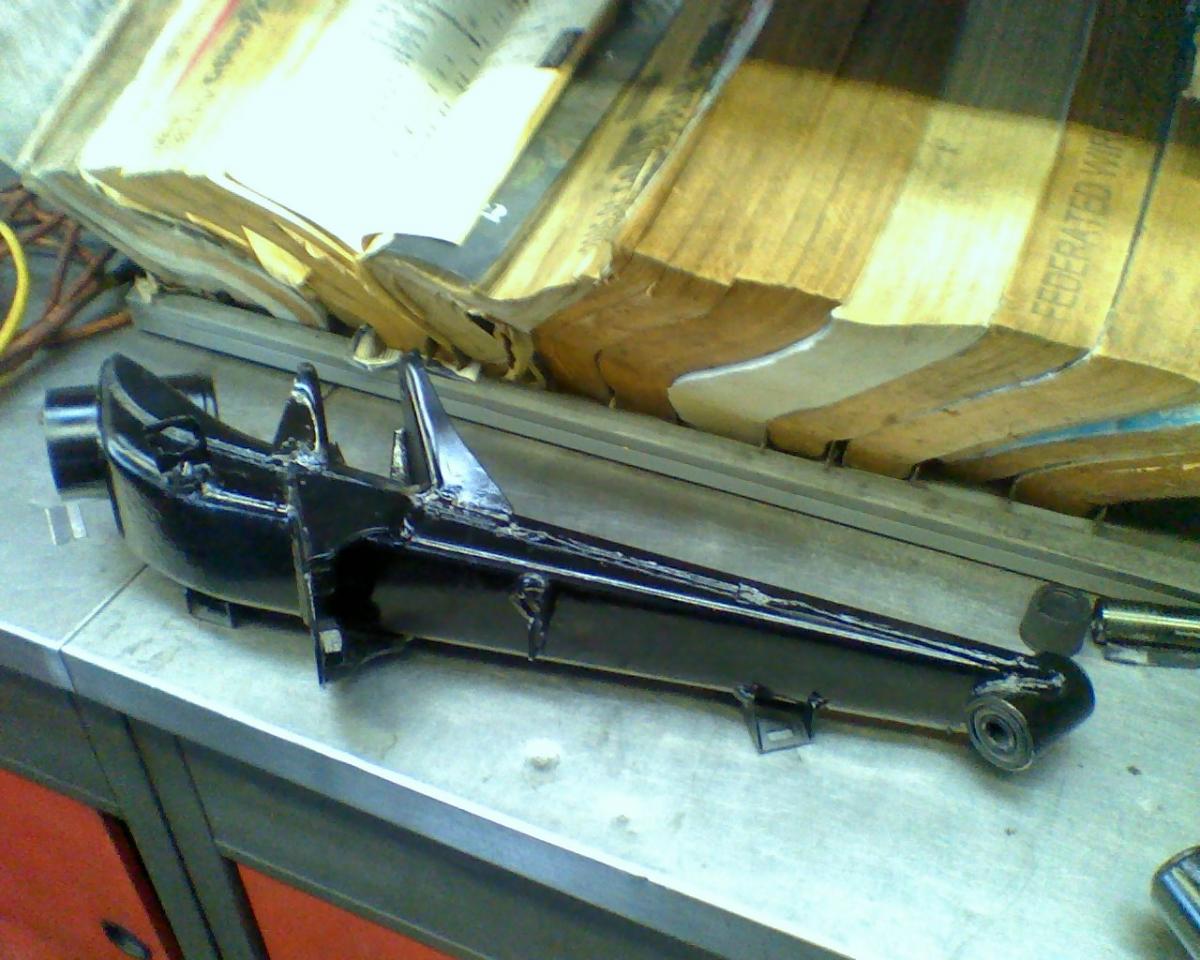

Two cuts had to be made on each side in the pocket area to provide enough clearance so that the XT6 LCA's won't rub. The metal was peeled up slightly (about 1/4 inch) and re-welded. I liked this option better than tacking on washers, although that would have worked too.

Attached File  0918131258a.jpg   133.79K   110 downloads Attached File  0918131258b.jpg   138.06K   110 downloads Attached File  0918131259a.jpg   134.22K   97 downloads Attached File  0918131259b.jpg   130.5K   96 downloads Attached File  0918131259c.jpg   139.92K   110 downloads



It works and looks pretty good too.

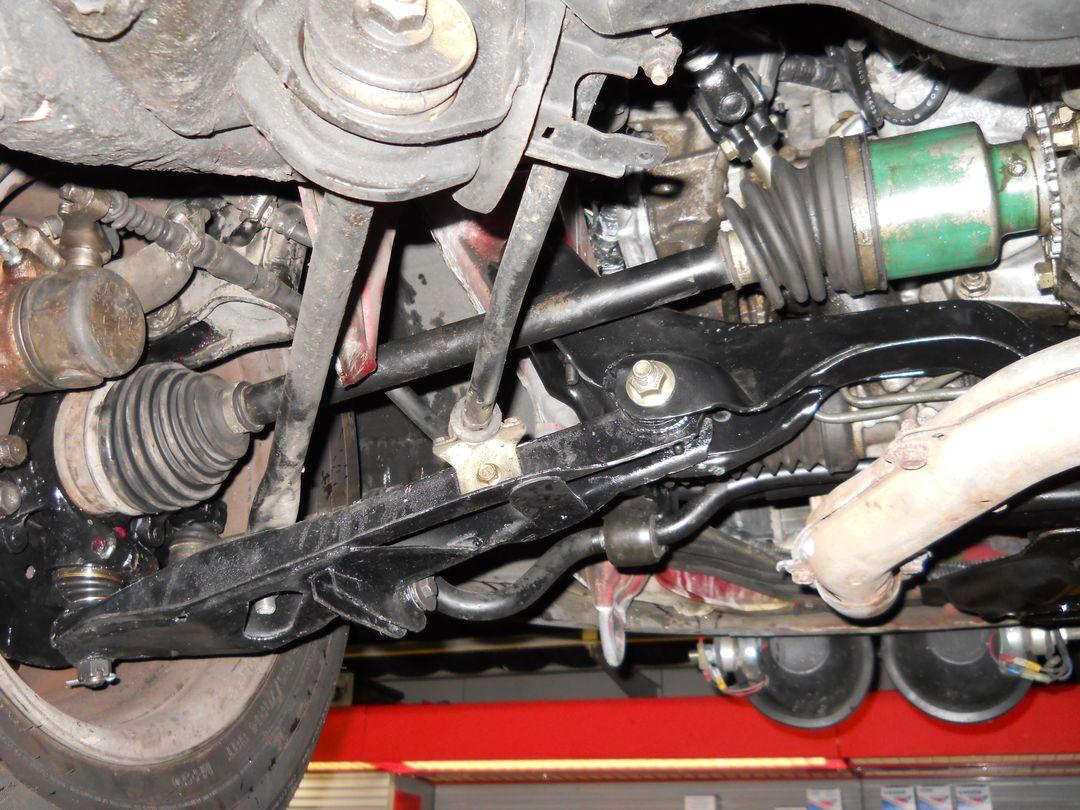

Attached File  XT6 LCA Installed first side.jpg   131.99K   113 downloadsAttached File  XT6 LCA Installed second side.jpg   129.72K   101 downloads Attached File  T-Crossmember installed left side.jpg   114.63K   86 downloads Attached File  T-Crossmember installed right side.jpg   162.29K   99 downloads Attached File  T-Crossmember installed finished.jpg   145.74K   83 downloads



More to follow...





[EDIT] I wish now that I had followed the advice of the many that had gone before me on the 5 lug swap. I need to move the lower control arm bolt holes outboard by about 1/2" - 5/8". Oh well it's a small matter fix this. Without fixing this the front axles are slightly loaded and the camber cannot be brought within specs. Update to follow whenever I decide to fix this. I have (4) EA wagon projects going right now.












Edited by Crazyeights, 20 February 2015 - 09:20 AM.


#3 TheLoyale

TheLoyale

    Safariwagon: The Legend

  • Members
  • 6,793 posts
  • Waukesha, WI

Posted 13 April 2014 - 12:22 PM

I'm following this one! Nice progress so far. What are those 4 bolts for right in front of the fuel tank?



#4 Crazyeights

Crazyeights

    Crazyeights

  • Gold Subscribers
  • 1,155 posts
  • Pacific Northwest

Posted 13 April 2014 - 11:50 PM

I'm following this one! Nice progress so far. What are those 4 bolts for right in front of the fuel tank?

I think it might have been from an old trailer hitch. That makes me smile too. First gear up the pass in the snow at five grand doing 14 mph pulling a trailer. Yeah, we have all worn that hat at least once :ph34r: 90 HP on it's best day and lucky if the head gaskets last past the first timing belt interval.



Oh well just stay runnin' for a few more months... The radiator was plugged solid when I bought the car. I didn't really realize it and TBH I didn't care either. Until it blew the entire end tank off of the passenger side on my lunch break :clap: WHAT A MESS! Now it has a shiny new brass one a few months early. The old EA82 chugs on at almost 30 mpg....


Edited by Crazyeights, 14 April 2014 - 02:13 AM.


#5 Crazyeights

Crazyeights

    Crazyeights

  • Gold Subscribers
  • 1,155 posts
  • Pacific Northwest

Posted 01 June 2014 - 01:46 AM

Time for a quick update. The 5 lug swap is complete. The modified EA82T ("Turbo") front engine cross-member with XT6 front lower control arms is installed. The brake system upgrades/modifications are finished for now too. I put in new lower ball joints as well. I cleaned up some Legacy 14" steel rims so that I could retain the same tires short term. They are 185/70-R14's. I have several thousand miles on this configuration now and it feels great.



Attached File  5 Lug Swap finished left side.jpg   201.15K   68 downloads Attached File  5 Lug Swap finished left side -2.jpg   175.89K   73 downloads Attached File  5 Lug Swap finished right side.jpg   196.86K   72 downloads

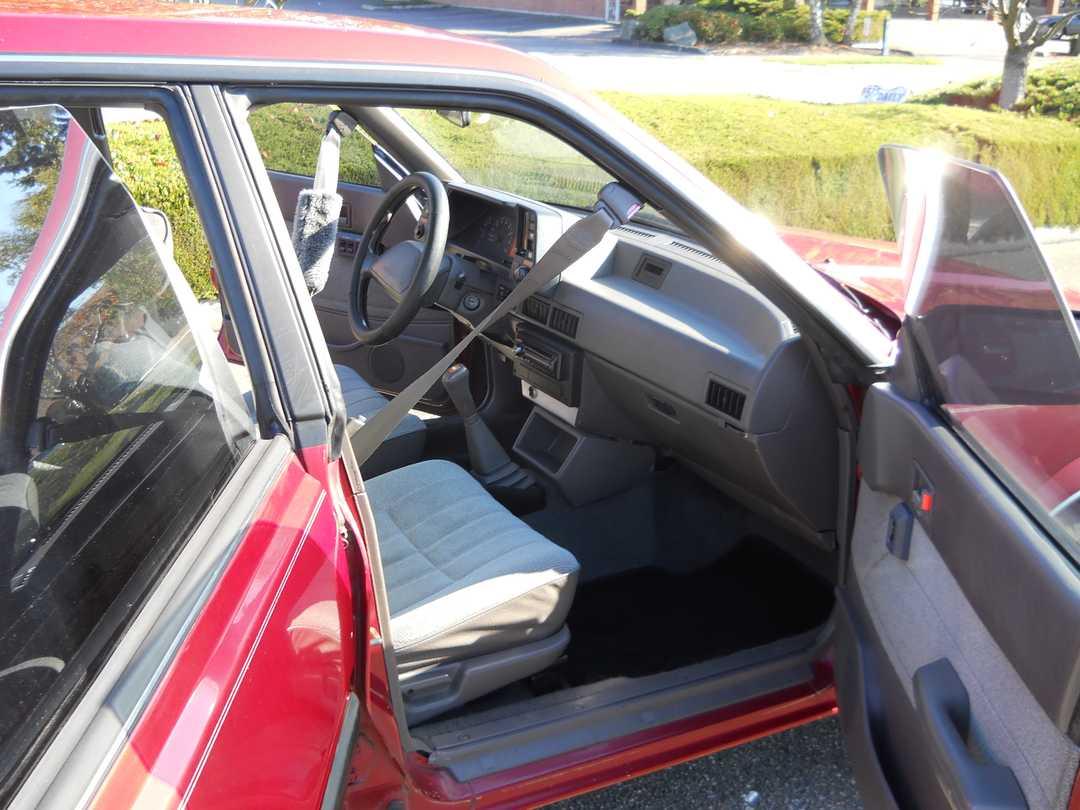

A quick look at the interior;



Attached File  Left side interior.jpg   117.43K   72 downloads Attached File  Left side interior - 2.jpg   91.87K   58 downloads Attached File  Right side interior.jpg   118.47K   43 downloads



So far so good! Details to follow soon with some more pictures.


Edited by Crazyeights, 12 October 2014 - 12:35 PM.


#6 Crazyeights

Crazyeights

    Crazyeights

  • Gold Subscribers
  • 1,155 posts
  • Pacific Northwest

Posted 01 June 2014 - 12:50 PM

Here is a picture of the donor car that the front suspension parts came from.



Attached File  Strut and Knuckle donor.jpg   34.94K   31 downloads



The front brakes consist of Loyale calipers on EJ knuckles, rotors, pads, and caliper brackets.  It works by using one of the Loyale caliper pins on the EJ bracket. A big "Thank You" to the member that figured this out first in another post. I like this for now because you can retain the front E-Brake. I ended up using EA81 outer tie rod ends so that the toe could be adjusted properly.



Attached File  LF EJ Brake swap.jpg   100.85K   40 downloads Attached File  LF EJ Brake swap - 2.jpg   115.66K   42 downloads Attached File  RF EJ Brake swap.jpg   107.69K   34 downloads


Edited by Crazyeights, 12 October 2014 - 12:34 PM.


#7 Crazyeights

Crazyeights

    Crazyeights

  • Gold Subscribers
  • 1,155 posts
  • Pacific Northwest

Posted 01 June 2014 - 01:07 PM

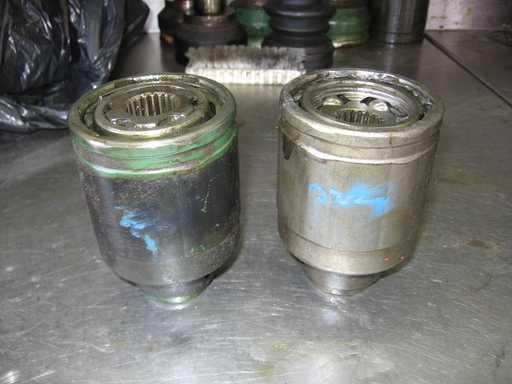

I wanted both sets of inner DOJ cups (23 spline EA82 and 25 spline EA82T/EJ22) on hand to fit the Impreza front axles I am using. That should help keep the future engine and trans swap "down-time" to a minimum. That takes care of the front for now.



Attached File  DOJ Inverted.jpg   28.02K   24 downloads Attached File  DOJ Inverted - 2.jpg   27.15K   26 downloads Attached File  EJ - EA Front Axle.jpg   135.65K   22 downloads



More to come soon ...


Edited by Crazyeights, 12 October 2014 - 12:39 PM.


#8 Crazyeights

Crazyeights

    Crazyeights

  • Gold Subscribers
  • 1,155 posts
  • Pacific Northwest

Posted 12 October 2014 - 10:50 AM

Progress has been made :zzz:
I gave up (for now) trying to find a way to mate the EA82 rear axles in the Loyale to the inner DOJ's on the 2001 Legacy GT VLSD rear I was going to use.



I picked up an open 4.11 rear end out of an earlier Legacy with stubs and cleaned it up. The rear end ratio has to match the EJ 5 speed trans that is about to go in. So, with missing link installed, all I needed to do is wait for a slow day and "pull the trigger" on the EJ swap.
Attached File  IMG_2676.JPG   146.55K   38 downloads


Edited by Crazyeights, 12 October 2014 - 07:55 PM.


#9 Crazyeights

Crazyeights

    Crazyeights

  • Gold Subscribers
  • 1,155 posts
  • Pacific Northwest

Posted 12 October 2014 - 10:55 AM

Next, time to pull out the old tired EA82 and trans to make room for the new EJ22 and it's 5 speed EJ companion.

Attached File  IMG_2654.JPG   144.29K   47 downloads

Motors and stuff everywhere

Attached File  IMG_2657.JPG   148.72K   51 downloads Attached File  IMG_2658.JPG   172.48K   46 downloads

What a mess!

Stay Tuned...


Edited by Crazyeights, 12 October 2014 - 07:56 PM.


#10 Crazyeights

Crazyeights

    Crazyeights

  • Gold Subscribers
  • 1,155 posts
  • Pacific Northwest

Posted 12 October 2014 - 10:58 AM

I actually put this N/A EJ22E engine in with EJ22T manifolds and water pump installed to make sure they would all clear the frame and they do!

Attached File  IMG_2661-2.jpg   158K   40 downloads



The EJ22T in my garage slated for this project may still find it's way under the hood someday.

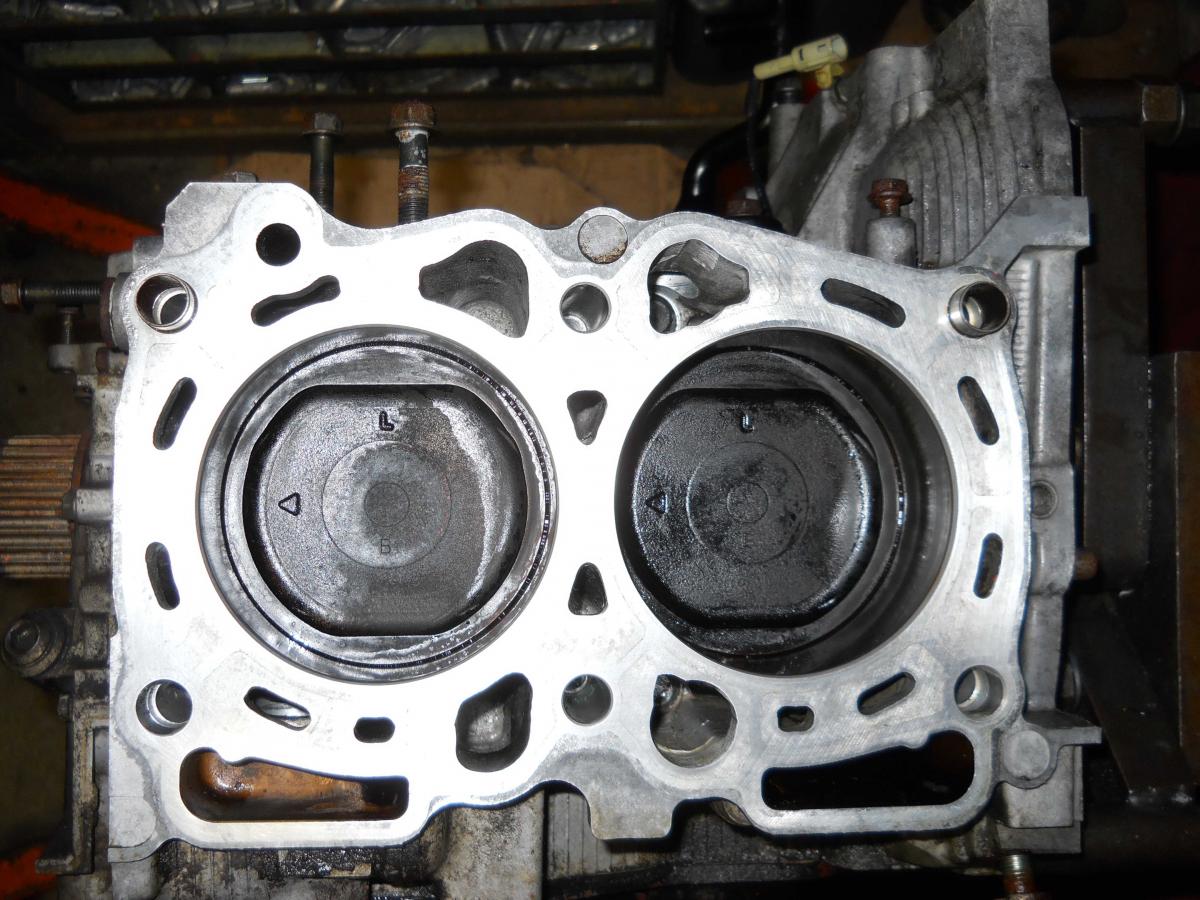

Attached File  DSCN0813 - Closed Deck.jpg   155.72K   41 downloads Ya, I really DO have one :grin:

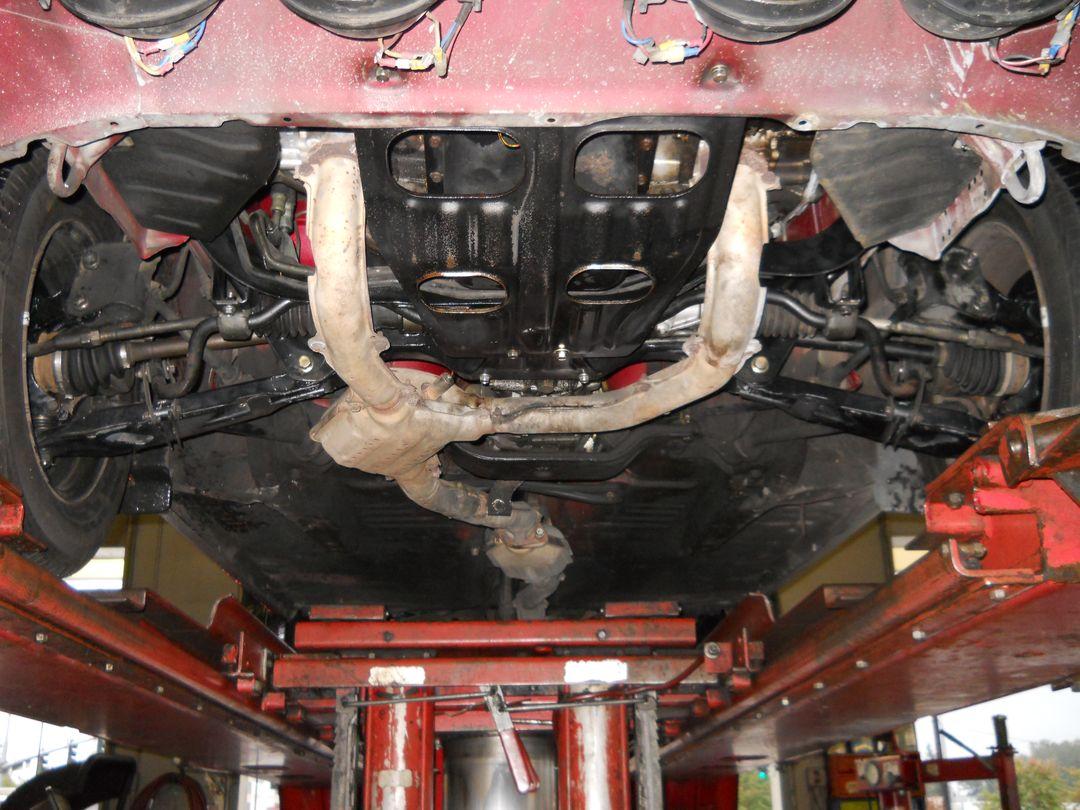

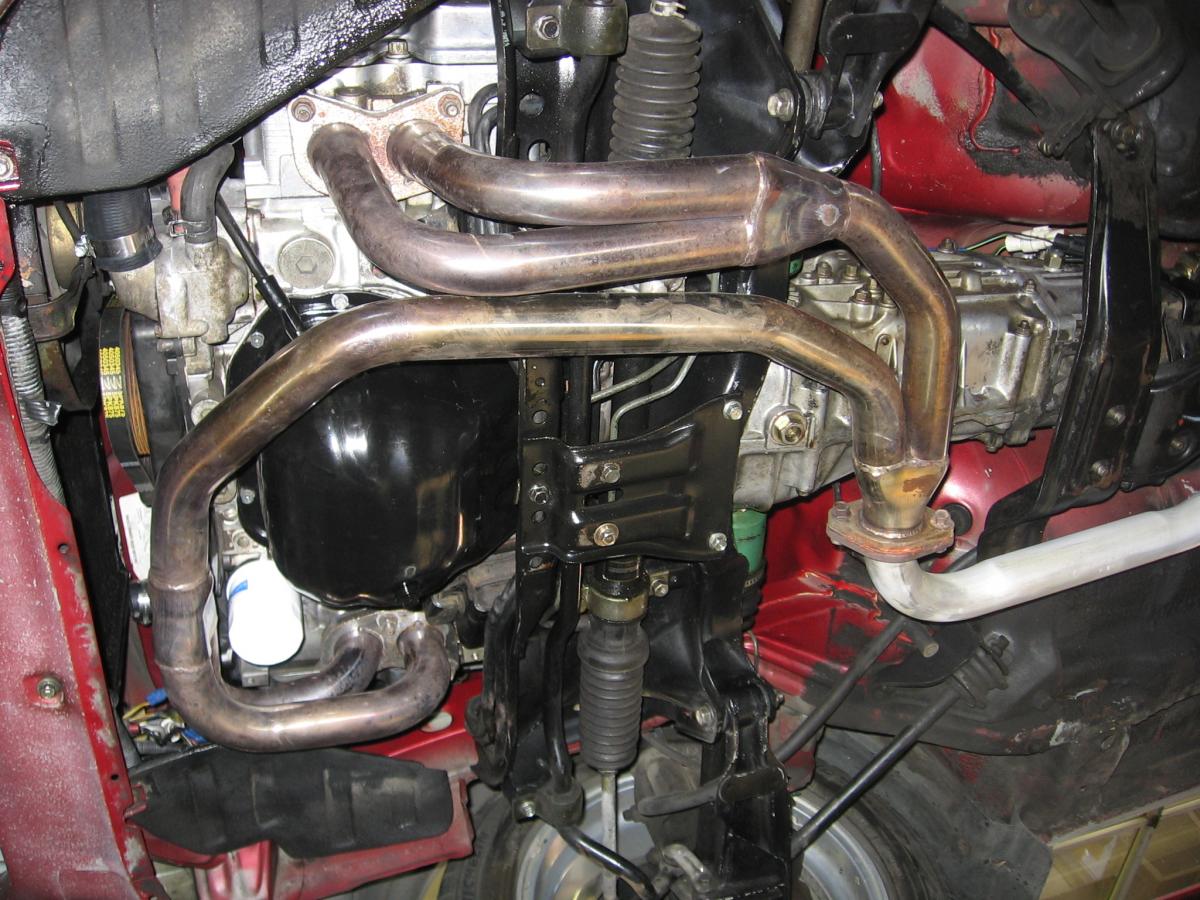

But for now, Under the 'neath!

Attached File  IMG_2660.JPG   164.82K   60 downloadsAttached File  IMG_2670.JPG   174.29K   59 downloads Attached File  IMG_2669.JPG   173.58K   59 downloads



I had the XT6 cross member parts to make the trans bolt in properly and that worked out great. Now with all of the major pieces installed I could take some final measurements for the rear drive-shaft. I had read that the center section had to be shortened by 55mm to make it fit properly. I wanted to double check this dimension before sending my only drive shaft out to be cut down. Drivelines Northwest in downtown Seattle gets the "props" for doing some fine work, quickly, and at the right price too!

Attached File  IMG_2656 -DNW EJ Shaft.jpg   122.95K   37 downloads



Thank you!


Edited by Crazyeights, 12 October 2014 - 05:10 PM.


#11 Crazyeights

Crazyeights

    Crazyeights

  • Gold Subscribers
  • 1,155 posts
  • Pacific Northwest

Posted 12 October 2014 - 11:09 AM

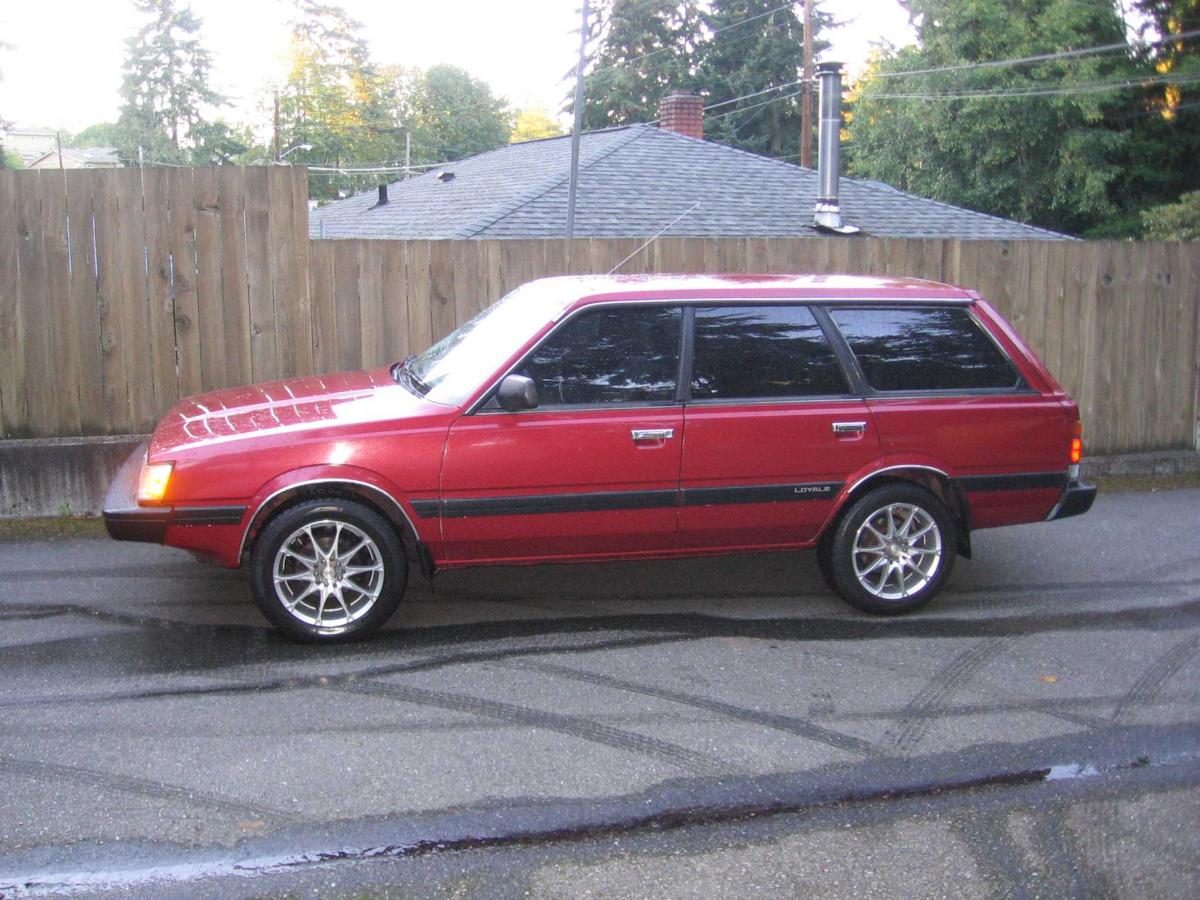

It Lives!



Attached File  IMG_2684.JPG   168.22K   58 downloads Attached File  IMG_2689.JPG   157.47K   59 downloads Attached File  IMG_2686.JPG   171.76K   41 downloads



It sure is a lot more fun to drive now!


Edited by Crazyeights, 12 October 2014 - 11:44 AM.


#12 Crazyeights

Crazyeights

    Crazyeights

  • Gold Subscribers
  • 1,155 posts
  • Pacific Northwest

Posted 12 October 2014 - 03:35 PM

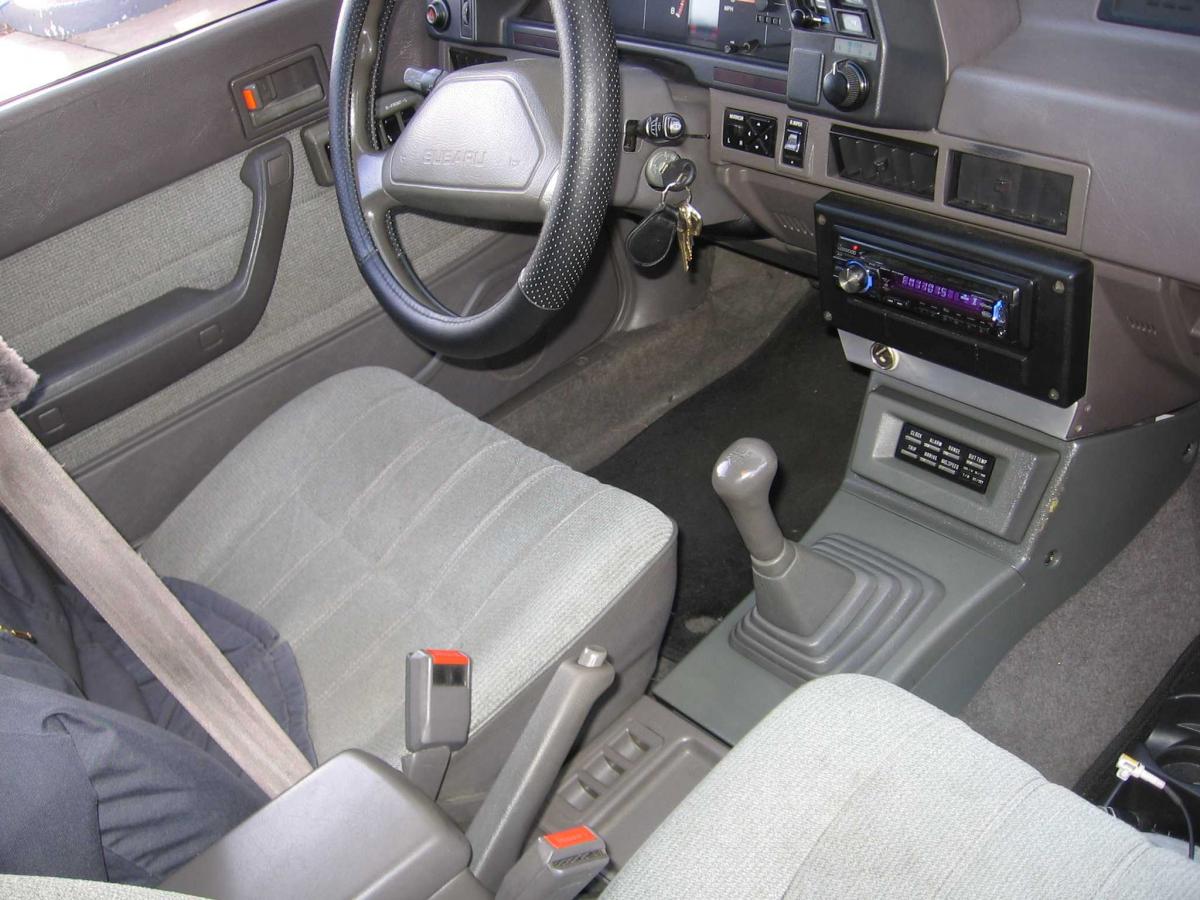

I am still working on the interior.

Attached File  IMG_2703 - 1.jpg   153.03K   47 downloads

The shifter work was made a LOT easier thanks to SubaruTex's thread leading the way here;

http://www.ultimates...j-swapped-cars/

The Legacy shifter mod worked great with only a couple of minor changes. I wanted the rear shifter mount to be able to float fore and aft on a rubber bushing like the factory used. Due to the difference in trans tunnel design between the EA82 and the Legacy there isn't ANY extra room in there to use the stock Legacy shifter mount like I had wanted to. I also didn't want to cut the factory Loyale shifter opening in the floor without a solid plan in place first. I made this up quickly out of the parts bucket. This way the car stays running and I wasn't wasting shop time fabbing something up with the car in the air.

Attached File  EJ Shifter - 1.jpg   121K   51 downloads Attached File  EJ Shifter - 2.jpg   141.07K   39 downloads Attached File  EJ Shifter - 3.jpg   118.36K   46 downloads

It is safe, solid, and functional so it is good enough for now. I also added a 5 mil plastic vapor barrier under the insulation but over the metal to keep moisture from getting to the back side of the carpet.

Attached File  IMG_2705 - 1.jpg   131.38K   73 downloads

I found a combination of plastic that fits as a shifter surround and I'm pretty pleased with it.

Attached File  IMG_2710 - 1.jpg   136.72K   76 downloads

I was trying to make it look like the factory could have made it.

Attached File  IMG_2711 - 1.jpg   154.93K   67 downloads



The trip computer installation should be complete soon including the dash display. At first the clock and outside temp will work. The other functions may have to wait until later. The dealer was still able to get the new mini light bulbs to make the dash LCD display function again.  I even have the outside temp sensor to mount in the grill :)



So far no fault codes after almost a week. I am really liking this conversion a lot!  No more trouble going up hills or getting up to freeway speed. I just about ready to mount the ECU and finish tidying up the interior.


Edited by Crazyeights, 13 October 2014 - 11:45 AM.


#13 nick1208

nick1208

    New User

  • Members
  • 273 posts
  • Tacoma WA

Posted 14 October 2014 - 03:43 PM

:popcorn:



#14 Red85celica

Red85celica

    Newbie

  • Members
  • Pip
  • 2 posts
  • Seattle Wa.

Posted 27 December 2014 - 03:09 PM

I bet it sounds real good with that UEL header. Very clean, Jeff!

#15 Nico

Nico

    USMB is life!

  • Members
  • 251 posts
  • Hamilton, Ontario, Canada

Posted 01 January 2015 - 03:03 AM

subscribed....



amazing love it all, another old school subaru saved and done right  :headbang:  !!....... put that ej22t in there :clap:  :clap:



#16 Crazyeights

Crazyeights

    Crazyeights

  • Gold Subscribers
  • 1,155 posts
  • Pacific Northwest

Posted 01 January 2015 - 04:26 AM

So far I am very pleased with the this car! It is a good daily driver and it's surprisingly fast with the EJ22E that's in it now. I should be able to finish the A/C re-connect.  I am currently looking at the SPAL 10" fans for cooling and it looks like it may just leave enough room for an R134 A/C compressor.



I think I have paused long enough at this phase to make sure I haven't introduced any new nagging problems or noises. I didn't want to bite off more than I could chew and never end up completing the project. That's why I try and work in phases taking time to drive the car for a while in between each major step.  When I am ready I hope that the EJ22T swap will be a fairly straight forward exchange.



The E22T is almost fully assembled. The intake manifold and hard lines still need to go on. I am using the factory turbo with the stock exhaust stock manifolds, cross-over, and up pipe. I already have them, they fit, and they are all in great shape. I also have the (2) solenoids that mount on the fender for boost control. Last year I won an Ebay auction for a factory Subaru WAIC kit from New Zealand complete with the factory heat exchanger, all of the hard and soft lines, mini radiator, pump, etc. I'll get it running without this first. I would like to set it up though if I have room. If not, it will go on another car.



I have done some more reading and it looks like I can use my current EJ22 clutch setup. It's still fairly new so being able to transfer those parts will be a bonus. I'll have to figure out the exhaust between what I have now underneath to where the turbo lets out. I hope I can find some standard pipe that will fit there. If not I'll have something made up.



Happy New Year!

More soon...


Edited by Crazyeights, 03 January 2015 - 02:14 AM.


#17 Crazyeights

Crazyeights

    Crazyeights

  • Gold Subscribers
  • 1,155 posts
  • Pacific Northwest

Posted 01 January 2015 - 11:34 AM

I bet it sounds real good with that UEL header. Very clean, Jeff!

Ya it sounds great with the header on :D



#18 1982gl4

1982gl4

    1000+ Super USER!

  • Members
  • 1,410 posts
  • Worcester, VT

Posted 01 January 2015 - 05:37 PM

Awesome work. I can't wait to see the ej22t swap in this!



#19 Tiersmoke92555

Tiersmoke92555

    Newbie

  • Members
  • Pip
  • 9 posts
  • Capitol Heights, MD

Posted 11 January 2015 - 08:08 PM

Inspiration to get off my butt and get my sleeper wagon going.  :horse:



#20 Crazyeights

Crazyeights

    Crazyeights

  • Gold Subscribers
  • 1,155 posts
  • Pacific Northwest

Posted 11 January 2015 - 08:48 PM

Inspiration to get off my butt and get my sleeper wagon going.  :horse:

Please do, and share some photos of it!  What type of Wagon do you have?



#21 Tiersmoke92555

Tiersmoke92555

    Newbie

  • Members
  • Pip
  • 9 posts
  • Capitol Heights, MD

Posted 12 January 2015 - 12:15 AM

Please do, and share some photos of it!  What type of Wagon do you have?

I have an '88 GL wagon but nothing as good looking as yours, here in the DC metro area they uses lots of salt and other chemicals on the roads.



#22 KristjanJohann

KristjanJohann

    USMB Regular

  • Members
  • PipPipPip
  • 99 posts
  • Reykjavik, Iceland

Posted 14 January 2015 - 11:09 AM

Subscribed. Cant wait to see more

#23 KristjanJohann

KristjanJohann

    USMB Regular

  • Members
  • PipPipPip
  • 99 posts
  • Reykjavik, Iceland

Posted 14 January 2015 - 11:10 AM

Did you use a manual EJ series shaft and shortened 55mm?

#24 KristjanJohann

KristjanJohann

    USMB Regular

  • Members
  • PipPipPip
  • 99 posts
  • Reykjavik, Iceland

Posted 14 January 2015 - 11:24 AM

And one more regarding the shifter. SubaruTex's info indicates that you can't use the ea82 shifter boot and interior dye ti a further back location of the shifter. How did you make your interior piece fit?

#25 Crazyeights

Crazyeights

    Crazyeights

  • Gold Subscribers
  • 1,155 posts
  • Pacific Northwest

Posted 14 January 2015 - 11:24 AM

I used the stock EA82 driveline. I did have to shorten it, 55mm sounds correct but I can double check. How do I replace the staked in u-joints on this driveline now? Is it even possible?
