Mike's 87 Brat build


  • Please log in to reply
25 replies to this topic

#1 mcgarvey2001

mcgarvey2001

    New User

  • Members
  • PipPipPip
  • 42 posts
  • Kalispell

Posted 14 July 2014 - 04:52 PM

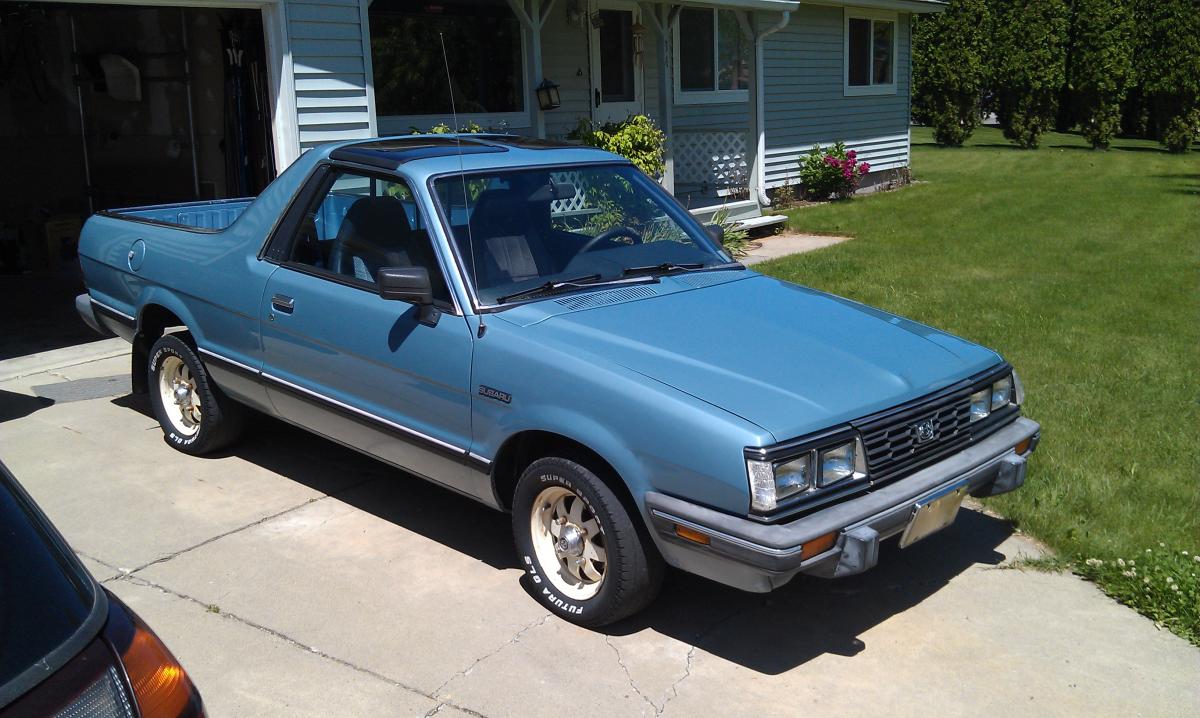

Here’s my 87 Brat. It was purchased rust-free in Arizona,
but is starting to get some rust from life here in Montana, time to keep that
at bay and do all the mods I've been planning:



  • EJ22T engine from a 94 Legacy
  • FT4WD D/R transmission with locking center (hybrid XT6 and 5 sp. D/R with helical front diff) 3.9 final ratio, clutch pack rear LSD
  • Complete XT6 suspension including changeover to struts all around with coilovers built around Audi and Camry struts, 150 lb/in springs.·
  • 4 inch lift with 3 inch drop blocks
  • 15” wheels (Outback or Forester), 28” AT tires, some fender trimming will happen·
  • Tube bumpers, roll bar and jump seats
  • New light harness and lights and LED signal lamps
  • XT6 seats
  • new carpeting, sound deadening/sound proofing and stereo

Attached File  IMAG0491.jpg   130.09K   110 downloads

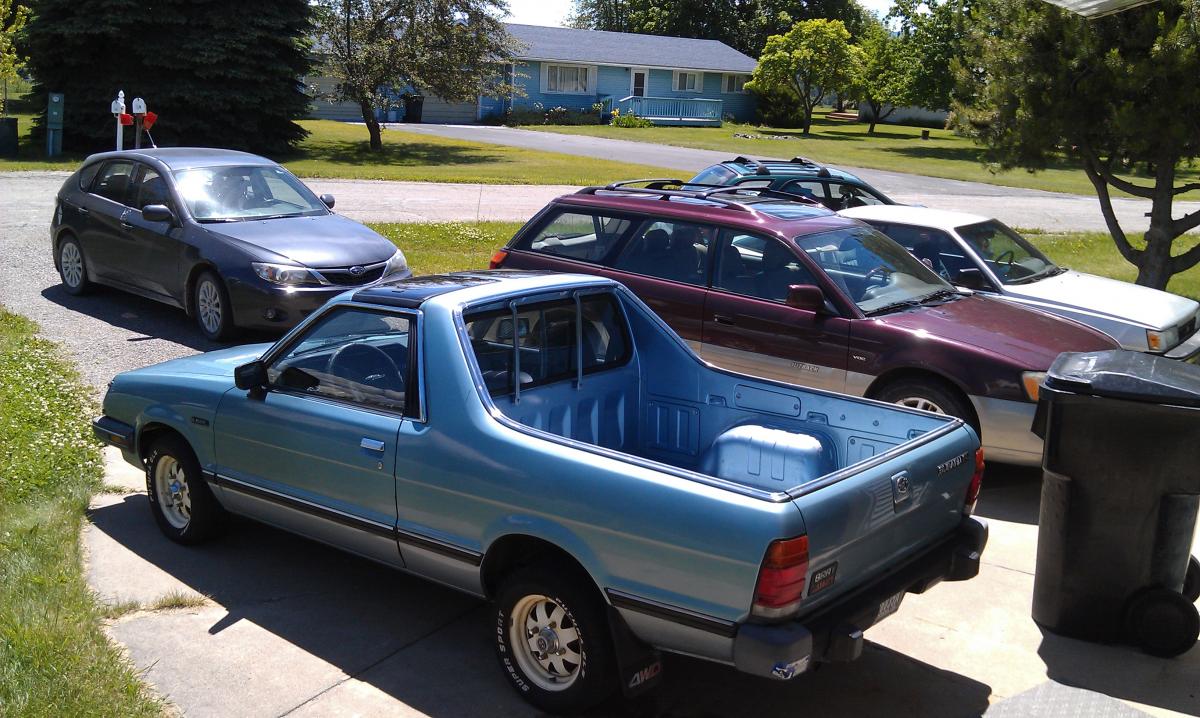

Another angle with most of my Subaru stable; not pictured is an XT6. Yes, I may have a problem.



Attached File  IMAG0494.jpg   161.46K   119 downloads


Edited by mcgarvey2001, 14 July 2014 - 04:55 PM.


#2 nick1208

nick1208

    New User

  • Members
  • 287 posts
  • Tacoma WA

Posted 14 July 2014 - 08:38 PM

you've even got that chrome tailgate trim that someone is trying to fetch $1,000 for on eBay. clean brat!


Edited by nick1208, 14 July 2014 - 08:39 PM.


#3 mcgarvey2001

mcgarvey2001

    New User

  • Members
  • PipPipPip
  • 42 posts
  • Kalispell

Posted 15 July 2014 - 09:57 AM

It's got a few dings, probably would only fetch $900  ;)



I pulled apart all the XT6 bits to clean and paint.



Attached File  IMAG0496-001.jpg   55.84K   52 downloads



#4 mcgarvey2001

mcgarvey2001

    New User

  • Members
  • PipPipPip
  • 42 posts
  • Kalispell

Posted 17 July 2014 - 11:14 AM

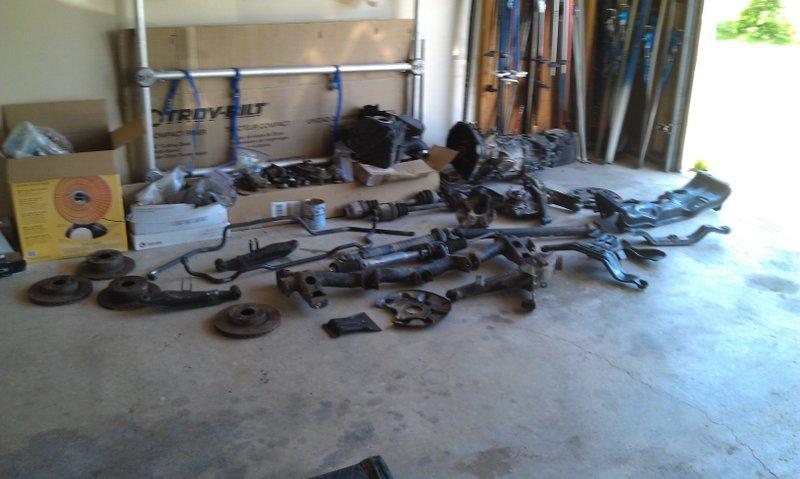

Deconstruction. Most of this along with the motor and transmission will be for sale. In the mean time I wish I had some place to put parts. I have a fair sized two car garage but it's got a lot of camping/backpacking/rafting/kayaking/bicycling/Christmas decorating/miscellany that fills it up.






#5 mcgarvey2001

mcgarvey2001

    New User

  • Members
  • PipPipPip
  • 42 posts
  • Kalispell

Posted 22 September 2014 - 03:18 PM

Attached File  IMAG0515.jpg   152.76K   28 downloads

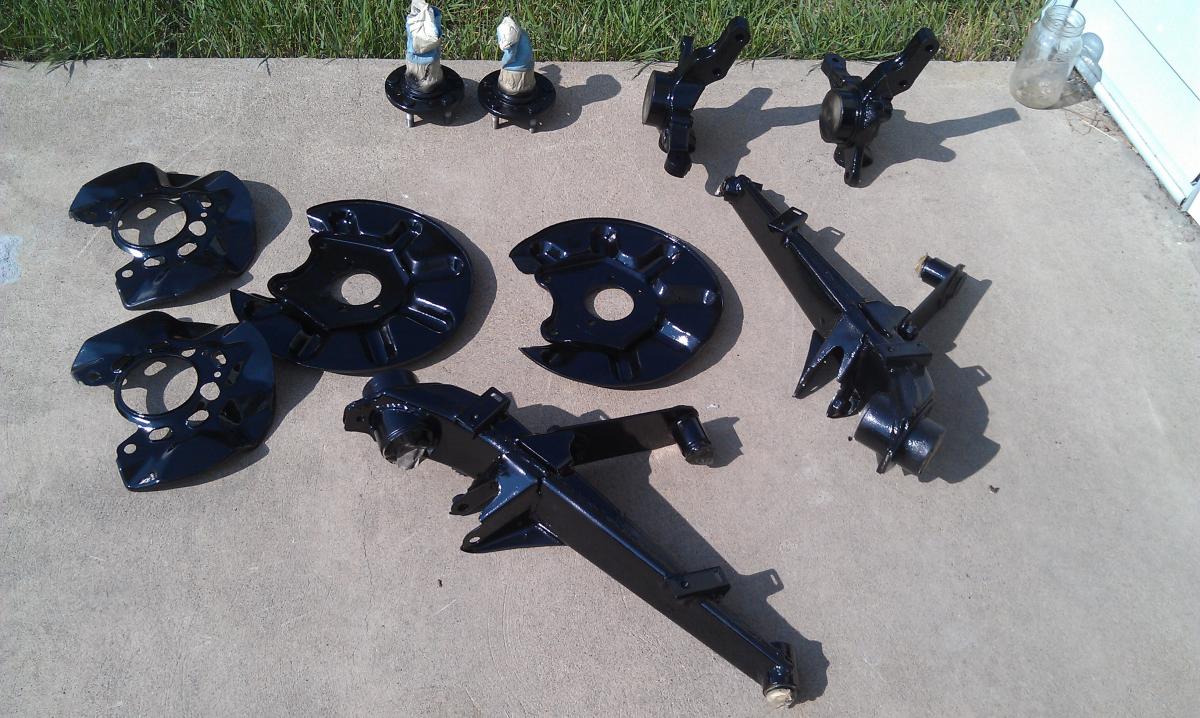

Rust-proofing and painting.



#6 mcgarvey2001

mcgarvey2001

    New User

  • Members
  • PipPipPip
  • 42 posts
  • Kalispell

Posted 22 September 2014 - 03:24 PM

Attached File  IMAG0517.jpg   166.36K   23 downloads



Rear cross-member modification.  In the front, offset holes in the lift blocks work as adapters between the XT6 front crossmember and Brat frame rails but in the back it's more complicated as the attachments are completely different and the XT6 cross-member wouldn't fit very easily anyway. So I'm cutting off the old bits.


Edited by mcgarvey2001, 22 September 2014 - 03:25 PM.


#7 mcgarvey2001

mcgarvey2001

    New User

  • Members
  • PipPipPip
  • 42 posts
  • Kalispell

Posted 22 September 2014 - 03:26 PM

Attached File  IMAG0527.jpg   32.77K   40 downloads

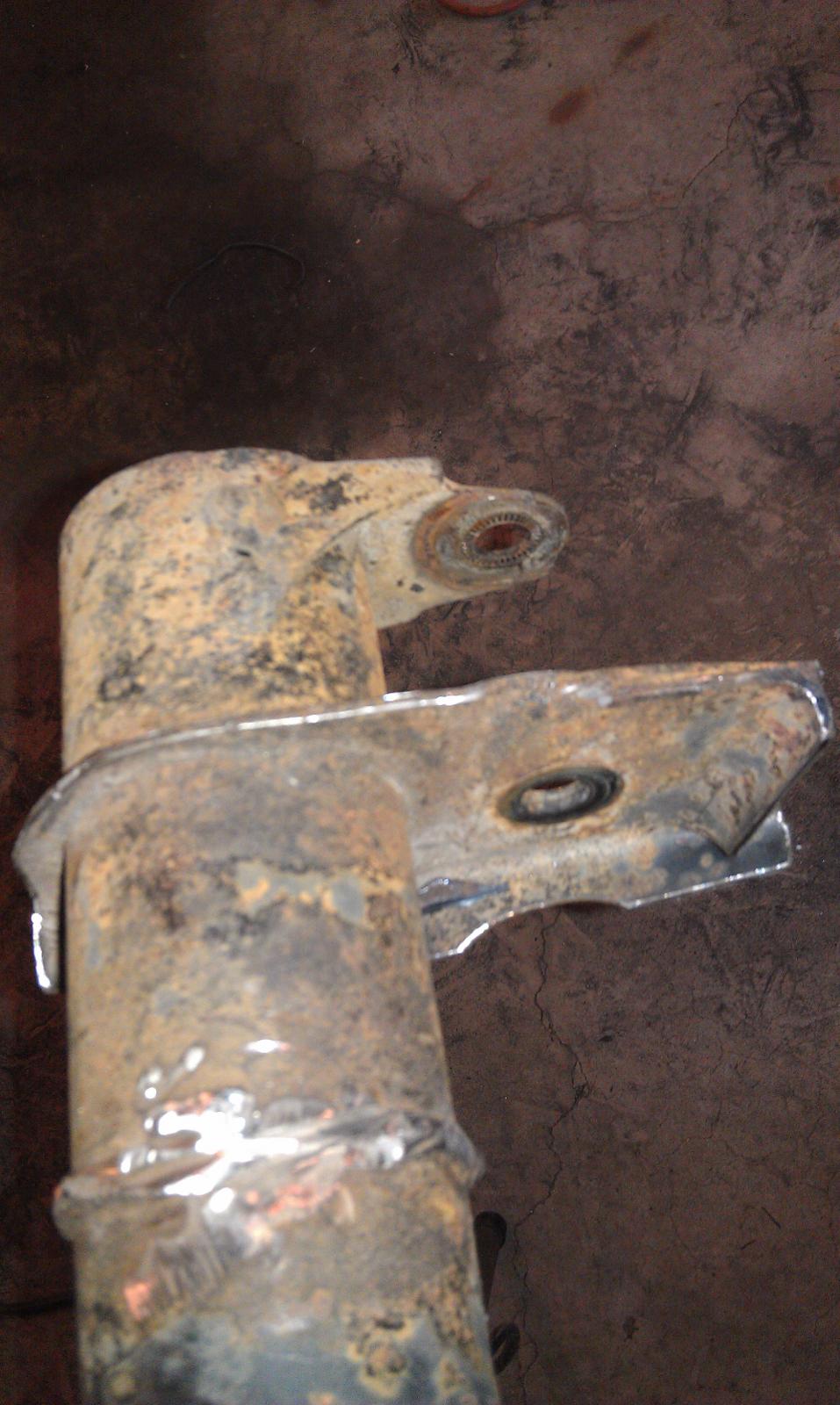

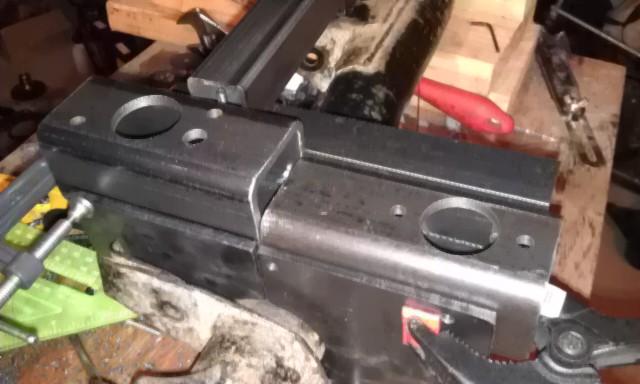

Fabricating the new attachments that will utilize the Brat's vibration damping hardware. The square tubing paralleling the cross-member and attached angle is a jig for welding.


Edited by mcgarvey2001, 22 September 2014 - 03:29 PM.


#8 ironworkerboomer

ironworkerboomer

    USMB Regular

  • Members
  • 130 posts
  • Salmon, Idaho

Posted 22 September 2014 - 09:43 PM

Ok subscribed! Nice brat to start with you have a long road of work ahead don't get burned out. This project deserves to be done. I was born and raised in Kalispell (kowsbell is what we always called) but left along time ago. I like the winters in Salmon much better the sun actually shines here in the winter.  I do miss Moose's pizza though.



#9 mcgarvey2001

mcgarvey2001

    New User

  • Members
  • PipPipPip
  • 42 posts
  • Kalispell

Posted 23 September 2014 - 11:12 AM

Born and raised here myself, FHS class of 79. Long road indeed; if I actually knew what I was doing it would be quicker but it takes me a long time to figure out how things are done. This site is amazing though, I just pulled some rear axles in about a fourth the time the book method would take by just lowering the differential (thanks to Miles Fox).



#10 mcgarvey2001

mcgarvey2001

    New User

  • Members
  • PipPipPip
  • 42 posts
  • Kalispell

Posted 29 September 2014 - 10:06 AM

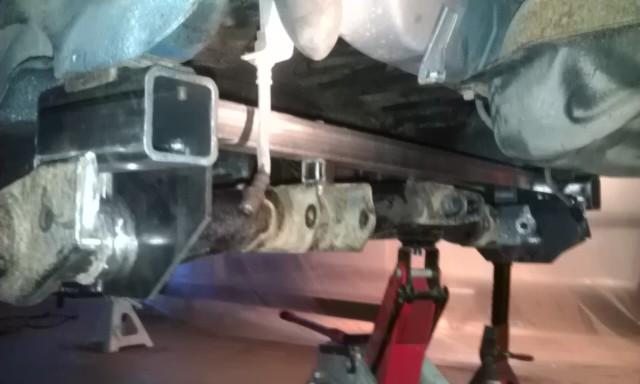

Verifying fit of the modified cross member prior to welding. The outer flanges aren't in these shots.









Attached File  IMAG0548.jpg   26.85K   42 downloads




Edited by mcgarvey2001, 29 September 2014 - 10:08 AM.


#11 mcgarvey2001

mcgarvey2001

    New User

  • Members
  • PipPipPip
  • 42 posts
  • Kalispell

Posted 01 October 2014 - 11:54 PM

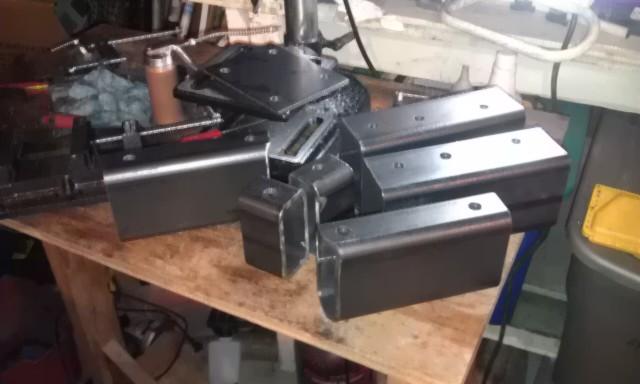

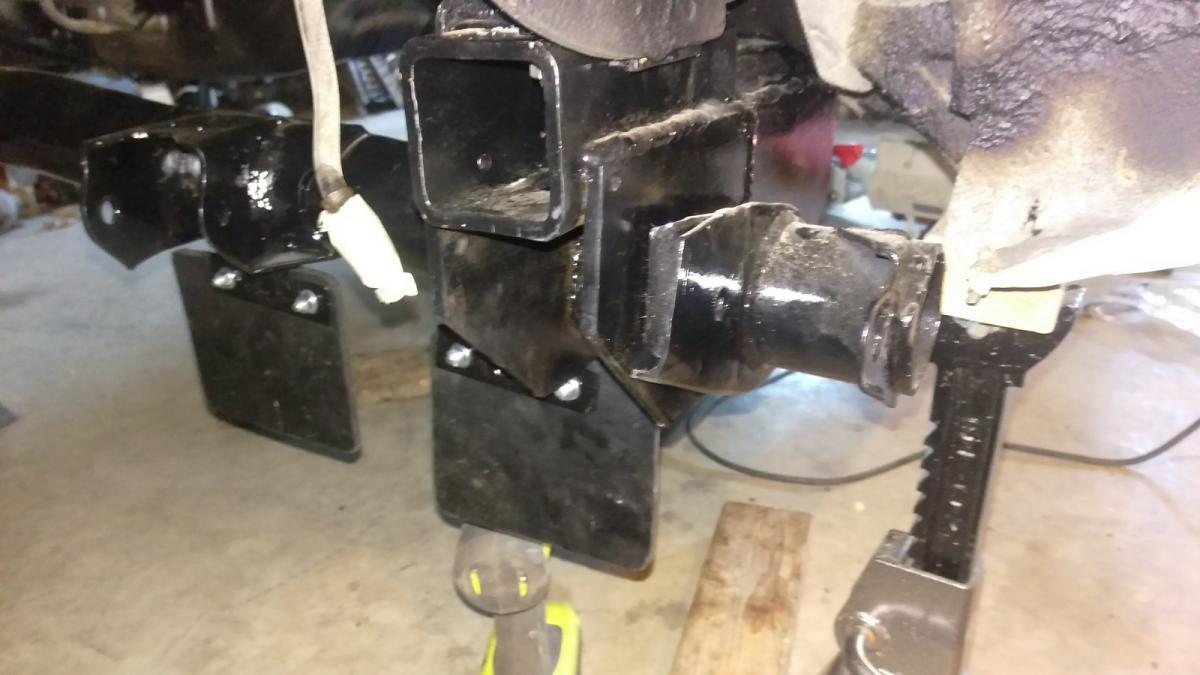

Marking holes for lift blocks with offsets for new cross member.

Attached Files


Edited by mcgarvey2001, 02 October 2014 - 12:05 AM.


#12 mcgarvey2001

mcgarvey2001

    New User

  • Members
  • PipPipPip
  • 42 posts
  • Kalispell

Posted 01 October 2014 - 11:58 PM

Duplicate post... Doh!

Edited by mcgarvey2001, 02 October 2014 - 12:03 AM.


#13 mcgarvey2001

mcgarvey2001

    New User

  • Members
  • PipPipPip
  • 42 posts
  • Kalispell

Posted 02 October 2014 - 12:08 AM

Measure twice, drill, rinse, repeat. Done with the lift blocks.

Attached Files



#14 l75eya

l75eya

    Almost has it all figured out

  • Members
  • 2,019 posts
  • Hoboken, NJ

Posted 02 October 2014 - 12:12 AM

Looking forward to see where you go with this. Seems like you're taking your time and doing everything right, and it looks like you have the skill to back it all up. I love watching these threads progress as they inspire me to one day do something similar for myself.

Best of luck and thank you for sharing all the photographs of your progress!


Edited by l75eya, 02 October 2014 - 12:12 AM.


#15 mcgarvey2001

mcgarvey2001

    New User

  • Members
  • PipPipPip
  • 42 posts
  • Kalispell

Posted 02 October 2014 - 12:23 AM

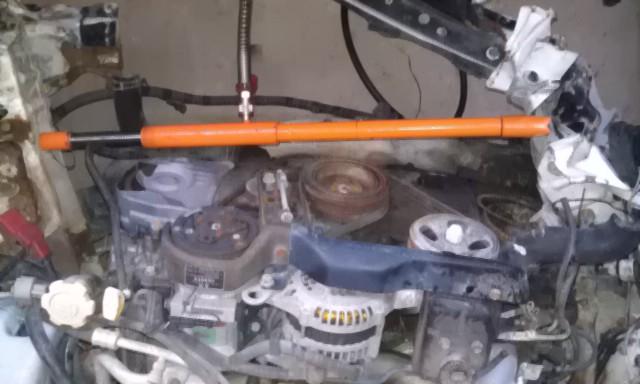

I picked up the donor car for the engine. It was hit on the passenger front corner hard enough to wrap the frame around the engine, so I borrowed my buddy's Porta Power.

Attached Files



#16 mcgarvey2001

mcgarvey2001

    New User

  • Members
  • PipPipPip
  • 42 posts
  • Kalispell

Posted 02 October 2014 - 12:40 AM

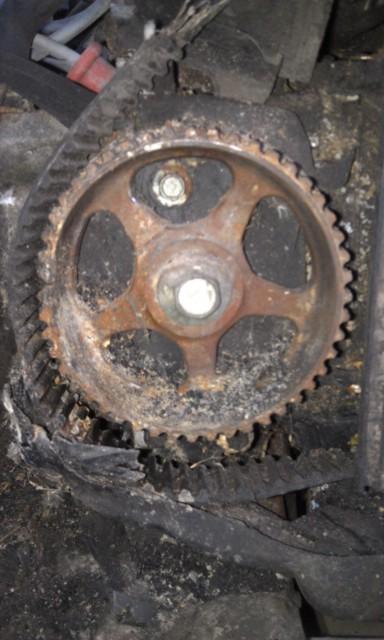

The right side cam sprocket is broken which makes me worry about the cam shaft. I guess I'll have to pull the rocker assembly for a look see. Any advice?
Attached File  IMAG0543.jpg   38.21K   24 downloads

#17 mcgarvey2001

mcgarvey2001

    New User

  • Members
  • PipPipPip
  • 42 posts
  • Kalispell

Posted 05 October 2014 - 11:53 PM

I've been busy notching the cross member, welding, and painting but sadly no longer seem able to post pictures with either my phone or computer although I've tried a number of solutions found through searching. Any ideas?



#18 mcgarvey2001

mcgarvey2001

    New User

  • Members
  • PipPipPip
  • 42 posts
  • Kalispell

Posted 06 October 2014 - 12:19 AM

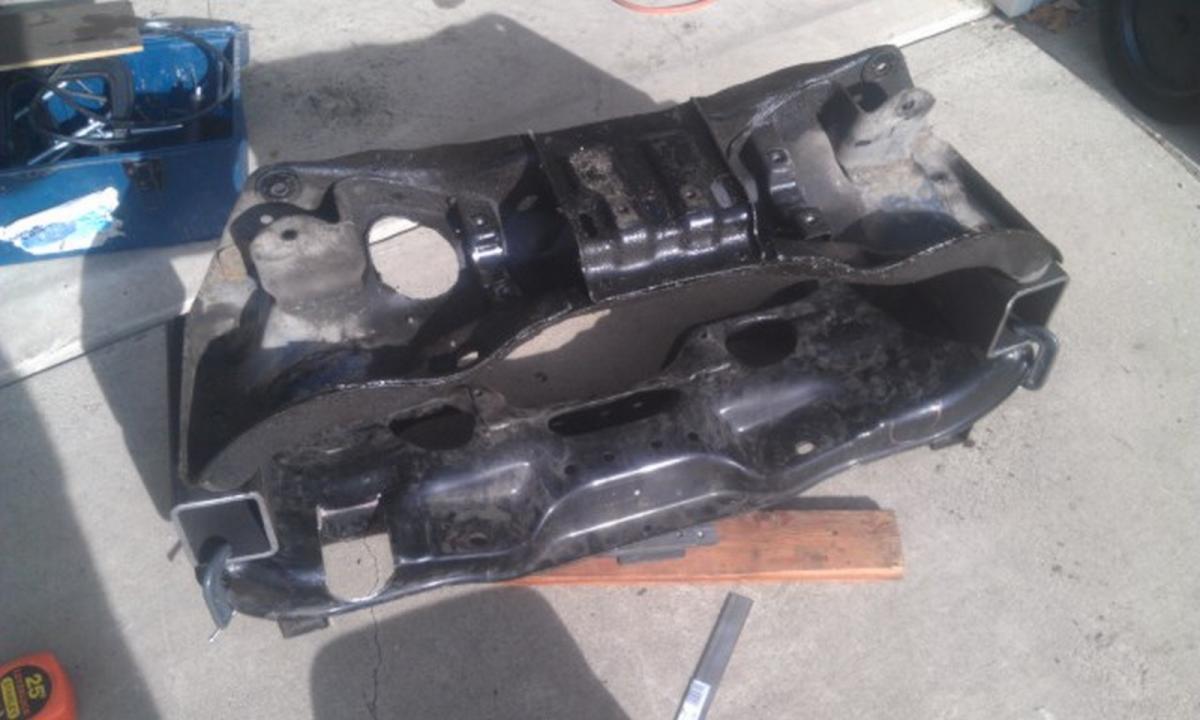

Hmm... Uploaded to facebook and that seems to work. Here's the notched cross member:





Attached File  IMAG0545.jpg   80.93K   8 downloads


Edited by mcgarvey2001, 24 June 2015 - 11:35 AM.


#19 mcgarvey2001

mcgarvey2001

    New User

  • Members
  • PipPipPip
  • 42 posts
  • Kalispell

Posted 06 October 2014 - 12:23 AM

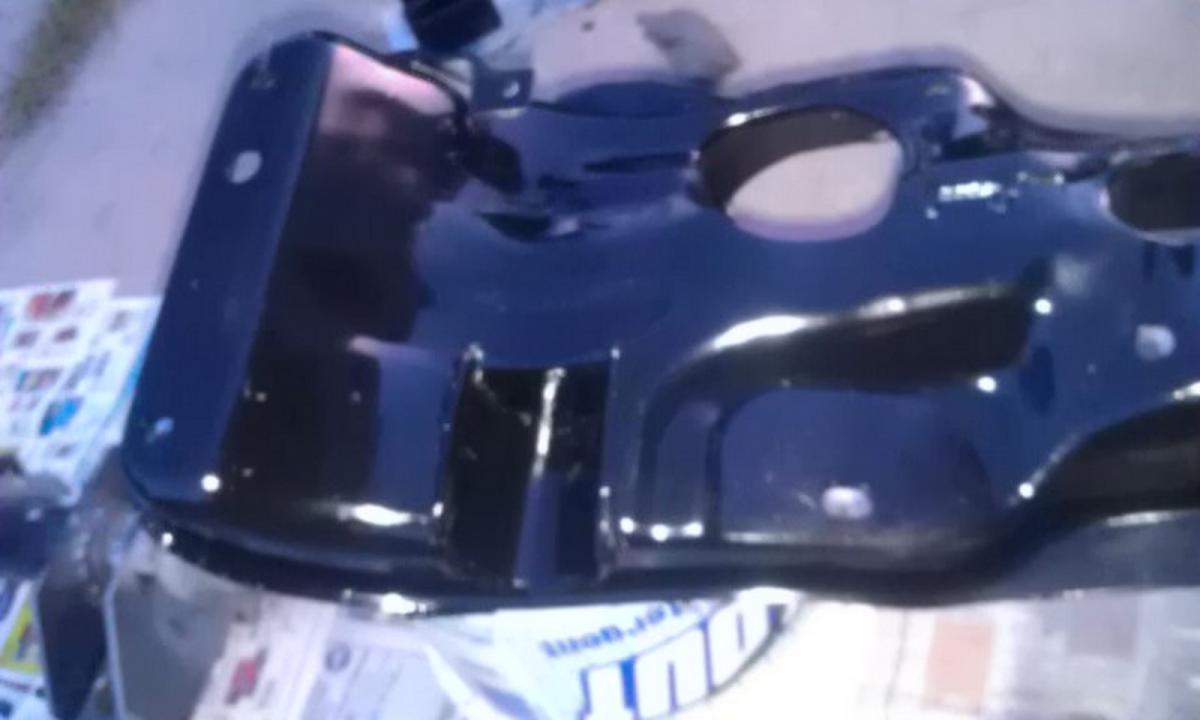

A little welding and painting and here's the finished product:





Attached File  IMAG0552.jpg   53.58K   6 downloads




Edited by mcgarvey2001, 24 June 2015 - 11:35 AM.


#20 mcgarvey2001

mcgarvey2001

    New User

  • Members
  • PipPipPip
  • 42 posts
  • Kalispell

Posted 24 June 2015 - 11:46 AM

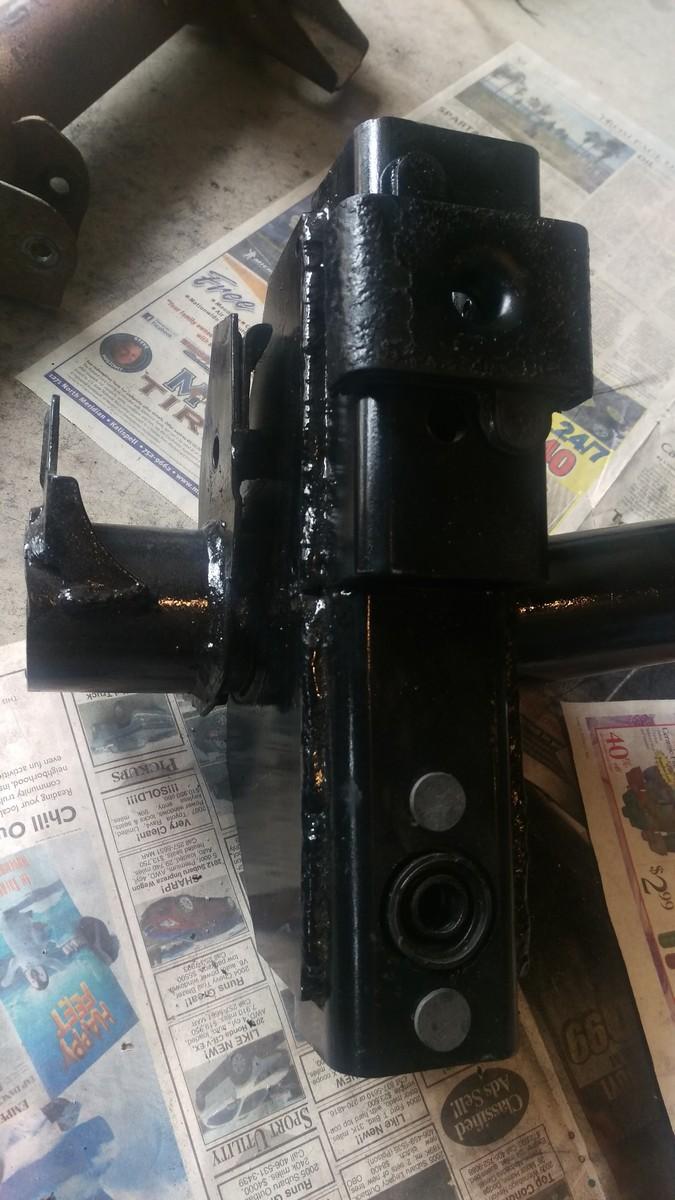

I've finally gotten back at it and have a few things done. Installed the vibration dampers on the rear cross member:



Attached File  IMAG0725.jpg   96.75K   9 downloads



Final install with boot protection:



Attached File  IMAG0732.jpg   78.73K   11 downloads



#21 mcgarvey2001

mcgarvey2001

    New User

  • Members
  • PipPipPip
  • 42 posts
  • Kalispell

Posted 24 June 2015 - 11:48 AM

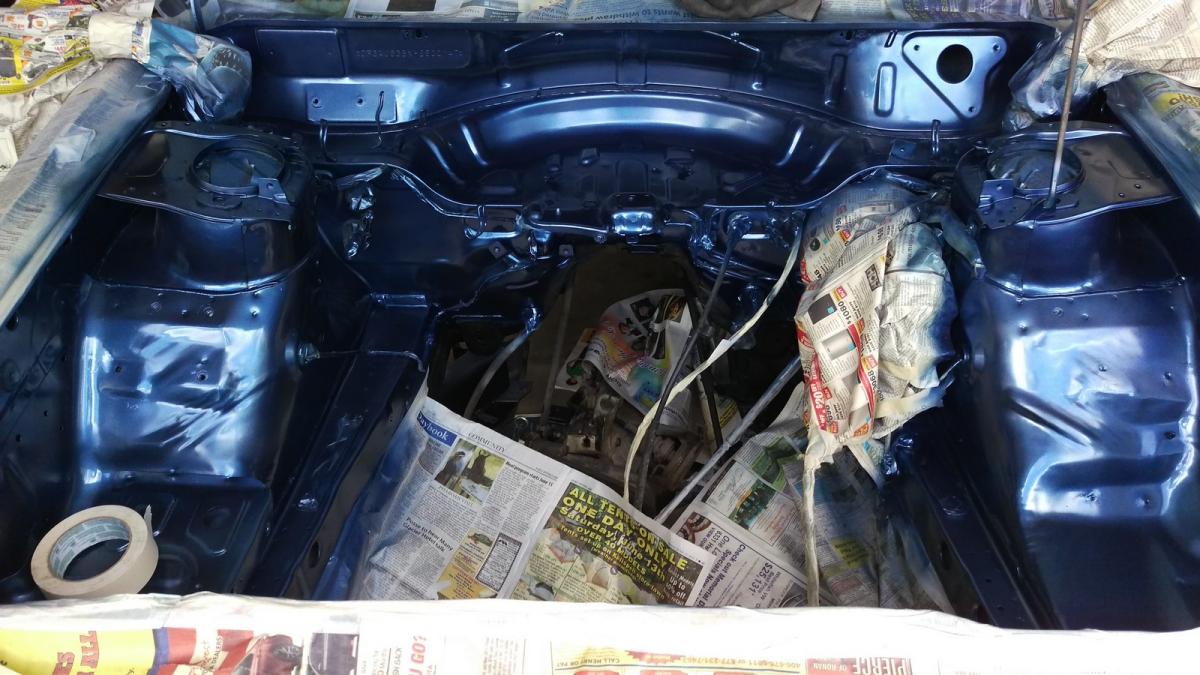

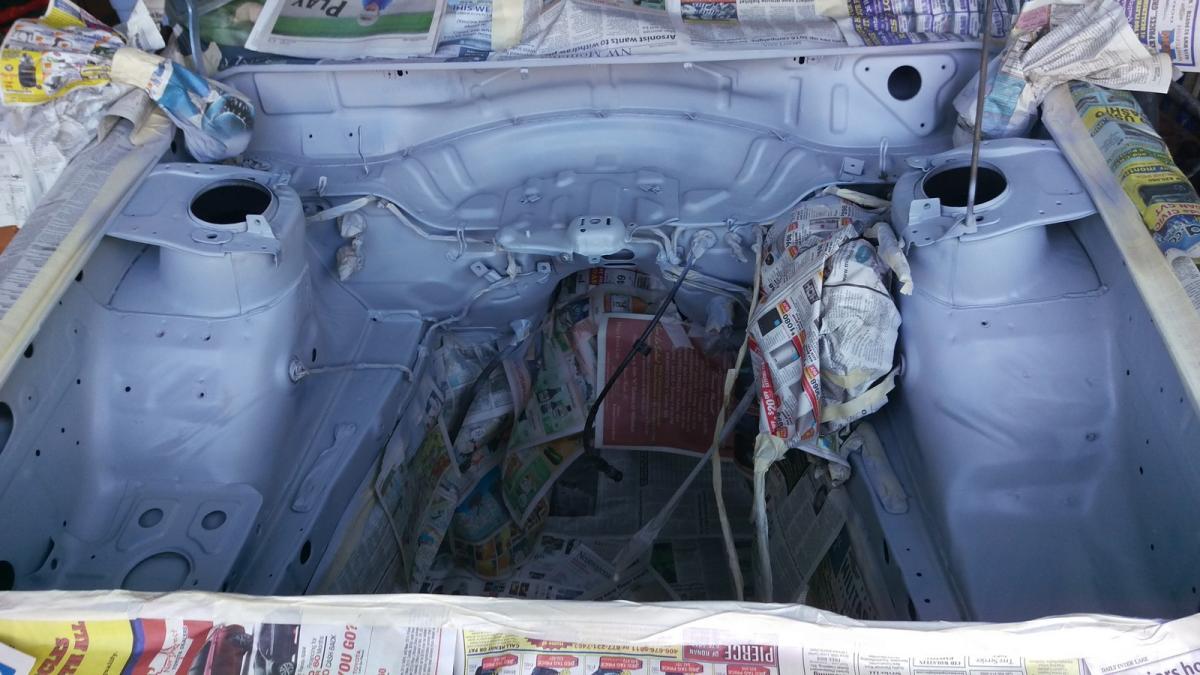

Cleaned up the engine bay, primed and painted (Quartz Blue J8U):



Attached File  IMAG0746.jpg   107.34K   9 downloads



Attached File  IMAG0769.jpg   128.51K   10 downloads



#22 mcgarvey2001

mcgarvey2001

    New User

  • Members
  • PipPipPip
  • 42 posts
  • Kalispell

Posted 24 June 2015 - 11:50 AM

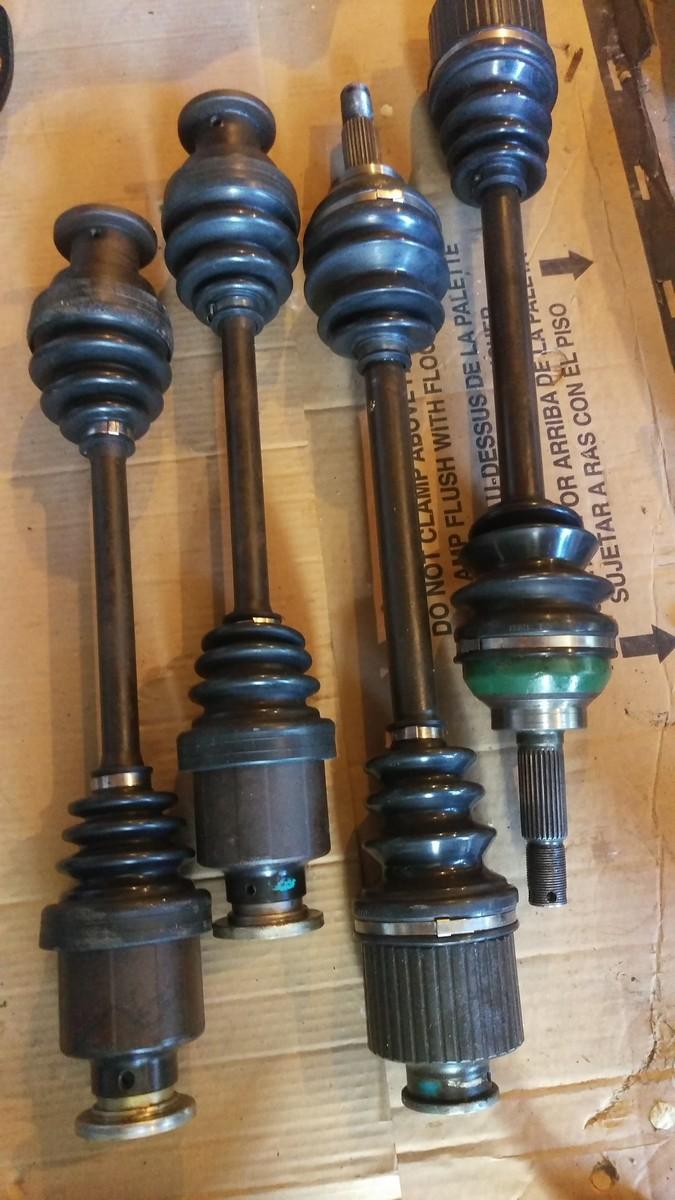

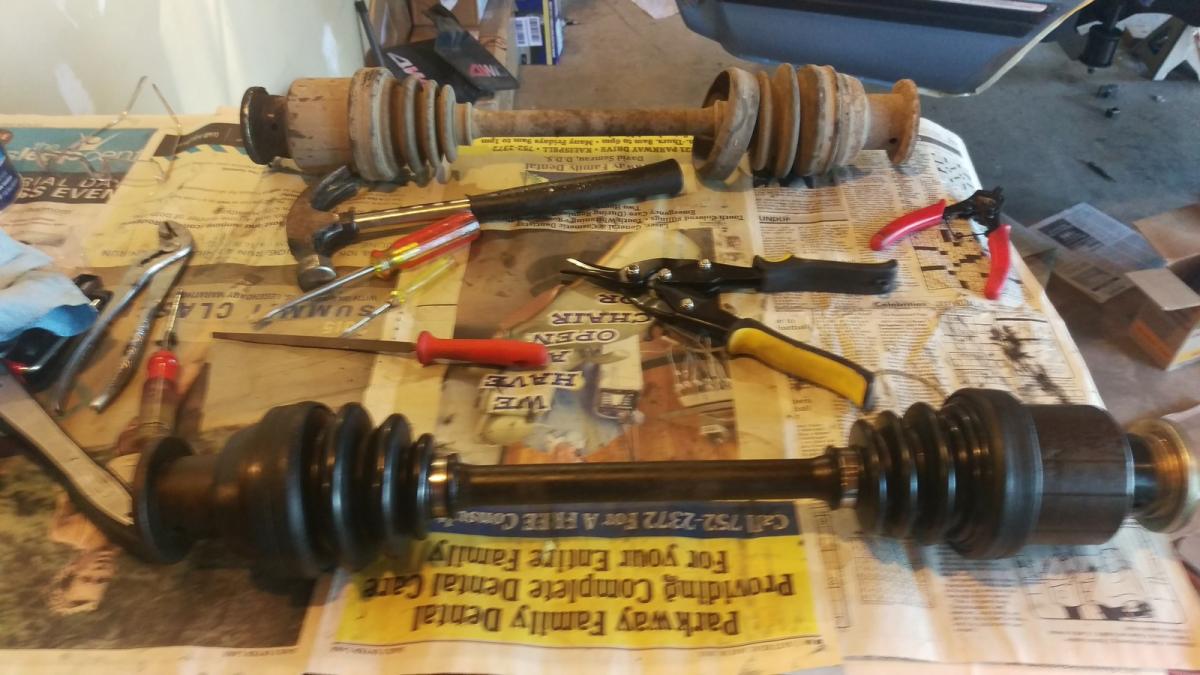

Three of the four axles had boot tears so I decided to rebuild them all.



Attached File  IMAG0744.jpg   107.04K   8 downloads



Attached File  IMAG0748.jpg   98.59K   11 downloads







#23 mcgarvey2001

mcgarvey2001

    New User

  • Members
  • PipPipPip
  • 42 posts
  • Kalispell

Posted 24 June 2015 - 11:53 AM

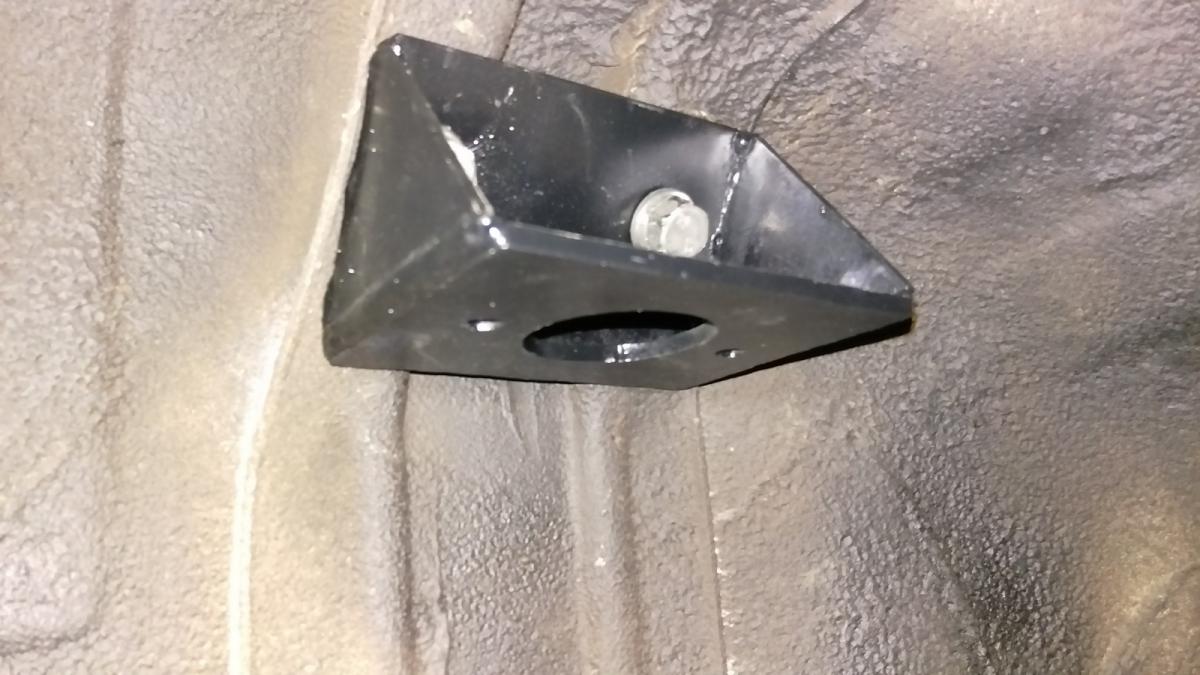

I'm doing coilovers in the rear so made up some strut mount brackets for Audi mounts.



Attached File  IMAG0735.jpg   100.04K   12 downloads



#24 mcgarvey2001

mcgarvey2001

    New User

  • Members
  • PipPipPip
  • 42 posts
  • Kalispell

Posted 06 July 2015 - 10:41 AM

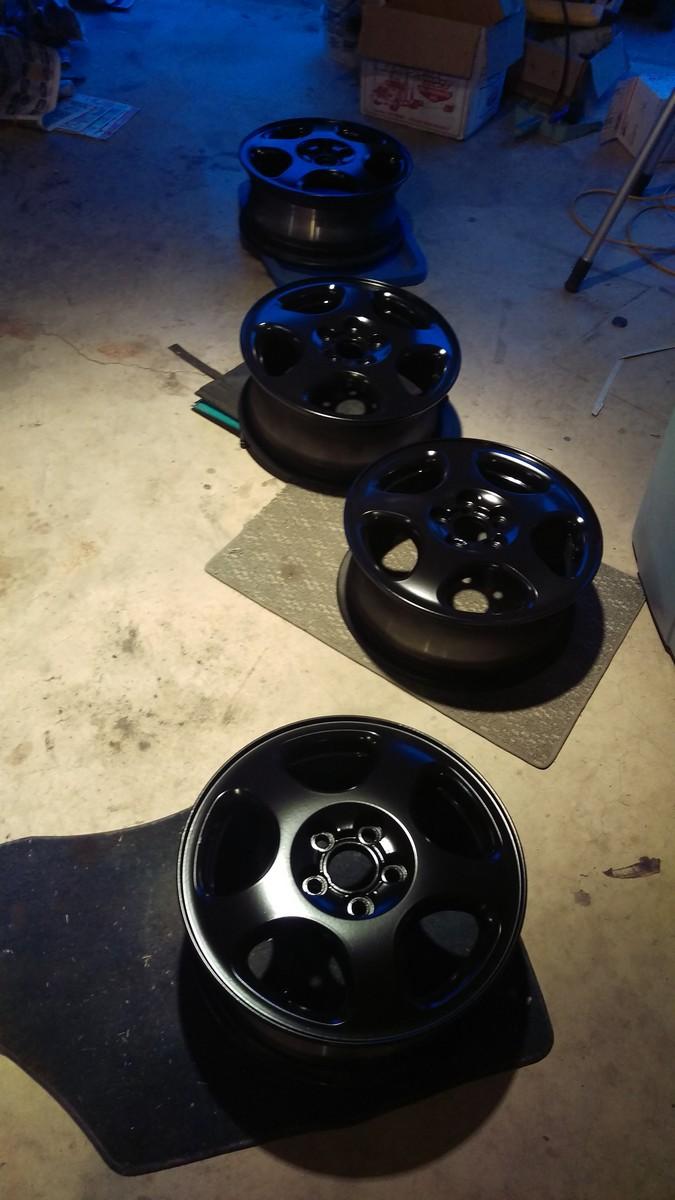

Got the 15" rims sandblasted and painted:



Attached File  IMAG0784.jpg   76.12K   9 downloads



#25 mcgarvey2001

mcgarvey2001

    New User

  • Members
  • PipPipPip
  • 42 posts
  • Kalispell

Posted 06 July 2015 - 10:46 AM

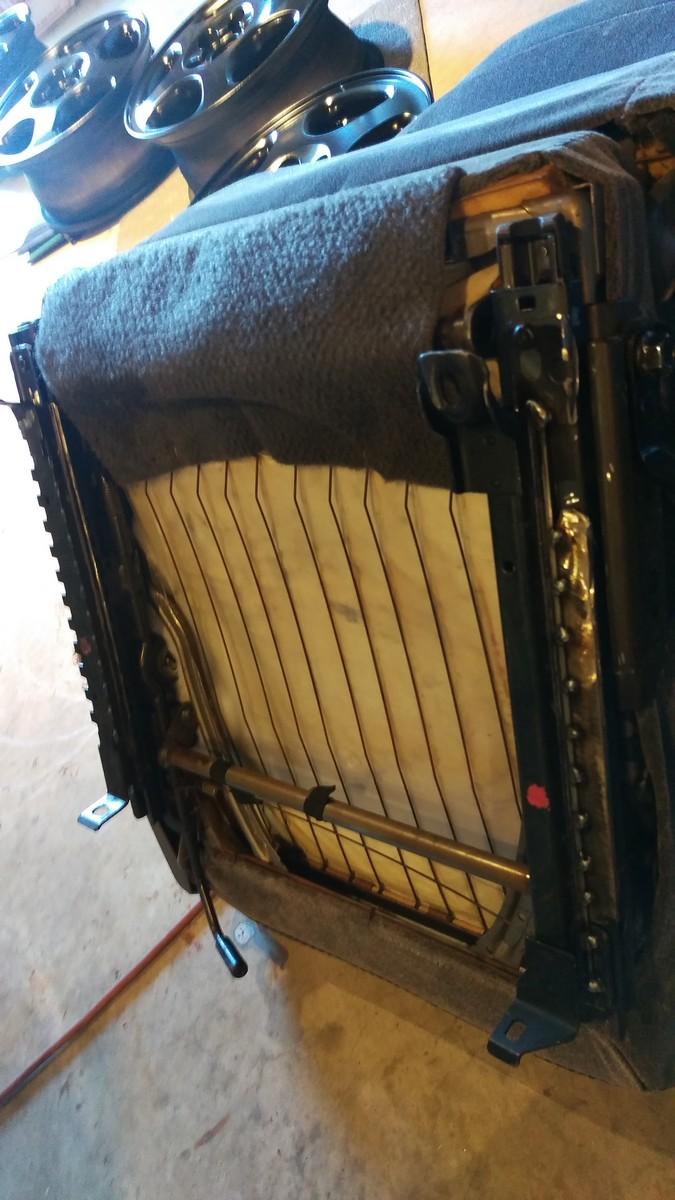

Here's a pic of the XT6 seat rails modified as described by bratsrus1. The lower Brat rails are welded to the lower XT6 rails (with bits removed):



Attached File  IMAG0785.jpg   95.56K   9 downloads
