Which relay switch? Photo.


  • Please log in to reply
6 replies to this topic

#1 Suba_GL_87

Suba_GL_87

    Eat, Live, Breath Subaru

  • Members
  • 386 posts
  • Central Oregon, Oregonian

Posted 18 July 2014 - 07:45 PM

I'm not sure which is relay switch.
Fuel pump relay, ignition relay, kick down relay.

Number 2 photo; it's ignition coil?

Let me know. Thanks

Attached Files



#2 BirdMobile

BirdMobile

    USMB is life!

  • Members
  • 202 posts
  • Salt Lake City, Utah

Posted 18 July 2014 - 08:38 PM

#2 photo is definitely the fuel pump control module. I have a thread going about its wiring.
.
.

Edited by BirdMobile, 18 July 2014 - 08:39 PM.


#3 Suba_GL_87

Suba_GL_87

    Eat, Live, Breath Subaru

  • Members
  • 386 posts
  • Central Oregon, Oregonian

Posted 18 July 2014 - 08:43 PM

Oh ok. I thought its ignition coil...
but Where's tachometer by the ignition coil?

#4 BirdMobile

BirdMobile

    USMB is life!

  • Members
  • 202 posts
  • Salt Lake City, Utah

Posted 18 July 2014 - 08:48 PM

The tachometer (in the dash) uses the yellow wire off the ignition coil to get its pulses. The fuel pump control module also looks for the pulses on the yellow ignition coil wire in order to see if the engine is running, to cut power to the fuel pump if it's not.
.
.

Edited by BirdMobile, 18 July 2014 - 08:49 PM.


#5 BirdMobile

BirdMobile

    USMB is life!

  • Members
  • 202 posts
  • Salt Lake City, Utah

Posted 18 July 2014 - 08:53 PM

Here's my thread about the fuel pump control module:

http://www.ultimates...n/#entry1240253

It is about the distributor, coil, fuel pump, and module wiring.

#6 Suba_GL_87

Suba_GL_87

    Eat, Live, Breath Subaru

  • Members
  • 386 posts
  • Central Oregon, Oregonian

Posted 18 July 2014 - 09:06 PM

Thanks.
I just need to know what's relay switch of four them.
Before to ej22 hardness hook up.

Edited by Suba_GL_87, 18 July 2014 - 09:06 PM.


#7 Gloyale

Gloyale

    It's a sickness

  • Members
  • 9,392 posts
  • Corvallis, OR PNW

Posted 19 July 2014 - 09:31 AM

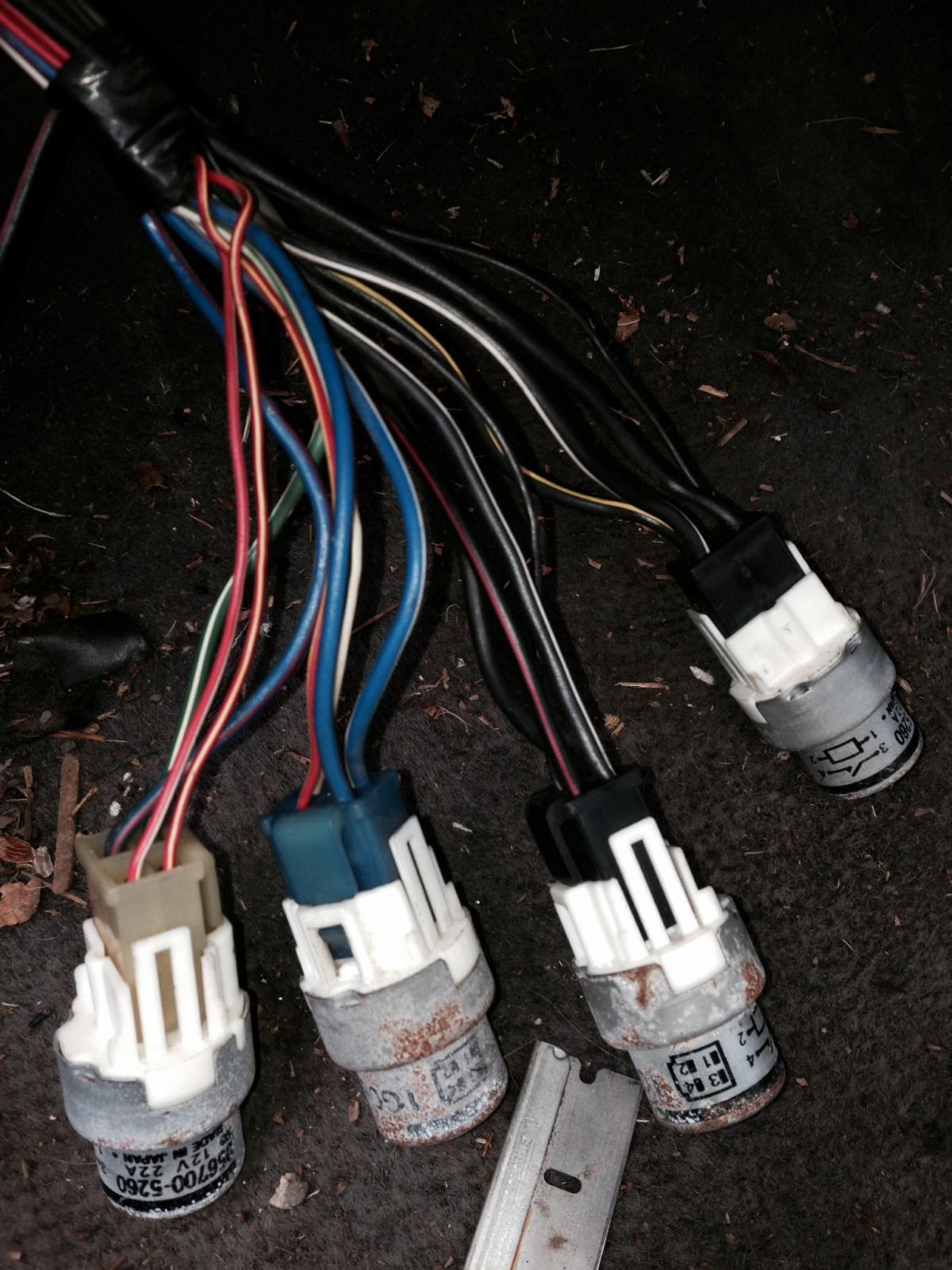

Those 4 relays are



From left to right



Defrost

Blower motor (heater)

Headlamp R

Headlamp L



None of them should be messed with for EJ swap.

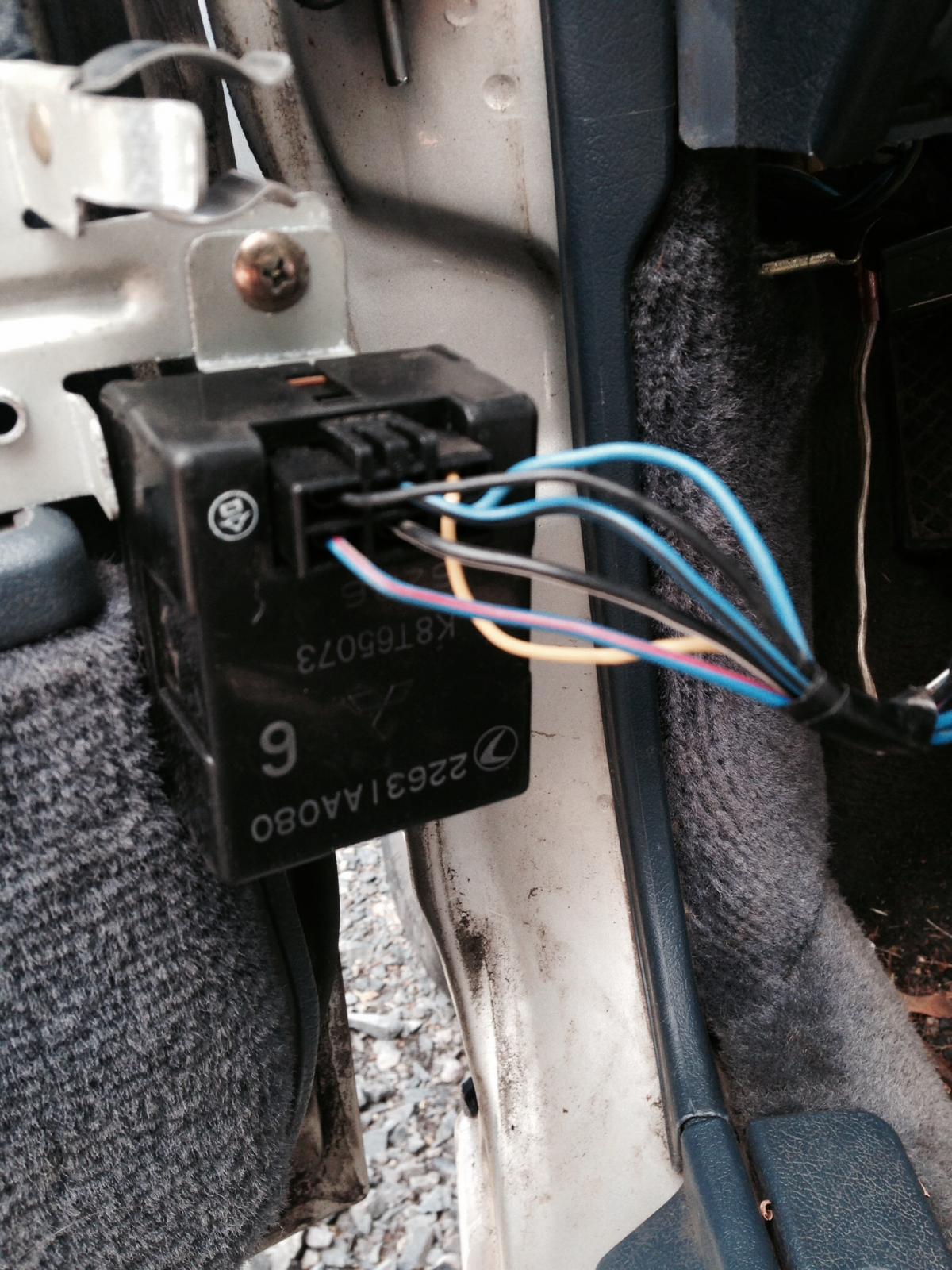

Second pic.....Fuel pump control relay.....



Attach your EJ tach wire to the Yellow wire at that connector

Attach your IG. Switch power "on" the EJ harness to the Black/white wire at that connector.

Attach your EJ fuel pump power out (from EJ Harness) to Blue/red wire at that connector.


Edited by Gloyale, 19 July 2014 - 09:34 AM.
