#1 Prwa101

Prwa101

    Subaru Fanatic!

  • Members
  • 719 posts
  • Sandy, OR

Posted 23 August 2014 - 07:06 PM

Well guys I’ve started building lift kits. All my kits are reinforced and

built stronger than they need to be, providing a safe and reliable means of
lifting your Subaru.  I’m keeping the cost as low as possible to make my
customers happy and see them wheeling there Subaru’s!




Little bit about myself, I have an AA in Architecture, AA in Mechanical Engineering,

my year certificate in machining and almost done with my bachelor’s degree in
Architecture. I being working/loving on Subaru’s for over 6 years. Been working
under one of the best Subaru mechanics, non-other than GD for over 2 year.



On to the Lift Kits! This is what i have currently,



I will warranty all my kits and parts them self, as i feel i will never have to, due to the over kill of strength.



All hardware is included



Kits will take up to a week to fabricate, depending on what i have on hand.



And yes this is my original design and my fabrication.



LIFT SPECS:

All hardware is grade 8 strandard, all metric bolts are 10.9 grade.

Top and Bottem hats on the front lift blocks are 3/16" steel, sandwiching 1/4" tube walls.

Rear brackets are 1/4" steel with 1/4" gussets.

All subframe blocks are 1/4" thickness.

When any lift kit is purchased, installation instructions in PDF, along with your Invoice, are included.

EA82 2" lift kit $180 Shipped
10414495_10203435574309056_8168965254586


EA82 2" lift kit W/ 1.5" Full sub frame drop $275 Shipped
10629851_1463984153854459_87401605638160


EA82 4" Reinforced rear brackets 70$ shipped
10410884_1464490727137135_25335926243443


EJ 1" Solid steel strut spacers. $200 a set Shipped.

The spacers are tapped to allow the spacer to be bolted to the top hat of the strut, for a stronger bond.

98-08 Foresters

95-99 Legacys and Outbacks

02-07 Imprezas

10301071_10202662174654548_8993797689040


EJ-EA Adapter plate, 6061 Aluminum wet jet cut. Dowel pins line up perfect and have a snug fit. $110 untapped, 125$ Tapped,plus shipping.

1463886_10203744841440541_76129846189814



EJ-EA harness Stripping OBD-1 $250, OBD-2 $200.



Before:

10336661_1480317305554477_32237821118700



AFTER:

10610559_1481469102105964_27795813110997



Notes:


-All EA82 lift kits keep the camber near stock, if not completely stock.

-Wheel at your own risk.

-Not liable for any damages not under warranty of ADF.


More coming soon!



Like me on Facebook and keep posted!

https://www.facebook...458812977704910



Pm me or contact me at Prwa101@gmail.com for questions and inquiries!


Edited by Prwa101, 20 October 2014 - 11:14 AM.


#2 d8usti5n

d8usti5n

    Advanced Member

  • Members
  • PipPipPip
  • 41 posts
  • Arlington, WA

Posted 26 August 2014 - 07:27 PM

Plan on doing anything for first gen brats?

#3 Prwa101

Prwa101

    Subaru Fanatic!

  • Members
  • 719 posts
  • Sandy, OR

Posted 26 August 2014 - 10:24 PM

As much as i would love to, i dont have a first gen in my garage at the moment to get it all fabd out. Although in the future i do see my self building all years of lift kits for all years Subarus.



Prwa



#4 AKghandi

AKghandi

    87 GL-10 2" lift 27" tires, 86 GL 2" lift 29"

  • Members
  • 1,166 posts
  • Anchorage, Alaska

Posted 27 August 2014 - 01:24 AM

Ill be in the market for the 2" with the drop. Ill let you know when i have the money.

#5 Prwa101

Prwa101

    Subaru Fanatic!

  • Members
  • 719 posts
  • Sandy, OR

Posted 27 August 2014 - 11:52 AM

Perfect, I should have another one ready this week. Keep me posted!

Patrick

#6 jmoss5723

jmoss5723

    USMB is life!

  • Members
  • 206 posts
  • Pittsburgh, PA

Posted 29 August 2014 - 10:38 AM

Have any plans of making gen2 stuff? I know people lift brats and other gen2 cars all the time.



I wouldn't mind having the blocks for the rear of my brat. Right now I have the front struts topped and the crossmembers lowered, but the rear just has the torsion bar cranked.



EDIT: Oops. I just saw post #3. Please disregard.


Edited by jmoss5723, 29 August 2014 - 10:46 AM.


#7 turbosubarubrat

turbosubarubrat

    2nd gen hoarder

  • Members
  • 1,101 posts
  • Sandy, OR

Posted 29 August 2014 - 11:13 AM

Any plans on making full 6 or 8 inch kits for ea81's?



#8 dannycisneros

dannycisneros

    Advanced Member

  • Members
  • PipPipPip
  • 57 posts
  • Mount Vernon Washington

Posted 29 August 2014 - 04:34 PM

I was the first to order a lift I got the two inch lift with the subframe drop that is pictured above. It was shipped two days ago on Wednesday and I received it already today. Very good quality! Patrick even labeled everything from the blocks to the hardware and wrote up instructions to do it so if you're a newbie like me it really helps! Lift will be on my GL soon just need to get some wheels and tires first. Pictures will be coming soon!



#9 Prwa101

Prwa101

    Subaru Fanatic!

  • Members
  • 719 posts
  • Sandy, OR

Posted 30 August 2014 - 02:04 PM

Thats the plan! But better, i want to make the ea81's able to run ea82 axels and from crossmember with offset blocks. This will increase the axles streangth over the ea81s. Are you looking for a 6 or 8" lift bud?

Any plans on making full 6 or 8 inch kits for ea81's?



Glad to hear it!! Looking forward to seeing it!!

I was the first to order a lift I got the two inch lift with the subframe drop that is pictured above. It was shipped two days ago on Wednesday and I received it already today. Very good quality! Patrick even labeled everything from the blocks to the hardware and wrote up instructions to do it so if you're a newbie like me it really helps! Lift will be on my GL soon just need to get some wheels and tires first. Pictures will be coming soon!



#10 Prwa101

Prwa101

    Subaru Fanatic!

  • Members
  • 719 posts
  • Sandy, OR

Posted 30 August 2014 - 02:05 PM

Oh and Ive got 5+, 2" kits on hand, without the subframe drop. There going to go fast!!



Patrick



#11 Nico

Nico

    USMB is life!

  • Members
  • 225 posts
  • Hamilton, Ontario, Canada

Posted 31 August 2014 - 02:38 AM

can you post pictures before after please



#12 92loyale59

92loyale59

    USMB is life!

  • Members
  • 237 posts
  • clackamas

Posted 31 August 2014 - 04:08 PM

can you post pictures before after please


http://www.ultimates...+loyale +build. I havr basically the same lift . 2 inch with sub frame drop

#13 Prwa101

Prwa101

    Subaru Fanatic!

  • Members
  • 719 posts
  • Sandy, OR

Posted 31 August 2014 - 05:14 PM

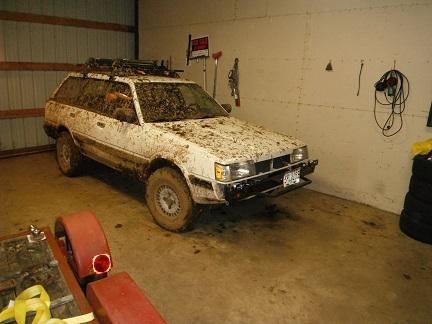

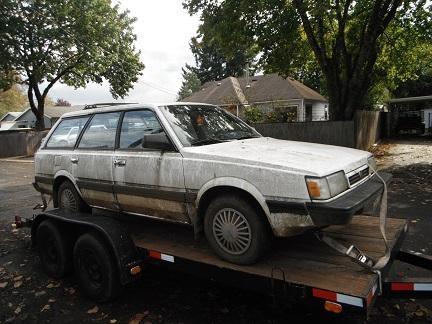

Yeah there's a pretty big difference between stock and lifted just 2".

Currently helping him build his 4" lift w/ 4" subframe drop to keep axels as stock geometry.

Attached Files


Edited by Prwa101, 31 August 2014 - 09:49 PM.


#14 afterbang

afterbang

    USMB is life!

  • Members
  • 159 posts
  • Sandy, OR

Posted 02 September 2014 - 09:36 PM

Make me 1" strut spacers for my WRX, Patrick. I'll pay you in high fives.

#15 Prwa101

Prwa101

    Subaru Fanatic!

  • Members
  • 719 posts
  • Sandy, OR

Posted 02 September 2014 - 11:18 PM

What year wrx do you have? I'm pretty sure these will fit.

Patrick

#16 jmoss5723

jmoss5723

    USMB is life!

  • Members
  • 206 posts
  • Pittsburgh, PA

Posted 03 September 2014 - 07:20 AM

Would you be willing to make a .75" front/1" rear EJ kit out of HDPE? Enough material for front and back can be had from Amazon for like $40. I don't know what you want to charge for your time, but I have to imagine that it would be way faster than steel. The material cuts like butter.



I'd buy 2 if the price is right. I was goingto make my own becasue everyone's steel kits are out of my price range (read: my wife's price range) and I can make it with the band saw, hole saw, and drill press. But I'd be happy to save the effort and time and buy the kits if I can afford them.



#17 Prwa101

Prwa101

    Subaru Fanatic!

  • Members
  • 719 posts
  • Sandy, OR

Posted 03 September 2014 - 07:58 AM

I would but HDPE isn't strong enough for this application in my eyes. I've seen HDPE spacers and I'm not impressed by putting plastic spacer on my strut. Primitive sells the HDPE spacers and they charge 209$. My EJ spacers are threaded through the holes so you bolt the block to the top of the strut then bolt it to the frame. The HDPE spacers I saw have bolts imbedded in them. So the options for that are use a bolt and drill the hole large so it slides through or imbed a nut in there.

And my spacers are Cnc laser cut for percussion.

Mine won't melt if your car catches on fire ;) haha. Why pay more for less? I can guarantee you won't ever destroy them like you could HDPE.

Patrick

Attached Files



#18 sumoco

sumoco

    USMB is life!

  • Members
  • 160 posts
  • Portland, Oregon

Posted 06 September 2014 - 02:54 PM

just saw your ad on craigslist, are you in portland? if so i know where to get a parts brat for super cheap that you could mess around with for lift kits



#19 Prwa101

Prwa101

    Subaru Fanatic!

  • Members
  • 719 posts
  • Sandy, OR

Posted 08 September 2014 - 12:07 PM

Yes sir I am, well Sandy. I'm working on getting my garage empty enough to to an ea81 in now. Looking forward to building them to allow ea82 crossmember and axles.

Patrick

#20 Prwa101

Prwa101

    Subaru Fanatic!

  • Members
  • 719 posts
  • Sandy, OR

Posted 19 September 2014 - 09:45 PM

Jean from Tacoma just got his 2" lift kit on! Thanks for the pictures Jean!

10687186_1474855509433990_44138834114883

10672375_1474855536100654_79160909919987



10600375_1474855522767322_71445913476860



#21 Prwa101

Prwa101

    Subaru Fanatic!

  • Members
  • 719 posts
  • Sandy, OR

Posted 23 September 2014 - 08:19 AM

I've got kits ready to mail out!!
AND!!
Waiting for interest for 2" lifts for the EJ serious! Take me about a week to have them cut out! Let me know if there interest!

Patrick

Edited by Prwa101, 23 September 2014 - 08:21 AM.


#22 Caboobaroo

Caboobaroo

    USMB Drunk

  • Members
  • 6,889 posts
  • Oregon City

Posted 26 September 2014 - 02:36 PM

Patrick, we should get together one of these days as I have a few ideas for performance stuff for EA82s and XTs including a new bell housing to bolt an EJ transmission to an EA/ER engine. My father in law lives out past Sandy and my wife and I head out there every couple weeks so it wouldn't be hard for me to stop by.

#23 Prwa101

Prwa101

    Subaru Fanatic!

  • Members
  • 719 posts
  • Sandy, OR

Posted 27 September 2014 - 10:41 PM

Absolutely, I would like to hear them! Always open to new ideas. If your in Oregon city that's pretty close, you should pm me and get your contacts.

Patrick

#24 Prwa101

Prwa101

    Subaru Fanatic!

  • Members
  • 719 posts
  • Sandy, OR

Posted 06 October 2014 - 12:45 PM

NOW OFFERING EA-EJ ADAPTER PLATES!!



#25 buckkiller

buckkiller

    Advanced Member

  • Members
  • PipPipPip
  • 61 posts
  • yakima wa

Posted 07 October 2014 - 11:07 AM

Patrick,



Bro I will send ya cash now if you will build me a 3 inch for my ea81 1986 Brat!! Ive needed it done like yesterday bro.....



Thanks

Buck
