Got bored, built a rear bumper


Recommended Posts

ADDED THE FRONT BUMPER TO MATCH!



I recently relocated after graduating and am temporarily down to just my 87 gl sedan and my 07 sti sedan.  My girlfriend wouldn't be caught dead driving the 87 so for now its my main squeeze.  I've been getting irritated that I haven't been able to use my hitch mounted bike rack or haul around my little moto trailer, so a few days ago I got bored and built a rear bumper.



I decided to use 3/16 wall 2x2 steel and 1/4 inch plate for the sides and attach points to the car.  I have a tube bender, but decided that since the car is pretty square, square tube would compliment the car well and provide a subtle look.  And frankly I have done plenty of tig welding but haven't spent much time with a mig so the square would be easier to work with .

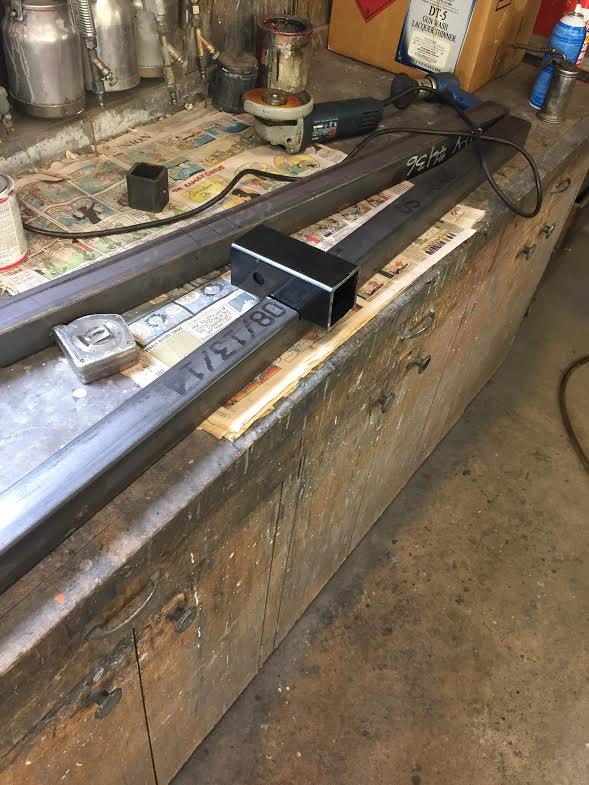

I wanted the overall height of the bumper to be 6 inches, so I notched the top stick of 2x a  bit so the receiver would fit in the allowed 2 inch space ( picture 1 and 2).  Got ahead of myself and tacked the receiver on with the pin hole going vertical so that was my one big mistake lol.

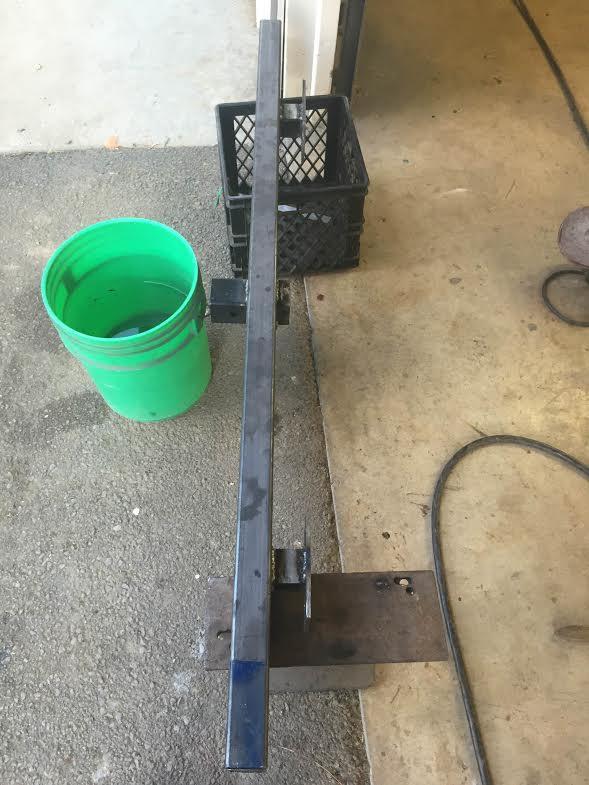

I cut a couple of 4x6 pieces and drilled 7/16 holes so the bumper could use the existing holes that the stock bumper used.  I welded a couple pieces of 1/4 in wall 2x2 cut to 2 inches together and then welded them centered up on the 4x6 plate.  The 2x2x2 pieces would fit right between the gaps allowing me plenty of room to weld them to the bumper and have the bumper centered. Got the bulk welded up.  Was finishing some of the harder to reach welds ( picture 4).

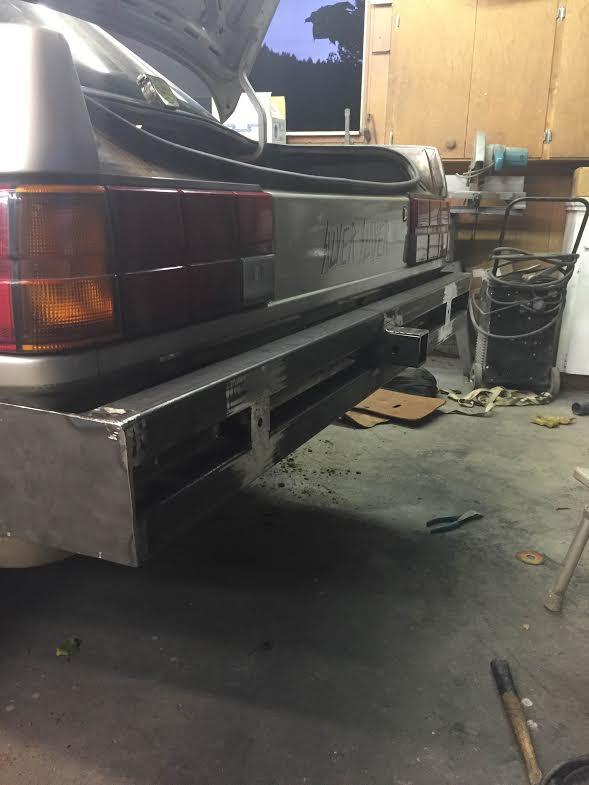

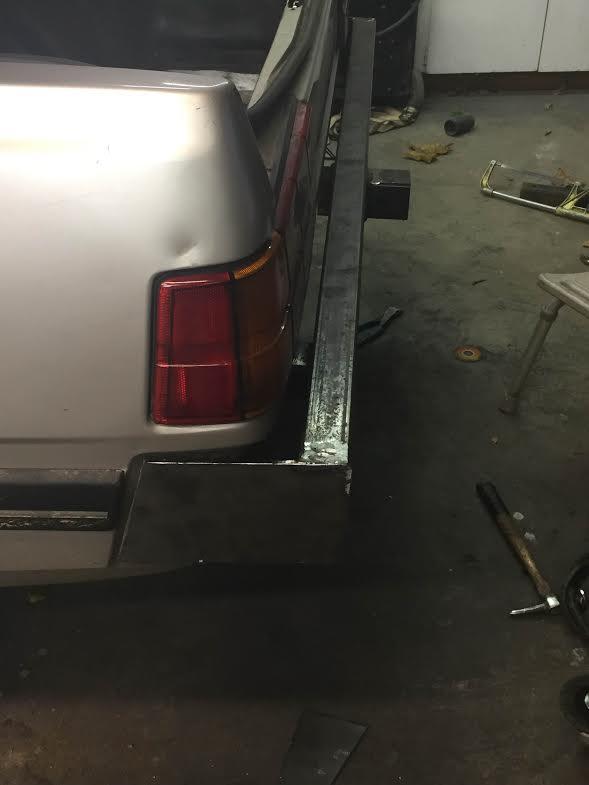

Got the bumper bolted up cut the angles for the side plates and welded them on.  They aren't perfect but they are pretty close to being even all the way around.  The bumper sits nice and tight to the car.  There is a 1/2 inch gap from the top of the bumper to the body line on the car.  In ( picture 5) the side plates look a little off, the bumper isn't fully bolted up so its a bit crooked looking.  After about 6 hours she was all bolted on with most of the visible welds ground down to be flush ( picture 5)

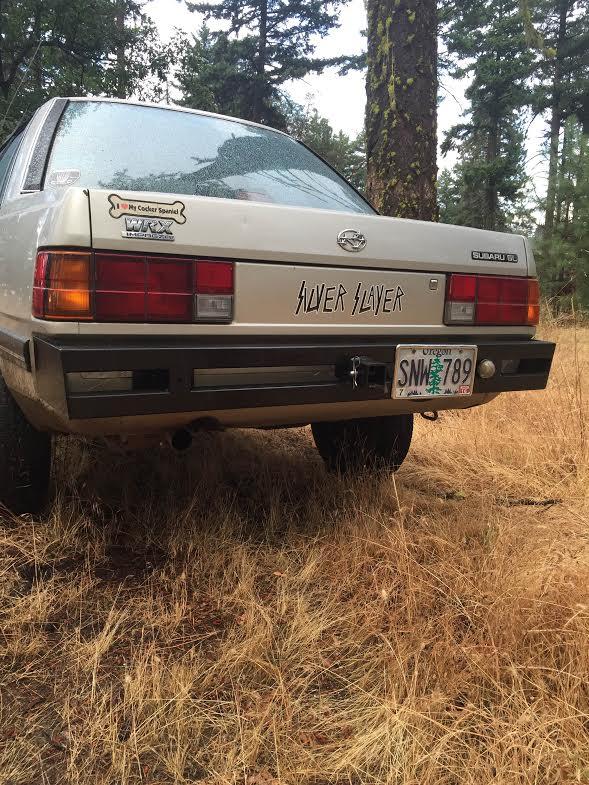

The next day I removed the bumper and sprayed it with a couple of coats of nice and durable... and expensive Imron black.  Spent a few minutes to mount the light and the plate and she was done (picture 6).  Overall I'm pretty damn happy with how it turned out.  Nothing real fancy, and I wouldn't hook to it to pull someone out but for what I wanted I think it turned out well.  You can see half inch holes drilled in the 2x2x2 blocks that hook the bumper to the car... I fabbed up some mounts to attach my high lift just above the receiver.
