Chart of EA82 changes throughout the years


  • Please log in to reply
74 replies to this topic

#26 GeneralDisorder

GeneralDisorder

    Elite Master of the Subaru

  • Members
  • 20,281 posts
  • Portland

Posted 20 September 2006 - 09:20 PM

One thing about Turbo Distributors. In 85/86, the distributors were vacuum advanced. In 87, then switched to the optical disty.


86 SPFI disty has no vac can either. It's also the same disty as the later turbo's. All the CAS disty's are interchangeable between SPFI, MPFI and Turbo MPFI.

GD

#27 Phizinza

Phizinza

    Yip yip

  • Members
  • 3,914 posts
  • South Australia

Posted 21 September 2006 - 08:55 AM

This is a great load of information.. Pitty half of it is incorrect for Australia :lol:

Still, good write up!

#28 bgd73

bgd73

    Banned - WARNING! Disregard EVERYTHING posted by this user

  • Banned
  • 1,210 posts
  • Concrete Glacier

Posted 21 September 2006 - 12:35 PM

I recently was looking at an mpfi 1988 turbo wagon. It is not the spider intake, but it was called mpfi. Looked like two spfi intakes, twinned, morphed together. What exactly was that called? I didn't see four injectors, unless there was some, and I didn't spot them.Here is another thing I noticed: My 87 DL had an oem all metal radiator, the loyales have plastic sides,that must have been changed somewhere along the line. The Loyales lack of guages is luckier than my complaints :)

#29 mikeshoup

mikeshoup

    Ignorant

  • Members
  • 2,190 posts
  • City and County of Denver

Posted 21 September 2006 - 12:46 PM

I recently was looking at an mpfi 1988 turbo wagon. It is not the spider intake, but it was called mpfi. Looked like two spfi intakes, twinned, morphed together. What exactly was that called? I didn't see four injectors, unless there was some, and I didn't spot them.Here is another thing I noticed: My 87 DL had an oem all metal radiator, the loyales have plastic sides,that must have been changed somewhere along the line. The Loyales lack of guages is luckier than my complaints :)

All Turbos have MPFI. The four injectors were there, you just didn't look hard enough.

Also, I beleive that some early model EA82s had plastic end tanks as well on their radiators (my 88 does, but of course your 87 was younger). It wasn't needed, because the thermo switch didn't ground through the radiator anymore.

#30 Skatedownpdx

Skatedownpdx

    User Awaiting Email Confirmation

  • Members
  • PipPipPip
  • 66 posts
  • portland

Posted 24 September 2006 - 04:51 PM

say they x-ed out rear door speakers but still run the speaker wire. does anyone know if they still run the wire to the rear cargo light and the headliner lights up front? thats one thing i was always bummed about my car not having. that big round one just doest do the trick. any ideas?

#31 mikeshoup

mikeshoup

    Ignorant

  • Members
  • 2,190 posts
  • City and County of Denver

Posted 24 September 2006 - 04:53 PM

say they x-ed out rear door speakers but still run the speaker wire. does anyone know if they still run the wire to the rear cargo light and the headliner lights up front? thats one thing i was always bummed about my car not having. that big round one just doest do the trick. any ideas?

I'm curious about the rear cargo light to. That's the one thing my 88 wagon's missing...

#32 Skatedownpdx

Skatedownpdx

    User Awaiting Email Confirmation

  • Members
  • PipPipPip
  • 66 posts
  • portland

Posted 24 September 2006 - 05:05 PM

once my car is my doner ill just cut into my headliner and let everyone know thats wants to know :banana: or if i go to the jy soon

#33 daeron

daeron

    Cunning Linguist

  • Members
  • 3,600 posts
  • West Palm Beach

Posted 25 September 2006 - 02:14 AM

i promise that tomorrow night i will go thru this list, chop it up in my word processor (OpenOffice 0wns j00!!!) and get a finished format of this list up here for submission in the USRM

#34 Skatedownpdx

Skatedownpdx

    User Awaiting Email Confirmation

  • Members
  • PipPipPip
  • 66 posts
  • portland

Posted 25 September 2006 - 07:19 AM

get the year they changed the corners on the rear windows (between the last side window and the hatch) i was curious but too lazy to find out myself. and in any matter would be good for the list :drunk:

#35 Loyale 2.7 Turbo

Loyale 2.7 Turbo

    The Mighty "BumbleBeast"

  • Members
  • 6,652 posts
  • Roatán, Honduras.

Posted 10 July 2009 - 02:23 AM

This is an Old Thread but it Worth to be completed ... I Have some info to Add, so let me Start Saying that I Believe that the Well done Chart made by TROGDOR! is Based on the Subaru Models for the USDM Market only.





This is a great load of information.. Pitty half of it is incorrect for Australia :lol: ...



Since the Same Situation is for LADM (Latin American Domestic Market) / Asian \ European Specs Subies, I Want to Add some more info regarding those Models, as they came for the Non-USA Markets, in Order to Help to Complete this Chart.

I Will Name the Car Model as "Loyale" for Easy Reference and Understanding, even if it was Named Also Leone
(Gen III), Omega, GL, GT, DL, GTi, RS, RX, ST, or even Isuzu Gemminett II



... :eek: ...

(Rebadged)

...



So, About This:



...
1985:
-EA82 sedan and wagon introduced...



The EA82 was introduced in Japan as Prototype in 1981 and Went into Production Since 1984, Called Leone (Gen III).





See this Picture, Taken from the Subaru Worldwide Website:



...



...
-All nonturbo models equipped with EA82 carb engines, EXCEPT:
-2WD GL-10 models equipped with EA82 MPFI engine (same as XT)...



For the Asian / Latin American \ other Markets, The "Loyale" came with this Engines:

EA65 Engine 1.3L
(Standard "DL" 2WD sedans) and EA71 Engine 1.6L (Luxury "GL" 2WD)

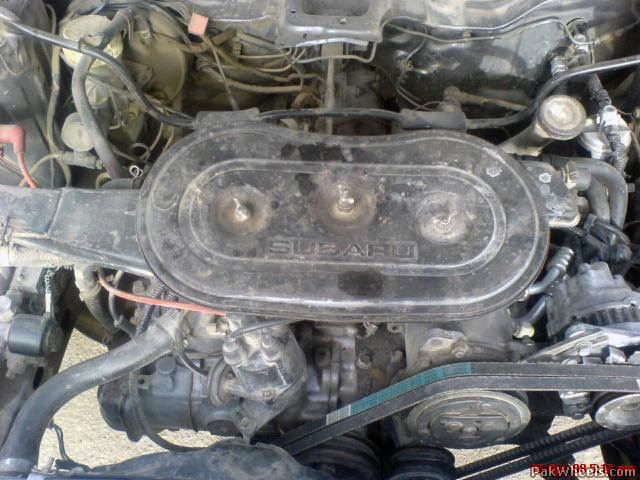

in Example, see this 1.3L Loyale Sedan:






...

The 1.8L were available in EA81 (Standard "DL" 4WD) and EA82 (Luxury "GL" 4WD) ... I Know that few Early 1985 Loyales went to the USA with Factory Mounted EA81 engines, as far as I remember, General Disorder saw one of those.

As Aditional info, let me Tell you that in our Markets are Available the 1.5L and 1.6L Engined Imprezas
(EJ15 for basic, manual trans Model and EJ16 for basic auto trans model) also the 1.8L ...



in example, see this Pic:


Also, I Took This Photo with my Cellphone, sometime Ago,



Those are Local (Honduran) Subies:

...



...1985.5:
-Mirrors move from below window to sail panel (in front of window)...



Because The Original "Loyale" Design -for JDM- Had the Mirrors Mounted in the Front Fenders, Not on the Doors ... So when they came available Outside Japan, they Had to "Add On" those Mirrors to the Doors ... Then they Upgraded the Design.





...1987: ...
-4 Speed Electronic Automatic Transmission (4EAT) introduced ...



That Transmission is Subaru Made but based in a JATCO design / license (Japan Automatic Transmissions Co.) and was also Used by Nissan in Early Pathfinders; it Also Came in Legacies, imprezas and with design variations, in Mazdas, Fords (Known as F-4EAT) and certain Kias, such like Sephia / Spectra.





...1987: ...
-Yellow area on front sidemarkers is smaller ...



There are some Different Designs for that Yellow area in the Front Sidemarkers, as Long as I have Seen, these are the basic differences:

  • The ones with Flat Big Yellow Area,
  • The ones with Non-Flat Big Yellow Area, that area comes Outside Angled.
  • The White ones with Small Outside Angled Yellow Area, in transparent base.

Usually, the Second ones are found in the DL Models that Came with Four Small Headlamps, instead of the Two Sealed Headlights and those Won't fit the Other Model's Mounting Place for the Screws at the Headlamps' Hardware.





...1988:
-Carb engine dropped ...



Again: Just for the USA Market.

We got Here, in the Latin American
Domestic Market (LADM) and other world's areas, Carbureted late Models of EA82 up to 1994, and Even Newer EJ Engines did Came with Carb & Disty too, from 1989 to 1994. (Legacy was introduced in 1989), as extra information, the Subaru Brat was available 'till 1994.  :)





in Example: See the Pictures I Took from a EJ Engined Subie (1993 Legacy) I Repaired once:




...

I Hope that info will Help to Update the Chart. :)

For Additional info about Rebadged Subarus and much More, See
~► Here.





...1992:
-PCV retrofit introduced to prevent smoking on right turns ...



Yep, here's the complete info on the Subject:

~► http://www.ultimates...-in-ea82/page-2

Kind Regards.


Edited by Loyale 2.7 Turbo, 15 November 2014 - 09:46 PM.


#36 Gloyale

Gloyale

    It's a sickness

  • Members
  • 9,816 posts
  • Corvallis, OR PNW

Posted 10 July 2009 - 08:14 AM

Not all Loyales had power windows. They were not "standard"

also the 4EAT was not used until 88, with the exception of XT's (which are not supposed to be part of this list.

Corner lights changed in 87.


Also, 87 4wd carbed used a Denso distributor. 85,86 are Hitachi

#37 Loyale 2.7 Turbo

Loyale 2.7 Turbo

    The Mighty "BumbleBeast"

  • Members
  • 6,652 posts
  • Roatán, Honduras.

Posted 10 July 2009 - 09:01 PM

Not all Loyales had power windows. They were not "standard"...


Yes, those were the Basic "DL" Models. The Same for Legacies and imprezas in our Markets.

#38 Loyale 2.7 Turbo

Loyale 2.7 Turbo

    The Mighty "BumbleBeast"

  • Members
  • 6,652 posts
  • Roatán, Honduras.

Posted 11 July 2009 - 01:05 AM

... The Original "Loyale" Design -for Japan- Had the Mirrors Mounted in the Front Fenders, Not on the Doors ...




I Found a Couple of Pics of Those:

Posted Image

Posted Image



Also...


1989:
-Touring Wagon introduced ...


Those "High Raise Roof" Touring Wagons, were Available in our Market since Early Models...

Posted Image

Kind Regards.



#39 Txakura

Txakura

    Not the Stig

  • Members
  • 1,013 posts
  • Colfax, WA

Posted 18 July 2009 - 11:44 AM

1990:
-Painted bumpers, chrome stripe in side cladding, wagon rear trim beside back window no longer available
-Power windows, locks, and mirrors become standard
-Automatic seatbelts and high-rise console become standard
-Factory tire size changes to 165/80/13

[/size]


My (1990 Loyale RS) came with color matched, painted bumpers
my side cladding has a gold in lay like an RX (?) don't know if that counts as 'chrome', it's plastic
the mirrors were not powered
it has 'normal' seat belts
the factory tire size is 185/70/13, 195/70/13 is an optional 'approved' size

but, really, that's a bit of an oddball car... and may not be what was going on in the bigger picture

cool list - btw

#40 Txakura

Txakura

    Not the Stig

  • Members
  • 1,013 posts
  • Colfax, WA

Posted 18 July 2009 - 11:47 AM

I'm curious about the rear cargo light to. That's the one thing my 88 wagon's missing...


late reply

I had the cargo light wiring, I also had the power mirror wiring, and wiring for an overhead map light

#41 Gloyale

Gloyale

    It's a sickness

  • Members
  • 9,816 posts
  • Corvallis, OR PNW

Posted 19 July 2009 - 01:47 PM

but, really, that's a bit of an oddball car... and may not be what was going on in the bigger picture


Indeed. I agree with you that the Loyal RS model was an attempt to cash in on remaining stock of certain RX/GL Coupe Parts. Resulting in oddball combinations. Was a standard Loyal coupe even available that year?

Yours is the only one I've ever even seen pictures of, let alone seeing one in person.

It is a sharp car, look forward to seeing it at WCSS

#42 sprale

sprale

    New User

  • Members
  • PipPip
  • 27 posts
  • Austin, Texas

Posted 10 August 2009 - 08:26 PM

This is a really great collection of knowledge. Sounds like a good excuse to build a Soob wiki.

#43 Nomad_Brad

Nomad_Brad

    USMB is life!

  • Members
  • 195 posts
  • Caldwell

Posted 25 October 2009 - 09:17 PM

I have a 90' Loyale and it has no power windows,

but the spare is under the hood! When did they start/stop doing that?

#44 Twitch de la Brat

Twitch de la Brat

    Village Psycho

  • Members
  • 1,658 posts
  • The Athol of Idaho

Posted 25 October 2009 - 10:26 PM

I have a 90' Loyale and it has no power windows,

but the spare is under the hood! When did they start/stop doing that?


Loyales are oddballs to say the least.

And the spare under the hood stopped with the end of the EA series cars.
There isn't enough room under the hood of an EJ car (legacy/impreza) to fit
a spare.

Hey JesZek, can you ship me one of those extra tall EA81 wagons?
I'll pay for shipping :-p (just kidding)
Those are really cool.

Oh, and I think there should be a differentiation between the Hatch and the
sedan/wagon/coupe.
The hatch was a different body style, engine and transmission.

Twitch

#45 Buddy

Buddy

    "Respect a man's car, a man respects you"

  • Members
  • 537 posts
  • Stockton, CA

Posted 15 March 2010 - 07:01 PM

Indeed. I agree with you that the Loyal RS model was an attempt to cash in on remaining stock of certain RX/GL Coupe Parts. Resulting in oddball combinations. Was a standard Loyal coupe even available that year?

Yours is the only one I've ever even seen pictures of, let alone seeing one in person.

It is a sharp car, look forward to seeing it at WCSS

i will say yes. there's JUST ONE Loyale coupe running here in Stockton. i thought i saw a unicorn til i did a uturn just to take a closer look. i have a couple pix of it too. i gotta find them.

#46 Txakura

Txakura

    Not the Stig

  • Members
  • 1,013 posts
  • Colfax, WA

Posted 16 March 2010 - 12:05 AM

So far I've found three RS. Oddly, until last week I'd never even seen an RX, then I saw two in three days. :rolleyes:

#47 l75eya

l75eya

    Almost has it all figured out

  • Members
  • 2,020 posts
  • Hoboken, NJ

Posted 15 November 2014 - 05:52 PM

This should be stickied IMHO



#48 Loyale 2.7 Turbo

Loyale 2.7 Turbo

    The Mighty "BumbleBeast"

  • Members
  • 6,652 posts
  • Roatán, Honduras.

Posted 15 November 2014 - 08:58 PM

Yep. Time for an update?



Let me post a summary of the Basic changes in the Third Generation

of the Subaru Leone, also known as EA82, Loyale, etc,

which was made since 1984 up to 1994...



10708626_780101202035910_698366771486427





... during all that Decade, featured three different "Editions" with overal changes between them, despite their Trim Level or the optional equipment. Let me explain the Main / More Noticeable Changes among the Three Editions of the EA82, beside other diferences:





 Early Edition(1984 ~ 1986)



─ The Grille was Checkered, and mounted directly to the Head Lamps' frames.

─ The Head Lamps / Dimmer combo Switch, came mounted on the Dashboard's left side.

─ The Wiper / Washer combo switch, also came on the Dashboard's right side.

─ The Stereo's Antenna was a Short, Fixed tipe.

─ The Side rear view Mirrors on each door, came mounted "Sticking Out"

   Below the Windownon touching it.

─ The instrument Clusters and Dashboard Buttons had a slight Amber / Yellow tint.

─ The A/C condenser Fan, was activated by a Pressure Switch on the A/C Line,

   after the Relay switches.

─ The GL Wagons, had rear windows "Glued"  to the Body, on the Cargo Area.

─ The DL Wagons, had rear windows mounted with a Rubber on the Cargo Area.

─ The manual "Adjustable Height" Struts were usual,

   while Electro Pneumatic Suspension was Optional on the GL10 Models.

─ Some markets got the option of an "Adjustable Height" Hydraulic suspension.

─ The Early EA82 engines, came with the first gen EA82 Heads.





 Middle Edition(1987 ~ 1990)



─ The Grille had horizontal lines, and mounted directly to the radiator backing frame

   on the Body, instead to the Head Lamps' frames.

─ The Head Lamps Switch, came on a Stick on the Steering Column.

─ The Dimmer swich was moved to a vertical rotating one, on the Dashboard.

─ The Hazard lights' switch, was moved from behind the Steering Wheel, to the Dashboard.

─ The Wiper / Washer combo switch, also was moved to another stick on the Steering Column.

─ The Stereo's Antenna was extendable.

─ The Side rear view Mirrors on each door, came mounted touching the Window's glass.

─ The instrument Clusters and Dashboard Buttons had Green tint.

─ The A/C condenser Fan, was activated directly by the existent Relay Switches,

   bypassing the pressure switch. (in fact, subaru sold a small rewiring kit to bypass that pressure switch on older models).

─ The manual "Adjustable Height" struts disappeared, Subaru used "Standard" struts,

   Electro Pneumatic Suspension continued to be Optional for the GL10 models.

─ The option of an "Adjustable Height" Hydraulic suspension disappeared also.

─ The first appareance of the "Virgin Switch" on top, Behind the Steering Wheel.

─ The Middle edition EA82 engines, came with the second gen EA82 Heads.





 Last Edition(1990 ~ 1994) also known as "Loyale"



─ The Metallic housing Head Lamps were changed elsewhere except in USDM,

   with Plastic Housing ones.

─ 1990 was the last year for EA82 Turbo.

─ 1992 was last year for EA82 Sedans.

─ The GL trim body with glued cargo area windows, disappeared.

   All Loyale wagons were DL trim body.

─ The Electro-Pneumatic suspension, disappeared, along almost all luxury options.

─ The factory sold via Subaru Dealers only, improved third gen EA82 Heads,

   which never came installed from Factory.

─ The door handles came in Black colour, instead of Chromed,

   elsewhere except in USDM.



Remember, as usual in my posts, underlined words are web links with further information on the Subject.



Kind regards.




#49 Loyale 2.7 Turbo

Loyale 2.7 Turbo

    The Mighty "BumbleBeast"

  • Members
  • 6,652 posts
  • Roatán, Honduras.

Posted 15 November 2014 - 09:06 PM


...Hey JesZek, can you ship me one of those extra tall EA81 wagons?
I'll pay for shipping...



Shipping from Honduras to USA is doable, but could be Expensive...



Other forum members asked me for Dual Range EJ Transmissions and Carbureted EJ Engines,



But is easier to send 'em the whole Car instead...



Kind Regards.



#50 l75eya

l75eya

    Almost has it all figured out

  • Members
  • 2,020 posts
  • Hoboken, NJ

Posted 15 November 2014 - 11:35 PM

1993 was last year for sedans.




0 user(s) are reading this topic

0 members, 0 guests, 0 anonymous users
