somick Posted January 7, 2018 Share Posted January 7, 2018 I went out my mind when I took my EA82 Loyale apart! No pictures, no notes... Now I have no idea where this ground wire go. Do I screw it to the intake manifold or to the engine block? Please help. And while you are there where does the solenoid with the black connector go? It is suppose to be a "purge control solenoid". Thanks, Sam Quote Link to comment Share on other sites More sharing options...

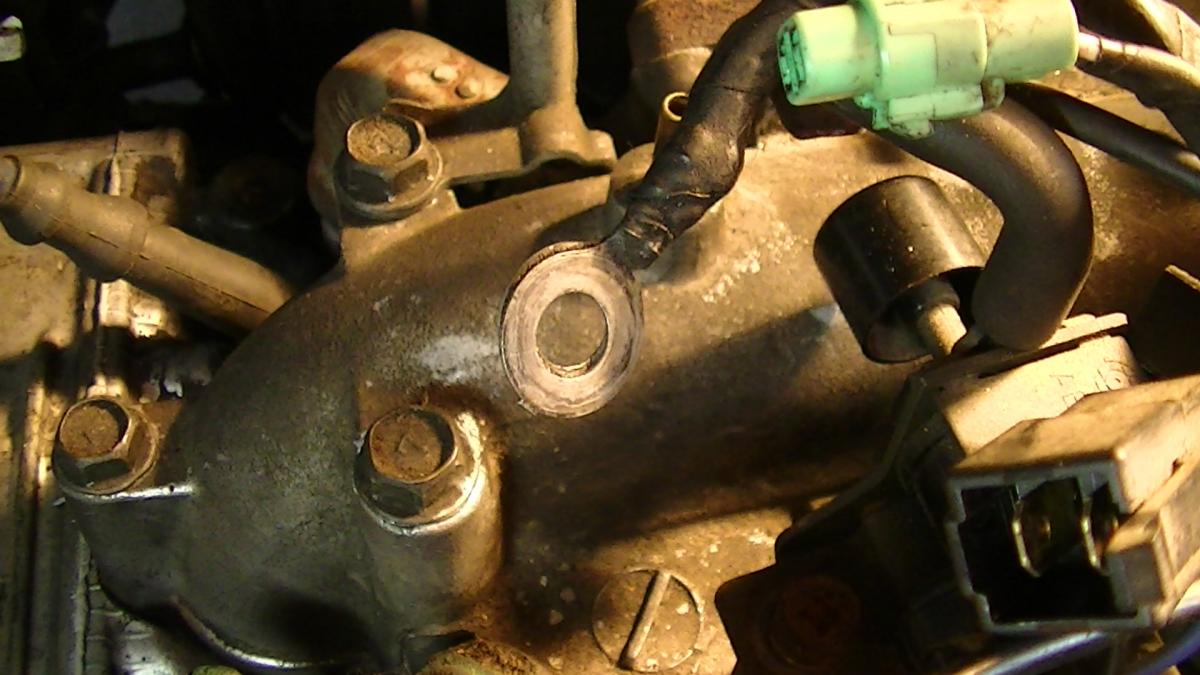

somick Posted January 7, 2018 Author Share Posted January 7, 2018 I went out my mind when I took my EA82 Loyale apart! No pictures, no notes... Now I have no idea where this ground wire go. Do I screw it to the intake manifold or to the engine block? Please help. And while you are there where does the solenoid with the black connector go? It is suppose to be a "purge control solenoid". Thanks, Sam Now with the picture... Quote Link to comment Share on other sites More sharing options...
skishop69 Posted January 7, 2018 Share Posted January 7, 2018 A ground eyelet is a ground eyelet. GENERALLY (not always) you can bolt it anywhere that has a circuit path to ground. Either will work, but IIRC, that goes on the manifold bolt. Quote Link to comment Share on other sites More sharing options...
somick Posted January 7, 2018 Author Share Posted January 7, 2018 A ground eyelet is a ground eyelet. GENERALLY (not always) you can bolt it anywhere that has a circuit path to ground. Either will work, but IIRC, that goes on the manifold bolt. Thank you! I appreciate your help. Sam Quote Link to comment Share on other sites More sharing options...
DaveT Posted January 7, 2018 Share Posted January 7, 2018 If it's a ground wire over near the thermostat, the is a short bolt on the intake manifold casting, over by the thermostat for the ring terminal. The purge solenoid is also right near the thermostat. It's part of the evaporative emmisions control system. 1 Quote Link to comment Share on other sites More sharing options...
jono Posted January 8, 2018 Share Posted January 8, 2018 10mm head bolt or 12mm? Quote Link to comment Share on other sites More sharing options...
czny Posted January 8, 2018 Share Posted January 8, 2018 If it's a ground wire over near the thermostat, the is a short bolt on the intake manifold casting, over by the thermostat for the ring terminal. The purge solenoid is also right near the thermostat. It's part of the evaporative emmisions control system. Agreed. Ring terminal goes on the short passenger side intake bolt with 12 mm head. That is the main engine harness ground. Quote Link to comment Share on other sites More sharing options...
somick Posted January 8, 2018 Author Share Posted January 8, 2018 If it's a ground wire over near the thermostat, the is a short bolt on the intake manifold casting, over by the thermostat for the ring terminal. The purge solenoid is also right near the thermostat. It's part of the evaporative emmisions control system. Thanks Dave. And the EGR solenoid is right above it? Quote Link to comment Share on other sites More sharing options...
somick Posted January 8, 2018 Author Share Posted January 8, 2018 10mm head bolt or 12mm? I believe a bolt on the intake manifold has a 12 mm head where this ground eyelet will go. A bolt with the 10 mm head hold the bracket on on the block. I think it only holds the bracket and nothing else. Sam Quote Link to comment Share on other sites More sharing options...
jono Posted January 8, 2018 Share Posted January 8, 2018 ground it to the block, and for good measure ensure you have two decent block to body earth cables. Most EA will have a gearbox to spare wheel carrier body connection and a fatter engine block to body cable. EA81 have main earth cable battery to block. EA82 earth cable fatty goes to bracket at starter motor. Do something like this and ground all grounds to engine block and you wil be fine. Quote Link to comment Share on other sites More sharing options...
DaveT Posted January 8, 2018 Share Posted January 8, 2018 Iirc, the egr solenoid is back and higher than the purge solenoid. Quote Link to comment Share on other sites More sharing options...
somick Posted January 9, 2018 Author Share Posted January 9, 2018 Iirc, the egr solenoid is back and higher than the purge solenoid. Thank you Dave. I appreciate your help. Sam Quote Link to comment Share on other sites More sharing options...
