Which connector?


  • Please log in to reply
13 replies to this topic

#1 paulpicard

paulpicard

    USMB is life!

  • Members
  • 195 posts
  • Princeton BC

Posted 08 September 2007 - 02:27 PM

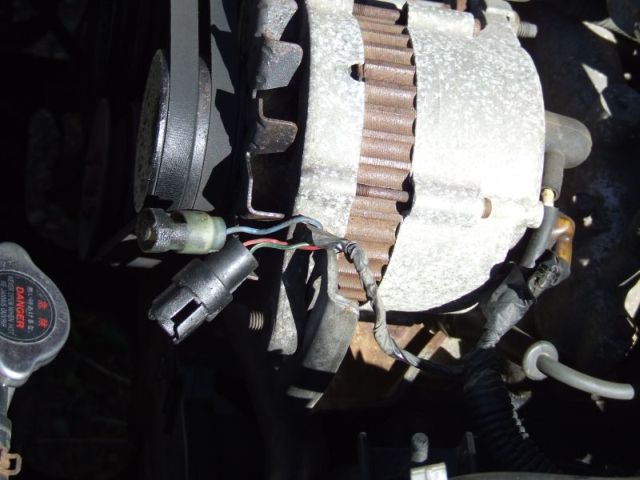

Need a little help here. 92 Loyale 5-sp, 4wd, NA engine, no A/C. Which of these connectors do I hook up to read the trouble codes? Green/green, white/white, or??? What are the yellow and black multi-terminal female conn.'s for?:confused: :confused: The other pic shows a couple of orphans originating in the Alt. harness. Can anyone help with these?Attached File  orphan conn's2.jpg   42.75K   18 downloads

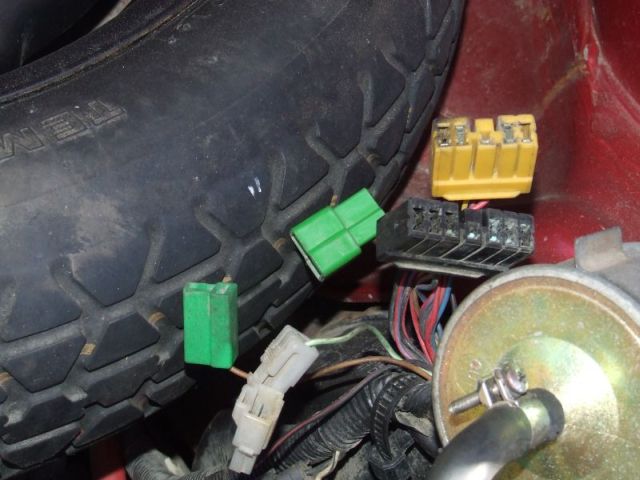

Attached File  Diag. connectors2.jpg   47.4K   23 downloads

#2 mikeshoup

mikeshoup

    Ignorant

  • Members
  • 2,190 posts
  • City and County of Denver

Posted 08 September 2007 - 02:31 PM

This is the second time I've posted this today. Wonder if there'll be a third:


If the CEL is on, do not plug any in. The ECU will flash the codes at you that are present.

If you want to see what codes have occured in the past (only really useful if the CEL is intermittent), connect the white/black connectors.

If you want to run a dealer-check mode, connect the green ones. There's actually a whole procedure for running the D-Check. So, its really not useful unless you know what the procedure is.

NOTE: The CEL doesn't flash. There's an LED on the side of the ECU that flashes.

#3 hush777

hush777

    More Subarus than Kids!

  • Members
  • 389 posts
  • Idaho

Posted 08 September 2007 - 02:42 PM

Connectors by alt. are for a\c hookups.

Hush

#4 paulpicard

paulpicard

    USMB is life!

  • Members
  • 195 posts
  • Princeton BC

Posted 08 September 2007 - 07:55 PM

Thanks guys. hush, I sorta guessed they might be for a/c. Mike, I don't have any black and white connectors in that group pictured. Do you mean the pair of white ones or is there another set I have missed? (And thanks for your patience re: multiple answers:), yes, I want the history as the CEL is momentary at cold start and the fast idle is all over the place) )

#5 mikeshoup

mikeshoup

    Ignorant

  • Members
  • 2,190 posts
  • City and County of Denver

Posted 08 September 2007 - 08:40 PM

I meant the pair of white connectors. Some cars they're black, and I forget which ones.

#6 paulpicard

paulpicard

    USMB is life!

  • Members
  • 195 posts
  • Princeton BC

Posted 08 September 2007 - 09:59 PM

OK, just to be sure of the procedure, connect the white connectors,(ign. off), turn ign. to "on", read stored trouble codes at the ECU LED, that's all. Right??

#7 mikeshoup

mikeshoup

    Ignorant

  • Members
  • 2,190 posts
  • City and County of Denver

Posted 08 September 2007 - 10:11 PM

OK, just to be sure of the procedure, connect the white connectors,(ign. off), turn ign. to "on", read stored trouble codes at the ECU LED, that's all. Right??

Yup.

#8 paulpicard

paulpicard

    USMB is life!

  • Members
  • 195 posts
  • Princeton BC

Posted 08 September 2007 - 10:33 PM

Thank you, thank you. Much appreciated. Paul

#9 paulpicard

paulpicard

    USMB is life!

  • Members
  • 195 posts
  • Princeton BC

Posted 10 September 2007 - 07:17 PM

OK, got the following (historical) trouble codes: 11, 13, 21,24,31. First two refer to crank angle sensor. 21 is coolant temp sensor. Don't know what 24 is. 31 is throttle position sensor. That's according to the USRM item for a 89 EA82 SPFI so my questions are: 1) same codes for a 92?, and 2) car runs great after 2-5 minute warmup, CEL comes on only at cold start with a very erratic idle, should I worry?

#10 azsubaru

azsubaru

    Subaru Fanatic!

  • Members
  • 451 posts
  • Phoenix, AZ

Posted 11 September 2007 - 09:42 AM

I would reset the codes first and see what comes up. It's possible but doubtful that all of those things need fixed. Code 24 is the Air Control Valve and it could cause your symptoms.

From the USRM:
1988 and Later Models With Single-Point Fuel Injection --

CODE PROBABLE CAUSE
11 Crank Angle Sensor or Circuit
12 Starter Switch or Circuit
13 Crank Angle Sensor or Circuit
14 Fuel Injector - Abnormal Output
21 Coolant Temperature Sensor or Circuit
23 Air Flow Meter or Circuit
24 Air Control Valve or Circuit
31 Throttle Sensor or Circuit
32 Oxygen Sensor or Circuit
33 Vehicle Speed Sensor (VSS) or Circuit
34 EGR Solenoid or Circuit
35 Purge Control Solenoid or Circuit
42 Idle Switch or Circuit
45 Kick-Down (Detent) Relay or Circuit
51 Neutral Switch Continuously in the On Position
55 EGR Temperature Sensor or Circuit
61 Parking Switch or Circuit

#11 mikeshoup

mikeshoup

    Ignorant

  • Members
  • 2,190 posts
  • City and County of Denver

Posted 11 September 2007 - 10:15 AM

A CAS code will show up any time the car doesn't start the first time. Ignore those codes unless the car isn't running.

#12 paulpicard

paulpicard

    USMB is life!

  • Members
  • 195 posts
  • Princeton BC

Posted 11 September 2007 - 12:46 PM

Thanks, people. I had a hunch the CAS code would show if the engine wasn't running. If someone will walk me through the re-set procedure - I gather it's not just a simple battery disconnect?

#13 mikeshoup

mikeshoup

    Ignorant

  • Members
  • 2,190 posts
  • City and County of Denver

Posted 11 September 2007 - 02:05 PM

I gather it's not just a simple battery disconnect?

That's what I do. Disconnect the battery, hit the brakes (the brake lights discharge any residual electricity), and wait about 30 minutes. Then I reconnect it. That will make sure the ECU doesn't remember anything.

There is an actual procedure, but I never remember what it is.

#14 paulpicard

paulpicard

    USMB is life!

  • Members
  • 195 posts
  • Princeton BC

Posted 11 September 2007 - 02:15 PM

Thanks, Mike.:)
