I am having trouble with a 90 loyale fuel pump and I want to check the relay, but I don't know where it is located. Any help?

I just looked up in a 1989 EA82 FSM Mike and it's showing the fuel pump relay to be just to the right of the SPFI control box. Looking at the schematic it's about even with the "right side of the steering wheel" but obviously it's going to be down under the dash, just above the gas pedal somewhere. I'm not at a computer where I can reasonably post a picture of it, but hopefully that helps?

This FSM indicates a square, blue, 4 pin connector.

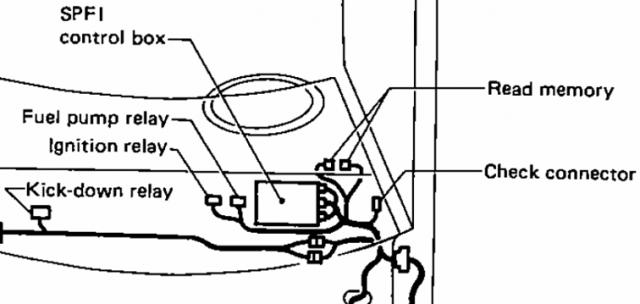

Got a piece of the FSM here:

Edited May 12, 201015 yr by grossgary

Gary:



Thanks so much. I believe I know where it is now. I will work on it tomorrow.



Mike
