I'm trying to fix the door lock timer of Subaru Impreza after water flooding.

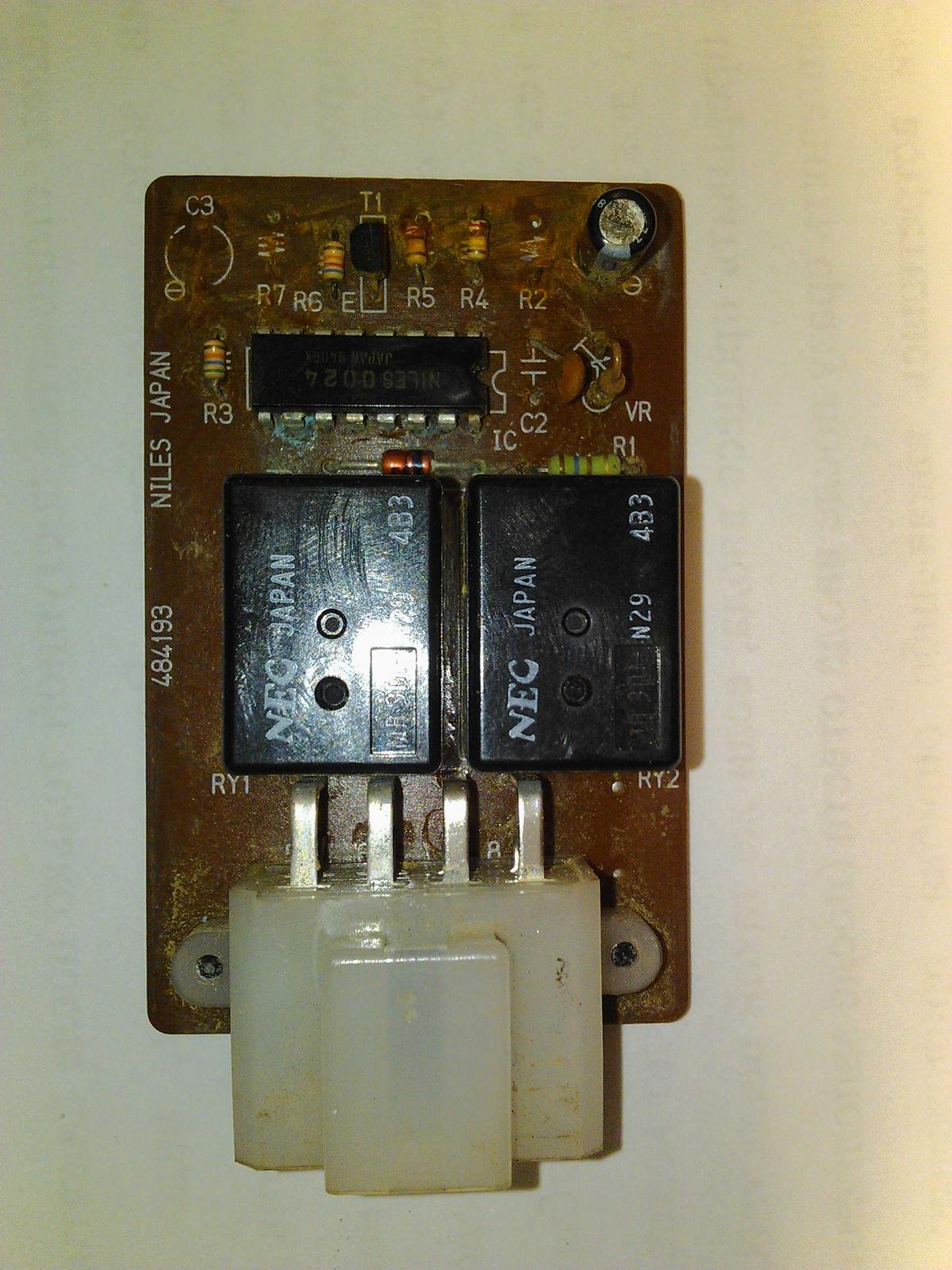

Could anyone name a sequence of colored rings on the resistors R7 (just below the capacitor C3) and R2 (just above the capacitor C1) and marking on transistor T1?

One of those resistors must have such sequence of color rings: Brown - Green - Orange - Golden (15k Ohm), but i don't know which one (R2 or R7).

It's similiar to. http://www.ultimatesubaru.org/forum/topic/109378-door-lock-timer-location-95-legacy/?do=findComment&comment=942122 .

Edited December 4, 201312 yr by kreker

I still kept my broken door lock timer but unable to find it right now, I was wondering how did your resistors go missing? Did you unsolder them?

@ 1-3-2-4



How did your resistors go missing? Did you unsolder them?



Resistors legs rotted and they fell off.

The board looks much better after dismantling of damaged parts and cleaning.



Also I don't know the condition of IC1 and I can't find data sheet on this IC.

And probably better try to find the same module at automotive flea markets.



Please, if you have some free time, could you find it and tell me about requested info?

Do anyone have this module?

I checked all in my storage and I don't have it.. I guess I must of thrown it out

I FOUND the door lock timer!! It was in a box of odds & ends

anyone still here to answer questions on this topic? I just bought a 98 forester yesterday... tryin to fix this whole haunted door lock problem... apparently a "door lock timer" isnt a real thing when I go to look up parts... am I missing something?
