Group A spec RX tech docs


  • Please log in to reply
4 replies to this topic

#1 Ibreakstuff

Ibreakstuff

    USMB Regular

  • Gold Subscribers
  • 497 posts
  • NorCal Transplant

Posted 12 March 2014 - 12:53 PM

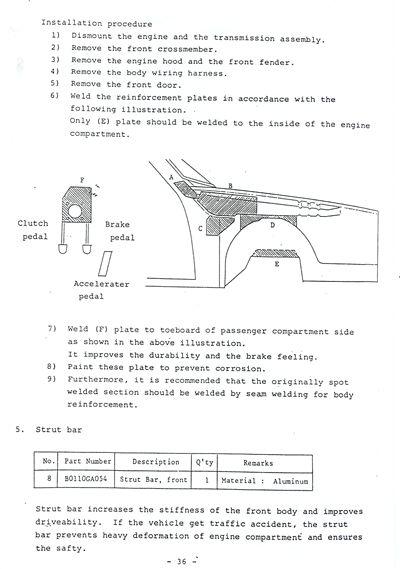

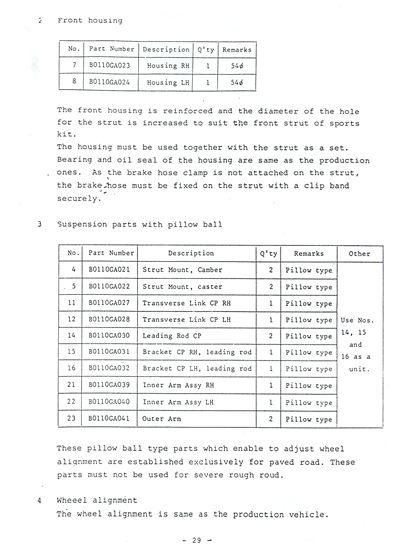

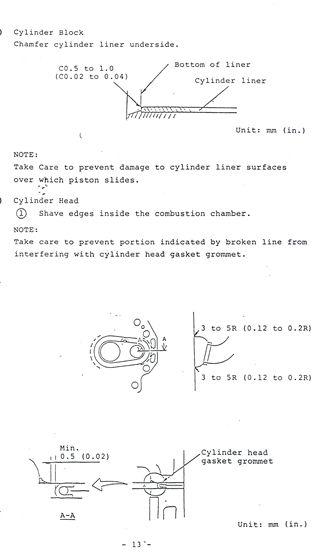

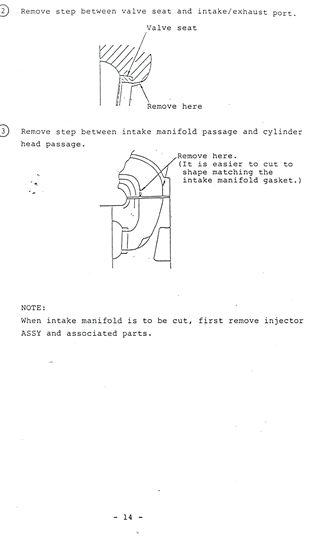

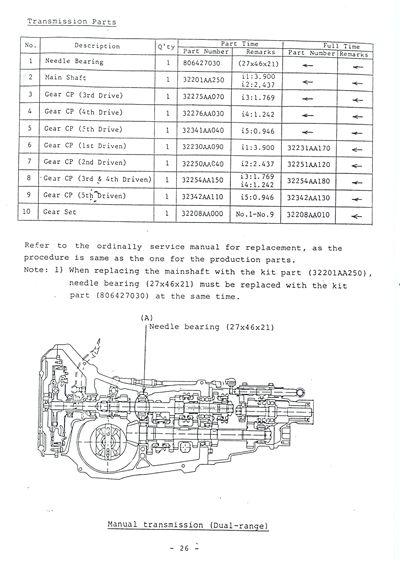

Does anyone have the first 9 pages of these? I save these years and years ago, but was never able to find those first pages...

Sharing to make sure they get saved out there in world somewhere..

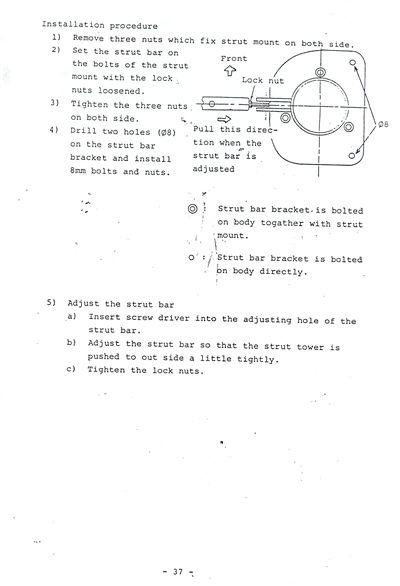

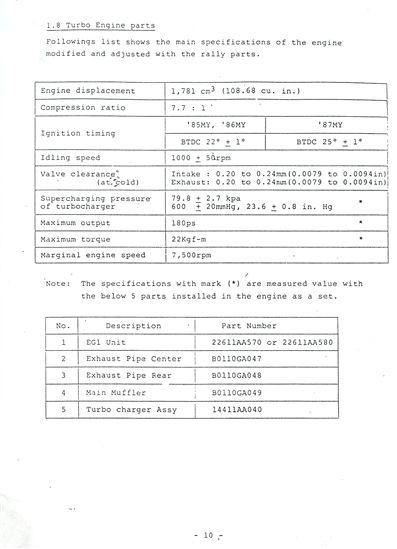

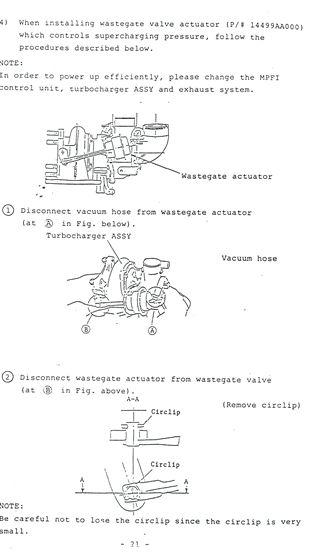

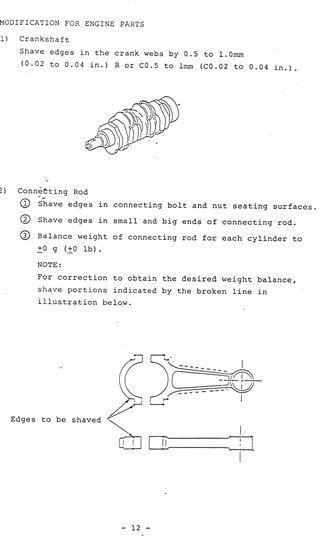

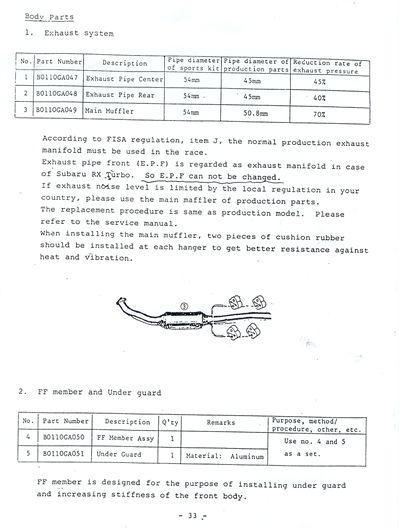

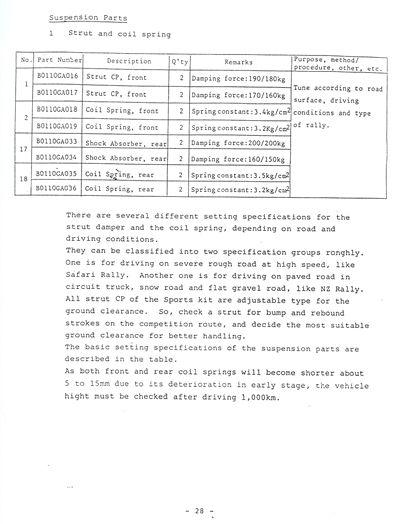

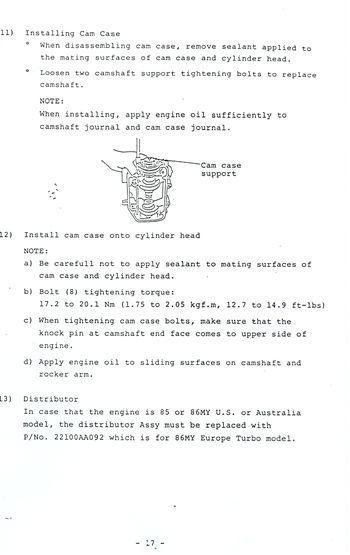

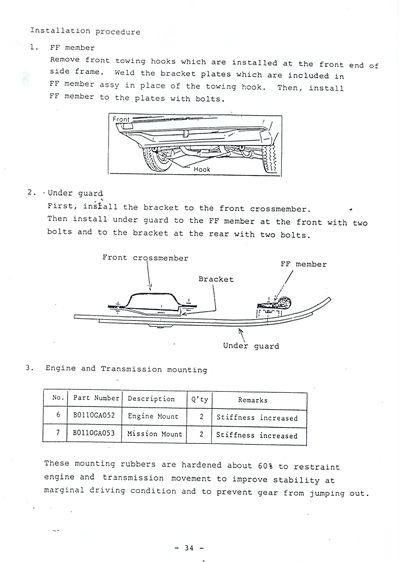

Attached File  10.jpg   33.13K   65 downloads

Attached File  11.jpg   38.43K   77 downloads

Attached File  12.jpg   20.71K   68 downloads

Attached File  13.jpg   21.22K   59 downloads

Attached File  14.jpg   13.92K   58 downloads

Attached File  15.jpg   26.73K   70 downloads

Attached File  16.jpg   32.51K   66 downloads

Attached File  17.jpg   26.63K   49 downloads

Attached File  18.jpg   14.5K   40 downloads

Attached File  19.jpg   35.97K   40 downloads

Attached File  20.jpg   18.35K   38 downloads

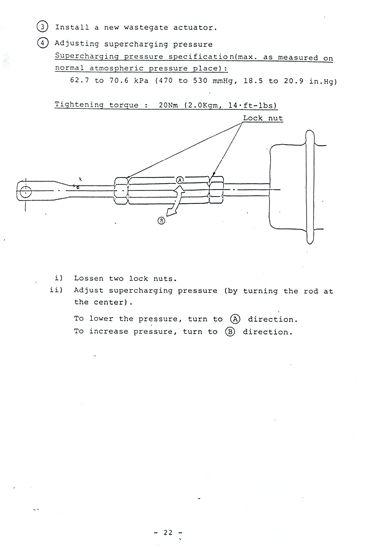

Attached File  21.jpg   24.32K   38 downloads

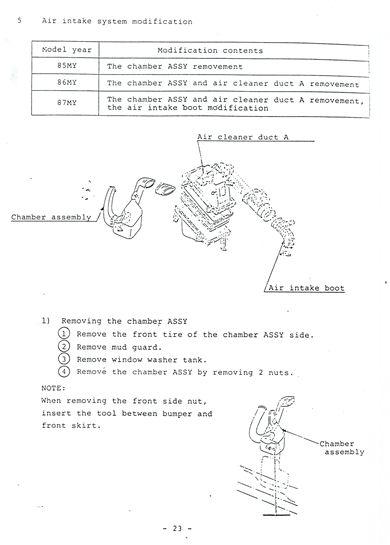

Attached File  22.jpg   19.18K   37 downloads

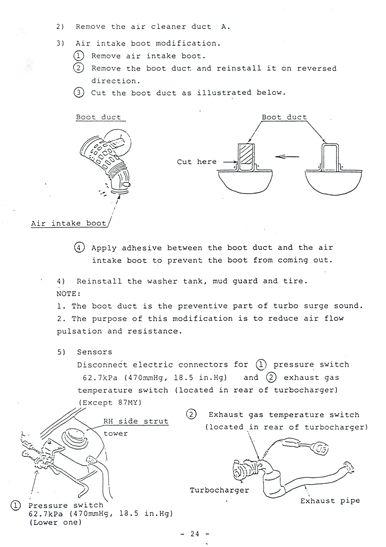

Attached File  23.jpg   26.93K   40 downloads

Attached File  24.jpg   32.05K   40 downloads

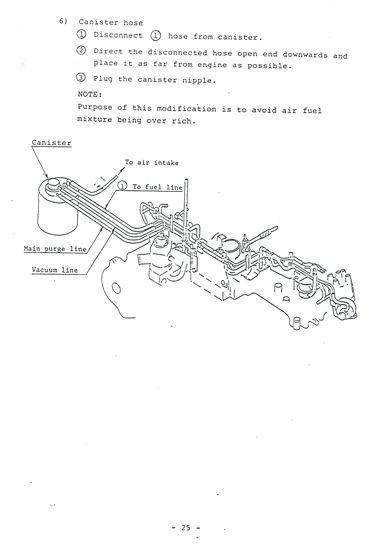

Attached File  25.jpg   21.32K   32 downloads

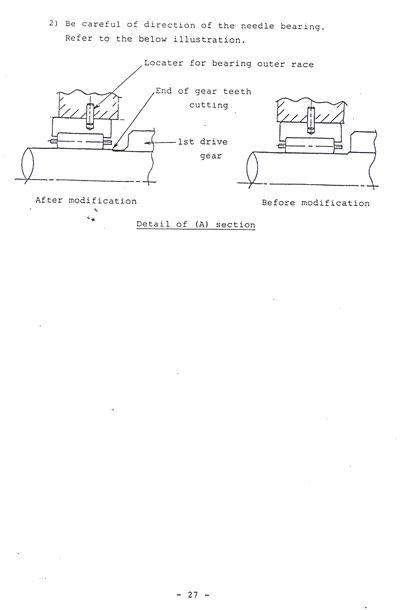

Attached File  26.jpg   43.25K   35 downloads

Attached File  27.jpg   17.03K   31 downloads

Attached File  28.jpg   38.21K   30 downloads

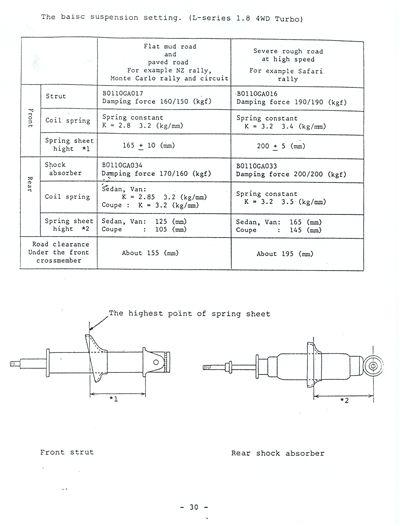

Attached File  29.jpg   40.9K   30 downloads

Attached File  30.jpg   28.99K   29 downloads

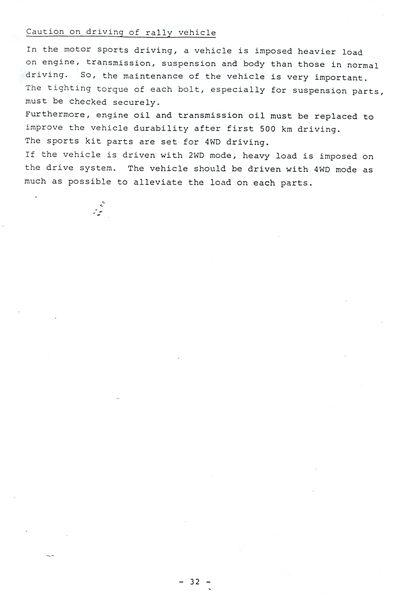

Attached File  31.jpg   40.17K   31 downloads

Attached File  32.jpg   22.6K   33 downloads

Attached File  33.jpg   36.27K   38 downloads

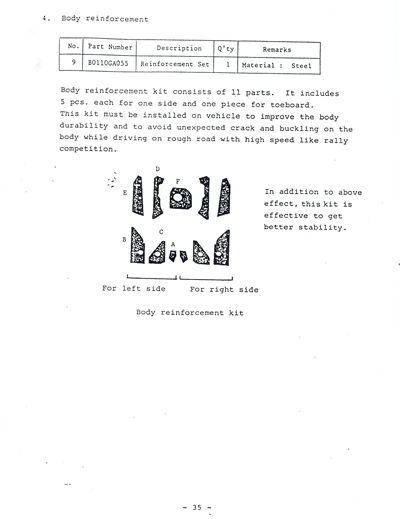

Attached File  34.jpg   33.03K   44 downloads

Attached File  35.jpg   21.46K   42 downloads

Attached File  36.jpg   37.64K   36 downloads

Attached File  37.jpg   27.14K   29 downloads





#2 Ibreakstuff

Ibreakstuff

    USMB Regular

  • Gold Subscribers
  • 497 posts
  • NorCal Transplant

Posted 12 March 2014 - 01:15 PM

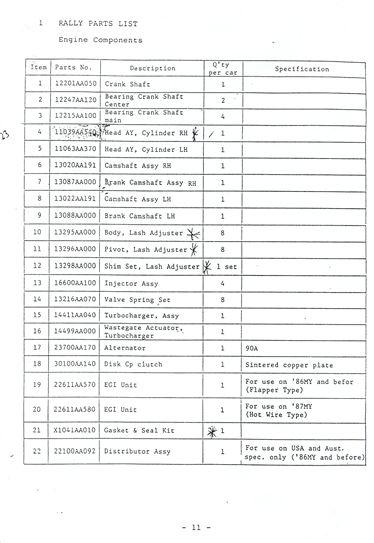

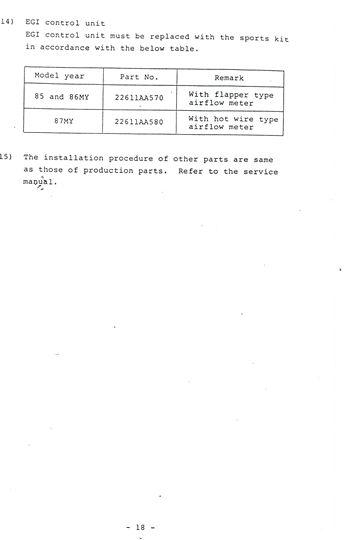

I think i'd give my left nut to tinker with the "sport ecu" , part # 22611AA580

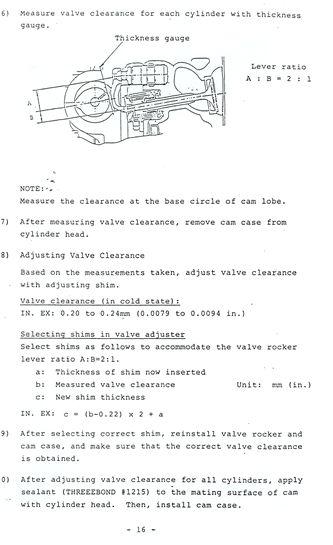

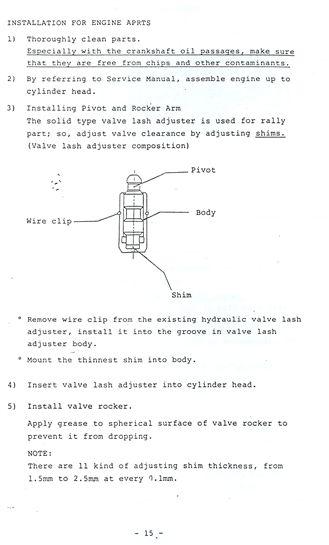

This also shows the details of converting to/adjusting solid lifters, but those parts are not avail anymore.


Edited by Ibreakstuff, 12 March 2014 - 05:22 PM.


#3 Numbchux

Numbchux

    EJ conversion addict

  • Members
  • 5,998 posts
  • Duluth, MN

Posted 15 March 2014 - 09:54 AM

That. Is. Cool!!!!



#4 Ibreakstuff

Ibreakstuff

    USMB Regular

  • Gold Subscribers
  • 497 posts
  • NorCal Transplant

Posted 15 March 2014 - 03:50 PM

I thought so too.



Just the idea of taking buying a stock rx, the rally kit, a basic cage. And you get:






There were several Rally spec RX's created in the USA, running the old SCCA pro rally series. I've been trying to find one of the old Chad DiMarco cars but they are beat to spoob and put up wet.



Obligatory Wikipedia quote:

Subaru Rally Team Japan led by Noriyuki Koseki (founder of Subaru Tecnica International STI) ran Subaru Leone coupé, sedan DL and RX Turbo in the World Rally Championship between 1980 and 1989 a few rallies per season.[7] Drivers for individual rallies included Ari Vatanen, Per Eklund, Shekhar Mehta, Mike Kirkland,Possum Bourne, Harald Demut and Chilean driver Jose Antonio Celsi. Mike Kirkland finished 6th overall and won the A Group at the 1986 Safari Rally. That year Subaru was one of the only manufacturers combining 4WD and turbo.[8] Jose Antonio Celsi finished eight in the 1986 Marlboro Rally Argentina and fifth in the 1988 Marlboro Rally Argentina. During 1989 Subaru entry two works RX Turbo for Jose Antonio Celsi and Possum Bourne. Celsi finished fourth, but retired on the final road section and Bourne retired during the first stage. Subaru changed the rally model to Legacy RS for the 1990-1992 period and took part in the first complete season in the World Rally Championship with the same model in 1993.



Activity: (1985–1989)

Power @ rpm: 190 bhp (142 kW; 193 PS) at 6500
Torque @ rpm: 230 N·m (170 lb·ft) at 5200
Length Width Height: 4370 mm 1660 mm 1425 mm
Weight (kg/BPM Ratio): 1060 (0)
Transmission: 4x4 Full-time
Engine Type: H4 Boxer SOHC x 2
Engine Position: Boxer Turbocharged
Engine Capacity: 1781 cc
Engine Bore: 92 mm (3.6 in)
Engine Stroke: 67 mm (2.6 in)
Engine Compression: 7.6:1
Engine Valves: 8
Engine Carburation: Electronic Multi-Point
Turbo: IHI
Body Doors: 2 (Coupe) or 4 (Sedan)
Body Type: Coupe and Sedan
Brakes: Ventilated disks
Fuel Tank: 60 L (16 US gal; 13 imp gal)



#5 Ibreakstuff

Ibreakstuff

    USMB Regular

  • Gold Subscribers
  • 497 posts
  • NorCal Transplant

Posted 15 March 2014 - 03:55 PM

Those must have been some depressing years for drivers tho, after the demise of group B.



Can you imagine Ari Vatanen was in the group B pug 205 then his next stage rally ride after his accident was a Subaru RX? At least he had some spare wheels, right lol!


Edited by Ibreakstuff, 15 March 2014 - 04:38 PM.
