parking light switch wiring diagram?


  • Please log in to reply
4 replies to this topic

#1 njdrsubaru

njdrsubaru

    is this thing on?

  • Members
  • 1,198 posts
  • Old Bridge, NJ

Posted 19 June 2008 - 11:21 AM

does anyone have a diagram? i am doing a special project :Flame: and i need that diagram. Yes its for the switch on top of the steering column

thanks in advance

#2 OB99W

OB99W

    Elite Master of the Subaru

  • Members
  • 3,315 posts
  • Ithaca

Posted 19 June 2008 - 11:31 AM

does anyone have a diagram? i am doing a special project :Flame: and i need that diagram. Yes its for the switch on top of the steering column[...]

First I want to know if it involves turning fuel injectors on/off. :)

#3 njdrsubaru

njdrsubaru

    is this thing on?

  • Members
  • 1,198 posts
  • Old Bridge, NJ

Posted 19 June 2008 - 11:37 AM

no it doesnt :brow: :brow: :grin:

i am mounting a pair of hellas and i want to disconnect that switch and wire it to turn my fogs on and off :brow:

#4 aircraft engineer

aircraft engineer

    Subaru Nut

  • Members
  • 518 posts
  • close to Tacoma

Posted 19 June 2008 - 12:18 PM

remember - use it to drive a RELAY or you will overload the wires.

#5 OB99W

OB99W

    Elite Master of the Subaru

  • Members
  • 3,315 posts
  • Ithaca

Posted 19 June 2008 - 12:32 PM

[...]i am mounting a pair of hellas and i want to disconnect that switch and wire it to turn my fogs on and off :brow:

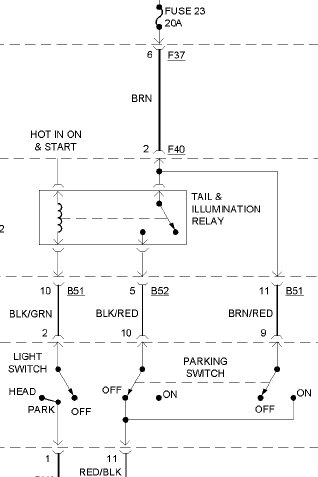

Hopefully, the attached partial diagram covers your model, and will do the trick. Please verify it agrees with your car before rewiring. Also, be certain not to exceed the current limitations of the switch or its wiring; if there's any question, a relay may be needed.
(EDIT: I see while I was preparing the diagram for uploading, aircraft engineer already made the point about the relay.)

Diagram notes:
Fuse #23 is hot all the time.
The red/blk wire at the bottom of the diagram (not to be confused with the blk/red one) goes to a 10 amp fuse labeled #5, the other end of which feeds the front and tail (parking) lights.

Attached Files
