wilsonia Posted December 12, 2021 Share Posted December 12, 2021 I am attempting to replace my blown digital dash in my GL-10 with an analog one I pulled from the junkyard. I have been searching for a pinout for the analog instrument cluster but haven't had any luck (links are broken). I did find a pinout for the digital dash in the FSM, which is half the battle. If anybody has this it would be greatly appreciated! Thanks Quote Link to comment Share on other sites More sharing options...

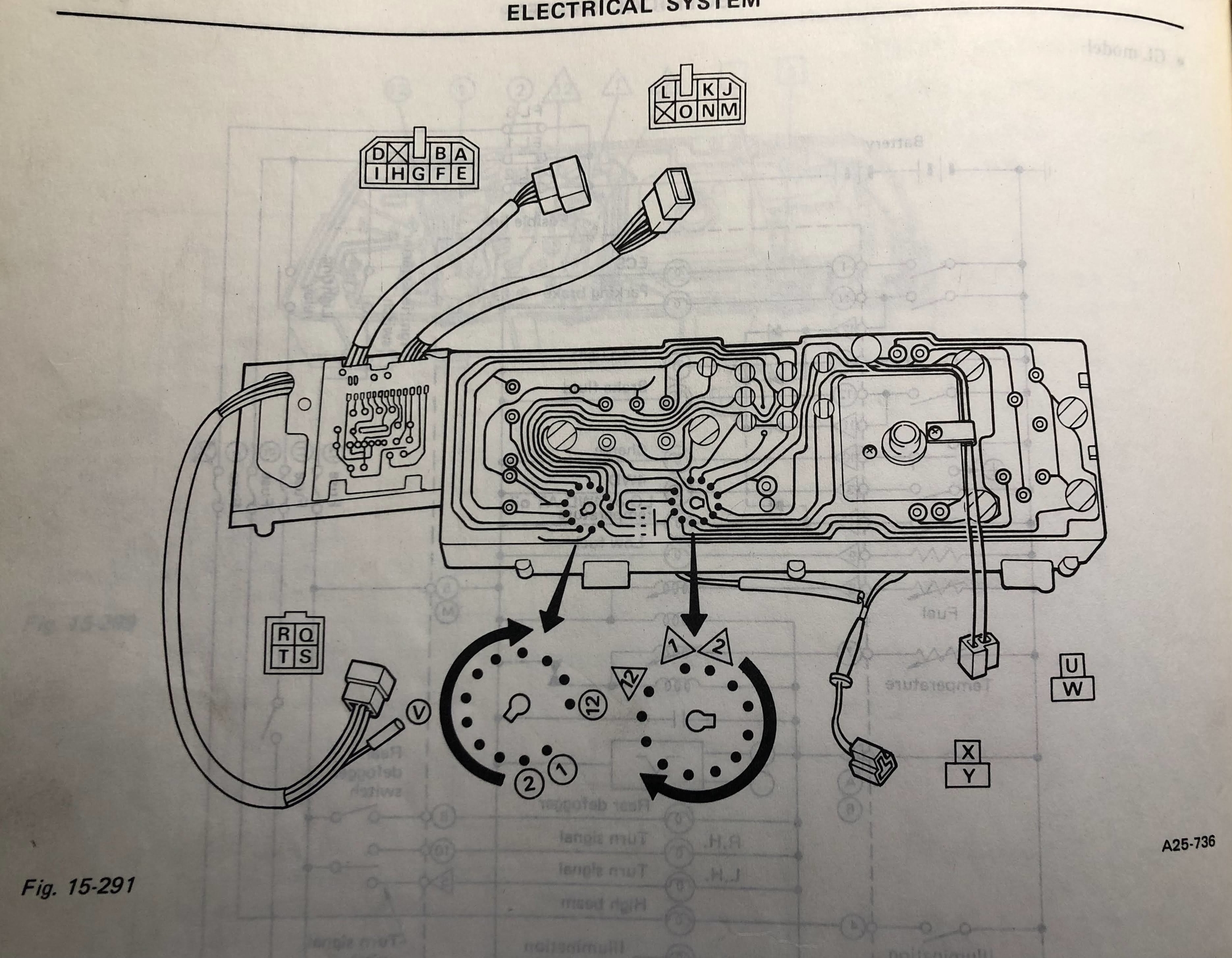

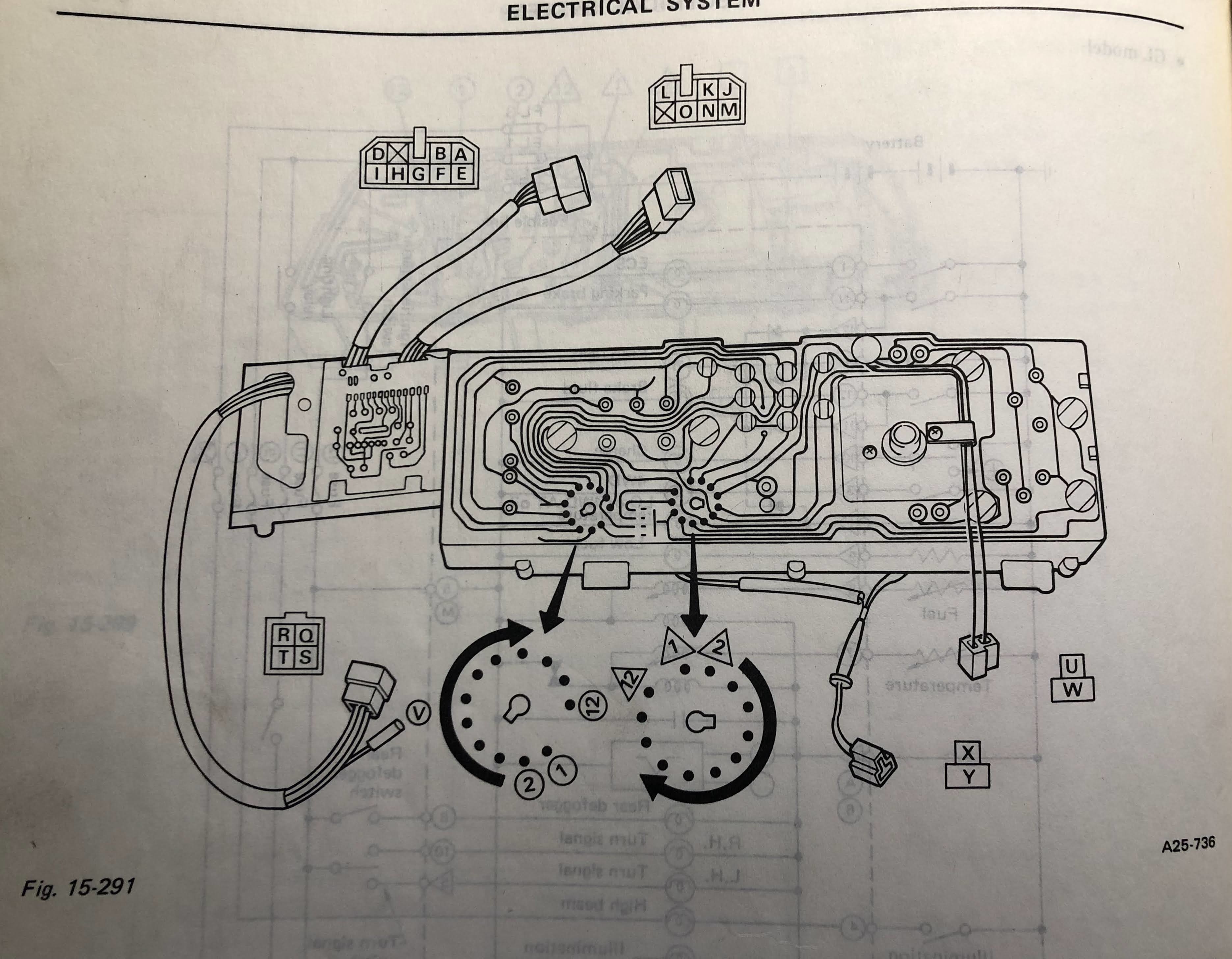

555jay Posted December 14, 2021 Share Posted December 14, 2021 Let's see if I can help. Quote Link to comment Share on other sites More sharing options...

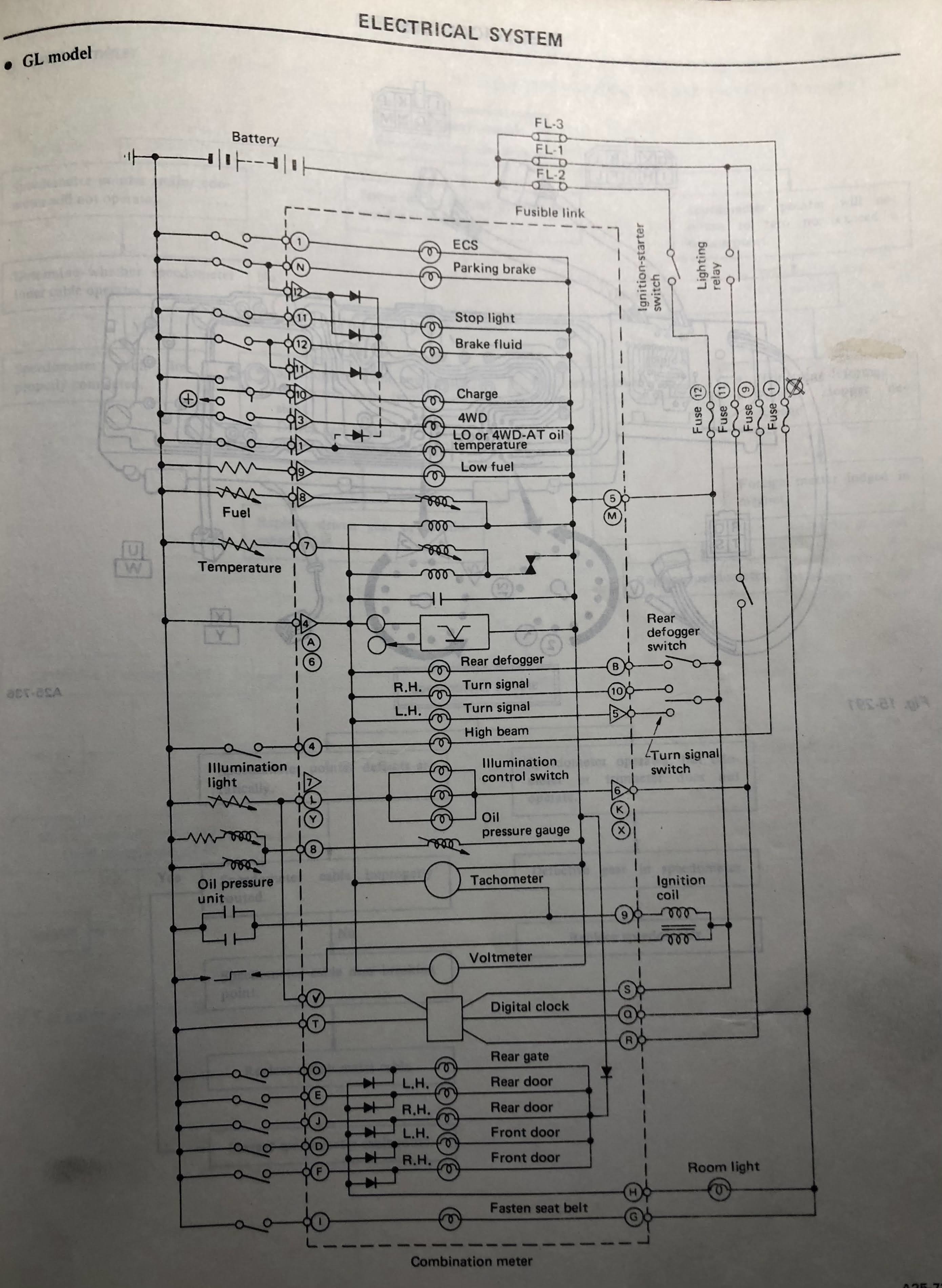

555jay Posted December 14, 2021 Share Posted December 14, 2021 Pin labels above; diagram here. Quote Link to comment Share on other sites More sharing options...
el_freddo Posted December 14, 2021 Share Posted December 14, 2021 Other way to do it is DIY the pinouts by tracing each pin behind the instrument cluster back to where it comes from. Cheers Bennie Quote Link to comment Share on other sites More sharing options...
wilsonia Posted December 15, 2021 Author Share Posted December 15, 2021 Thank you so much @555jay. Between that and tracing I think I've got it figure out. Here's the digi dash pinout for anyone interested. I'm working on a table of connections that I plan to try that I will post once I've tested it. 1 Quote Link to comment Share on other sites More sharing options...
el_freddo Posted December 20, 2021 Share Posted December 20, 2021 Sorry, I read the GL-10 bit and immediately thought of the L series EA82 model, not the EA81 models. I’ve found the easiest way to sort this out is to always grab the wiring behind the dashboard that matches the instrument cluster you’re wanting to use. These wiring looms are interchangeable plug and play swaps. This is how I go from the factory three gauge cluster in the brumby/brat to the longer six gauge cluster (with matching dashboard so it all fits). Our brumby/brats down here didn’t come with the fancier instrument cluster options like many US delivered brats had from factory. At the end of the day with a bit of work it’s all Lego All the best! Bennie Quote Link to comment Share on other sites More sharing options...
