ok.. fuel line id help


  • Please log in to reply
10 replies to this topic

#1 josolong

josolong

    Member

  • Members
  • PipPip
  • 22 posts
  • SEATTLE

Posted 02 April 2014 - 02:12 PM

hey guys, thanks for being here!



i bought my gl with a chop job of a weber conversion, i been smelling raw gas every now and then and i noticed yesterday that the line pictured on the right is just gurgling fuel out and onto the ground.. these are on the right side of the engine bay. is it some sort of fuel takeup line, or aspirator for the old carb?? maybe i know now why i'm getting such crap mpgs.



can i just plug it or should i run it soewhere?



thanks again



#2 josolong

josolong

    Member

  • Members
  • PipPip
  • 22 posts
  • SEATTLE

Posted 02 April 2014 - 02:15 PM

right. here's the picture. seems like attachments aren't working1240355_10202881565434384_721667166_n.jp



#3 Subruise

Subruise

    Official Party Pooper

  • Members
  • 1,433 posts
  • pierce county

Posted 02 April 2014 - 04:38 PM

one is to send, one is for return (because fuel pressure regulator) and some have one for the charcoal canister (if so equipped)



#4 83Sub

83Sub

    Newbie

  • Members
  • Pip
  • 2 posts
  • kufur qassem , israel

Posted 02 April 2014 - 05:15 PM

Theese two metal pipes run all the way to the fuel tank . & should be plugged into the carb .



#5 chompy

chompy

    Member

  • Members
  • PipPip
  • 27 posts
  • Portland

Posted 02 April 2014 - 05:20 PM

It's odd that fuel would somehow travel back through the return line...  One is for the tank vent so it should not be capped off.  The return line can be capped off if you don't attach it to the carb.  My tank vent has a small filter on it so debris/water don't somehow travel down the tube.  I also do not have the return line connected to the carb, although some people will pull the gas inlet off of the hitachi carb and throw it on the weber, thereby allowing you to use the proper return line.



#6 silverback

silverback

    New User

  • Members
  • 131 posts
  • Seattle

Posted 02 April 2014 - 05:23 PM

What chompy posted.

I use the return line on my Weber. It's purpose is to bleed off excess pressure before the needle-float valve in the carb. Some use the return, some don't.  It is a good idea to put a little cover/filter over the vent line.



Also, do not smoke when you are working on these lines......................


Edited by silverback, 02 April 2014 - 05:33 PM.


#7 wagonist

wagonist

    User Awaiting Email Confirmation

  • Members
  • 408 posts
  • Sydney, Australia

Posted 02 April 2014 - 05:32 PM

Um, isn't the carb feed line down on the chassis rail?

The EFI one is up the top.



There are 3 lines, those 2 plus one sitting on top of the chassis rail.



From my memory (it's been a while since I had a carb version):

on carb

  • feed line is on the rail
  • the one on the right you've pictured is the return line
  • the other one is for the tank breather



on EFI models:

  • the other one stays the same
  • the right one of the 2 you've pictured gets changed to a much larger one for the fuel feed
  • the one on the chassis rail stays the same but becomes the return line for the EFI

Edited by wagonist, 02 April 2014 - 05:33 PM.


#8 silverback

silverback

    New User

  • Members
  • 131 posts
  • Seattle

Posted 02 April 2014 - 06:04 PM

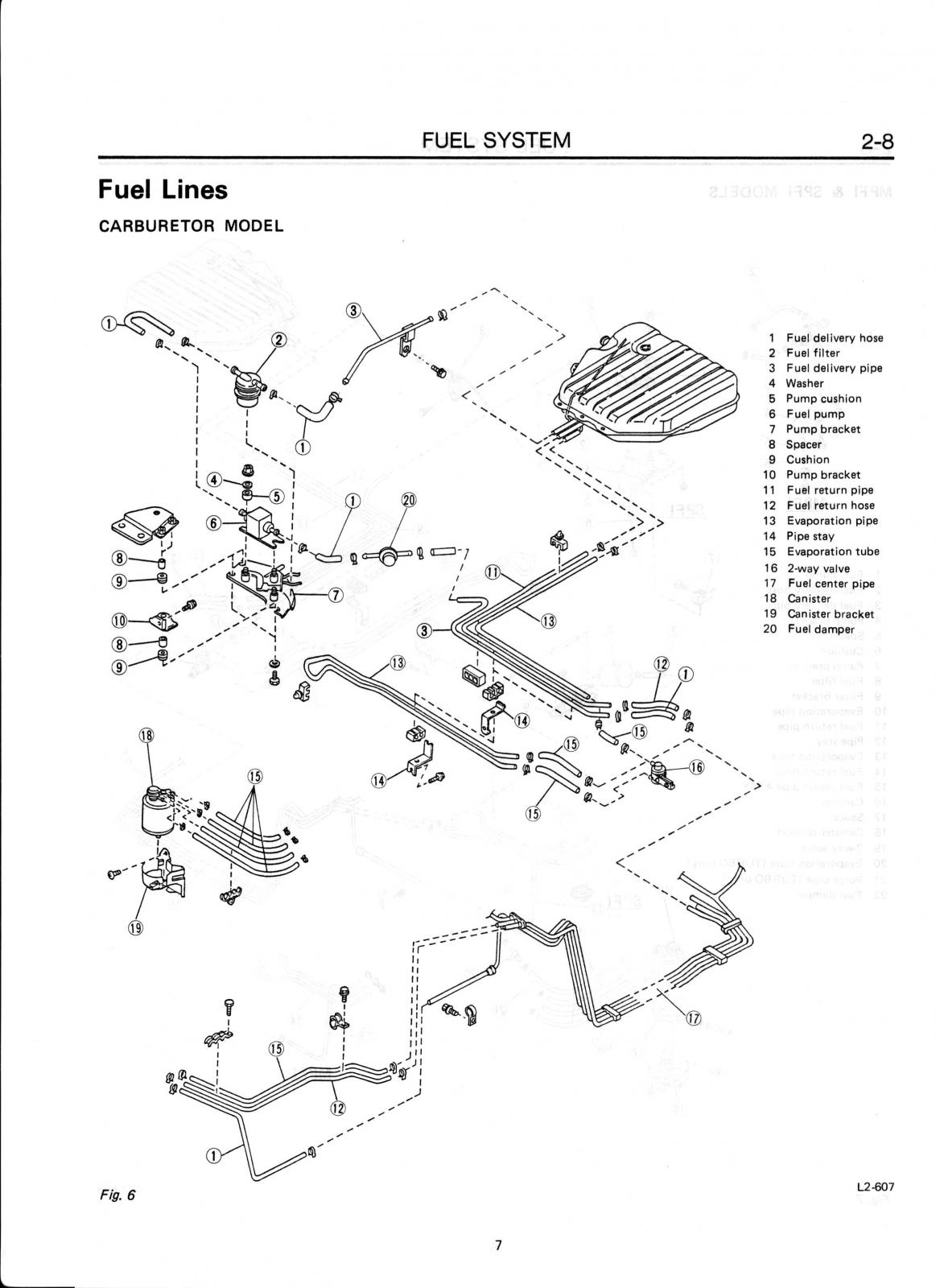

This thread is about a carburetor model.  Below is the carb model layout. I am guessing that the charcoal canister is gone.  Note that the fuel filter is back by the tank.  You may want to change this when convenient since you believe the Weber conversion was a rush job. The filter was probably not changed.





Attached File  IMG.jpg   154.21K   18 downloads



#9 josolong

josolong

    Member

  • Members
  • PipPip
  • 22 posts
  • SEATTLE

Posted 09 April 2014 - 05:29 PM

thanks for the info. i got it plugged up, and i had replaced the fuel filter when i bought it. there's just one FF right? just up from the gas tank under the car eh?



#10 chompy

chompy

    Member

  • Members
  • PipPip
  • 27 posts
  • Portland

Posted 10 April 2014 - 09:57 AM

For our carbed cars its a good idea to have an inline filter in the engine bay as well.



#11 Gloyale

Gloyale

    It's a sickness

  • Members
  • 9,008 posts
  • Corvallis, OR PNW

Posted 10 April 2014 - 10:15 AM

It's odd that fuel would somehow travel back through the return line...  One is for the tank vent so it should not be capped off.  The return line can be capped off if you don't attach it to the carb.  My tank vent has a small filter on it so debris/water don't somehow travel down the tube.  I also do not have the return line connected to the carb, although some people will pull the gas inlet off of the hitachi carb and throw it on the weber, thereby allowing you to use the proper return line.



Not really odd......If you look at were the return line goes back into the tank it's near the bottom.  Every time you brake and fuel sloshes forward it was probably was siphoning some out.





As stated those are the Vent and Return lines.  The one that was leaking on the right in the picture is the return.....the other larger one is the vent
