EA82T Inlet Temp Test Data


  • Please log in to reply
22 replies to this topic

#1 All_talk

All_talk

    1000+ Super USER!

  • Members
  • 1,093 posts
  • Thorp (Ellensburg)

Posted 26 April 2004 - 02:22 PM

Hey guys, thought some of you might be interested in what I found. I set up a couple of thermocouples on my ’87 RX (bone stock) to get some base line numbers to work from. I’m hoping to start on some mods soon (after new rings, bearings and a reseal) and its always good to know where you started so you can gauge how much you’ve gained.


Anyway here’s the set up:


’87 EA82T, 252,000 miles, all stock systems intact and functional (weak compression on #1 cyl).

Point #1 (T1) located just behind the MAF mounted at “duct B” (appendix like chamber), thermocouple in airflow about ¾” off the intake boot wall.

Point #2 (T2) located just before the TB mounted through the connecting hose, thermocouple in airflow about ½” off the tube wall.

Readings taken with a Fluke digital thermometer.


Data as of this mornings ride to work:

Ambient air temp about (T1) = 45 F (would rise some at idle, steady at road speeds)

Max boost temp (T2) = 155 F (full and part throttle pulls in all gears show similar temps)

Max deferential (T2-T1) = 110 F

Cruse boost temp (T2) = 100 F (70 – 75 MPH, 5th gear, just below 0 psi manifold pressure)


Note: temps under sustained full throttle seem to be slightly less than at part throttle, by about 10 F. I suspect that even though the boost level is the same, the less restricted intake path and higher flow move the compressor into a more efficient region. Or perhaps the higher flow reduces the transferred heating effects.

Given this data it appears that even the stock system could benefit from an intercooler as the temps are high enough above ambient to see some cooling from an air-to-air IC.

Its suppose to be near 80 F by this afternoon so the ride home should be good to show the effects of ambient temp changes, I’ll post those numbers soon.

Gary

#2 rallyruss

rallyruss

    Subaru Master

  • Members
  • 1,653 posts
  • San Jose CA

Posted 26 April 2004 - 02:53 PM

cool info. I assume you are going to re test after an Intercooler instalation? you are using the little flexible temp wire that comes with the fluke? I have that same part and could do a test on my intercooler to see how much temp it actually drops.

#3 Myxalplyx

Myxalplyx

    Old Wise and Dumb

  • Members
  • 1,834 posts
  • New Castle

Posted 26 April 2004 - 03:08 PM

This is EXCELLENT info. I never knew that the temps after the turbo would be 110F more than before. Whoa! Looks like I'm going to have to save all the info I gather for future purposes. Please keep us posted.


BTW: I'm always reading about thermocouples and people testing air temps and stuff but never took the time out to see how to set something like that up. Any tips on how to go about it? I know it's supposed to be simple but just pretend I'm a complete idiot. :)

#4 MorganM

MorganM

    Do you Subaru?

  • Members
  • 8,390 posts
  • TwinCities

Posted 26 April 2004 - 04:06 PM

After reading this I bet someone wants to buy one of my 2 intercoolers now? :D Email me if you want them!

#5 All_talk

All_talk

    1000+ Super USER!

  • Members
  • 1,093 posts
  • Thorp (Ellensburg)

Posted 26 April 2004 - 05:25 PM

Russ, yeah I’m using the standard open thermocouples. And yes, the idea will be to add more boost with an IC and achieve the same or lower intake temps. Or just use the IC to lower intake temps to use cheaper fuel or more advanced timing. Either way low temps can mean more power.


Myxalpyx, the set up pretty straight forward, just put the leads through the joint so that the thermocouple is in the air flow and clamp it down. I’ll try to take some pics when I get home.

MorganM, Whatcha got and how much? :)

Gary

#6 All_talk

All_talk

    1000+ Super USER!

  • Members
  • 1,093 posts
  • Thorp (Ellensburg)

Posted 26 April 2004 - 11:46 PM

O.K. here’s the data from the ride home:


Ambient temp (T1) = 85 F (it was a beautiful day in the northwest)

Max boost temp (T2) = 208 F

Max differential (T2-T1) = 123 F (happened at sustained part throttle pull in 5th gear, up Snoqualmie pass)

Cruse boost temp (T2) = 145 F


Again noticed the higher boost temp at part throttle, max differential noted on full throttle pull was about 110 F.

The accuracy of the thermometer is about +/- 4 F, this should at least offer a good basis for comparison.

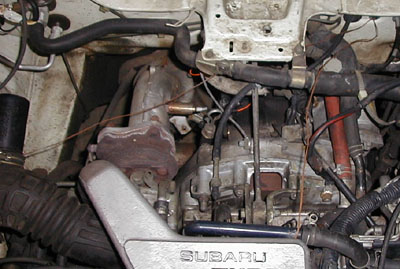

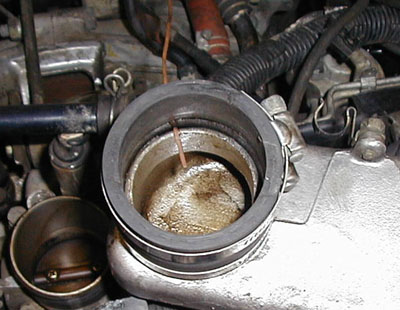

Here are some pics of the setup.
