I woke up this morning....*progress*


  • Please log in to reply
11 replies to this topic

#1 WJM

WJM

    SUBARU

  • Members
  • 7,828 posts

Posted 19 October 2003 - 09:56 AM

and decided its time to start to finish the FT4WD conversion on my GL-10. Its going to get put in the air, and the trans is gonna come out...like, NOW. Then to go in, an XT6 FT4WD trans. After that, the driveshaft center bearing support...and a new exhaust.

So, maybe I'll have a write-up on this...

So far its been pretty simple. Find 4wd rear suspension. replace 2wd with 4wd stuff(bolt off, bolt on). Drill 4 holes for rear diff support, bolt stuff on. Find 4wd trans and matching diff. Install trans. This get more complicated with the XT6 trans, I think. But then again, I've got a legacy x memeber I will try on for size. The 5spd conversion was a little more complicated than this.

#2 WJM

WJM

    SUBARU

  • Members
  • 7,828 posts

Posted 19 October 2003 - 12:30 PM

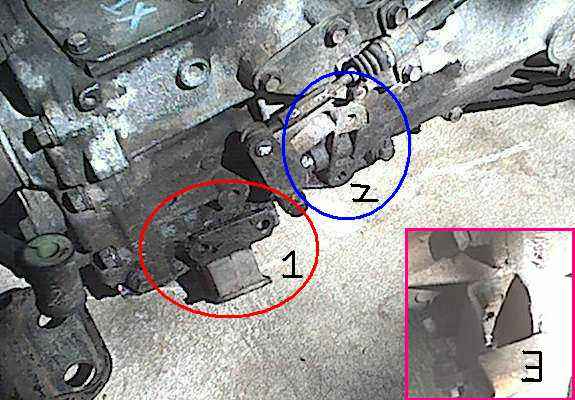

Ok, item 1: Problem. I dont have the front and rear sections, only the center section and the mount on it.

Item 2: This area is also on the 2wd XT turbo trans.

Item 3: The stock mount on the XT turbo trans.

I pulled out the Legacy crossmember...its WAY to big. And the center section of the XT6 FT4WD wont bolt up to the legacy xmember, and no way in heck will it bolt up to the EA82 chassis.

So, I see problems, and i see a solution, can anyone else see it?
:banana:

Attached Files



#3 MilesFox

MilesFox

    Catch this Fox!

  • Members
  • 10,351 posts
  • Madison/Milwaukee, WI

Posted 20 October 2003 - 11:07 AM

you would need to use the tranny crossmember for an ea82 MT

a 5spd driveshaft should work, in fact, any driveshaft rear section is the same length from the carrier to the diff

the xt6 ft4wd around here has a 3.9 final gear

#4 JonOfScio

JonOfScio

    OMGZ!!! HATCH ATTACK!

  • Members
  • 713 posts
  • Corvallis, OR

Posted 20 October 2003 - 12:51 PM

uh... an EJ series tranny to fit the legacy crossmember? I don't know what you mean by solution...

#5 electryc_monk

electryc_monk

    Air-ride Airehead

  • Members
  • 1,581 posts
  • Denton, Tx

Posted 20 October 2003 - 03:41 PM

Um hey, JonOfScio, The tranny from the XT6 is an EA series tranny, not the EJ series.

WJM - does the tranny mounting area look alot like thiese on this page? (I'm thinking it should be identical)
http://www.geocities...-sube-pt_2.html


These pictures are specifically what I'm refering too but, realize these bottom two are of the car they were removed from hense the masive michigan cancer:
http://www.geocities...-10-pre-D-R.jpg

http://www.geocities...-R-before-2.jpg

http://www.geocities...ore-removal.jpg

#6 WJM

WJM

    SUBARU

  • Members
  • 7,828 posts

Posted 20 October 2003 - 09:17 PM

I took the 2wd mounts and crossmember, and used them on the XT6 trans. Bolts right up perfectly. Its in. Now I ahve to mod some shifter stuff.

The shifter package I got was for a D/R. It was in a wreck and bent up. SO i had to bend some stuff, and I'll have to shave some metal, and take one mount and use it on something else....blah blah. Better explanation to come when i get it right.

After that, I am not going to weld, like Miles did, but rather drill and bolt up the center driveshaft supports. Then she's done after I install a new clutch cable.

#7 PoorManzImpreza

PoorManzImpreza

    Subaru Nut

  • Members
  • 546 posts
  • BARBADOS

Posted 20 October 2003 - 09:29 PM

very sweet man wish it was me ;-)
I'm still collecting parts, 4wd subs are scarce around here..

#8 WJM

WJM

    SUBARU

  • Members
  • 7,828 posts

Posted 20 October 2003 - 09:32 PM

once you get all the right parts and a good shop, its not hard. Im working on a concreate pad...with a jack and hand tools. Thats it. It took me, in a fully equipped shop, 2hrs to completely change the rear suspension over form 2wd to 4wd. So far, w/out all that, its taken me almost 3 days to install a tranmission. But that part is over now. At least I didnt have ot take the engine out! 1 hr in a shop...here? who know. No engine lift. Bad news.

#9 PoorManzImpreza

PoorManzImpreza

    Subaru Nut

  • Members
  • 546 posts
  • BARBADOS

Posted 20 October 2003 - 09:38 PM

did you get the 5 bolt parts with the xt6 tranny?

#10 JonOfScio

JonOfScio

    OMGZ!!! HATCH ATTACK!

  • Members
  • 713 posts
  • Corvallis, OR

Posted 21 October 2003 - 10:47 AM

I know that the XT6s use EA series trannies. They use them just mounted differently is all... XT6 FWD has a EA82 5 speed FWD tranny with an XT6 clutch. (bigger! mwahaha)

#11 WJM

WJM

    SUBARU

  • Members
  • 7,828 posts

Posted 21 October 2003 - 06:57 PM

No, I got the XT6 trans with a regular XT Turbo. Separately ofcourse.

The XT6 FT4WD trans will bolt up to the 2wd 5spd corssmember if you install the 2wd 5spd mounts onto the XT6 FT4WD trans.

#12 WJM

WJM

    SUBARU

  • Members
  • 7,828 posts

Posted 22 October 2003 - 06:32 PM

Well, something is wrong internally on the FT4WD trans....its stuck in 5th and the shifter is like its in neutral....so...i dunno whats wrong.

I did go get another XT6 FT4WD trans for $50. It will go in there if I dont figure out what the problem is.
