    newly acquired BRAT from McBrat many ?'s and parts request

    in Historic Subaru Forum: 50's thru 70's

    Posted · Edited by subiemech85
    forgot a line

    the A bar mounts using the engine crossmember bolts, andbolts to the bumper too.



    I think the glove box "strap" was removed for the AC install...



    the center vent issue may be fixed by looking at what the prev owner did when he put the switch in.



    I can show you how the jump seats mount in in a few weeks, when I get the reb brat back hopefully.



    does a gen2 trip meter knob work?



    ok



    that explains it



    how is it supposed to work?



    bolt in?



    small thread

    newly acquired BRAT from McBrat many ?'s and parts request

    in Historic Subaru Forum: 50's thru 70's

    Posted

    newly acquired BRAT from McBrat http://www.ultimatesubaru.org/forum/showthread.php?t=94177



    this is going to be a preservation / restoration / period upgrades



    many ?'s and parts request



    looking for: topper, hitch, tan horn pad - willing to trade gray, rear ash tray - black - for parking brake cover, trip meter reset button






    is there a way to turn OFF the center vents so they do not blow cold ambient air in the chilly winter? while still using them for "hot" air?






    how do the rear seats mount?



    round air cleaner box... is yours equipped with NISSAN flap motor and plastic air temp sensor controller?






    what is the metal box that looks like a relay under the driver seat for?



    is there an upgrade for the headlights, perhaps using h3 or similar bulbs?






    speedometer seems to be reading 10+ faster than actual with 165/13"

    what are you using for 13"?



    how to repair the cracked dash?






    is there supposed to be a strap for the glovebox door?



    reproduction carpet and vinyl for floor??



    wild idea: spfi intake boot for cone filter??

    carb top is round



    TURNING steeringwheel to full lock left, seems to want to suck itself in when almost all the way, is this normal? sure is convenient in parking lots and gas station



    how accurate is the fuel meter?



    seems more solid and rouger ride than gen 2 brat



    where does the A bar mount????



    more pics will be added once I buy a NIKON D60

    Subaru BRAT chassis under a VW beetle

    in Off Road

    Posted

    here's the formula:

    ea81 or ea82 engine, your choice

    4wd d/r 4 or 5 spd, your choice, 5spd is less problematic - and better power ranges, just use matching driveshaft due to length differences - or go custom driveshaft with the 5spd d/r to avoid the hanger bearing

    ea81 or ea82 or xt6 flywheel

    ea82 or xt6 clutch kit

    datsun 510 or subaru LSD, try to steal one back from "the dark side"

    avoid the Vlsd for your intended purpose :burnout:



    requesting more pics of brat and topper, confirm build date and serial number!!!!!

    does it say A69L??

    AC pulley removal?

    in Subaru Retrofitting

    Posted

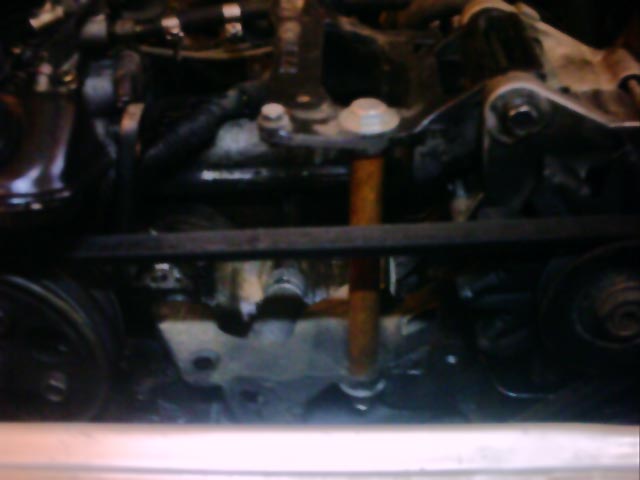

    remove compressor and install 5 1/2" long copper pipe and a bolt with washers and locknut





    " It is smack in the middle of where the belts need to go, can not NOT use it with it gone."



    you obviously are not trying hard enough!!! :rolleyes:


    flapper maf tuning

    in Old Gen.: 80's GL/DL/XT/Loyales...

    Posted

    Im considering this for saving space in the engine bay.

    Subiemech, these trouble codes out of which book?:popcorn:

    Im sorry if it insults you that i dont think you recalled those numbers from memory:lol: thanks for the numbers



    how will this save space?

    '85 xt service manual Publication No. G131BEA http://www.ultimatesubaru.org/forum/showthread.php?p=789677&highlight=g131%2A#post789677

    where else would the lenghty description come from?? :grin:

    flapper maf tuning

    in Old Gen.: 80's GL/DL/XT/Loyales...

    Posted

    trouble code 34 aspirated air thermosensor



    resistance between 00 and 0

    voltage between approx 4 and 0



    trouble code 21 air flow meter



    measure voltage between (us) (YR) (+) and ground (BR) (-)





    trouble code 14 air flow meter

    measure voltage between (ufix) (LY) (+) and ground (BR) (-)

    approx 5v



    measure voltage between (us) (YR) (+) and ground (BR) (-)

    is approx 1v when airflow meter flap is fully closed

    is approx 5v when airflow meter flap is fully open



    measure resistance between (us) (YR) (+) and ground (BR) (-)

    is approx 50 when airflow meter flap is fully closed



    measure voltage between (ub) (G) (+) and ground (BR) (-)

    approx 8v



    measure resistance between (ub) (G) (+) and ground (BR) (-) approx 300



    measure resistance between (ufix) (ly) (+) and ground (BR) (-) approx 200



    measure resistance between (us) (YR) (+) and ground (BR) (-) approx 50 to 500 from close to open





    adjusting spring tension should not make much difference when off boost!!

×
×
