I have a 1995 Subaru Impreza LX with Transmission Code: TZ102ZA3BA. This tranny is slipping and I’d like to replace it. I’ve been offered one from a 1997 Impreza Outback Sport Transmission Code: TZ102ZA5AA. Are these interchangeable? Thank you

Edit: Transmissions are automatic

Edited by RenoThrasher

Share this post


Link to post
Share on other sites

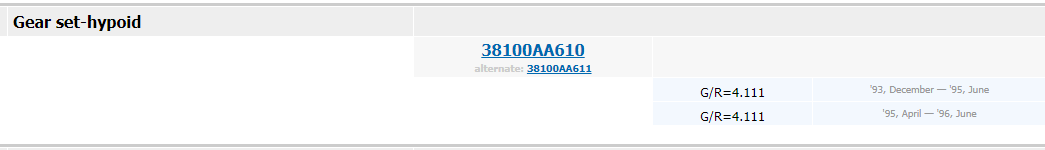

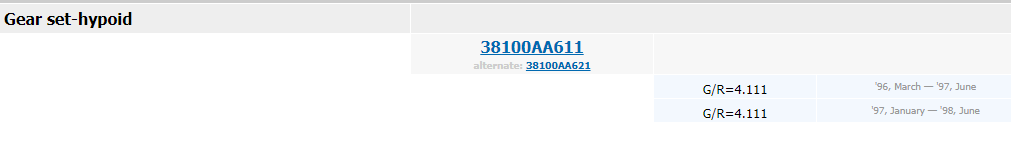

Per the attached from opposedforces.com they should both be  (G/R) 4.111.  They're both running the EJ22 / 2.2.



One thing is Subaru changed the rear diff's flange bolt spacing around '95, so that 'could' be a gotcha, too.2012322462_1995ImprezaLXFDR.thumb.PNG.5d75973e1797eaa0a05ef57feb5b701d.PNG1206520891_1997ImprezaOBFDR.thumb.PNG.80a8576a3a390a87cdd71f1257d1a088.PNG

Edited by wtdash

Share this post


Link to post
Share on other sites

Sort of on topic:  would a '99 5MT from a 2.5L DOHC fit behind a '96 2.2L?  How about a '01 4EAT from behind a 2.2L to go into a '96 2.2L?



More generally, is there any kind of chart that shows which lego pieces interchange? It looks

Share this post


Link to post
Share on other sites

Hi,

Please start your own thread so not to Hijack....since your ? isn't related to this.

To answer:

The '99 5MT should be fine, but note you'll need to change the Rear Dif to match the trans (should be 4.11).

'01 is PHASE 2 and not compatible w/Phase 1 (pre-'99) stuff. It'll bolt up, but the electronics are different and your TCM/TCU can't control it...and nope...can't just swap the TCU either. :-(

p.s. the 5MT doesn't care (as much) about Phase 1 vs. Phase 2, but you may still need to change the speedo cable connection, Neutral safety switch and Reverse switch to match the '96 system.

Edited by wtdash

Share this post


Link to post
Share on other sites
