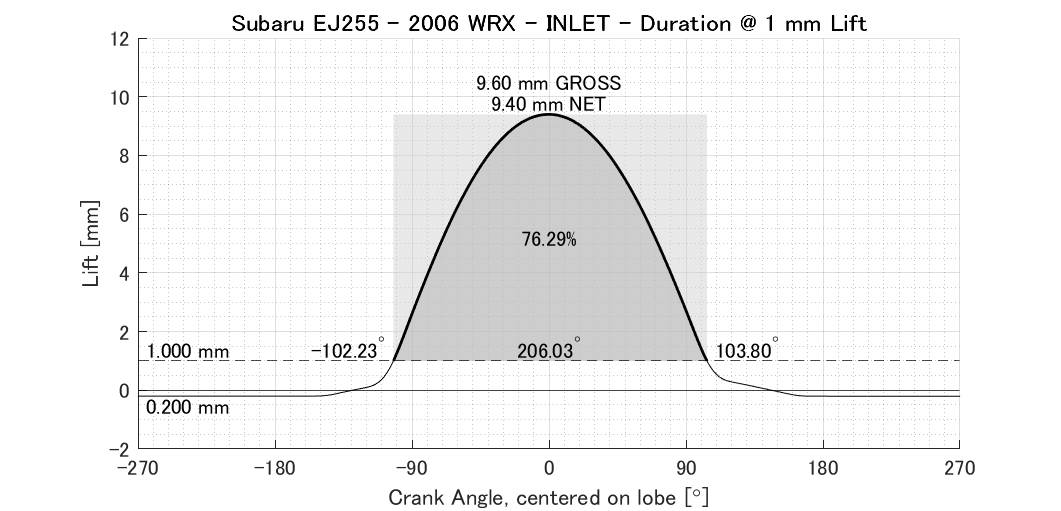

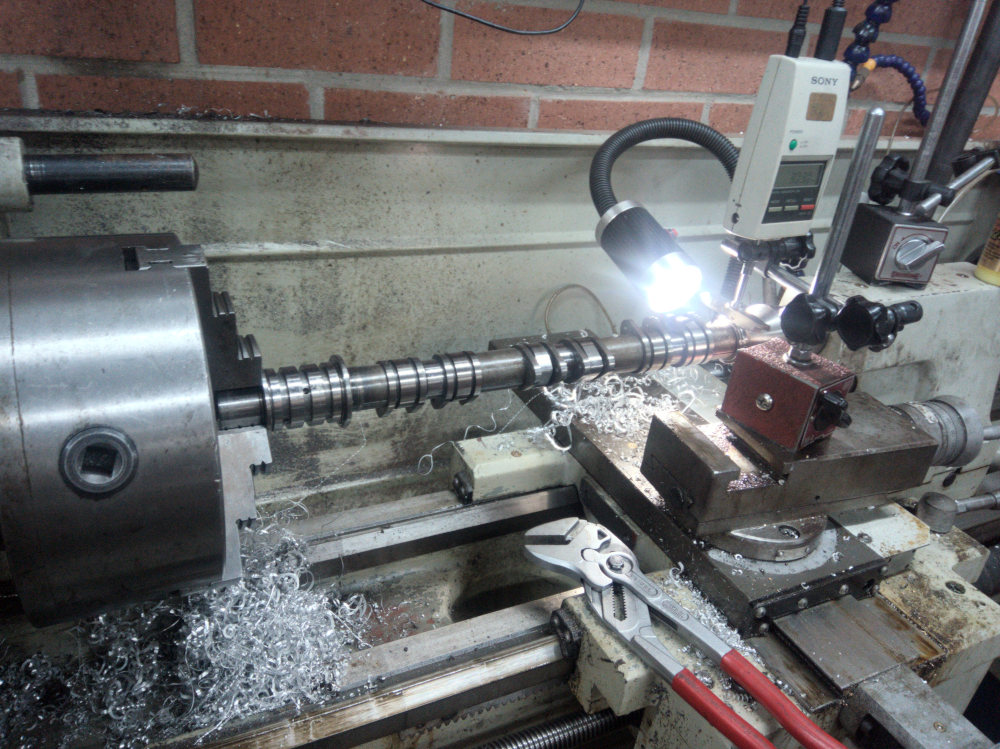

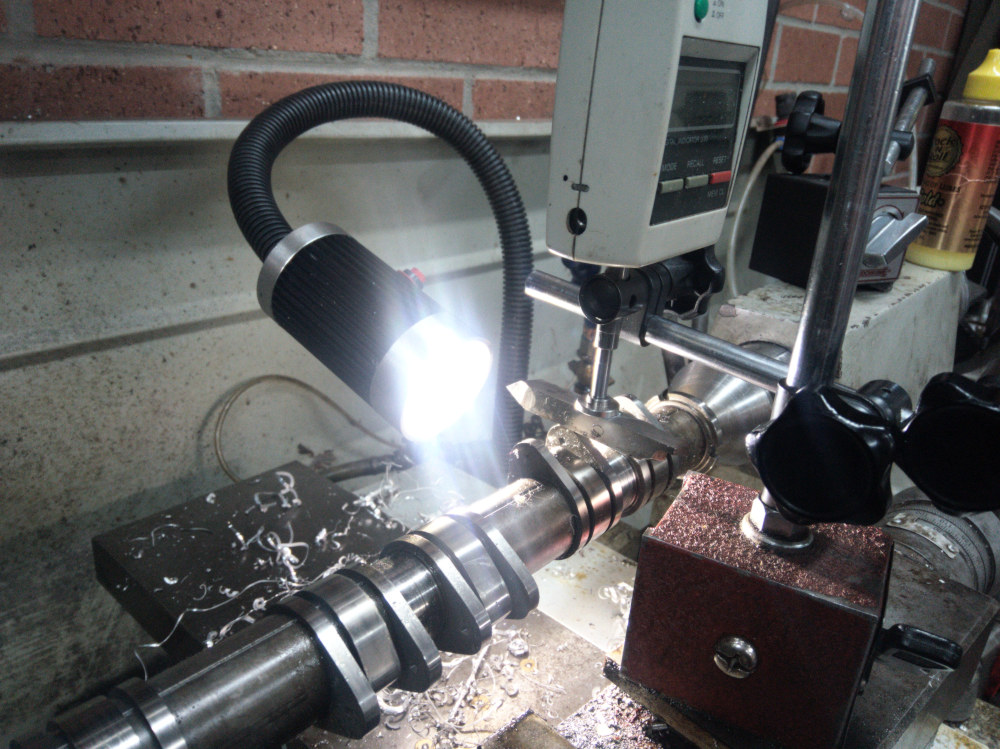

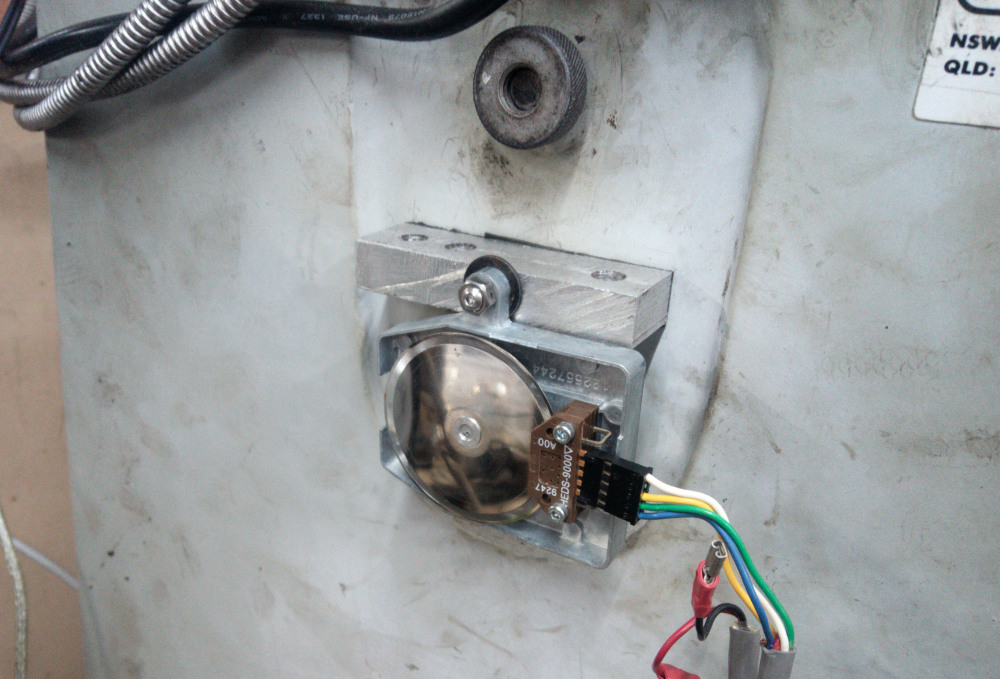

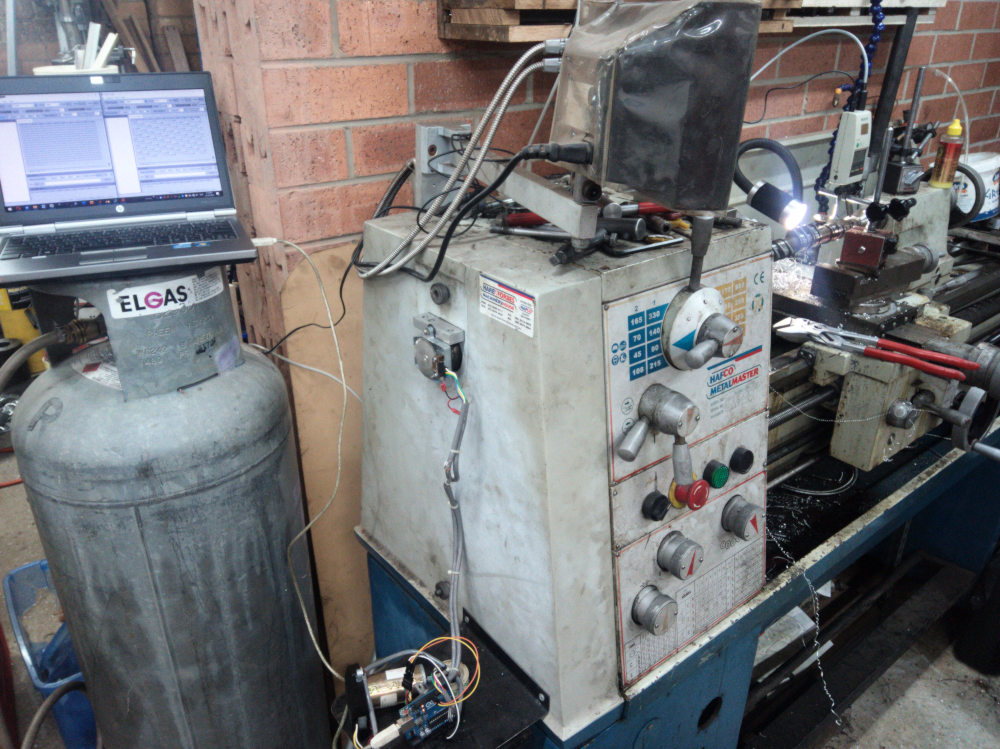

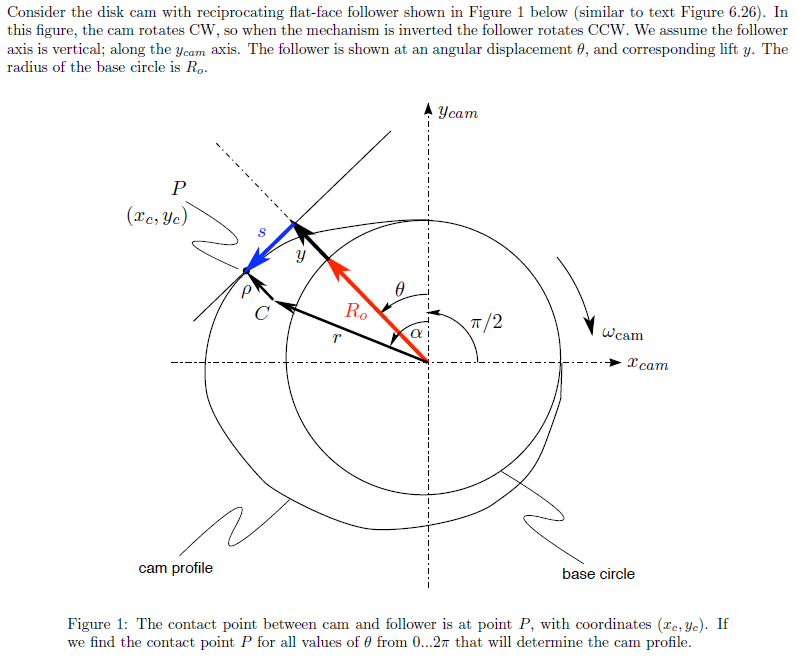

MEASUREMENT METHOD The cams were mounted in a lathe with a 2000 point optical encoder attached to the back of the headstock. A digital indicator with micron accuracy was mounted to the carriage as rigidly as possible. The encoder and the digital indicator were then logged against time, data transfer being achieved via RS232 serial. The indicator outputs its screen reading in its own format at roughly 10Hz, and the encoder at around 50Hz in plain ASCII. Measurements were then merged with respect to time after the measurement was completed. Using the one PC to log both data streams ensured that data timestamps are not offset. The cam was rotated as slowly as possible, approx 1.5 RPM. A number of rotations were logged and averaged together to improve signal to noise. The measurements were taken with a flat face follower. This has a number of advantages: 1) The inlet cams for the EZ30D and EJ255 engines as well as all exhaust cams fun using flat faced buckets, so no transformation needs to occur to get actual valve motion 2) Side loads on the dial indicator is minimized. This minimizes friction and deflection in the measurement setup 3) The measurement is (theoretically) unaffected by an offset between the centreline of the indicator and the centreline of the cam. This removes one source of inaccuracy and makes setup easier. The indicator only needs to be roughly in line with the cam The main disadvantage is that a flat follower cannot be used on a cam with concave sections, ie undercut. This is not a problem for the EZ30R cams, as using the reflection of a point light source against the ground surface while the cam is rotated shows that all sections of the cam are convex. Therefore a flat faced follower can be used, despite the engine using curved buckets. The curvature of the EZ30R bucket was estimated by mounting the bucket in a milling machine and dragging an indicator across the follower surface. Two micron accuracy indicators were used for this giving XY coordinates that an arc could be fitted to with least squares. I did this a long time ago, and do not have images. THE MATHS To transform the measured flat follower motion to that of a translating roller follower, the lobe profile needs to be calculated and then a geometric offset applied equal to the radius of the follower. The lift for a given angle of cam rotation is then simply r – base circle diameter/2 - roller radius when converted to polar coordinates. This is the best explanation of flat face follower kinematics that I’ve found to date. Props Dr Starr. This is the foundation for generating the lobe profile from the flat face follower lift coordinates http://www.me.unm.edu/~starr/teaching/me314/camprofile.pdf The dependency of the cam profile on the derivative of the lift measurement makes noise rejection / smoothing very important. Derivatives greatly amplify noise, and if too much noise is present the lobe curve begins to self intersect. Smoothing however rounds off features like the ramp transitions, so there is a balance. Obtaining low noise measurements in the first place gives the best chance of getting a clean lobe profile with an acceptably low amount of smoothing. Other considerations: 1) Run out correction. With no run out, the measurement of the base circle should be constant. If there is run out, the measurement will be a sinusoid at the frequency of once per revolution. To correct for run out, fit a sine curve,, to the measurement of the base circle and subtract it from the entire measurement. 2) The indicators have a small delay between taking a measurement and beginning a transmission of the reading, which when merged with the encoder measurement with respect to time, leads to noise in the measurement. The arduino begins transmitting the encoder reading almost instantly. By experimentally adjusting the time offset over a long measurement to minimise noise, the delay in the indicators was estimated to be around 22ms.

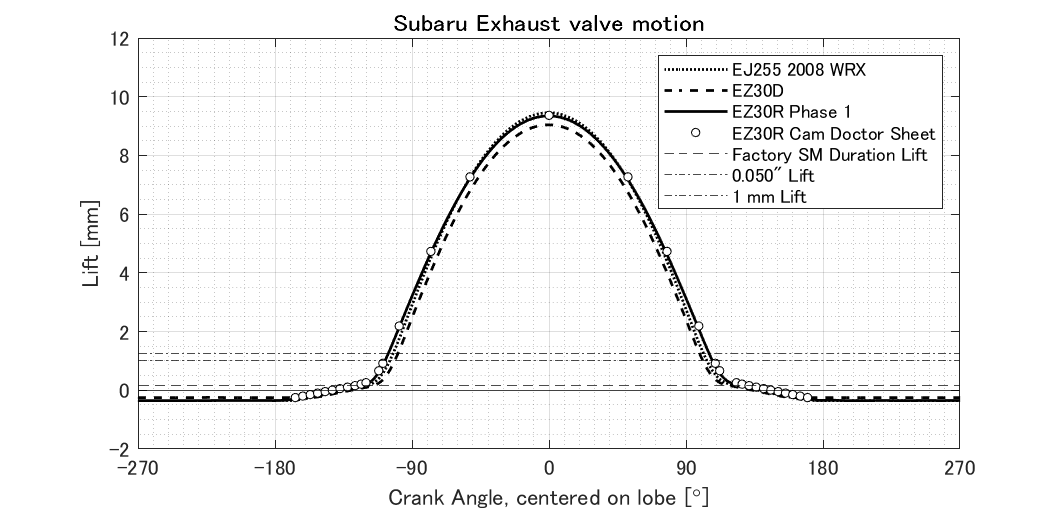

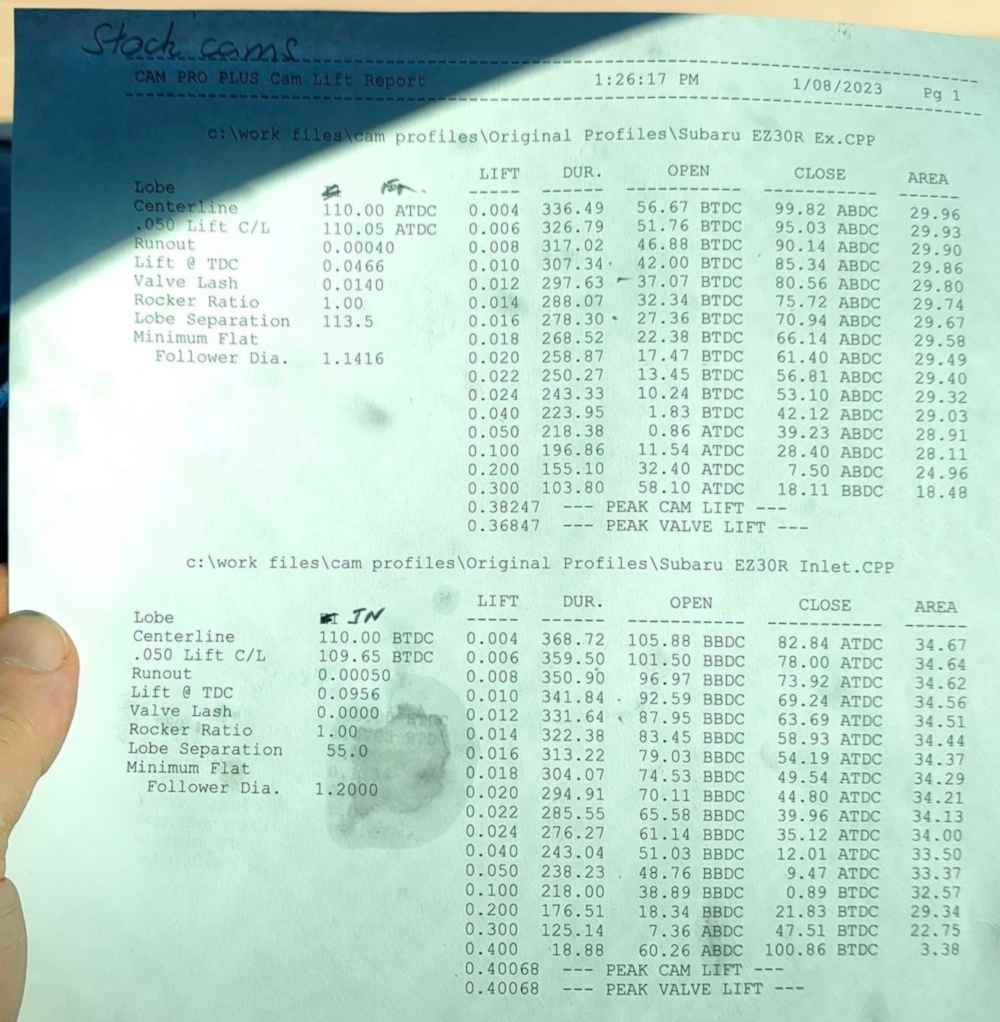

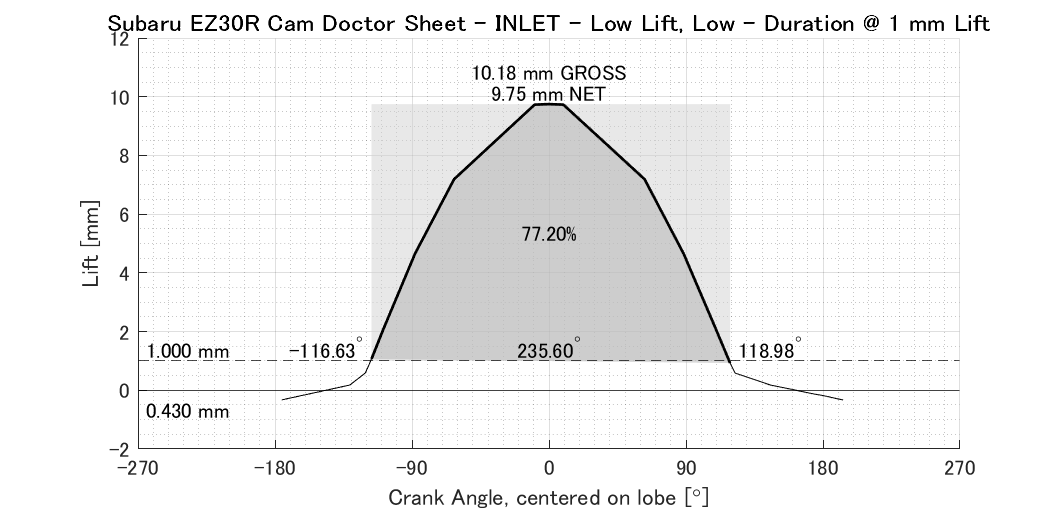

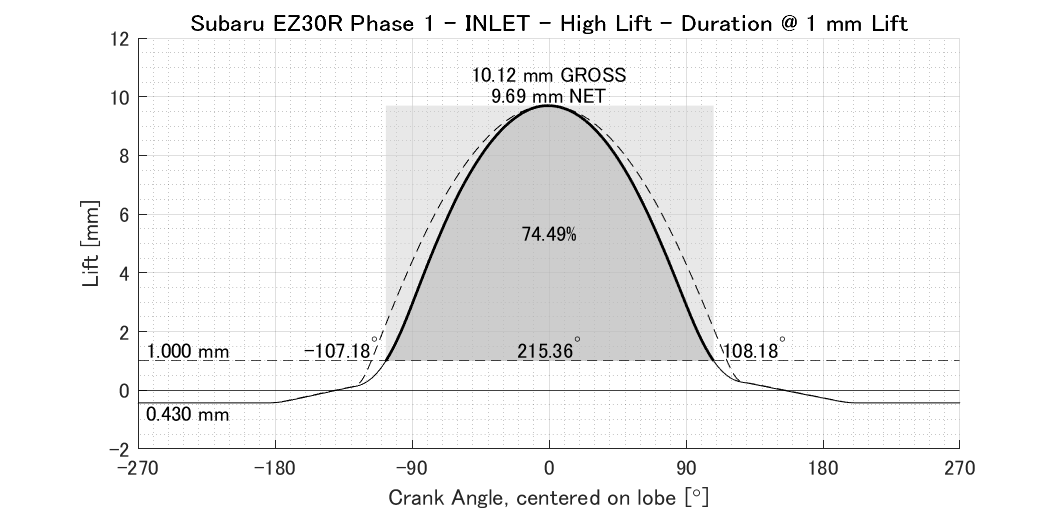

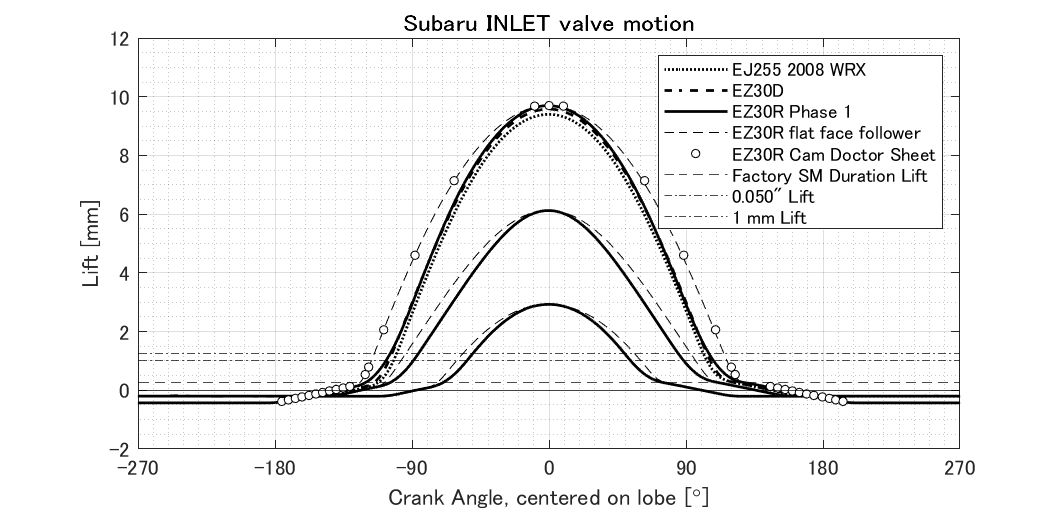

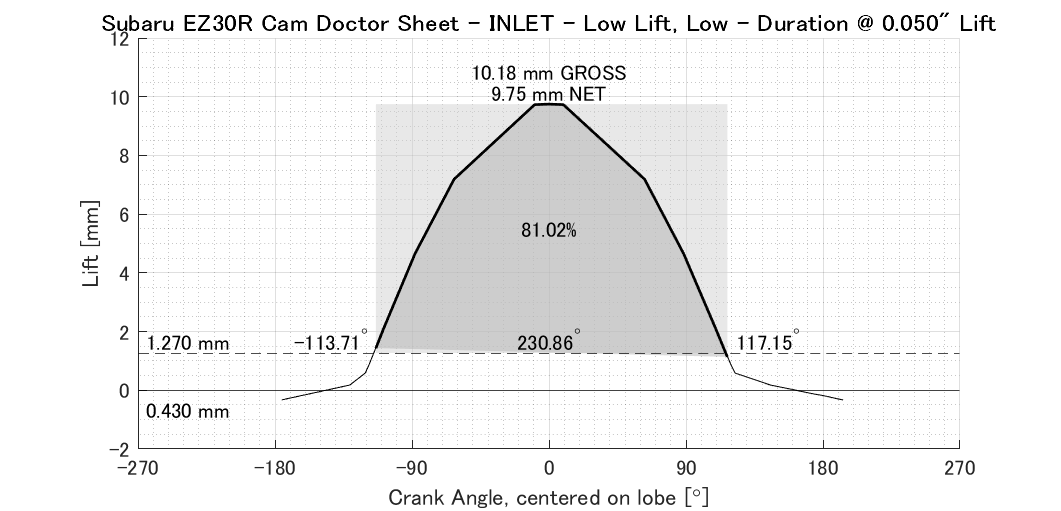

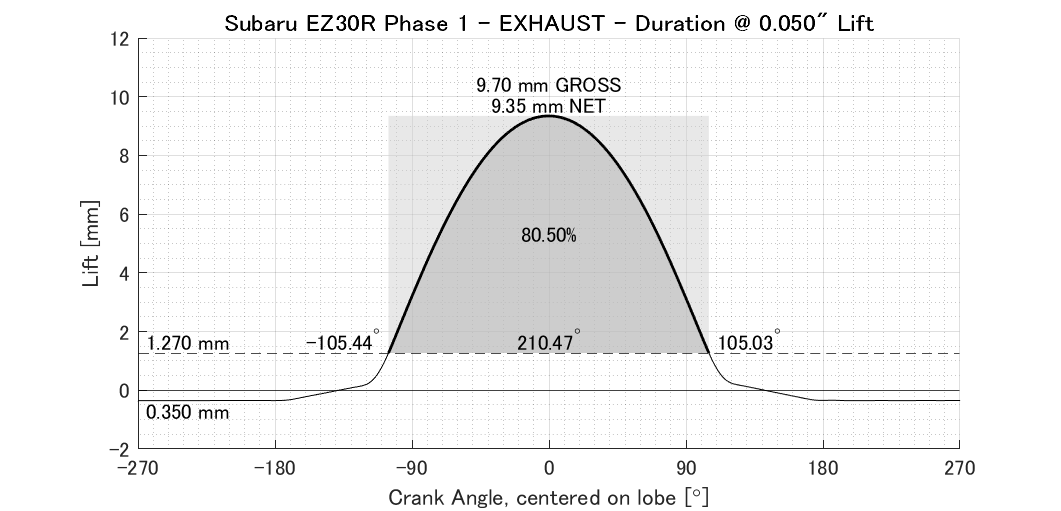

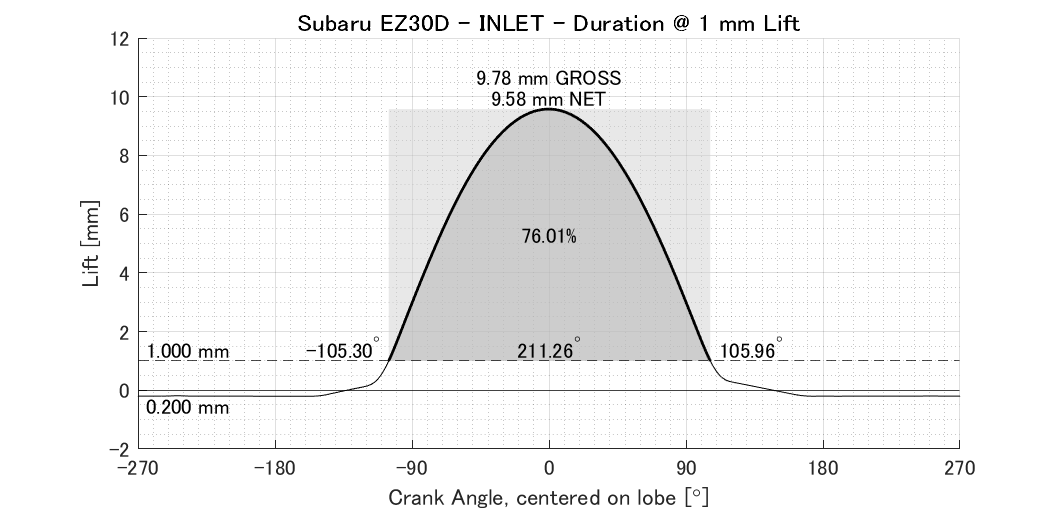

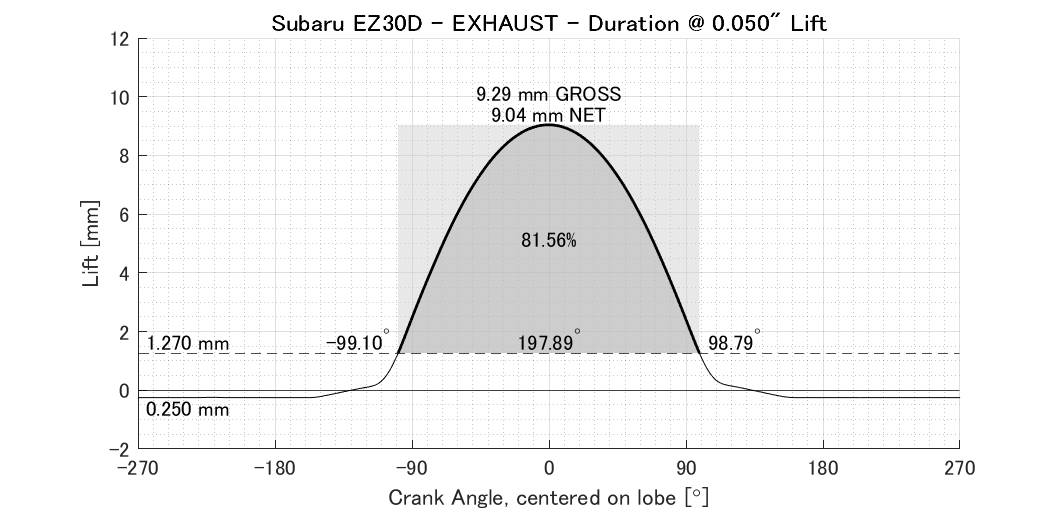

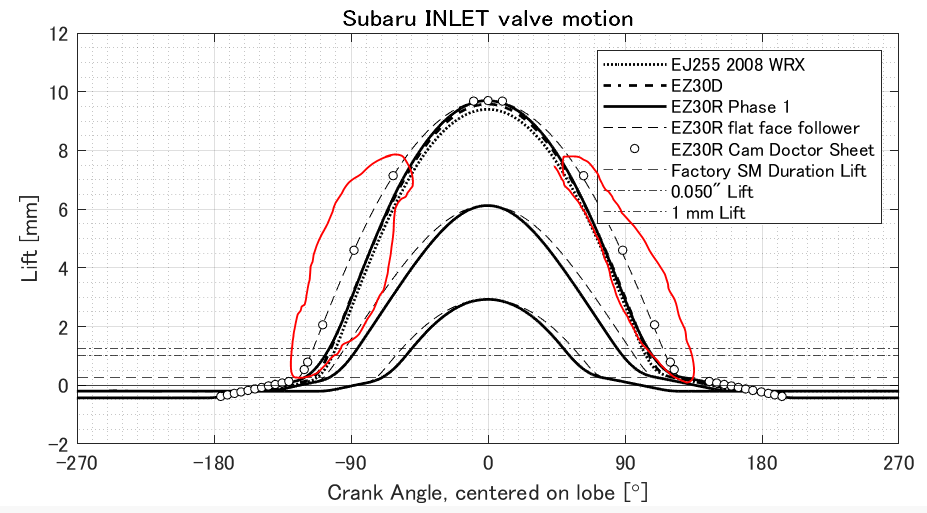

CAM DOCTOR SHEET There have been a cam measurement sheets getting around. The example posed is from a H6 facebook group. It is unclear from the text what follower shape was used for measurement, but the duration specs seem suspiciously large. Plotting this data over the top of the corrected results, it is clear that the Cam Doctor measurement was taken with a flat follower and that no correction for the curved ALVS follower was applied. This exaggerates the measured duration of the cam. In reality, the EZ30R has remarkably similar cam design to the preceding EZ30D and the EJ255 The 'CAM Doctor' Exhaust Measurement seems accurate.

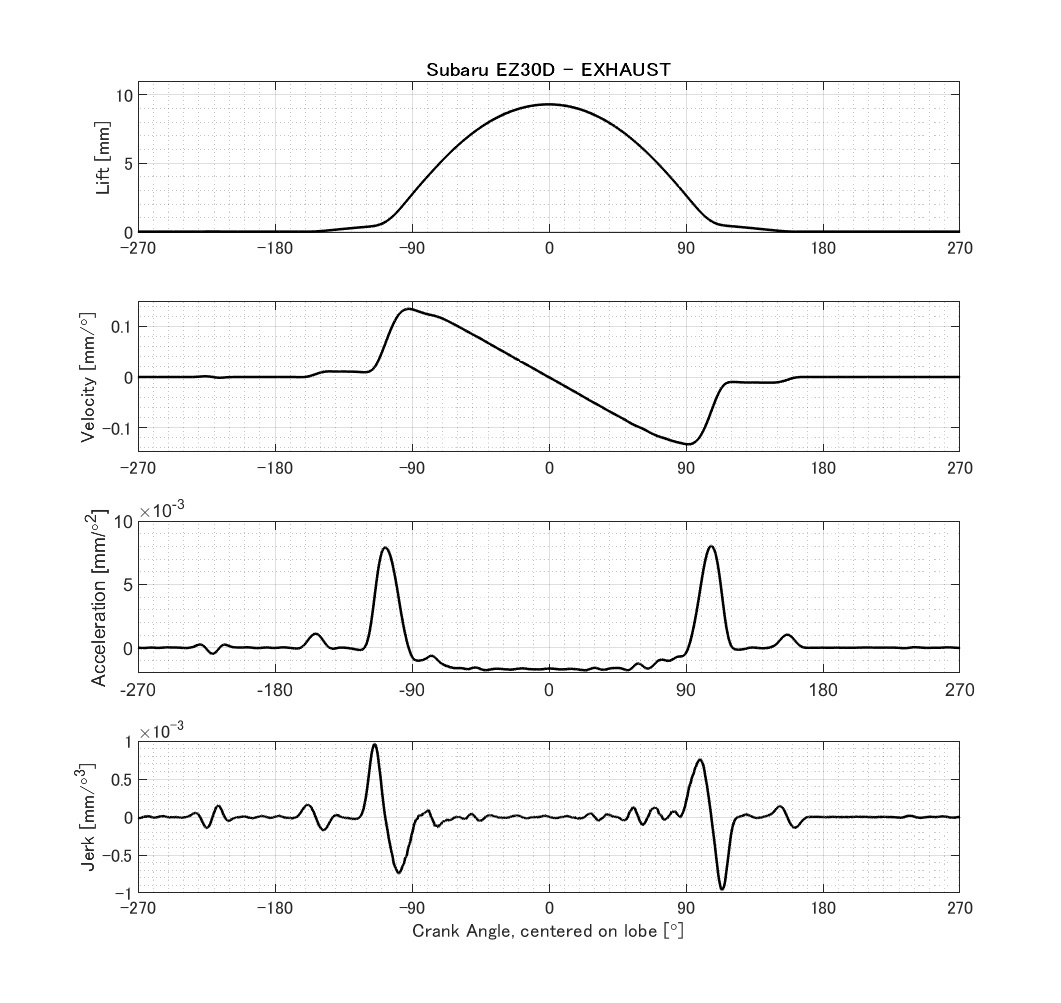

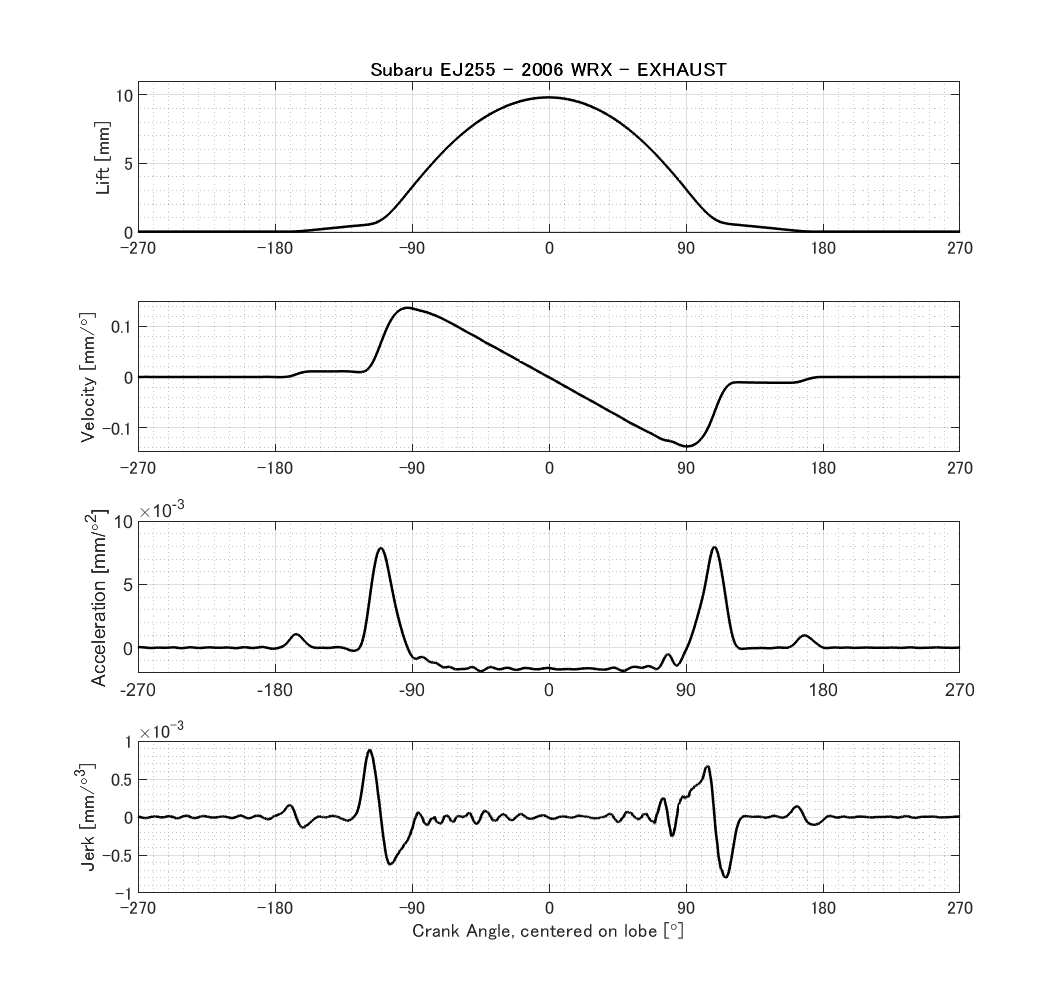

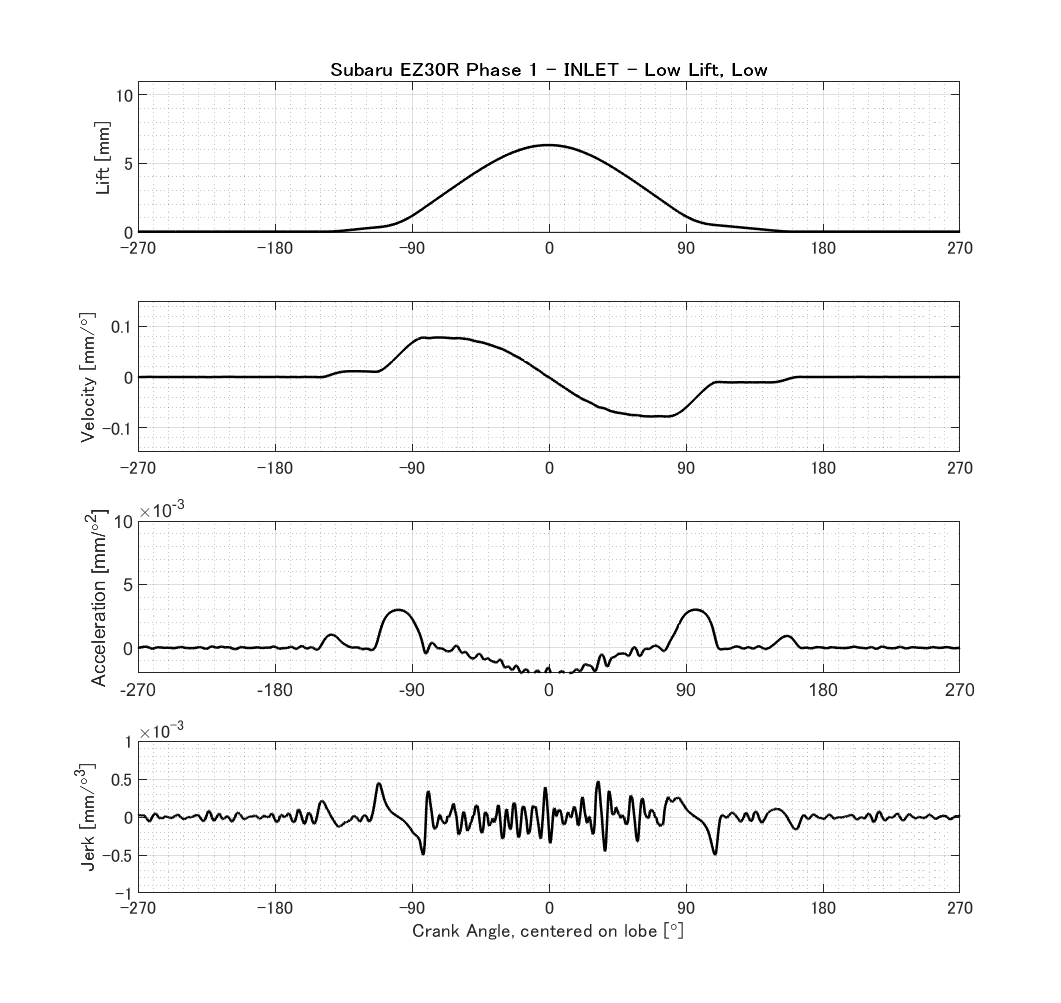

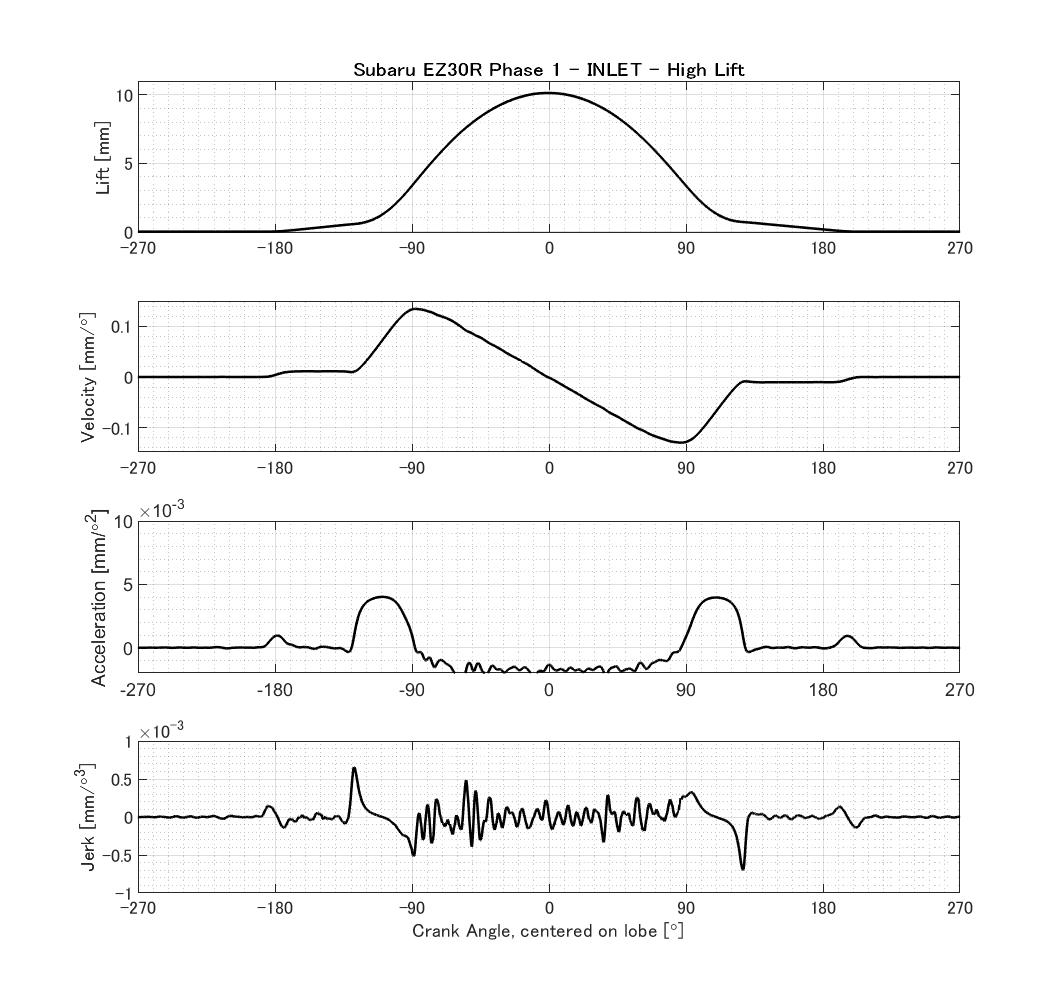

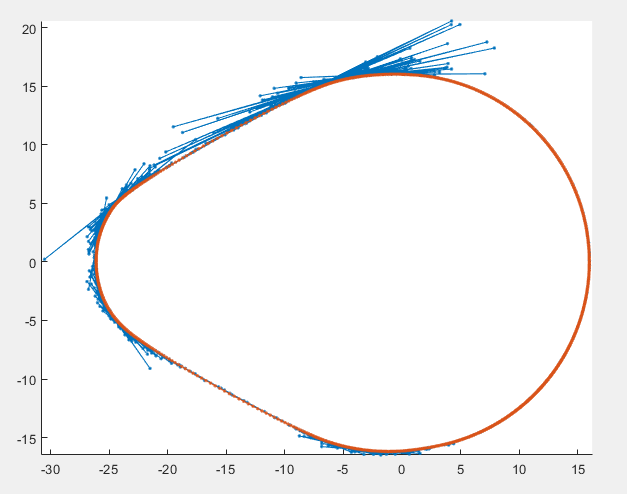

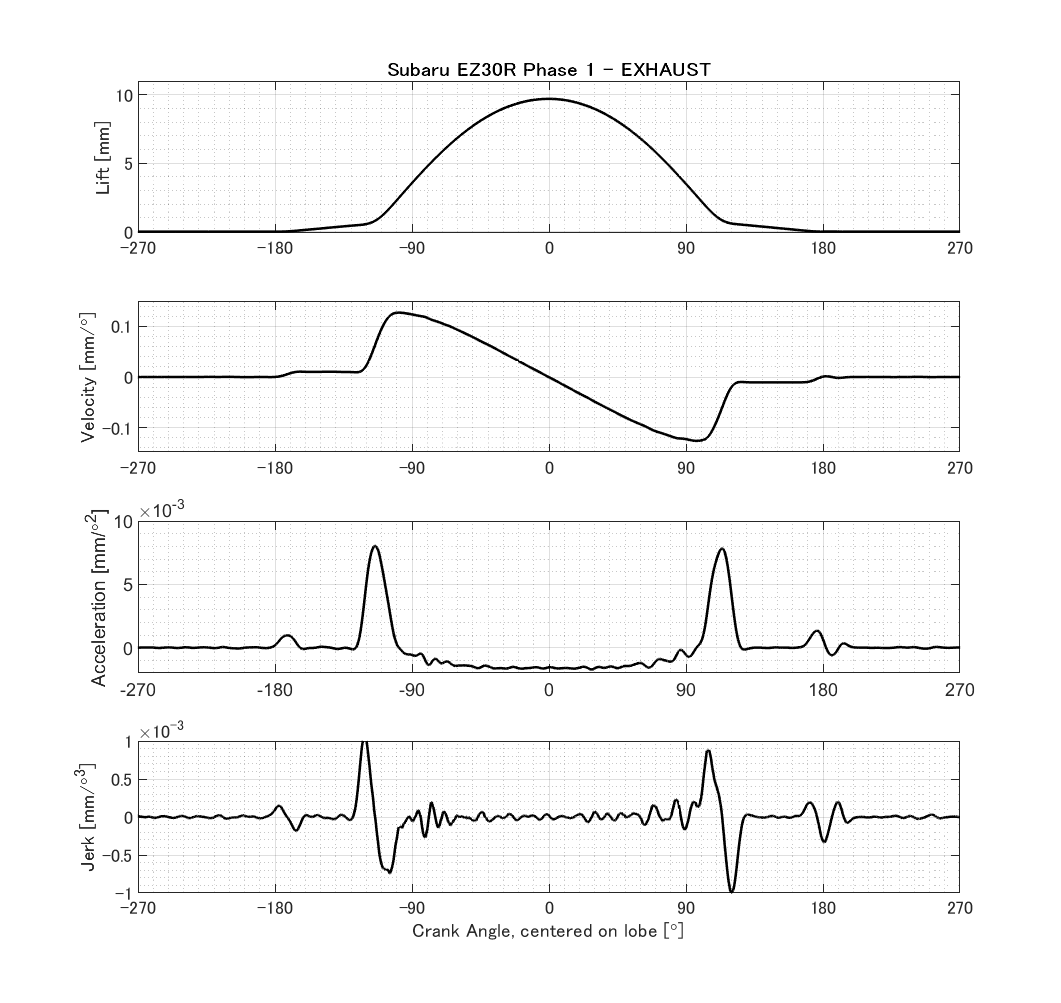

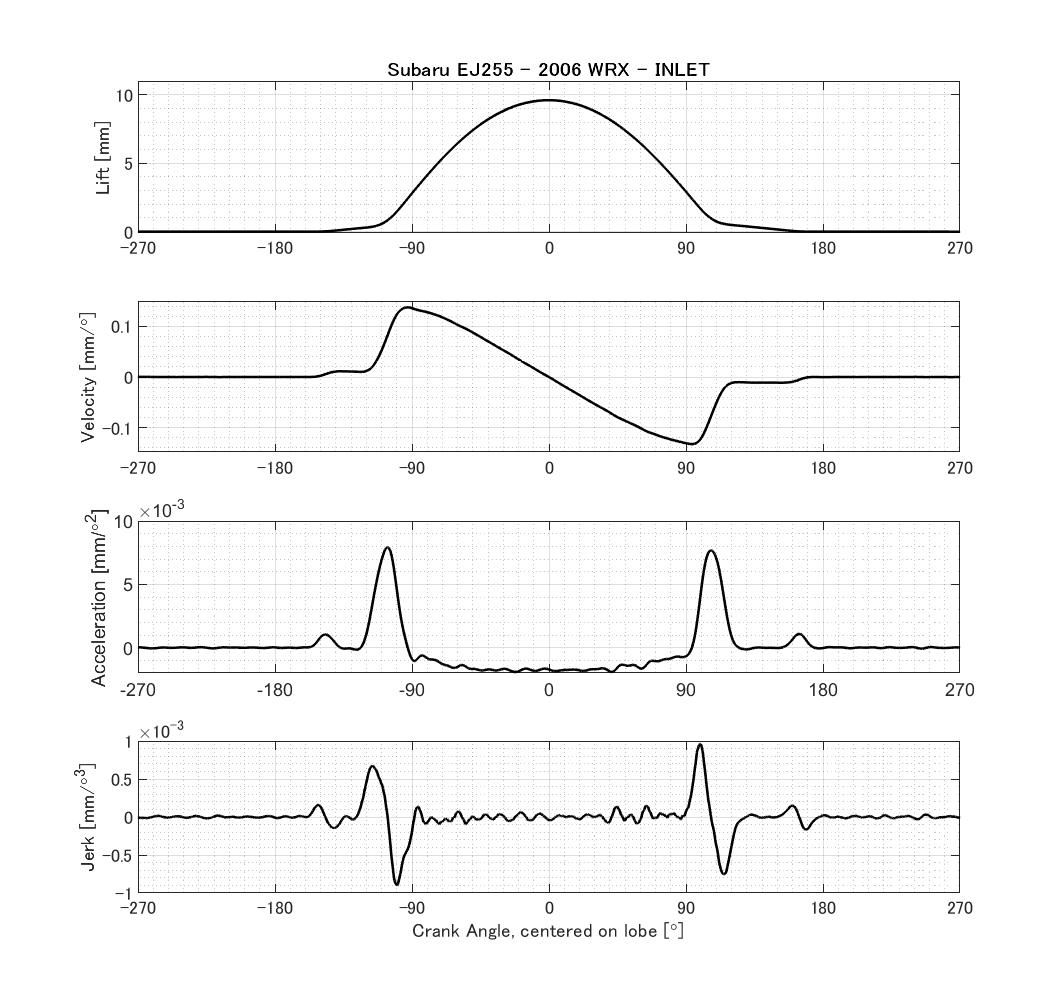

VELOCITY AND ACCELERATION PROFILES The measurements were detailed enough to give reasonable insight into the higher derivatives. The EZ30R cams appear to be less aggressive in terms of peak acceleration. Peak negative acceleration is the biggest determinant for required valve spring rate, along with valve train mass. It can be seen that all three engines are quite similar.

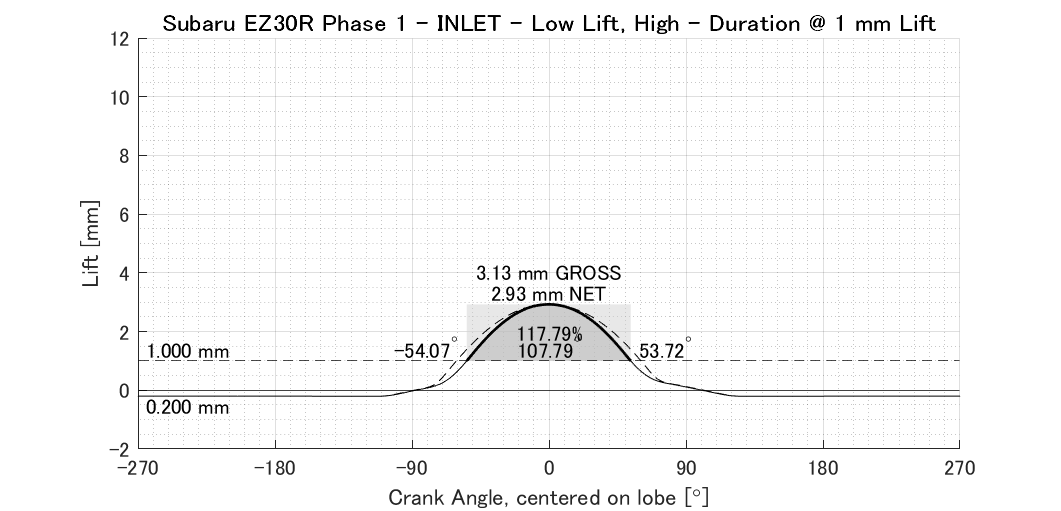

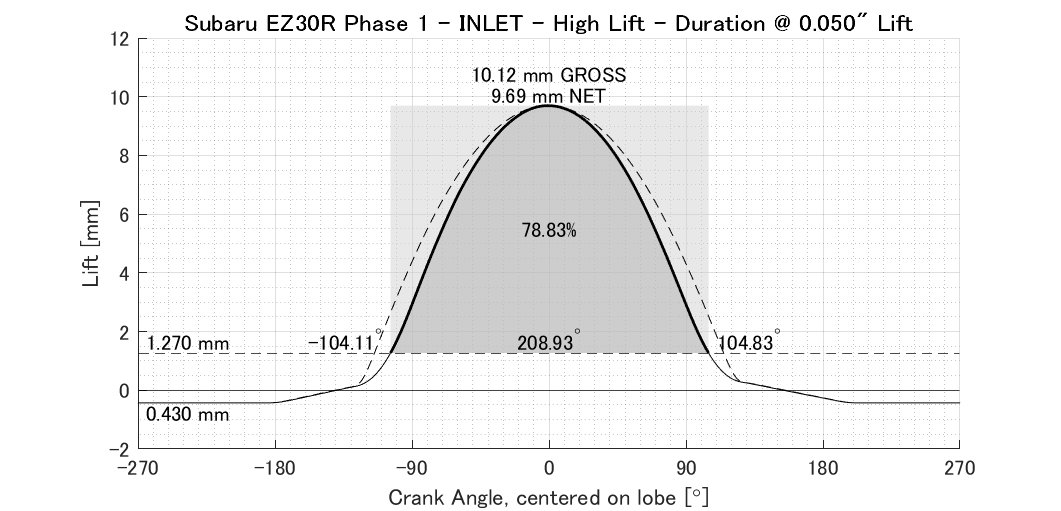

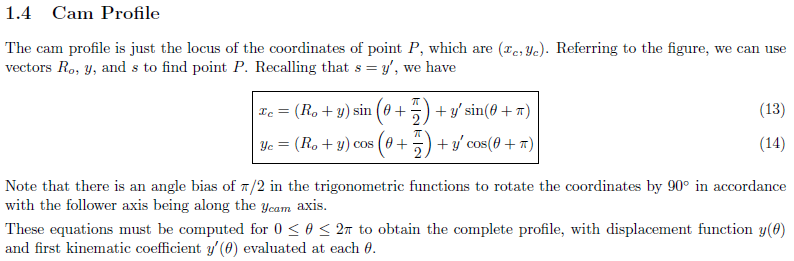

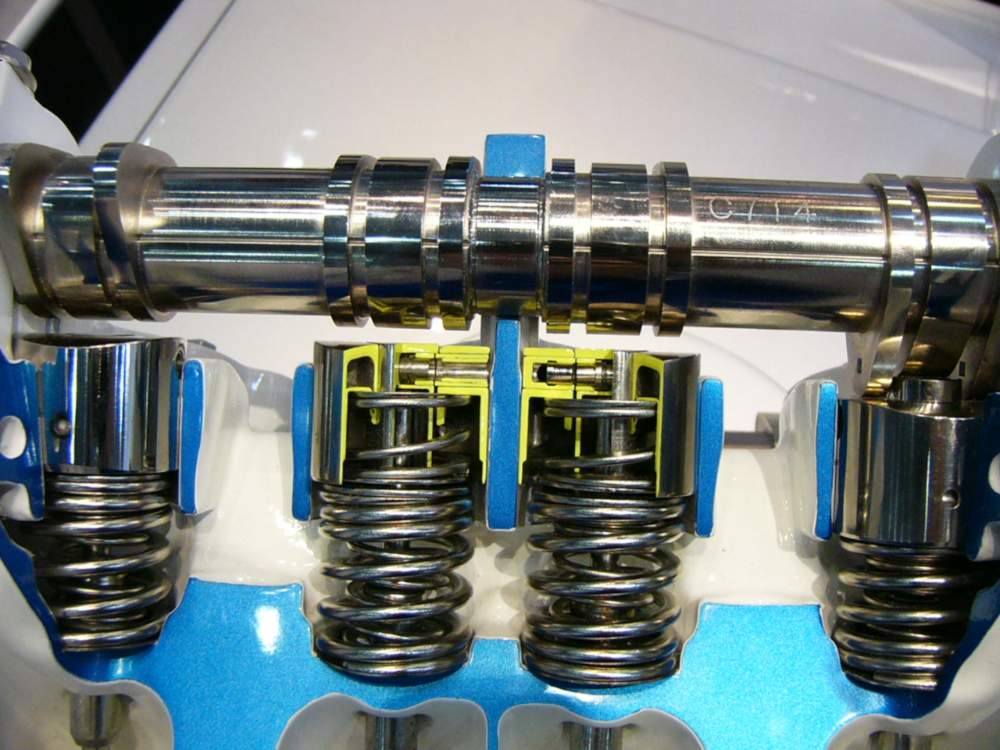

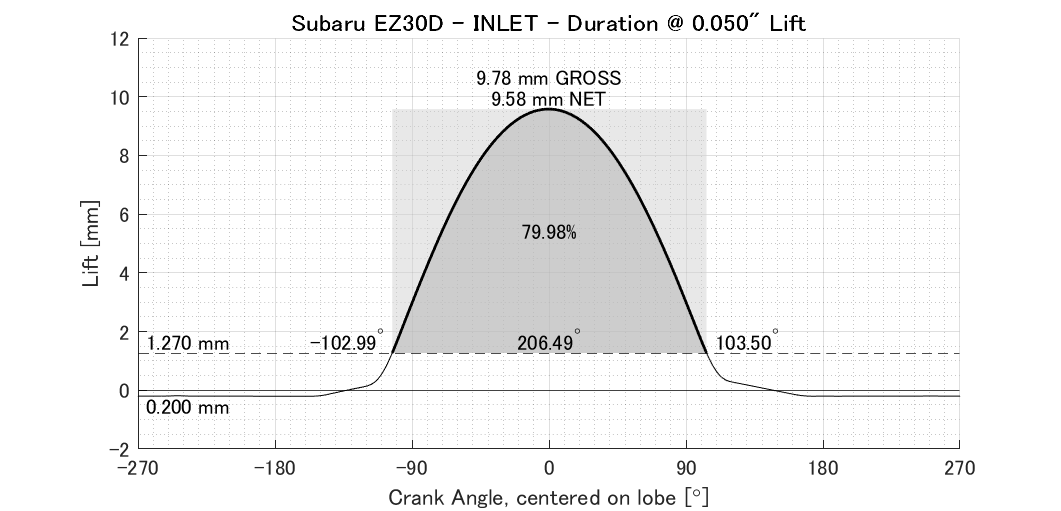

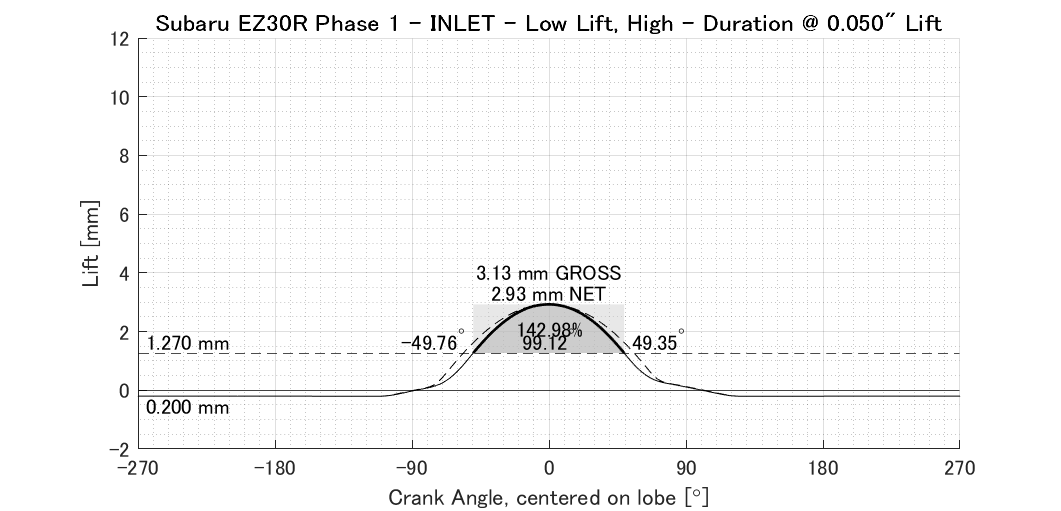

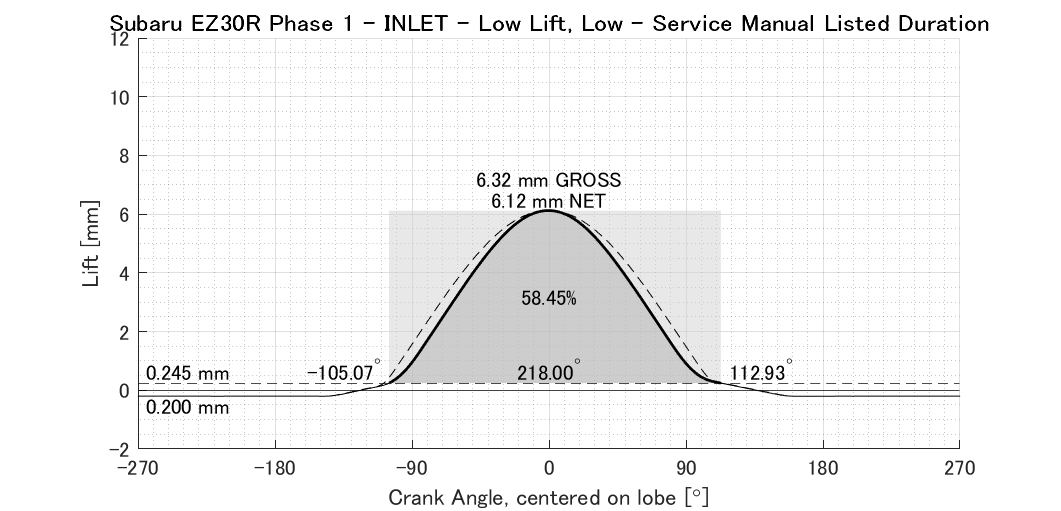

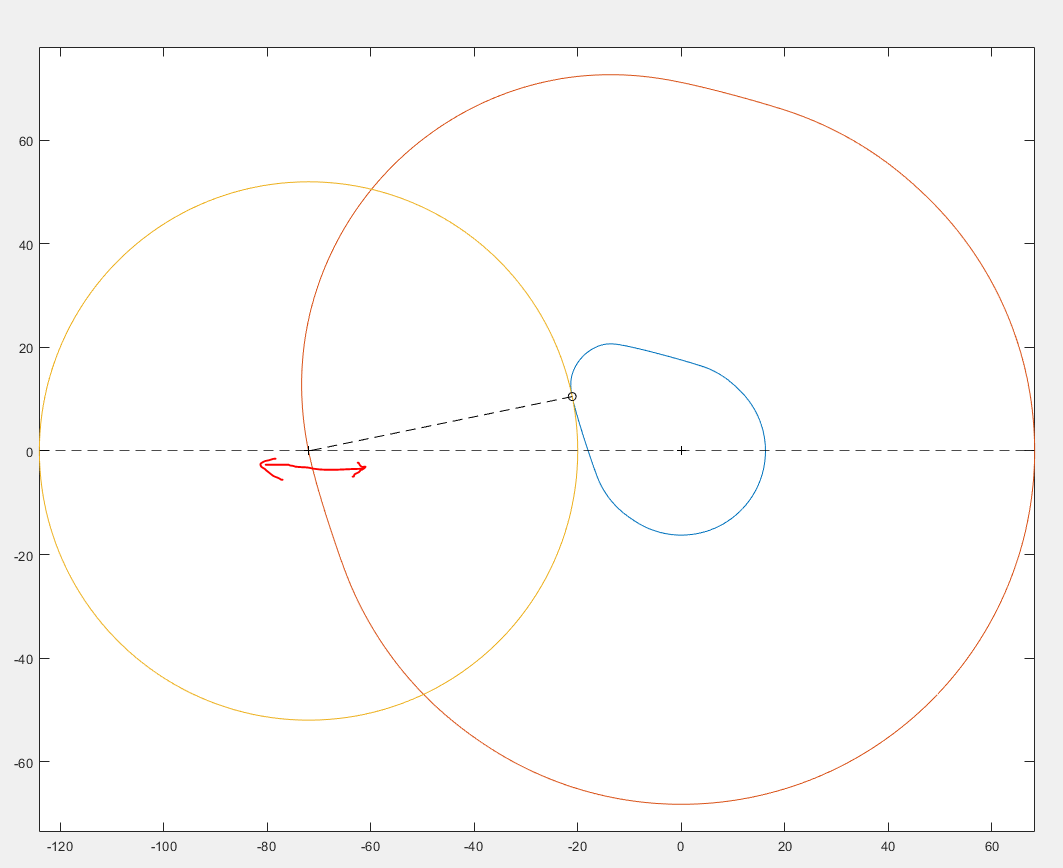

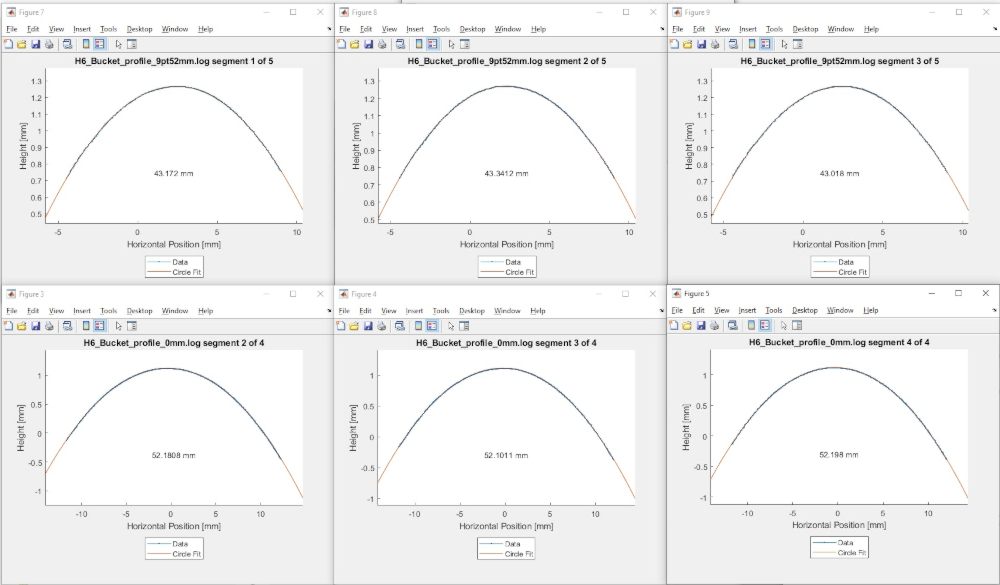

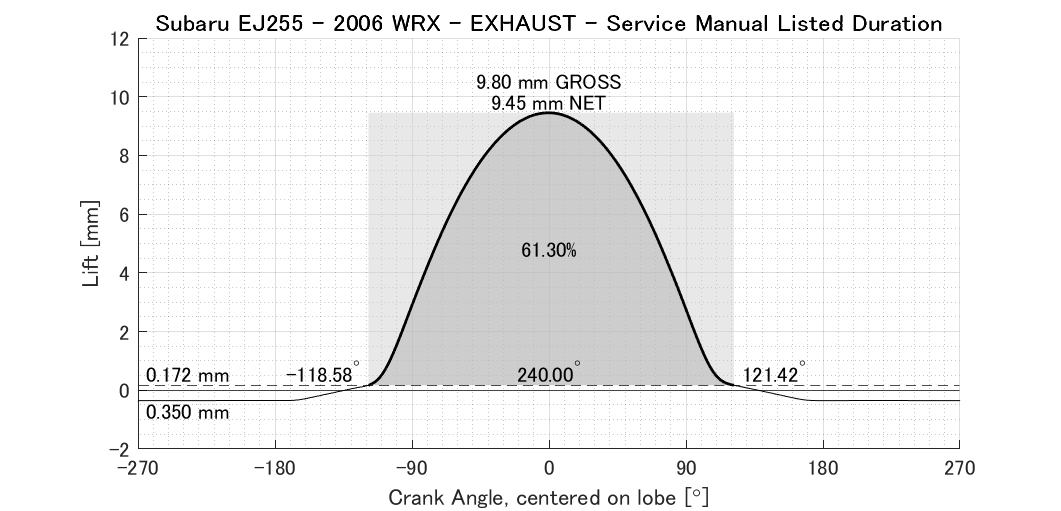

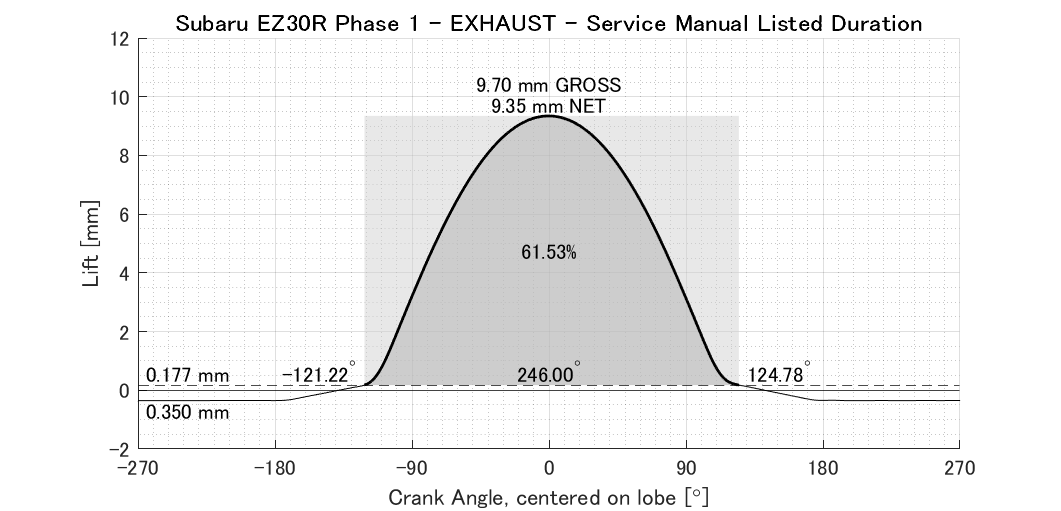

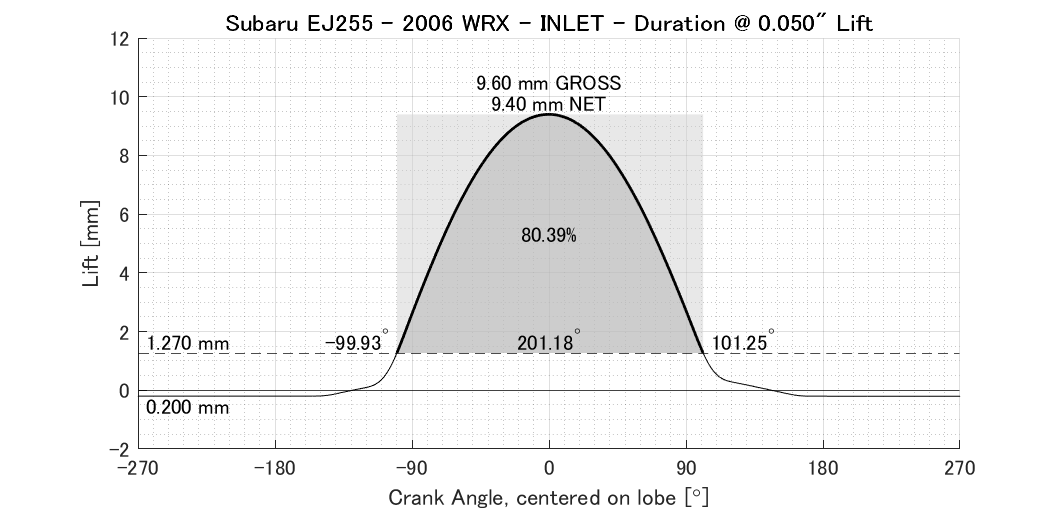

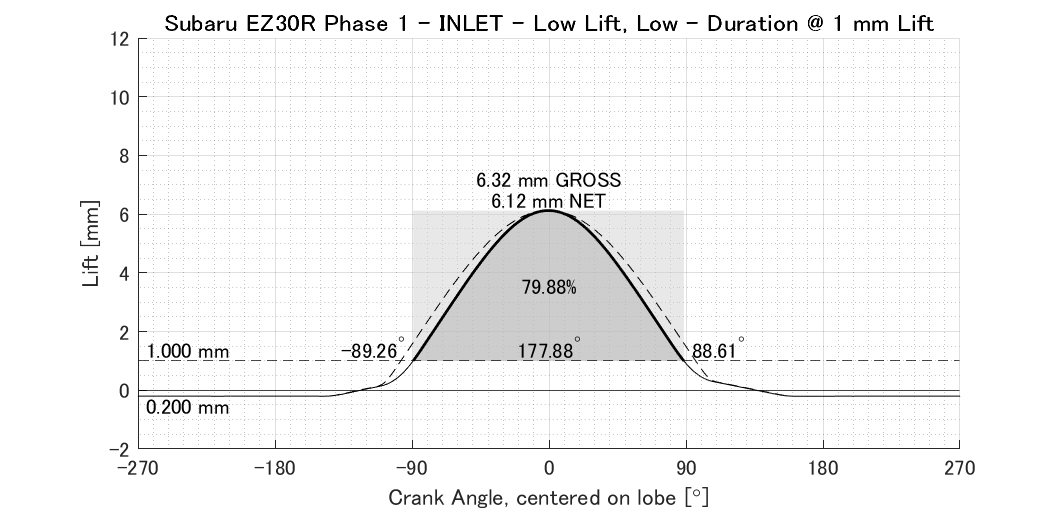

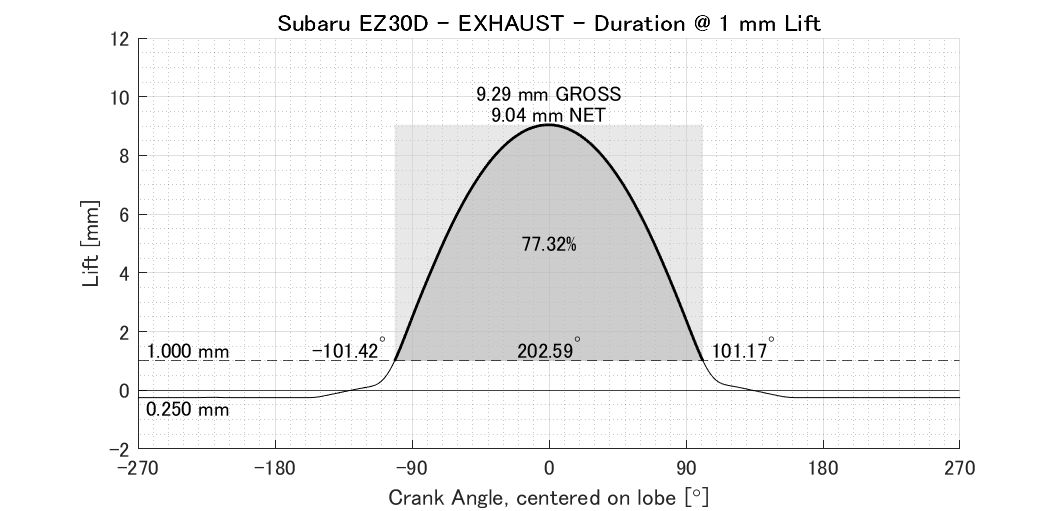

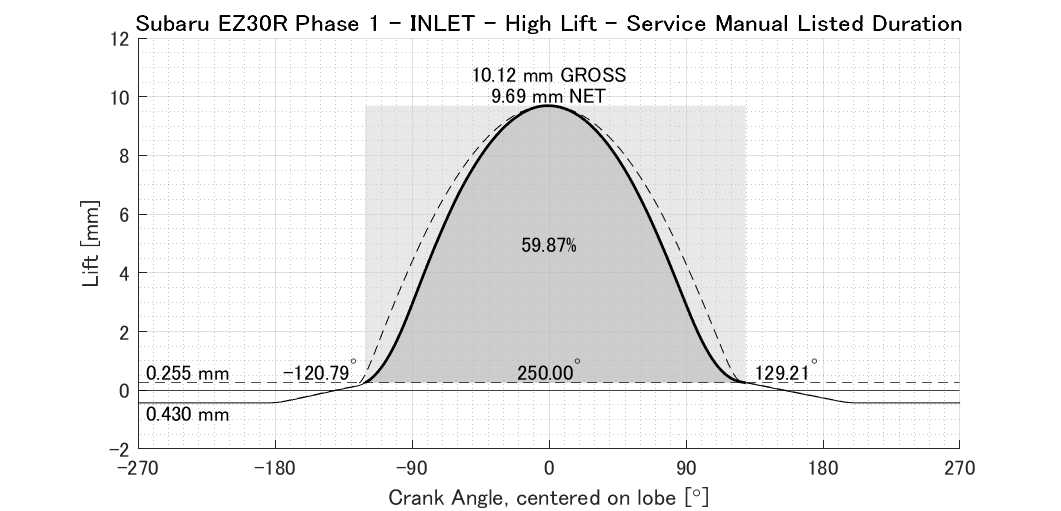

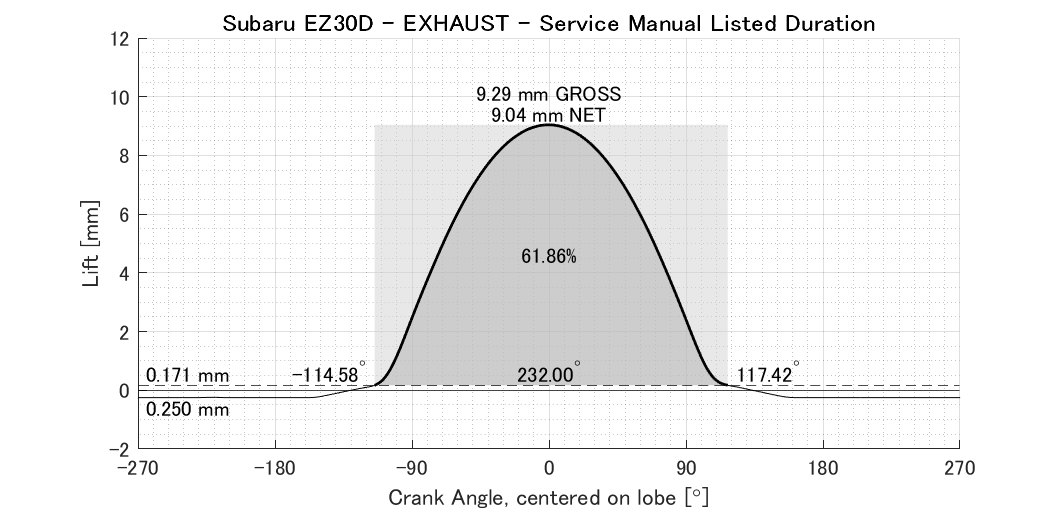

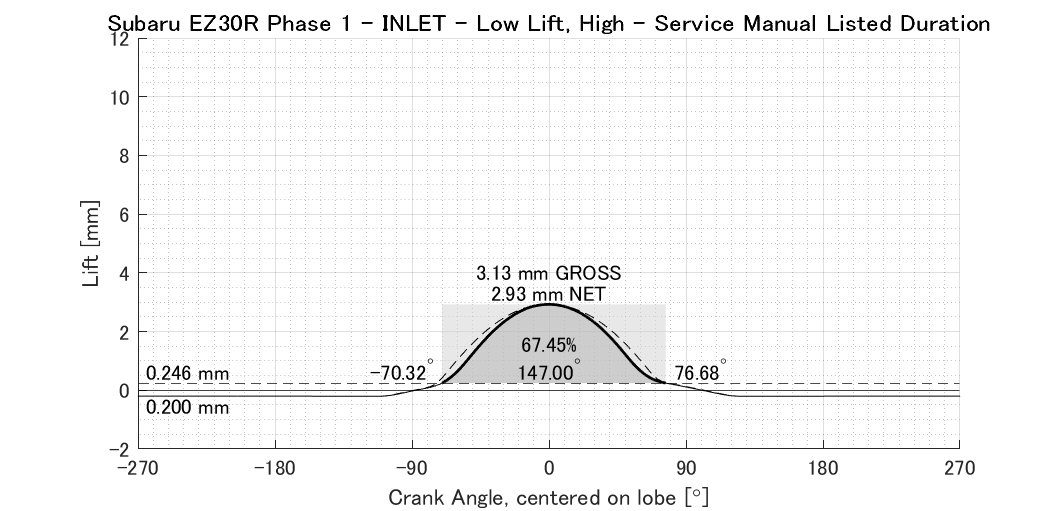

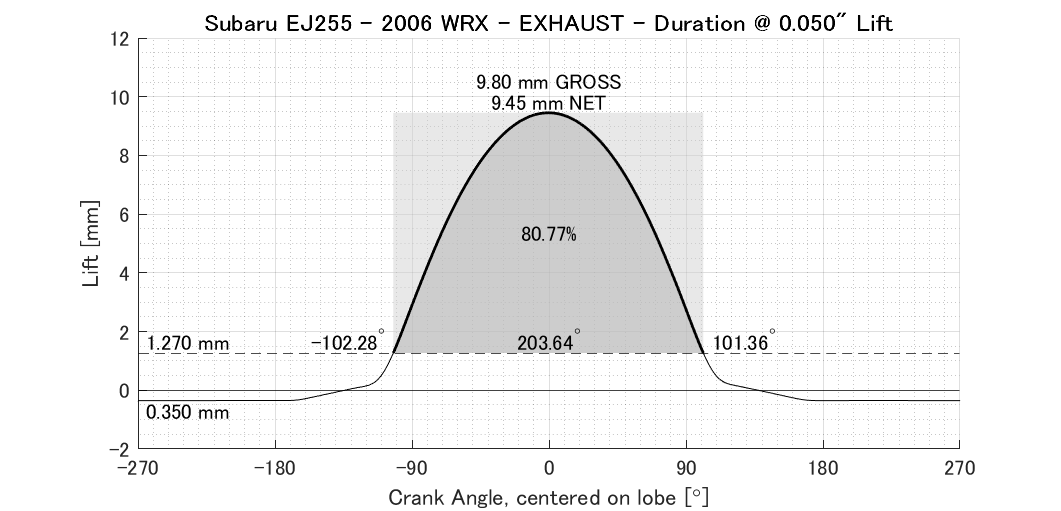

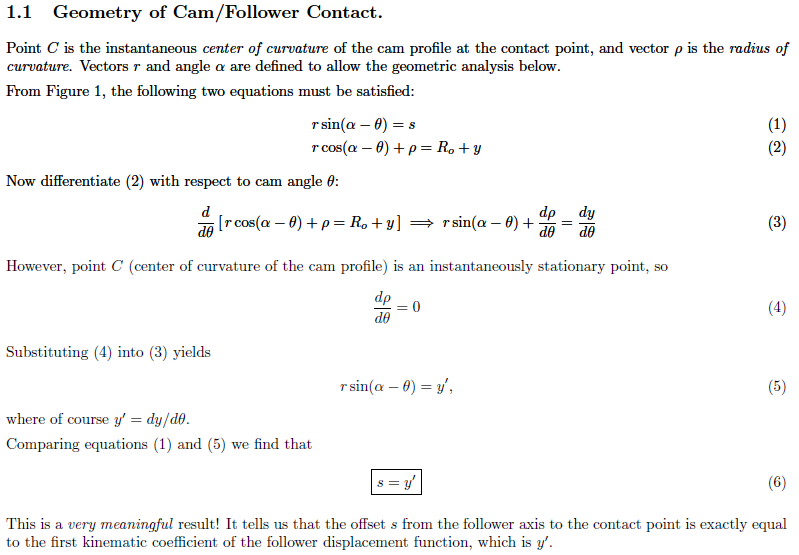

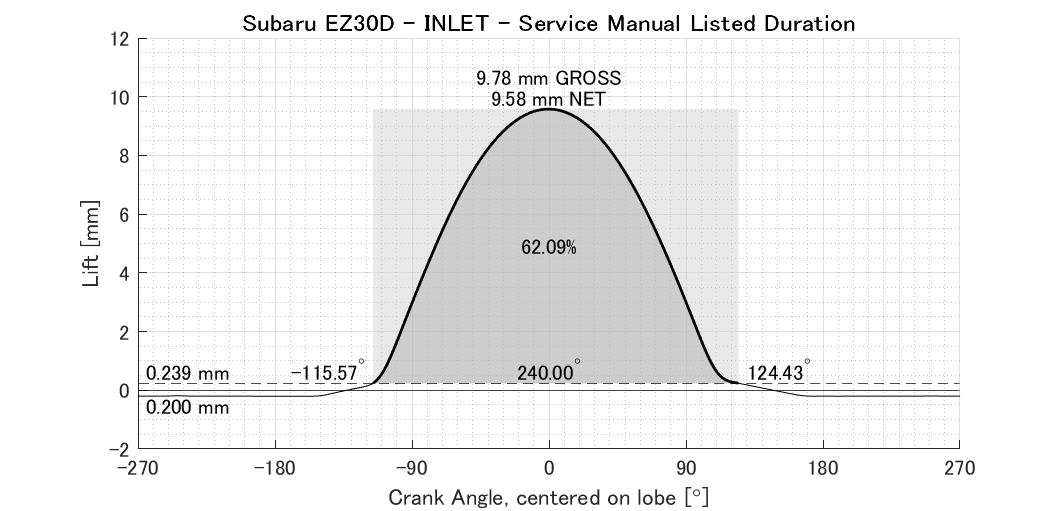

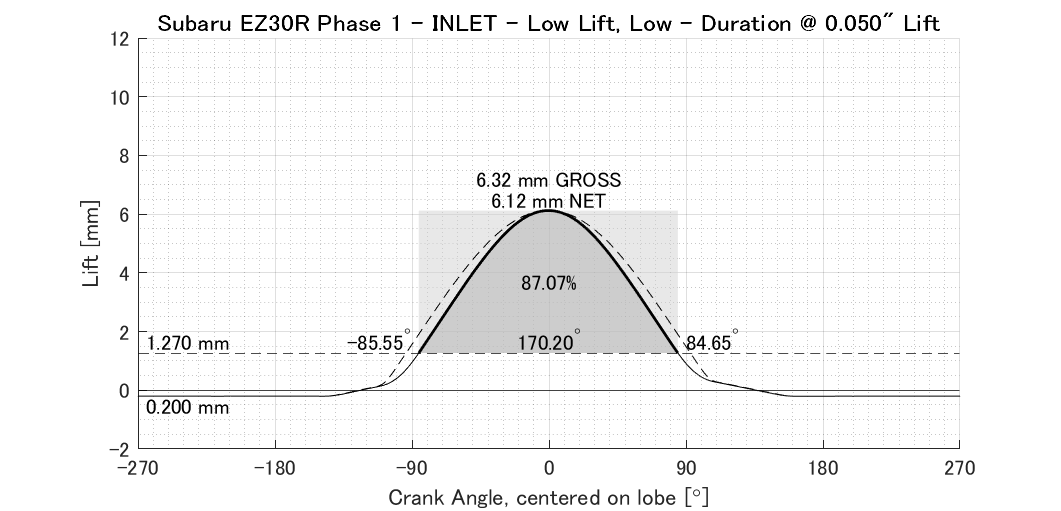

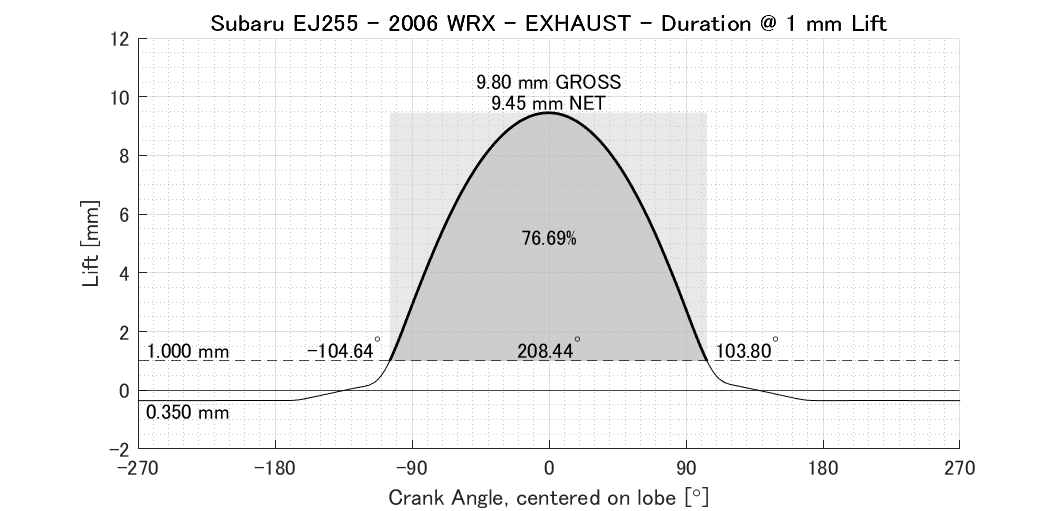

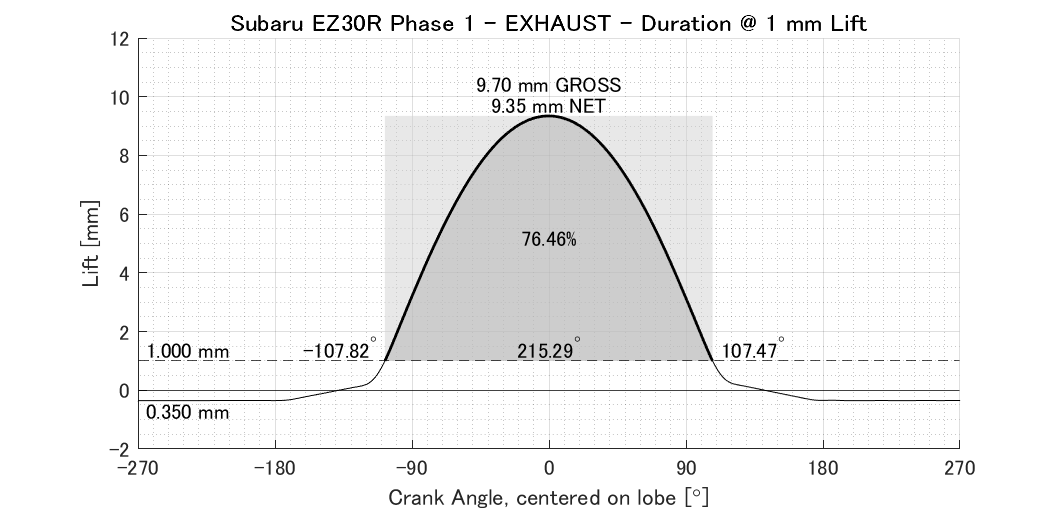

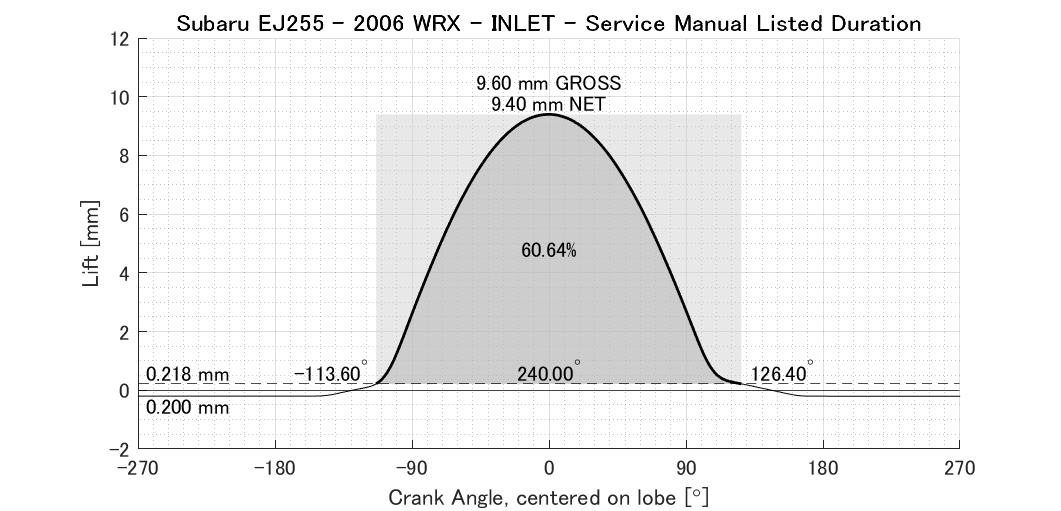

Having an EZ30D in my car, and knowing the EZ30R has an extra 20kW I’ve always been interested in the cam specs of that engine. I have seen a couple of numbers thrown around over the years, and they have always seemed a bit exaggerated. I became especially interested after having a head apart and seeing the interesting follower arrangement the AVLS system uses. I got the cams from those heads, and finally I have had the opportunity to measure them. I have also measured the bucket profile and derived the real valve motion. I have also measured the cams for an EZ30D and an EJ255 WRX (2006) for a comparison. MEASUREMENTS Engine Cam Clearance Gross Lift Net Lift Factory Spec At 1 mm Lift At 0.050" Lift Open Close Duration At Lift Open Close Duration Open Close Duration EJ255 Inlet 0.20 9.60 9.40 5 BTDC 55 ABDC 240 0.218 -102.23 103.80 206.03 -99.93 101.25 201.18 Exhaust 0.35 9.80 9.45 55 BBDC 5 ATDC 240 0.172 -104.64 103.80 208.44 -102.28 101.36 203.64 EZ30D Inlet 0.20 9.78 9.58 5 BTDC 55 ABDC 240 0.239 -105.30 105.96 211.26 -102.99 103.50 206.49 Exhaust 0.25 9.29 9.04 52 BBDC 0 ATDC 232 0.171 -101.42 101.17 202.59 -99.10 98.79 197.89 EZ30R Inlet HL 0.43 10.12 9.69 22 BTDC 48 ABDC 250 0.255 -107.18 108.18 215.36 -104.11 104.83 208.93 Inlet LL L 0.20 3.13 2.93 N/A N/A 147 0.246 -54.07 53.72 107.79 -49.76 49.35 99.12 Inlet LL H 0.20 6.32 6.12 N/A N/A 218 0.245 -89.26 88.61 177.88 -85.55 84.65 170.20 Exhaust 0.35 9.70 3.35 60 BBDC 6 ATDC 246 0.177 -107.82 107.47 215.29 -105.44 105.03 210.47 AVLS https://commons.wikimedia.org/wiki/File:Switching_tappet_for_SUBARU_EZ30_(INA).jpg The AVLS system in the EZ30R engine is a direct acting system with an innovative concentric split follower. For each valve there are a set out outer high lift lobes and an inner low lift lobe on the cam shaft. The inner lobe runs on the inner section of the follower and the high lift lobes run on the outer section of the follower. The inner section of the fowler acts directly on the valve stem and when not engaged the outer section is free to slide along the axis of the valve. Therefore by default the valve follows the low lift lobe. When activated, oil pressure moves a pin across that locks the outer section of the follower to the inner section and the valve then follows the high lift profile. The follower has curved surface, with the flat axis parallel to the cam centreline. The cross section of the surface is an arc, and there is a different radius used for the inner and outer sections. The inner section was measured to have a 43mm radius and the outer section was measured to have a 52mm radius. The inner section of the follower protrudes slightly. The lobes seem like they have a slightly different base circle diameter as well. 32mm vs 32.5mm. To measure valve motion for the EZ30R ALVS lobes a flat follower was used and then a correction was applied to account for the curved follower. SERVICE MANUAL SPECIFIED DURATION The valve timing specifications given in the service manuals appear to be with respect to the corners of the profile ramps. The ramps end at very low lift levels and so in a practical sense, the factory open and close angles can be described as the start and end of any visible movement. In terms of specifying the factory specs in terms of a check lift, the non symmetrical size of the ramps makes it a little misleading. The lead-out ramp is longer that the take-up ramp. None the less, the check lift for intake cams appears to be around 0.25mm and the exhaust cams 0.17mm. The lower peak acceleration of the EZ30R cams (discussed later) also seem to exaggerate the duration in the service manual. SPECIFICATIONS AT 1mm LIFT Aftermarket cams tend to spec cam duration at 0.050” or 1mm, which is when the valve is or close to being accelerated to its maximum velocity and hence is not affected by the ramps or the aggressiveness of the initial acceleration events. It is easier to compare camshafts using this measurement, hence why they are used for aftermarket cams SPECIFICATIONS AT 0.050" LIFT

Yeah, that's one of the cleanest ones I've seen... my daily driver has enough rust that the front of the rocker moves independently of the back of the rocker if I open my door into the stop...

So you tested it and found the timing does not advance with increasing engine rpm? It's probably just stuck, and needs penetrating oil and poking at until it frees up.

Kinda hard to tell much from those pics... But it doesn't matter much anyway. You're going to need to inspect the distributor. Shaft wobbles so much the rotor is hitting things? Time for bushings. Some part of the advance mechanism loose and jamming into the rotor? Repair. Etc. Find nothing wrong? Put in a new rotor and inspect periodically.

I'm having a hard time understanding your post. You're using the same engine and harness and ecu that you used in the rolled car, in the new car, but now it bucks? Or this is an entirely new swap? If it's all the same parts that worked before, it's obviously not incompatibilities between them or what the wiring harness supports. Or did you mismatch intakes when you originally built? Again, if it worked before, not the problem now. Since you're suspicious of the fuel supply, start with a mechanical fuel pressure gauge. Extend the hose long enough to route out through the edge of the hood and tuck under your windshield wiper. Take it for a test drive. Fuel pressure should be solid, and should go up 12 psi when you go from idle to full throttle. Does it buck at idle, or only above a certain amount of engine load? On your obdii scanner, use the live data mode (if it doesn't have live data, bin it and spend $50 on a new one), looking for any sensors that move in a sudden fashion, especially if it correlates with the bucking. If it's a fuel injection issue, an oscilloscope is really handy... Here's a couple pics from last time I was troubleshooting a bucking issue: https://imgur.com/a/RwWTdwG In these images, the jumpy green trace confirmed the bad component - MAF sensor.

Hi All, I’ve been learning from this wonderful site for half-dozen years, so let me start my first post with a hand-clapping thanks to the many people who’ve helped me along. I bought an ‘83 GL new, kept it all these years, and in 2021, swapped in a 2000 Impreza 2.2, California spec. My fun with that wagon ended with a roll-over, last year. I’m lucky to have found a running Brat (1985) and began pulling over the parts from the wagon, which included the 15” wheels and 2.2 fuel injected engine, wiring harness, and pretty much all the interior fittings. Now to the point of this post. I am unable to make the engine run in the Brat as it did in the wagon. The engine starts, idles smoothly, and can have full power. But intermittently. The stutter/cut-out is throughout the whole range of throttle, and depending on the rpm, can best be called ‘bucking’. The fuel system in the donor car had an in-tank pump with sensors for fuel level, pressure, temperature, and control valves for drain and purge (not the purge valve at the fuel rail). None of the sensors and valves came over to the Old Gen cars, although I did preserve the sensor wires to the area of the ECU. I ran a 5/16” line from an external Ford fuel pump to supply the engine, and used the original 1/4” supply as a return, and the 3/16” as a vapor line from engine to tank. That worked fine on the wagon, but I suspect the current problem is related to this set-up. I’ve replaced a lot of the sensors: front O2 at the exhaust, knock, throttle position, engine block temp, crank sensor, and tested the purge control valve to be operational with voltage, also the ECU with another. Also new plugs when moving the engine to the Brat, and then a new coil. The plug wires were new 5,000 miles ago, so don’t think the problem is in the ignition. I realize this is a vague description of what is in place right now, and hope someone will be interested and start a conversation to help with the next step. I’m wondering if anyone has opinion/experience with the Cali-spec engine and whether my wiring loom can support an older (Gen1) intake and its ECU. I’m feeling pretty desperate and leaning toward finding a mechanic willing to work on this swapped set-up, with the thought that a more sophisticated diagnosing kit could narrow down the issue, whether the ignition or fuel is quitting. I’m working with a simple OBD reader, multimeter, pin-out chart for the ECU, and a 72- year old brain. It’s tough. Thanks for your time.

Hey bushytails, Thanks for that mini procedure for an easy check of the mechanical/centrifugal advance. I might have a tinker if I get the chance before it disappears. I don’t think the fuel mixture is rich as I changed the carb due to an idle issue. The replacement stock hitachi was known to run well and I haven’t seen anything different than expected. No black smoke indicating running a rich mixture and no running on that’s common with a rich mixture and engine shut down. Thanks for all of your thoughts on this. I think it can safely be put down to an issue with the mechanical/centrifugal advance. It’s interesting that it runs so well with static timing set at 20° BTDC. Cheers Bennie

Howdy all, I have my 88 GL in the shop getting its engine resealed. I got an update from them an apparently the distributor rotor had melted in the distributor, or potentially tore it somehow? It wasn't melted/torn at the head, but at the base of the rotor head. Luckily it turns out I have an extra, however would anyone know why something like this would have happened? It was an older part, and I don't when it was last replaced, so it could be that it was just on the way out anyways. I hadn't had any issues with anything ignition or engine electrical before. I'm a bit worried that they're going to put the replacement in and the same thing might happen, it not immediately, maybe a few 100 miles down the freeway. Attached are some photos of the damage the shop sent to me. Any wisdom would be appreciated. Thank you! -Philly

From what I can see, that car looks surprisingly solid. Nice find!

Have you taken this thing to a muffler shop and let them take a look at it? They’re probably going to be in the position to tell you what’s going on.

First post! Here are some pics of my 88' GL. I call her Constance. I have just about a million photos of her, but these are some of my favorites. Everything is stock except the exhaust which custom made by the last owner, nothing loud just not stock. Not exactly sure why it was done but it's not an issue, so I don't mind. Also, the rims were painted black which I'm a huge fan of. -Philly

Oh wow, didn't foresee that issue with brake-to-strut clearance! Would be interested to see another angle of that.

Yes, the weights and such are the mechanical advance. With the vacuum advance disconnected, slowly rev the engine up. The timing should advance proportional to engine rpm, to about 3000rpm or so. I don't have an advance curve for the ea82 handy, but it should just smoothly increase with rpm until it reaches a limit around 2-3k. Another possibility is your mixture is way rich, and you're hiding it with timing. Overly rich mixtures burn slower and need some extra timing to compensate.

Vacuum advance works - tested with a hand vacuum pump watching the mechanism in the dizzy and the same when at idle. Timing done at idle with the vac advance disconnected and plugged. Idles well at 8° or 20° of timing. Just completely gutless when set at 8°, slowly pulls up the revs when past 3000rpm with the foot flat to the floor. When doing the same with timing at 20° it will happily keep pulling hard well beyond 4500rpm - and runs the way you’d expect it to. No vacuum leaks, checked over all of these and replaced several hoses as a result of vacuum leakage. It doesn’t ping or run hot. One thought I had was the centrifugal weights have an issue and it’s running purely off the vacuum advance - and the timing set at 20° counteracts the lack of centrifugal advance. Thanks for your thoughts on this fellas. Cheers Bennie

Thanks man, I really appreciate it! Yes, it's 2WD 5MT. I'm going on vacation tomorrow for a week so I'm going to have to tackle it when I get back. I wanted to do more testing before I dropped ~$100 on one of those resistors and the one I have now definitely looks to have been replaced. Good call on the radiator.

Is that a 2wd? Replace the wheel bearing by replacing the rear axle. Blower circuit is mildly annoying. If it won't work at all, it's not the resistor - the resistor isn't used on high speed. There's a hidden glass fuse and a round relay tucked up in the dash somewhere to the left of the steering column iirc. The relay is turned on by one of the accessory fuses and a ground wire to some screw somewhere that I don't remember, and the power to the hidden fuse comes straight off the fusible link. This provides positive to the blower motor. Negative to the blower motor is through the resistors (except on high) and the switch in the dash. Pop the plug to the blower motor and get a test light out, see if you're missing positive or ground. If you have no positive, then dig under the dash for the relay and hidden fuse. If you're missing ground, then check the speed switch in the dash and its ground. If you have both, might need brushes in the motor. Just to say it again, **hidden fuse**. It's a clearish/white plastic glass fuse holder just randomly dangling off the harness tucked up in the dash and not accessible, and this is the fuse that powers the blower. The only available radiators are aluminum these days. If you use one, you must install a reservoir like a newer car has. From what I can tell, running them without a reservoir, with an air bubble in the top like these cars normally run with, causes them to instantly crack due to thermal stress as the air bubble moves around.

Best picture I have of the condenser fins (well OK this is one of the worst areas). Replaced the condenser, slightly different (a little shorter) but it fit alright. Made some brackets and put the worst paint job I've ever applied on them for a puller fan on the driver's side of the radiator, wired that in with the driver's side pusher fan. Also turned up some bungs for temp sensors and had someone weld them on top and bottom of radiator. Hard to see in these pictures but the puller fan has some clearance to the engine. I glued a couple pieces of sheet metal on the fins where the center of the fans had been rubbing a bit. Have had that problem in the past and this seems to solve it. Sealed the sides between the radiator and condenser so hopefully less air can go around the radiator. B did most of the fab work/fitting for a fan/heater core bracket to fit a 1980's Ford Econoline heater core (slightly bigger than the Dodge one that started leaking). Set this up so we can add a second one underneath after we remove the ABS unit. So far though, even without the extra heater core, temps seem stable even driving in stop and go traffic in 90+F weather with the AC on. And the AC works well. Cruise has not worked a few times I've driven the car in the last month or so, but then will work the next time I drive it, and usually works. One time I drove the car the clutch engagement was near the end/bottom of the travel, it's normally (before and since then) closer to the middle or top/start of the pedal travel. All other times the clutch has felt normal. After the last off road trip and I washed the car the rack had leaked some power steering fluid out of the slightly torn driver's side rack boot. Power steering was not always self centering with poor assist at low speeds for a while and the reseroir was very low but seems to be back to normal now and hasn't noticeably leaked in a while. Epoxied a couple of the studs on the hood scoop. Used a screw in the one broken off clip and clearanced the steel baffle plate so I can get at another one of the hood scoop nuts with the steel plate installed. Car has pulled to the right slightly for a long time, we've checked the alignment a few times and it always seems good. The right rear brake seems to drag more than the others. I was going to replace the caliper and then discovered one of the bolts was starting to rub on the strut housing due to brake pad wear. I unbolted both the calipers and ground clearance on the strut housings where those bolts were hitting (or going to hit). So far this doesn't seem to have solved the problem but I might drive it a bit more first.

https://imgur.com/n71zW34

First joined this forum 20 years ago when I had an 84 hatch that I had bought sitting in a field while I was in high school. At the time, I had a 91 Legacy. Drove that till it blew up and then picked up an 83 Brat that I found for sale on here and picked up another 83 for parts. Had a 2000 RS coupe in college, then a 95 Outback beater. Sold the RS and got an 05 STi, sold it in 2016 and got back into an 04 WRX in 2022. Picked up this 84 GL 2 weeks ago as if I needed another project but I am not poor on vehicles - also have a 2019 Tundra and 2015 Rav4. This thing was in surprisingly good shape for being an east TN car. With that, it does have its issues. I have on my work bench a new rear wheel bearing to install, hatch struts, will need a radiator as I see it dripping. I am also trying to nail down why the blower isn't working. I pulled the fan resistor switch last night and it showed continuity but I need to see exactly what ohm values it's supposed to have. Nothing like reading 20+ year old USMB posts. We still like pics on here?

As a temporary measure I just got a universal bracket to hold the pipe in place. I'm still having trouble with my exhaust, though. I've been able to attach the hanger, which helped with the sag in the connection, I replaced the gasket and the bolt set. I don't see any holes on the pipe but after the engine is running for about 90 seconds there's a smoke that comes off the pipe around the flange. It looks like the smoke is radiating from the pipe just before the flange on the manifold side. I tried using soapy water to see if I could find any bubbles but I'm not seeing anything. It doesn't seem like it's an oil or any other sort of liquid that's burning off because it's always done this since I got the car a couple months ago. If there was any residue I figured it'd have burned off by now, especially after I've wiped it down. There's no smoke coming out the tail pipe, it's just around that connection between the exhaust to intermediate pipes. Any suggestions of what to look for? I've been using a thermometer and it doesn't seem like anything is overheating, everything is in range as far as I can tell. https://drive.google.com/file/d/15sDwiU7-1OyZq7SzNpBhi5cRXYKuRaKj/view?usp=sharing edit: and one other thing instead of starting a new thread... Apparently the transmission is supposed to be grounded and I've got this black wire just hanging loose. I'm wondering if this is the ground wire and if it's supposed to ground to this spot since it seems to be just the right length: https://drive.google.com/file/d/166thpiZb3AhqsFjT47-IHUJOek_bpj4j/view?usp=sharing

Just me personally, but I run the timing at whatever the engine like’s best. To me, the factory gives you a starting point. I’m sorry, I know that doesn’t answer your question.
