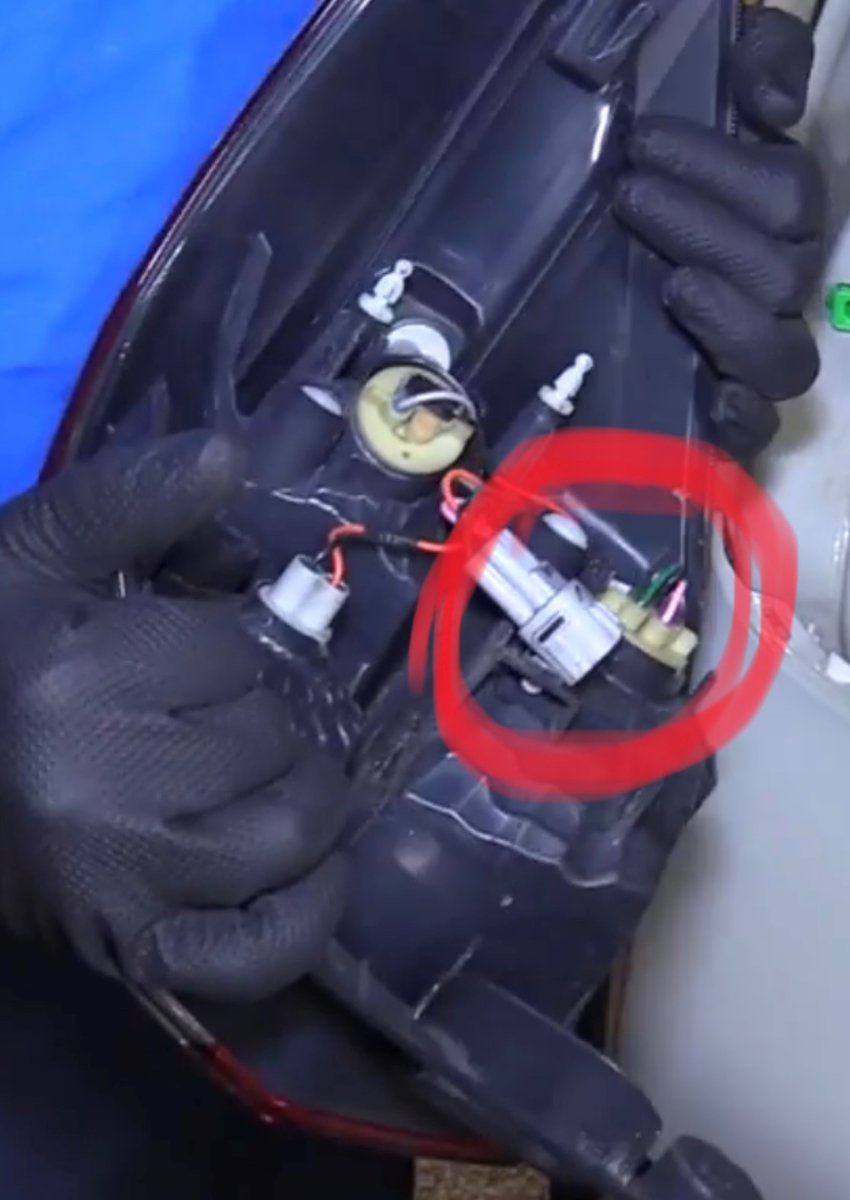

Hi there! I'm trying to replace my left tail lamp (busted it while unloading a kayak), I'm wondering if it's possible to remove the socket and wire part # 84981FJ070 from the broken tail lamp in order to place it in the new tail lamp I bought? If so, how do you get it out of the old assembly? I'm not seeing a release tab or anything. Thank you!!! I'm just a normal girl trying to save some money by doing a repair myself
On our 2005 Outback, our backup lights have been collecting water during rainstorms. Usually it appears as heavy condensation or fog, but after a big rain when I open the tailgate hatch and remove the backup light bulb, water runs out of the assembly. So far it has not shorted out the electrical outlet. I searched the forums but had a hard time finding exactly this problem on this car, so I just want to provide some info and couple helpful links for someone down the road. This is not a difficult repair with basic tools, but do allow at least a couple hours, more like 3 or 4 if you take your time. It took me a long time because once I got the tailgate bezel off (the part where the backup lights are), there was a lot of clean up to do - and of course you want to take your time on a careful reassembly. Body panel clip removal tools are very handy, but not essential. Harbor Freight has a cheap set. I was careful, but still managed to break one of the clip anchors and two bolts. This necessitated getting creative with a different screw and anchor, which took a while to figure out. Both of the breaks were caused by the nut/bolt being rusty, and not loosing. You will need some silicone sealant for the lights themselves, and 3M Strip-Calk, which is about $17. The Strip-Calk is specifically made for assembling body parts and light housings, etc. This was originally described to me as, "Dumdum comes in 12 inch long string sections (like the very thin red licorice)". I also used a lot of 409 and paper towels getting everything nice and clean. I have noticed in the past that most leaks are associated with a build up of dirt and grim in hidden or hard to reach areas. This first video covers removing the interior panels. You do not need to remove the long horizontal panel above the window. Also, on the rubbery weather striping, the small white clips popped right out, which is better than separating them from the strip as Tony does. I taped the strip back in place so it would not be damaged if the tailgate closed. You need to unclip one electrical connector, which on my car was kind of a pain. In this second video, Bruce removes all those interior panels, but also the tailgate outer bezel with the reverse light assemblies. If you only have time for one video, watch this one. I think Bruce misses a set of nuts on each side of the tailgate bezel, far left and right. They are covered by skinny black panels, which I only partially removed (I could not budge the visible clip, but the hidden ones came right off). If you have removed all the 8mm nuts inside the tailgate and the bezel does not budge, look for those other four nuts. Besides using the Strip-Calk on each side of the light foam and around all the bolt hole locations, I put a strip along the rubber edge below the window, wear the bezel makes contact. That is the first place for water to enter under the bezel recesses. I used the silicon to seal all around the light assembly, where the clear part meets the black assembly. That should about do it. Time for a beer.
legacy93wagon posted a topic in 1990 to Present Legacy, Impreza, Outback, Forester, Baja, WRX&WrxSTI, SVXHello, I am trying to hook up a 4 pin trailer light kit to my 93 Subaru legacy. I have Probed out: Break light Turn indicator ( both sides) and Running lights. The questions I have ( and have searched for) are : -The 4 pin setup lists the break and turn signals as the same single connection, but when I probe the plugs to the tail lights, The brake light and the turn signal wires are not on together for either function. How would one go about wiring this ? ( right now I have it wired for running lights and turn signals) -Is there a wiring harness somewhere further back I should be tapping into vs right at the tail lights ? The Wiring kit I have simply says : " Wiring guide Green wire to right turn / stop Yellow wire to left turn / stop Brown wire to tail lights White Ground" Thanks for any help with the issue directly or being pointed to a thread video or image I was not aware of,
My brother took my BRAT out for a ride a few weeks ago and got rear ended. It was a minor crash and all the really suffered were the tail lights - one cracked and the other smashed. Anyone know where to start on this? Would pay top dollar for new R or L side, both would be great. email me please: firstname.lastname@example.org Happy Holidays, Jack
